TWO colors available.

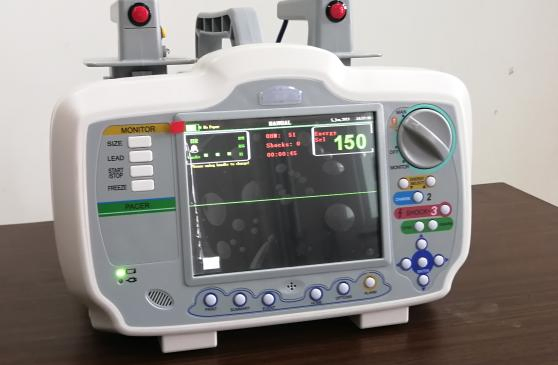

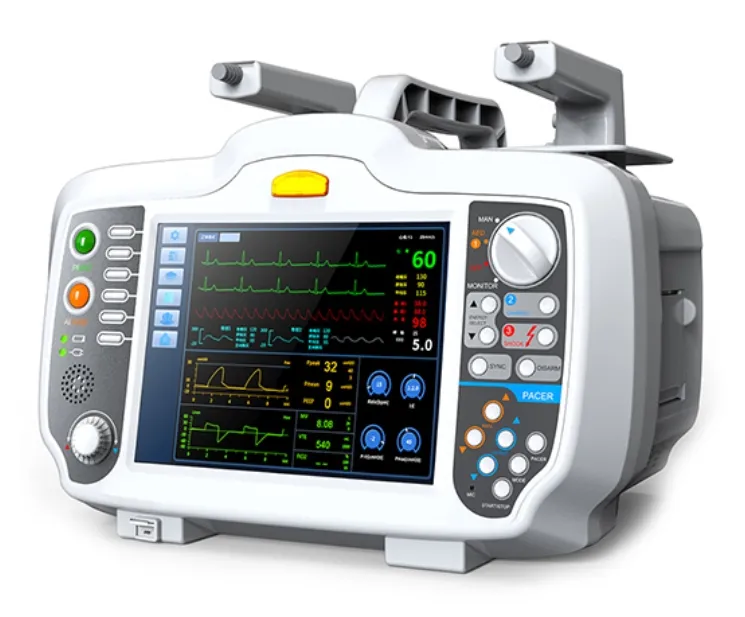

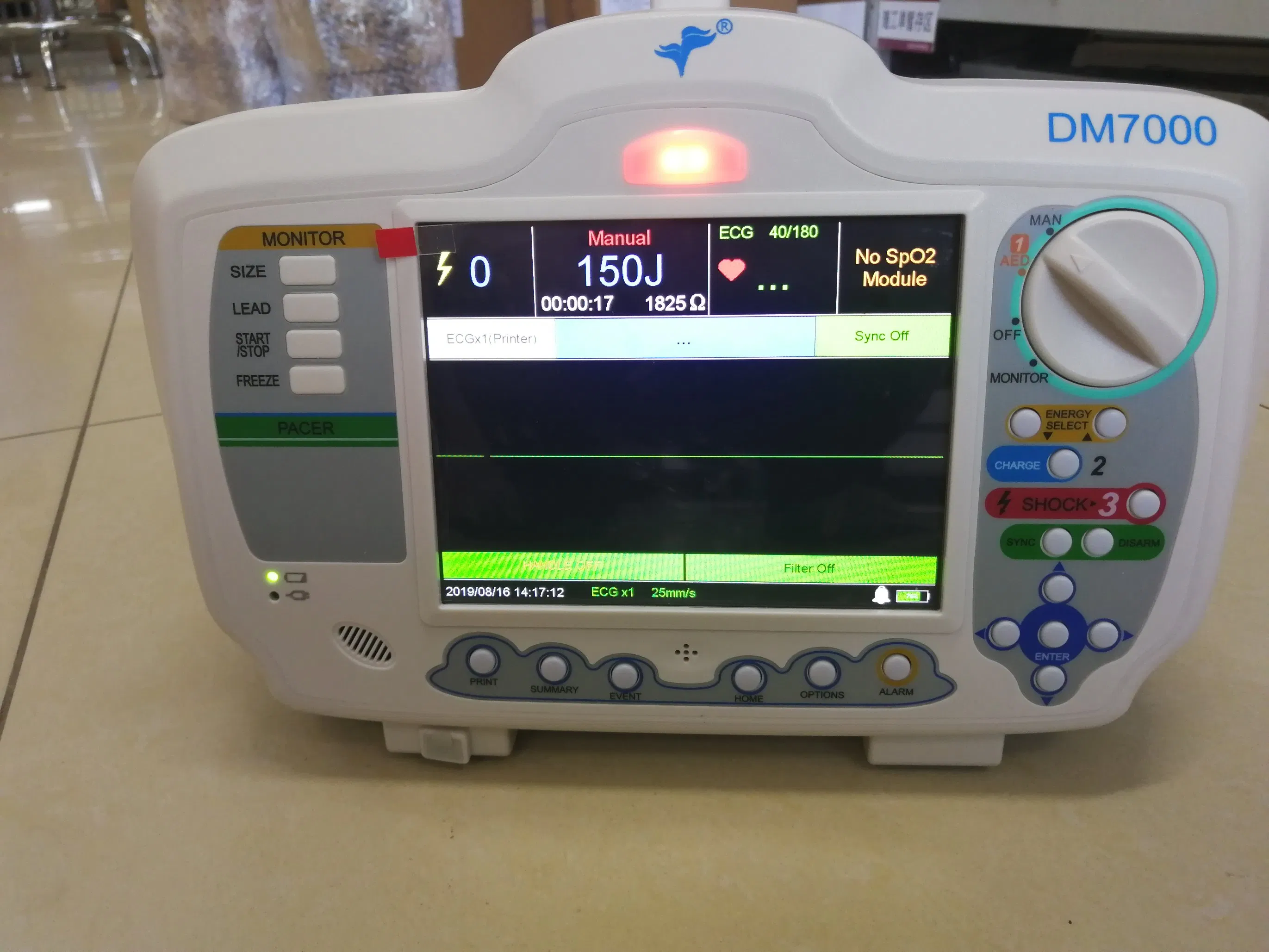

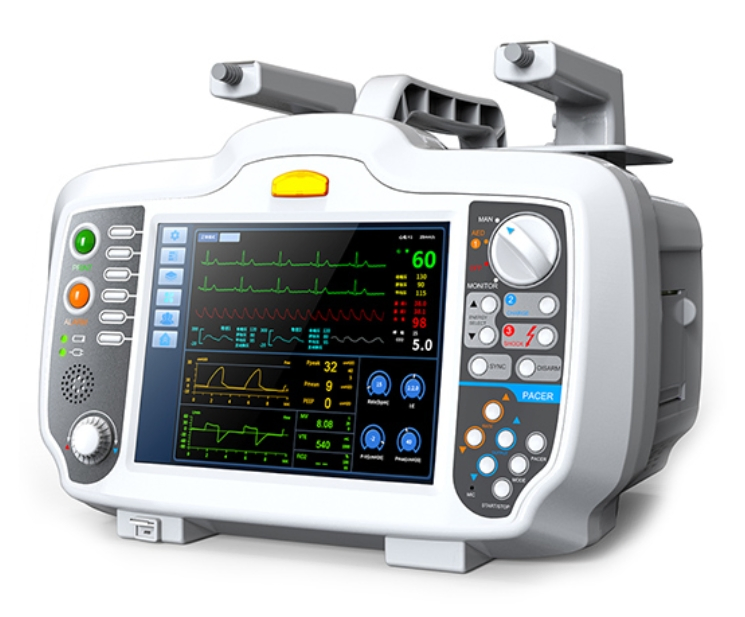

DM7000 is a defibrillation device, which can meet your clinical needs from Basic Life Support (BLS) to Advanced Cardiac Life Support (ACLS).

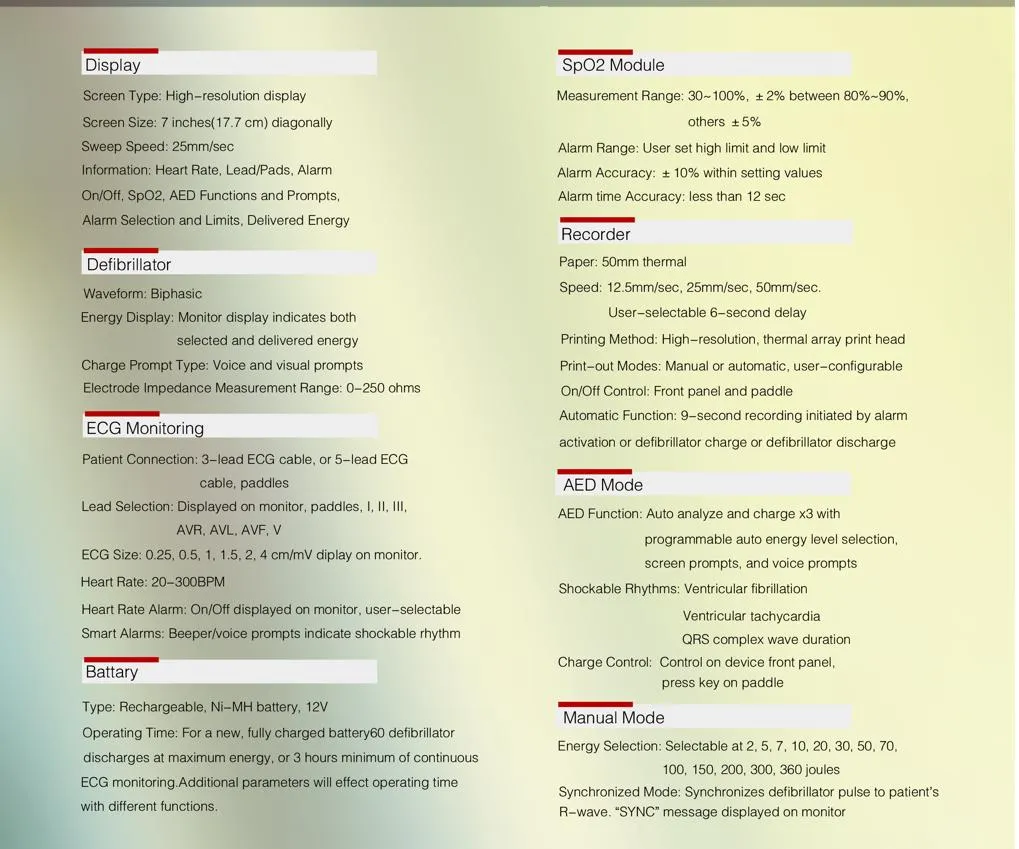

Screen Type: High-resolution display
Screen Size: 7 inch (17.7cm) diagonally
Sweep Speed: 25mm/sec
Information: Heart Rate, Lead/Pads, Alarm on/off, Spo2, AED Functions and Prompts, Alarm Selection and Limits, Delivered Energy.
Waveform: Biphasic
Charge Time: Less than 7 seconds with a new fully charged battery.
Energy Display: Monitor display indicates both selected and delivered energy.
Charge Prompt: Voice and visual prompts.
Impedance Range: 0-250 ohms.
Connection: 3-lead ECG cable, 5-lead ECG cable, or paddles.
Lead Selection: I, II, III, AVR, AVL, AVF, V.
ECG Size: 0.25, 0.5, 1, 1.5, 2, 4 cm/mV.
Heart Rate: 20-300BPM with user-selectable alarms.
Smart Alarms: Beeper/voice prompts for shockable rhythm.
Type: Rechargeable Ni-MH battery, 12V.
Operating Time: 100 defibrillator discharges or 3 hours minimum of continuous ECG monitoring.
Range: 30~100%
Accuracy: ±2% between 80%~90%, others ±5%.
Alarms: User set high/low limits; accuracy less than 12 sec.
Paper: 50mm thermal.
Speed: 12.5mm/sec, 25mm/sec, 50mm/sec.
Modes: Manual or automatic (initiated by alarm or discharge).
Auto analyze and charge x3 with programmable auto energy level selection, screen prompts, and voice prompts.
Shockable Rhythms: Ventricular fibrillation with amplitude >=140ms.
Energy Selection: 2, 5, 7, 10, 20, 30, 50, 70, 100, 150, 200, 300, 360 joules.
Synchronized Mode: Synchronizes pulse to patient's R-wave. "SYNC" message displayed.
