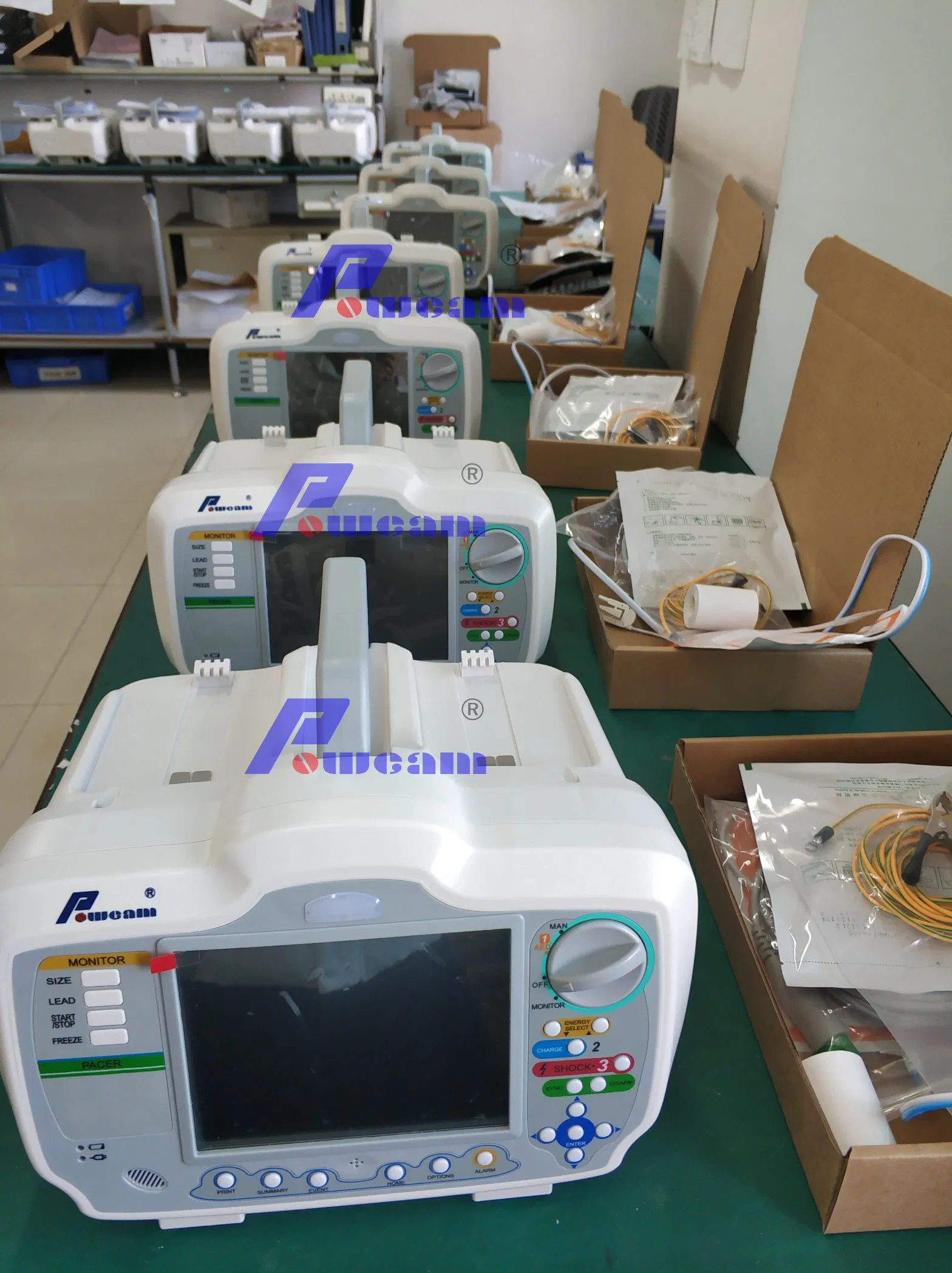

AED biphasic defibrillator with monitor function can meet all of your clinical requests from Basic Life Support (BLS) to Advanced Cardiac Life Support (ACLS).
Technical Specifications

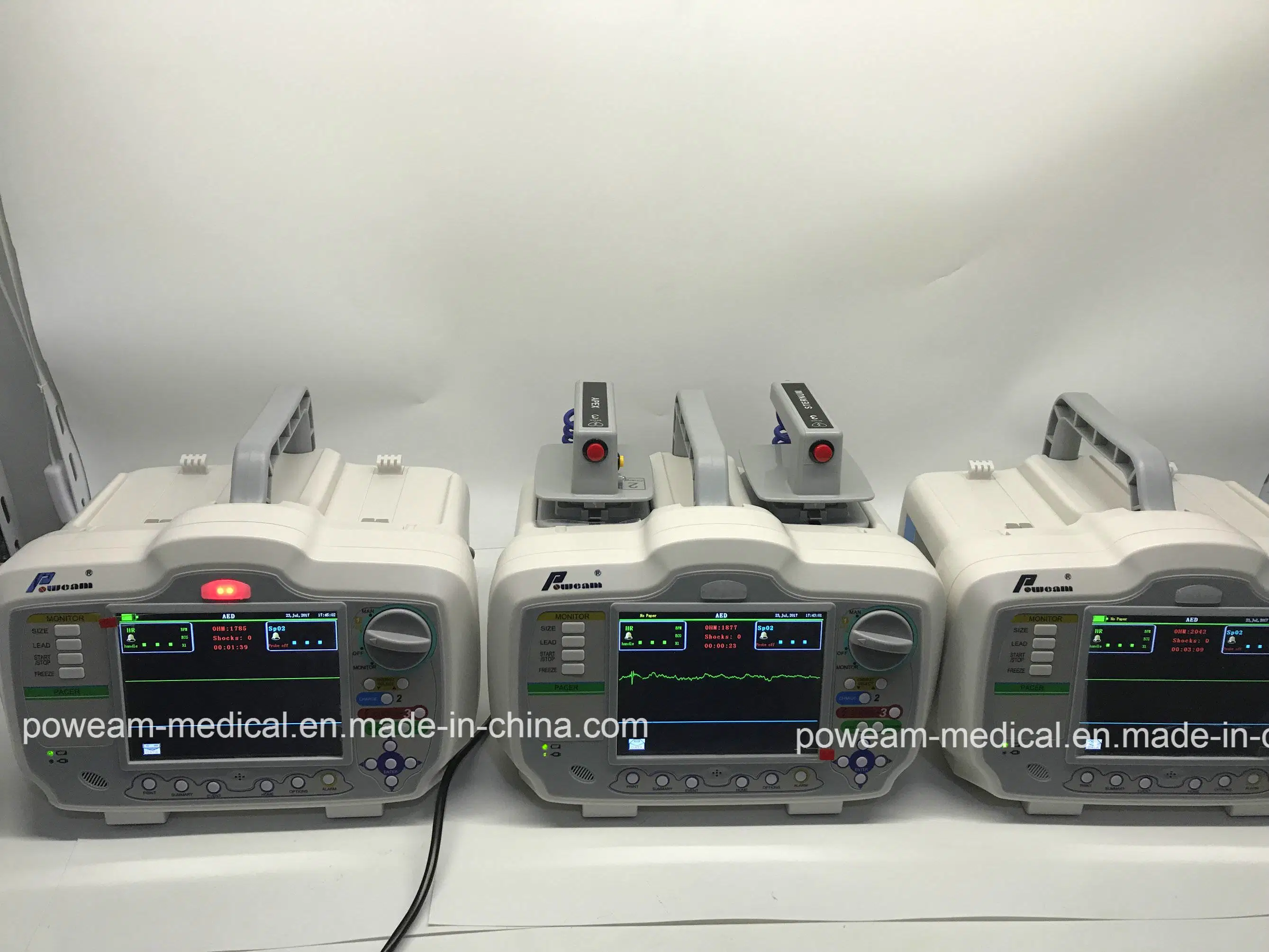

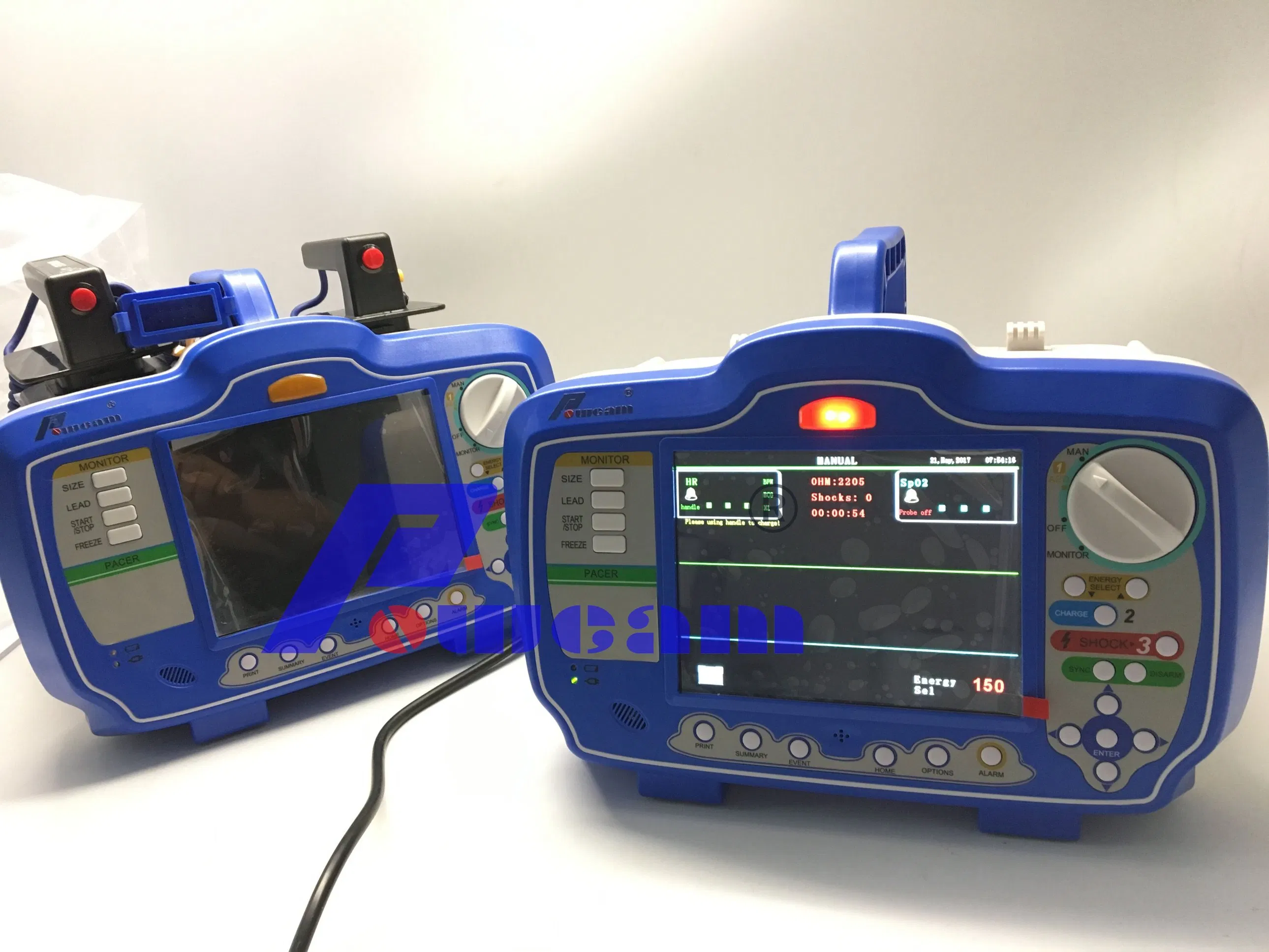

Display: 7 inch high resolution LCD display Sweep Speed: 25mm/sec Information: HR, Lead/Pads, On/Off Alarm, SpO2, AED Functions and Prompts, Alarm Selection and Limits, Delivered Energy.
Key Features
Waveform: Biphasic technology
Charge Time: Less than 7 seconds with a new fully charged battery
Energy Display: Monitor indicates both selected and delivered energy
Charge Prompt: Voice and visual prompts for user guidance
Impedance Range: 0-250 ohms measurement
Monitoring Modules
ECG Monitoring:
Connection via 5-lead/3-lead ECG cable or paddles
Lead Selection: I, II, III, AVR, AVL, AVF, V
Heart Rate Range: 20-300 BPM with user-selectable alarms
SpO2 Module:
Measurement Range: 30~100%
Alarm Accuracy: ± 10% within setting values
Recorder & Battery
Thermal Recorder: High-resolution printing at 12.5/25/50 mm/sec. Supports manual or automatic 9-second recording initiated by alarms or discharge. Battery Life: Provides 60 discharges at maximum energy or 3 hours of continuous ECG monitoring.
Operating Modes
AED Mode: Auto analyze and programmable auto energy level selection with voice prompts. Manual Mode: Selectable energy levels: 2, 5, 7, 10, 20, 30, 50, 70, 100, 150, 200, 300, 360 Joules. Synchronized Mode: Synchronizes pulse to patient's R-wave.

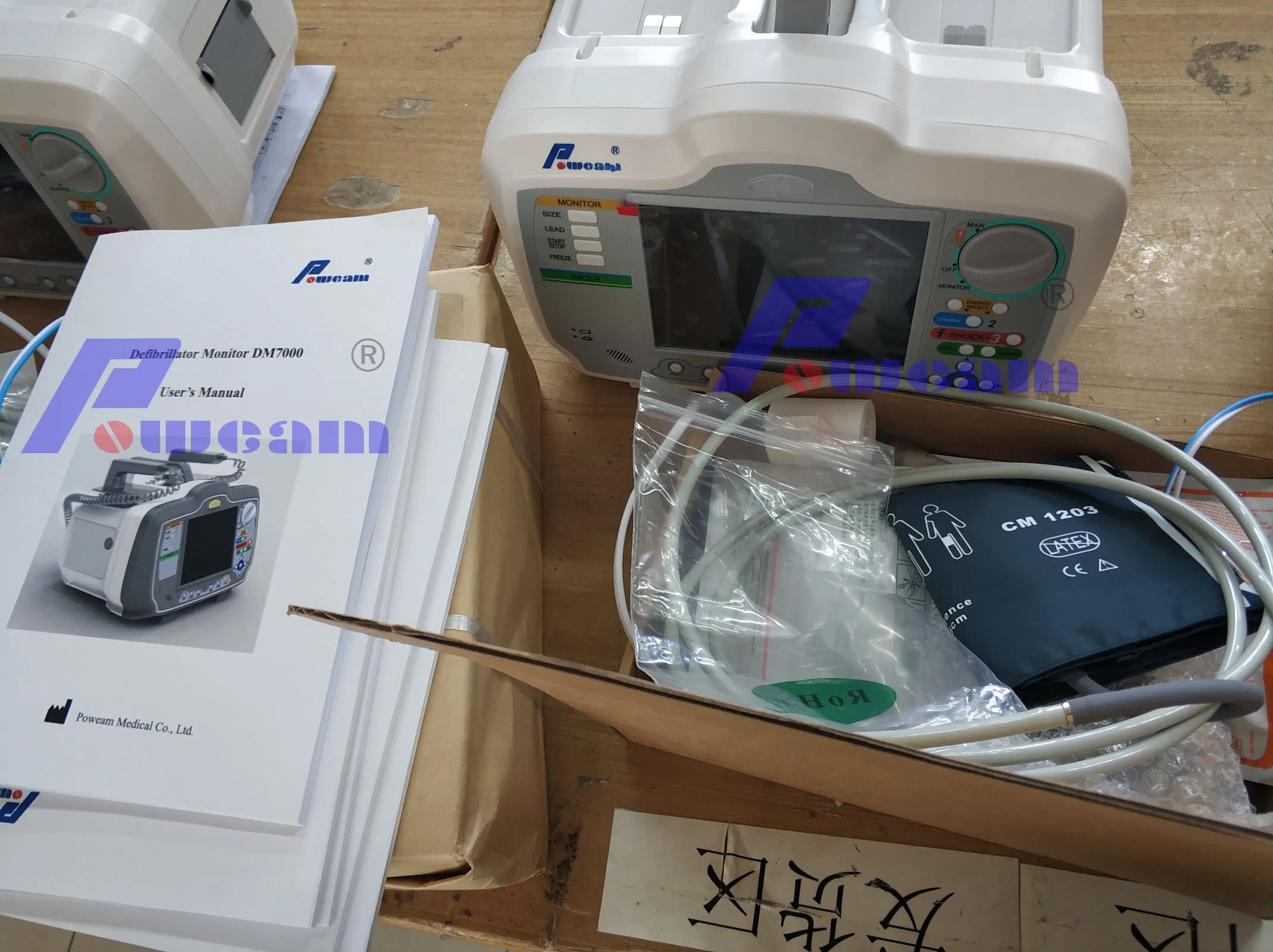

The DM7000 utilizes Biphasic waveform technology, which is designed to be effective for defibrillation while using lower energy levels.
How long does the battery last on a full charge?
A new, fully charged Ni-MH 12V battery provides approximately 60 discharges at maximum energy or a minimum of 3 hours of continuous ECG monitoring.
What is the maximum energy level in manual mode?
In manual mode, users can select energy levels up to 360 Joules, with multiple increments starting from 2 Joules.
Does the device provide guidance during an emergency?
Yes, the device features both voice and visual prompts to guide the user through the AED process and charging cycles.
Can this device record the event data?
Yes, it includes a built-in high-resolution thermal recorder that can print ECG data manually or automatically when triggered by an alarm or discharge.
What parameters can be monitored on the screen?
The 7-inch LCD displays Heart Rate (HR), Lead/Pads status, SpO2 levels, AED functions, delivered energy, and alarm limits.
