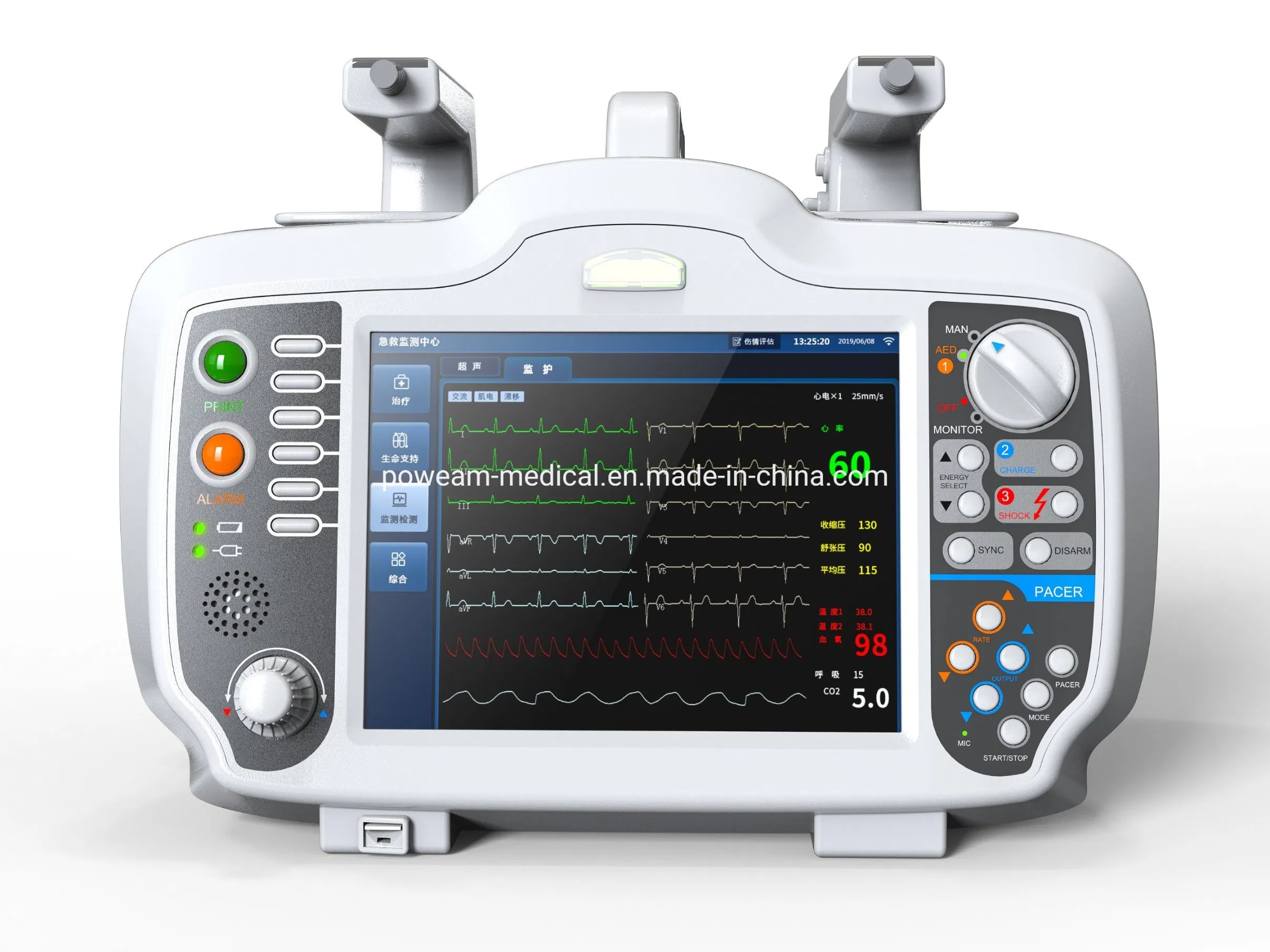

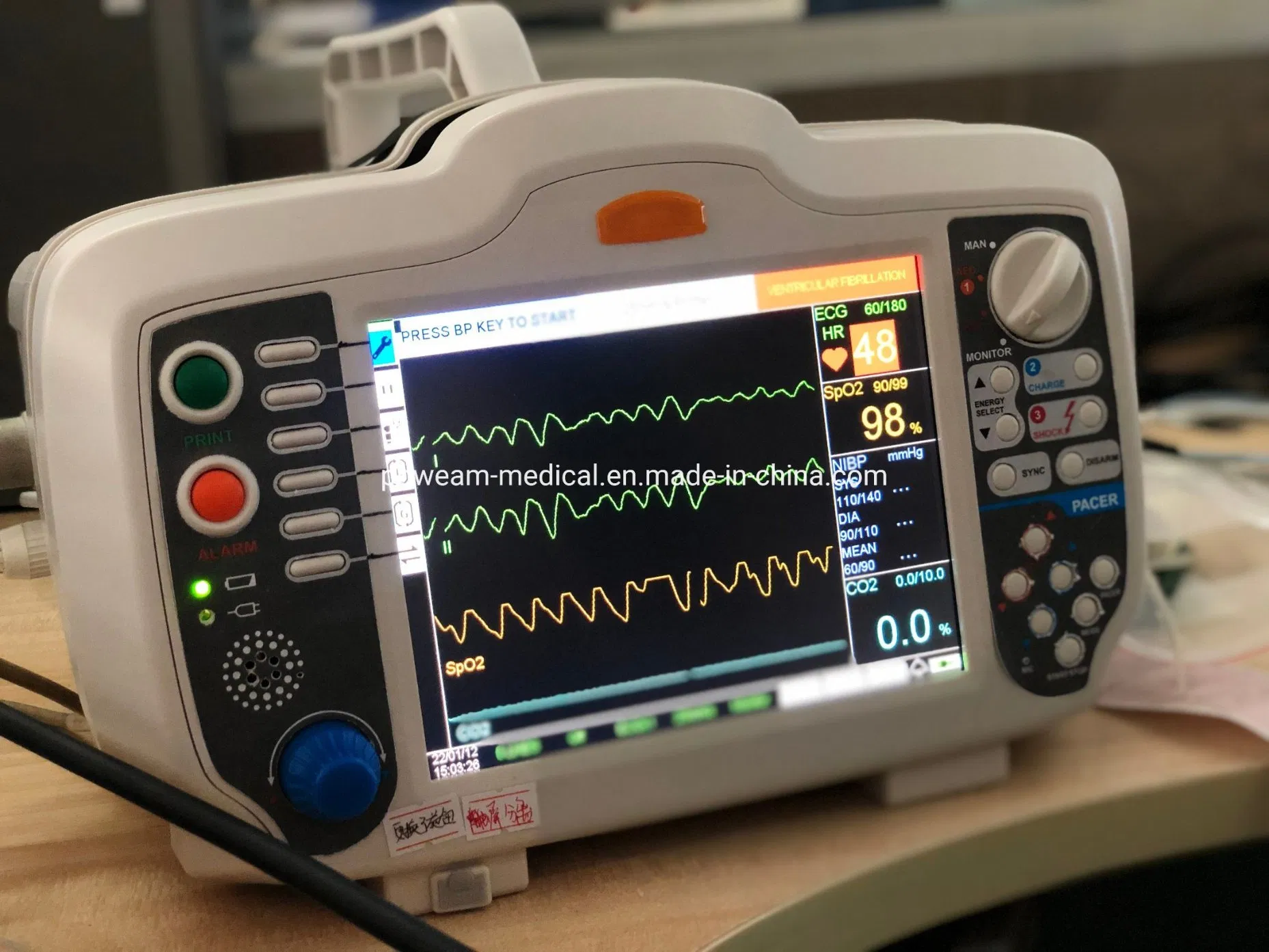

Display Specifications

Type: 8 inch high resolution LCD display

Sweep Speed: 25mm/sec

Information: HR, Lead/Pads, On/Off Alarm, SpO2, AED Functions and Prompts, Alarm Selection and Limits, Delivered Energy.

Defibrillator Features

Waveform: Biphasic

Charge Time: Less than 7 seconds with a new fully charged battery.

Energy Display: Indicates both selected and delivered energy.

Prompts: Voice and visual prompts.

Impedance Range: 0-250 ohms.

ECG Monitoring

Connection: 5-lead or 3-lead ECG cable, paddles.

Lead Selection: I, II, III, AVR, AVL, AVF, V.

Heart Rate: 20-300 BPM with user-selectable alarms.

Smart Alarms: Beeper/voice prompts for shockable rhythms.

Modules & Recorder

SpO2 Range: 30~100% (± 2% accuracy between 80%~90%).

Recorder: 50mm thermal paper.

Print Speed: 12.5mm/s, 25mm/s, 50mm/s.

Modes: Manual or automatic (9-sec recording on alarm/charge).

Battery Power

Type: Rechargeable Ni-MH battery, 12V.

Operating Time: 60 discharges at max energy or 3 hours minimum continuous ECG monitoring.

Operating Modes

AED Mode: Auto analyze and charge with programmable energy levels and voice prompts.

Manual Mode: Energy selection from 2 to 360 Joules.

Synchronized Mode: Synchronizes pulse to patient's R-wave.
