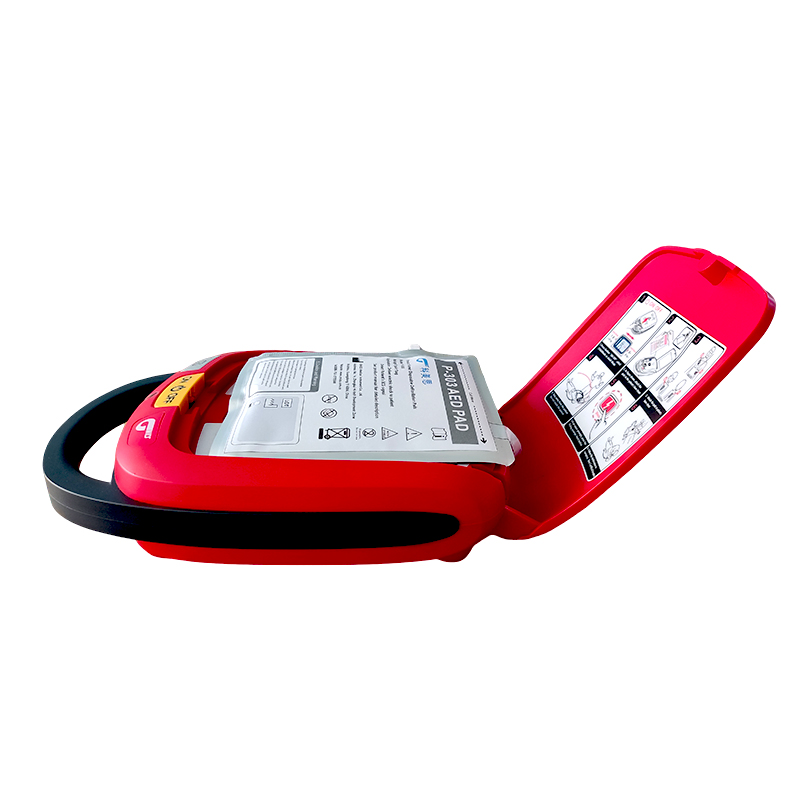

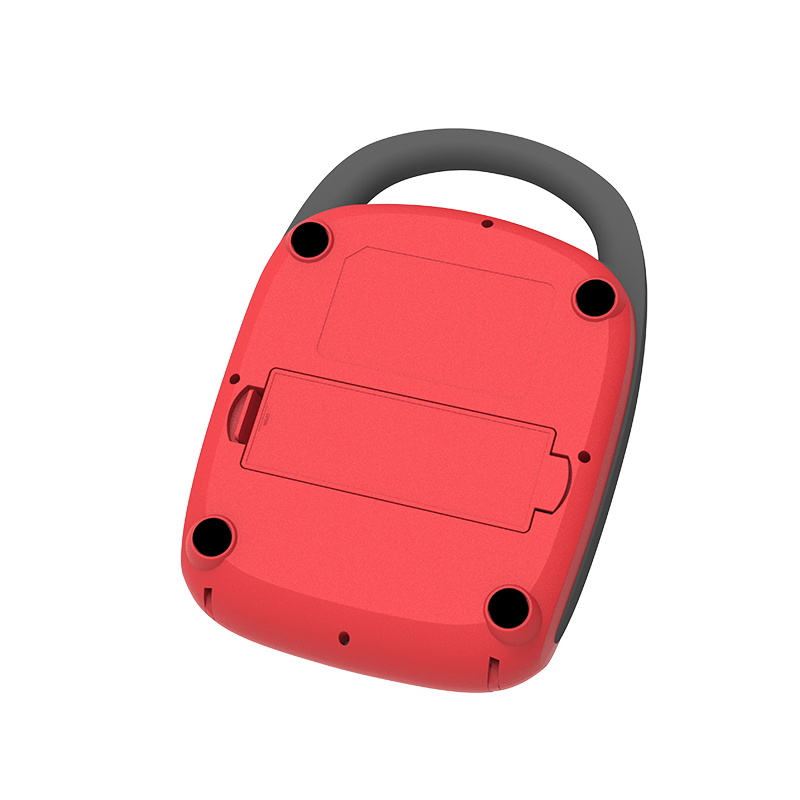

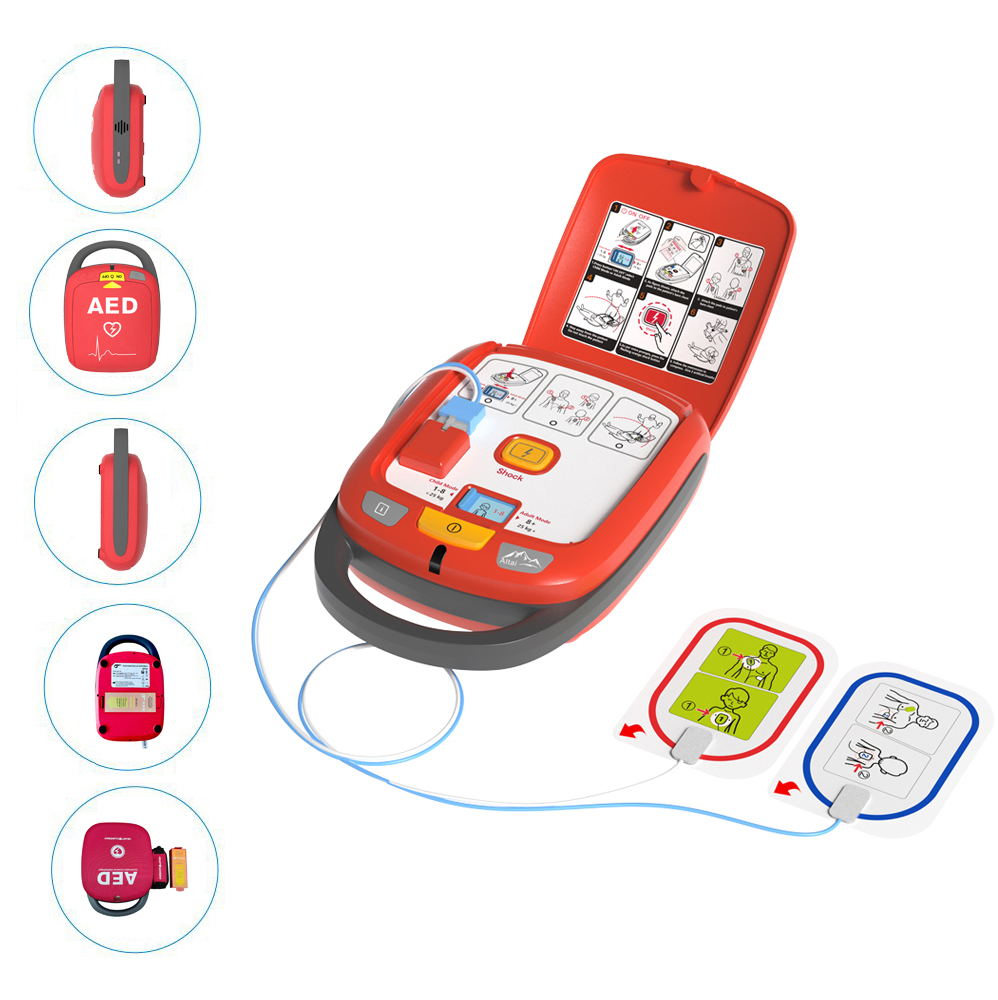

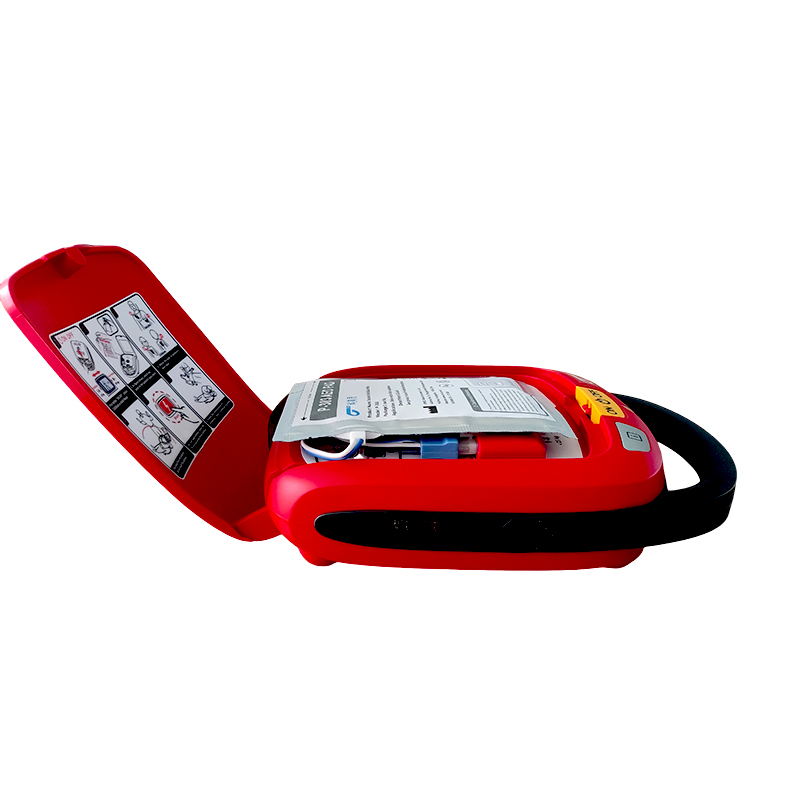

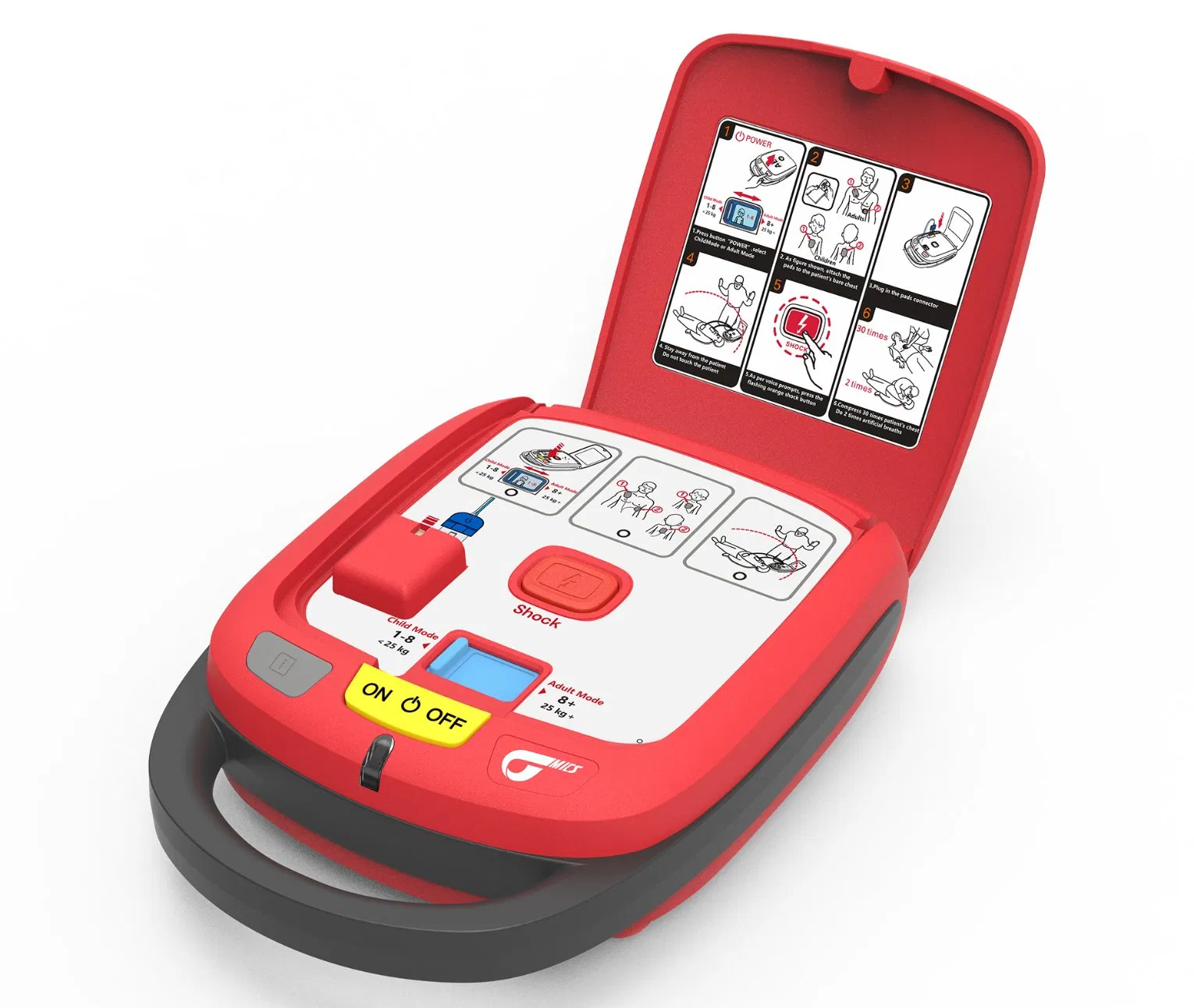

Automatic External Defibrillator (AED) with Low Energy Bte, Adult/Pediatric Pads, Bluetooth
Automatic External Defibrillator (AED) with Low Energy Bte, Adult/Pediatric Pads, Bluetooth
Automatic External Defibrillator (AED) with Low Energy Bte, Adult/Pediatric Pads, Bluetooth
Automatic External Defibrillator (AED) with Low Energy Bte, Adult/Pediatric Pads, Bluetooth
Automatic External Defibrillator (AED) with Low Energy Bte, Adult/Pediatric Pads, Bluetooth
1 / 5
Automatic External Defibrillator (AED) with Low Energy Bte, Adult/Pediatric Pads, Bluetooth
Automatic External Defibrillator (AED) with Low Energy Bte, Adult/Pediatric Pads, Bluetooth
Automatic External Defibrillator (AED) with Low Energy Bte, Adult/Pediatric Pads, Bluetooth
Automatic External Defibrillator (AED) with Low Energy Bte, Adult/Pediatric Pads, Bluetooth
Automatic External Defibrillator (AED) with Low Energy Bte, Adult/Pediatric Pads, Bluetooth

Automatic External Defibrillator (AED) with Low Energy Bte, Adult/Pediatric Pads, Bluetooth

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Basic Information
Model NO.
Altai DP1
Certification
CE, MSDS, ISO13485, FSC, Cfda
Product Name
Automated External Defibrillator (AED)
Color
Red
ECG Analysis
8.5 Second
Shock Output
150J (Adult), 50J (Pediatric)
Battery Pack
Non Rechargeable Li-Mn Battery 12V, 4.2Ah
Net Weight
1.9 Kg
Specification
320*230*85 mm
Production Capacity
50,000 Sets/Year
Product Description
Altai DP1: First Aid Automatic External Defibrillator (AED) with Low Energy BTE

The Altai DP1 is a professional-grade automated external defibrillator designed for rapid response in cardiac emergencies, featuring advanced Biphasic Truncated Exponential (BTE) technology and compatibility for both adult and pediatric patients.

ECG Analysis8.5 Second
Hi - Cap Charging8 Second
Shock Output150J (Adult), 50J (Pediatric)
Data Storage40 Minute (built-in memory)
Data TransferBluetooth
Battery PackNon-rechargeable Li-Mn battery, 12V, 4.2Ah
Shock FrequencyNot less than 200 times
Electrode PadsDisposable and adhesive, adult/pediatric compatible
Voice GuideCustomized languages
Standard Configuration1x main unit, 1x battery pack, 1x electrode pads (2 pcs), 1x carry case
Key Features & Advantages

Core Features

  • Biphasic Truncated Exponential with low energy to minimize myocardial injury
  • High capacity Li-MnO2 battery supporting up to 400 shocks
  • Automatic recording of ECG data & ambient sounds
  • Preinstalled electrode pads compatible with adult and child
  • One-step operating: cover open and power on simultaneously
  • Daily self-test and automatic self-test upon power on
  • Automatic voice guide throughout the complete operation
  • Alarm for low battery capacity

Advantage of Low Energy BTE

  • Automatic compensation and adjustment of waveform as per load impedance
  • Shorter time in ECG analysis and shock preparation
  • Simultaneous ECG analysis and precharging
  • Higher success rate in defibrillating with minimum injury
  • Faster response and better for patient rehabilitation
Product Display

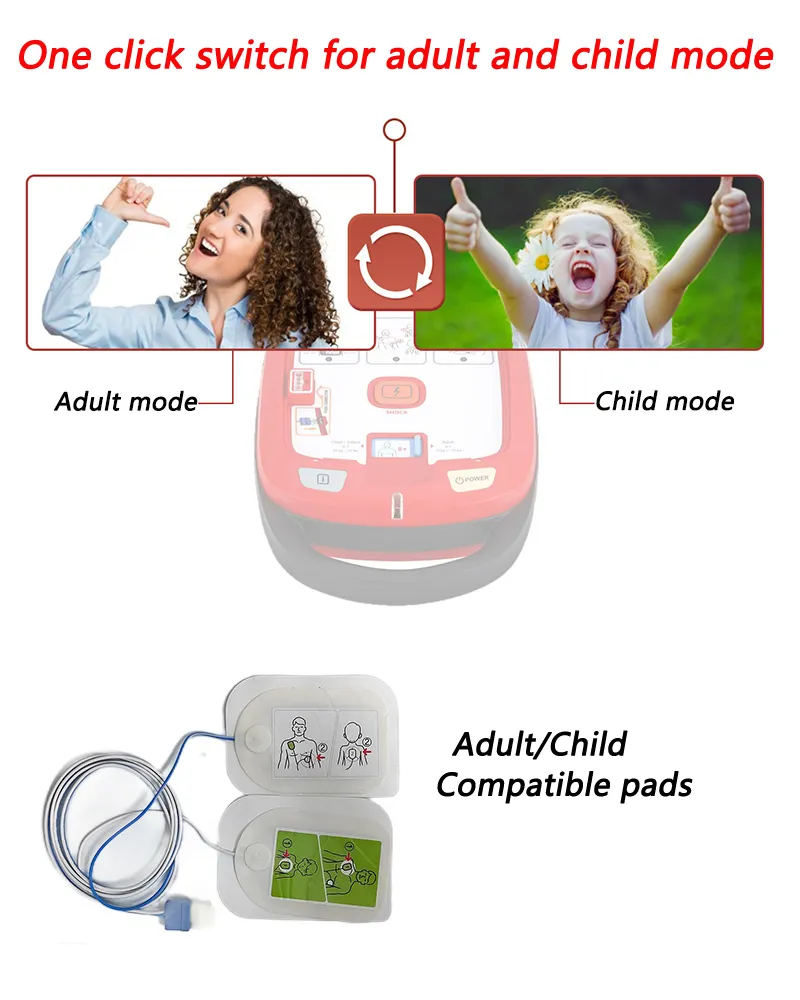

AED Product View 1

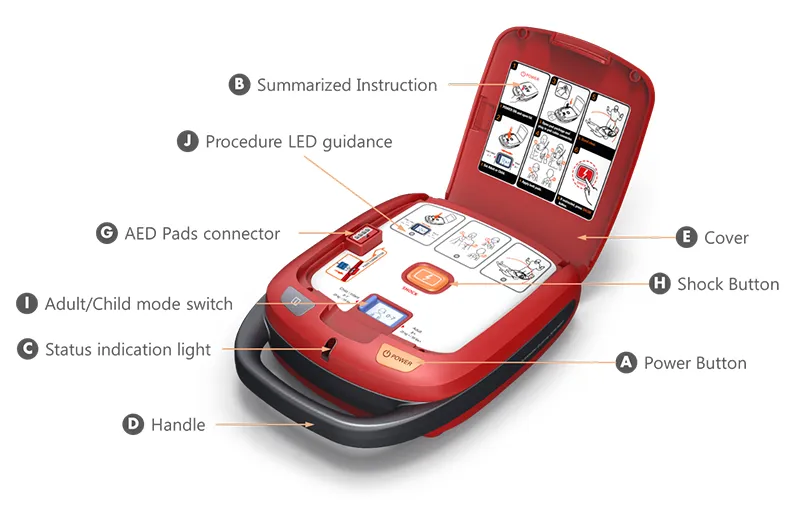

AED Product View 2

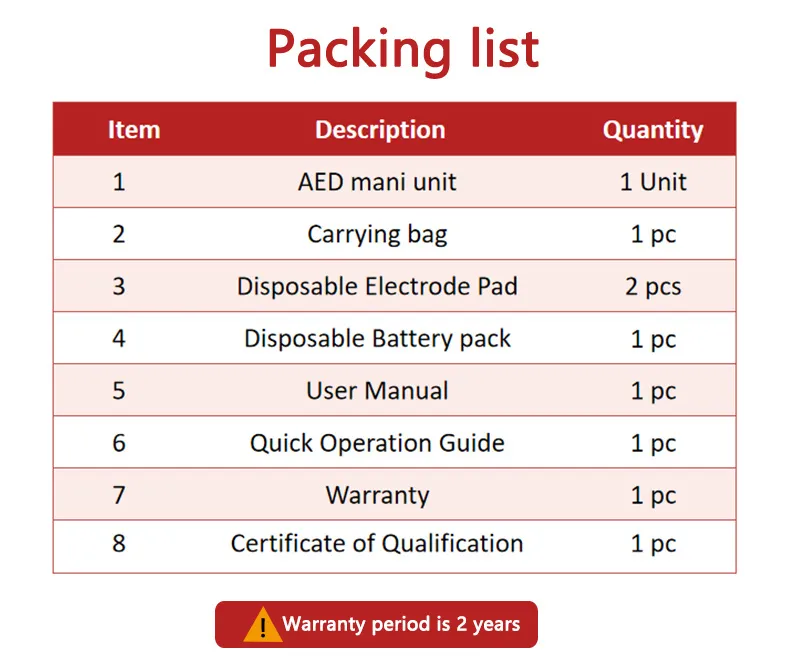

AED Product View 3
Manufacturing & Facilities

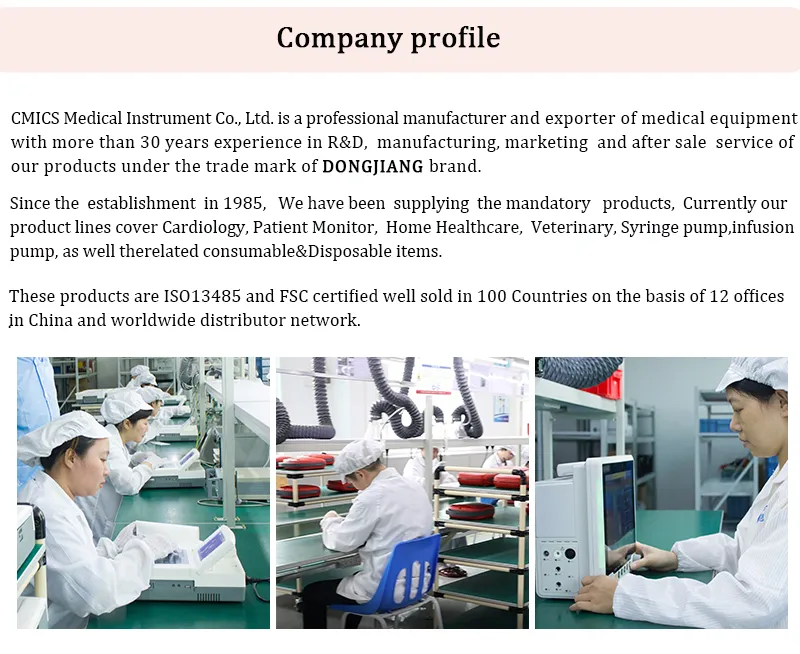

Facility 1

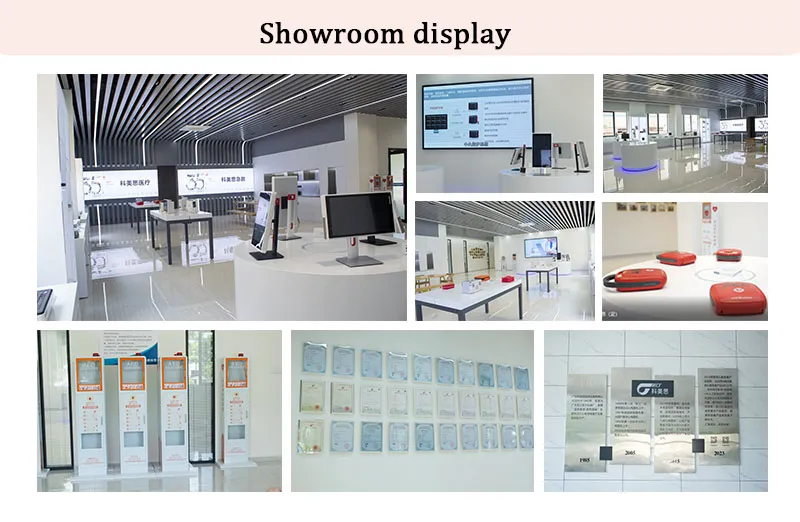

Facility 2
Facility 3

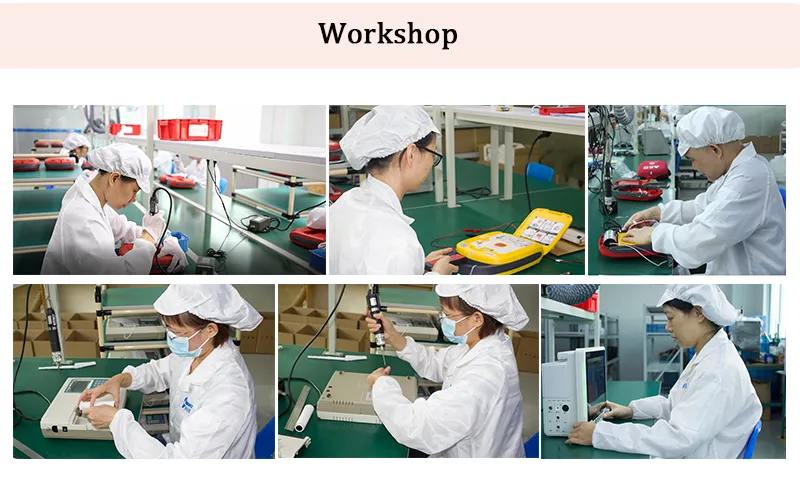

Facility 4
Facility 5
Facility 6
Frequently Asked Questions
What is the advantage of Low Energy BTE technology?
Biphasic Truncated Exponential (BTE) technology allows for automatic waveform adjustment based on the patient's impedance, ensuring effective defibrillation with lower energy to minimize potential injury to the heart muscle.
Can the Altai DP1 be used on children?
Yes, the device features both adult and child modes and comes with electrode pads that are compatible for both adult and pediatric use.
How long does the battery last?
The non-rechargeable Li-MnO2 battery is high-capacity, supporting up to 400 shocks or ensuring the device remains ready for use over a long standby period.
Does the device record rescue data?
Yes, the Altai DP1 automatically records up to 40 minutes of ECG data and ambient sounds during operation, which can be retrieved via Bluetooth or PC software.
Is the device easy for non-professionals to use?
Absolutely. It features one-step operation (powering on as soon as the cover is opened) and provides clear, automatic voice guidance throughout the entire rescue process.
How do I know if the AED is in good working condition?
The unit performs daily self-tests and an additional automatic self-test every time it is turned on. It also features an automatic status indicator and a low battery alarm.
