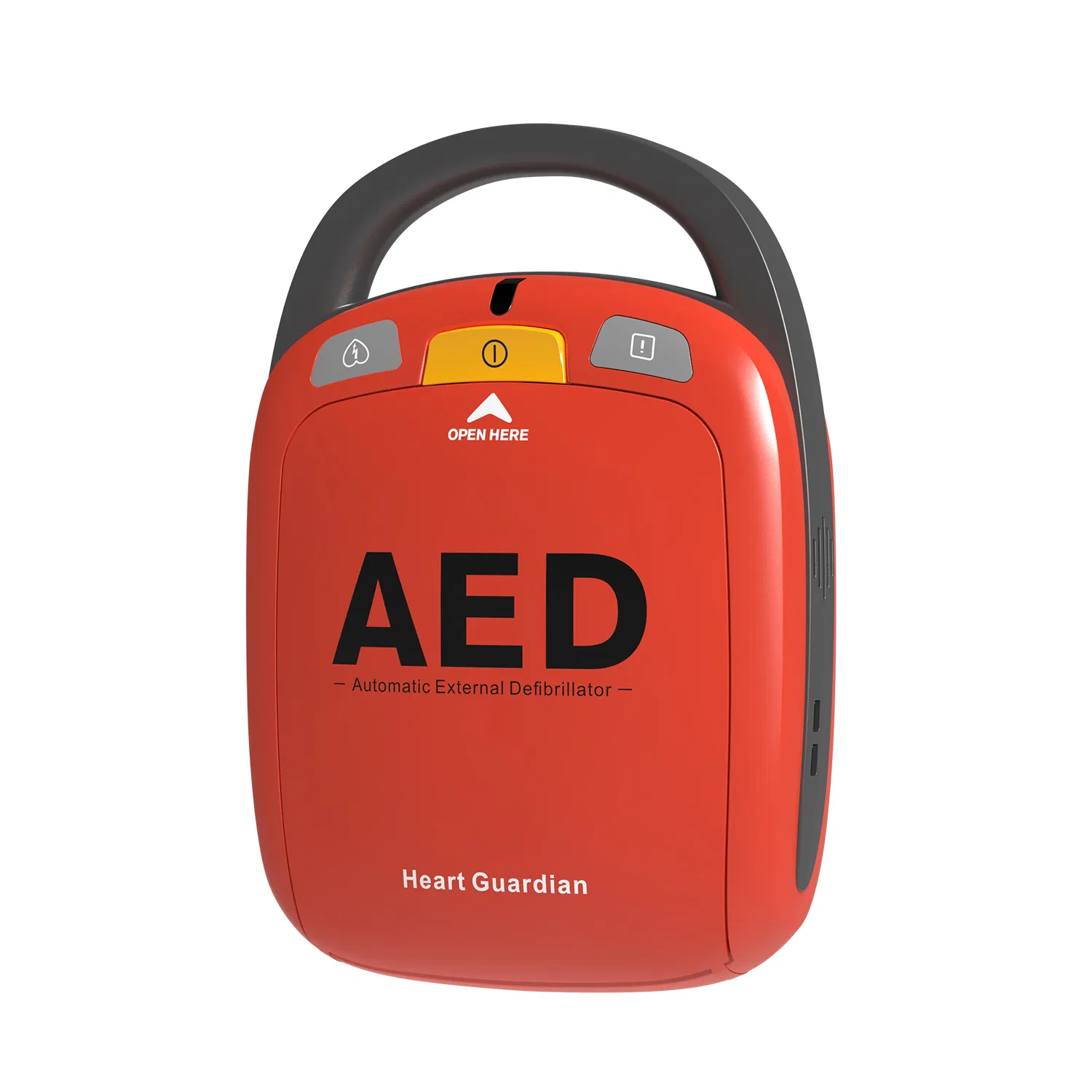

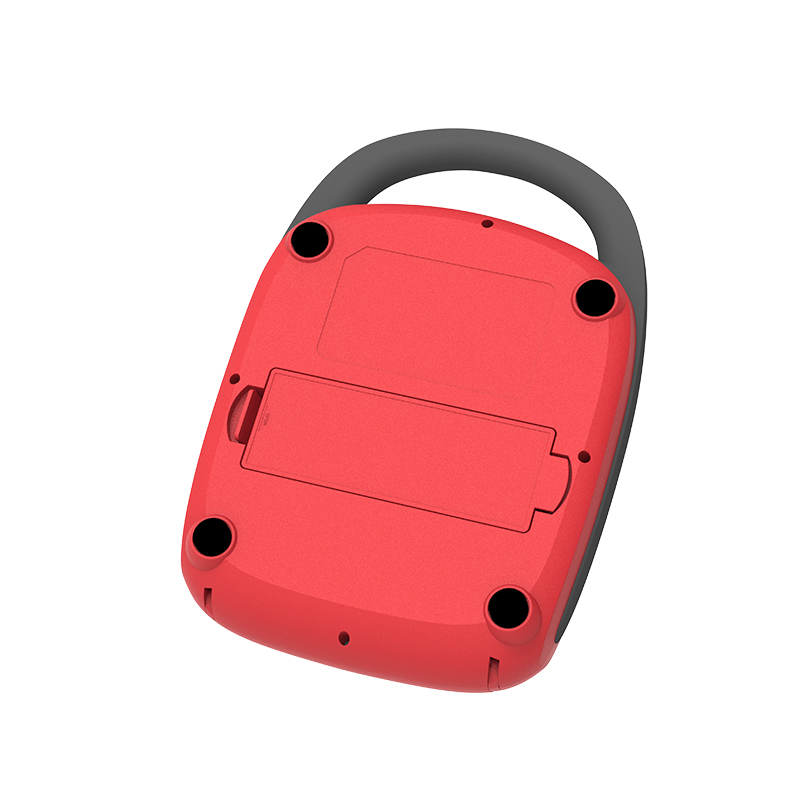

Automatic External Defibrillator (AED) with Automatic Recording, High Capacity Battery, Adult/Pediatric Pads
Automatic External Defibrillator (AED) with Automatic Recording, High Capacity Battery, Adult/Pediatric Pads
Automatic External Defibrillator (AED) with Automatic Recording, High Capacity Battery, Adult/Pediatric Pads
Automatic External Defibrillator (AED) with Automatic Recording, High Capacity Battery, Adult/Pediatric Pads
Automatic External Defibrillator (AED) with Automatic Recording, High Capacity Battery, Adult/Pediatric Pads
1 / 5
Automatic External Defibrillator (AED) with Automatic Recording, High Capacity Battery, Adult/Pediatric Pads
Automatic External Defibrillator (AED) with Automatic Recording, High Capacity Battery, Adult/Pediatric Pads
Automatic External Defibrillator (AED) with Automatic Recording, High Capacity Battery, Adult/Pediatric Pads
Automatic External Defibrillator (AED) with Automatic Recording, High Capacity Battery, Adult/Pediatric Pads
Automatic External Defibrillator (AED) with Automatic Recording, High Capacity Battery, Adult/Pediatric Pads

Automatic External Defibrillator (AED) with Automatic Recording, High Capacity Battery, Adult/Pediatric Pads

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Basic Information
Model NO.
Altai DP1
Certification
CE, MSDS, ISO13485, FSC, Cfda
Group
All
Shock Output
50 J (Child), 150 J (Adult)
Electrode Pads
Adult/Child Compatible, Preinstalled

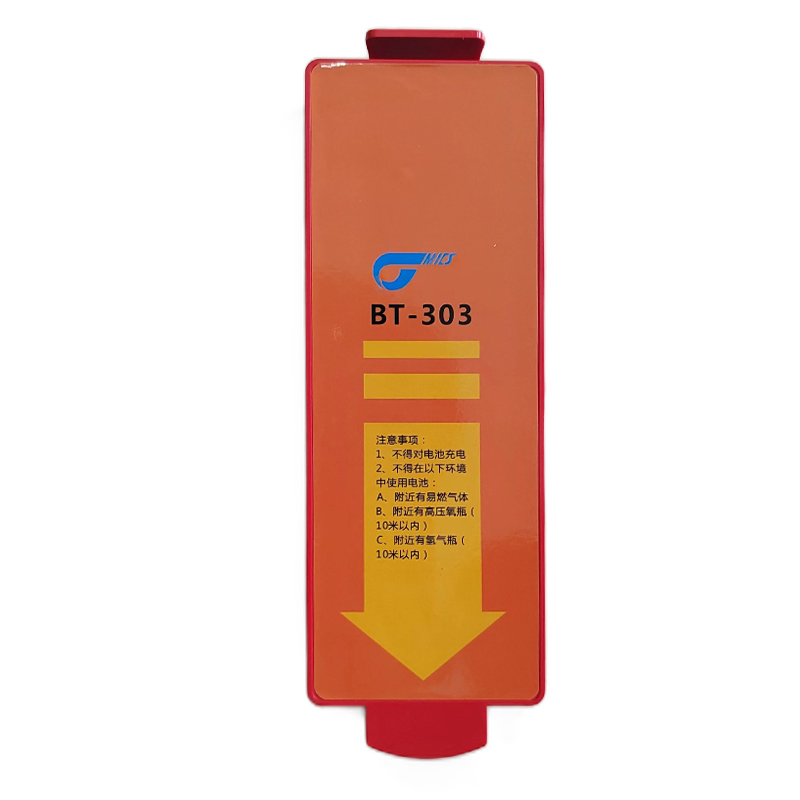

Battery Pack
Non Rechargeable Li-Mn of 12V, 6 Ah
Data Storage
90 Minutes Each for ECG and Sounds
HS Code
9018199000
Product Description

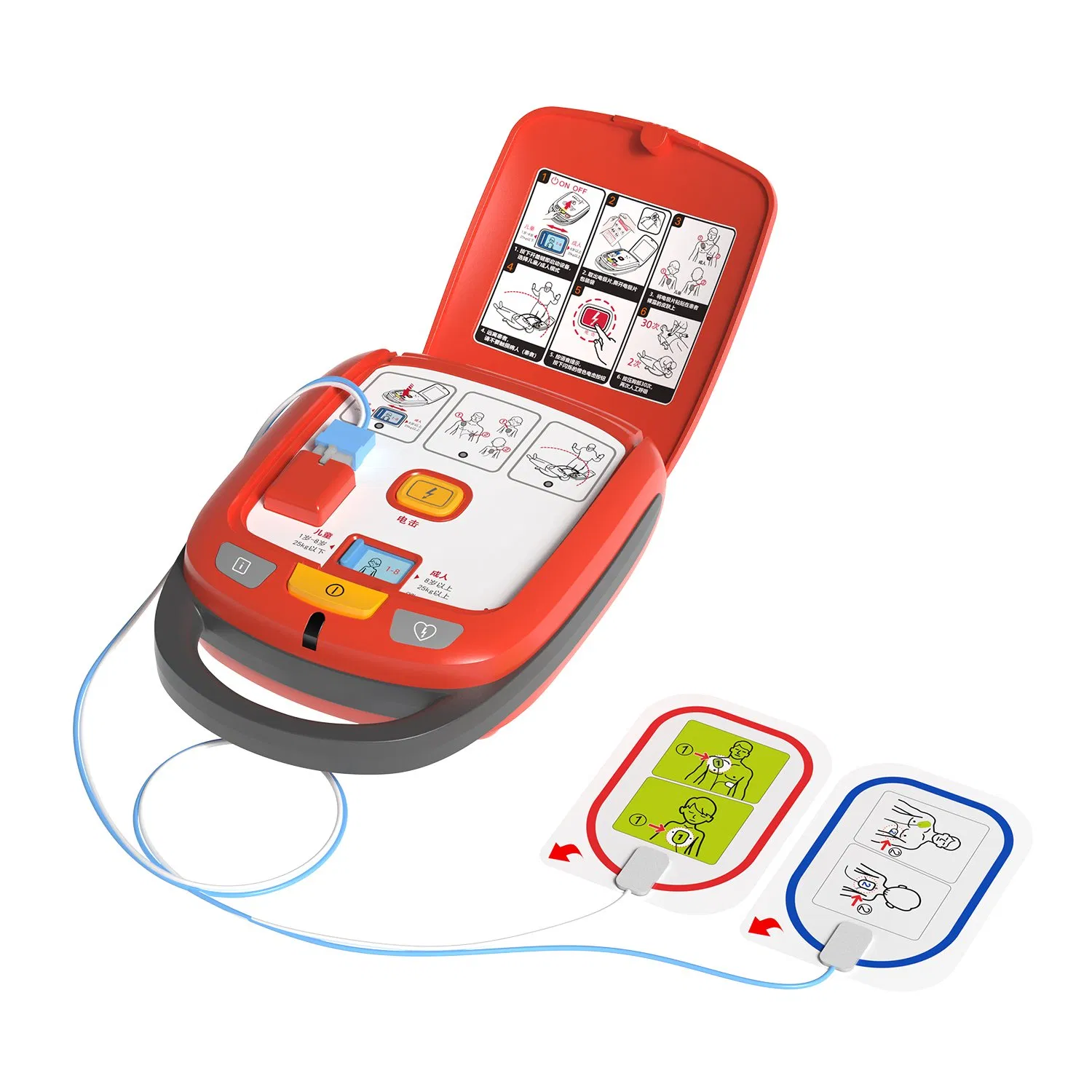

Altai DP1: Automatic External Defibrillator (AED)

High Capacity Battery with Automatic Recording and Universal Adult/Pediatric Pads compatibility.

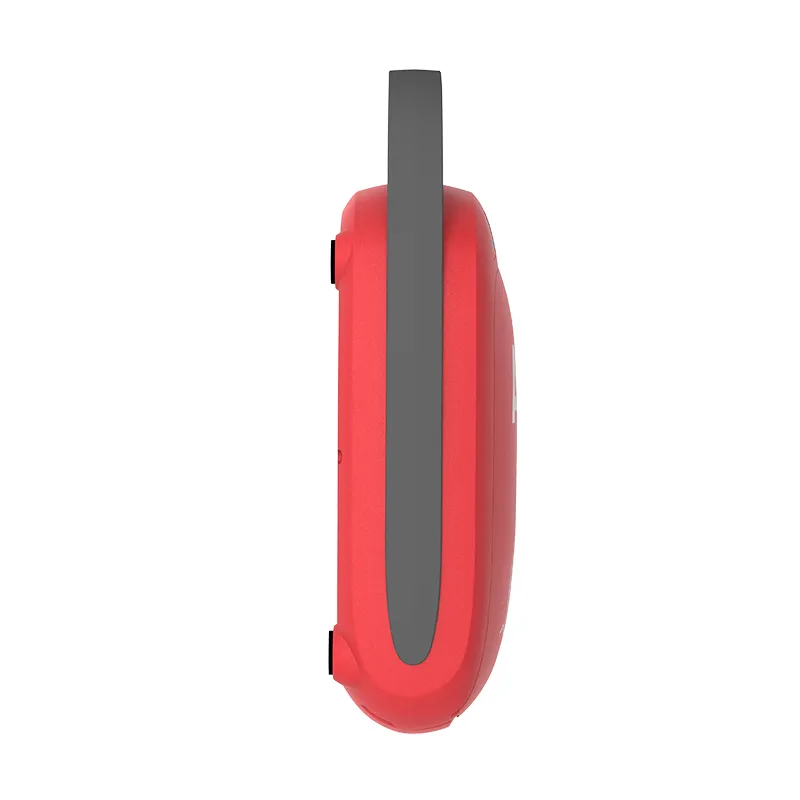

AED Display 1

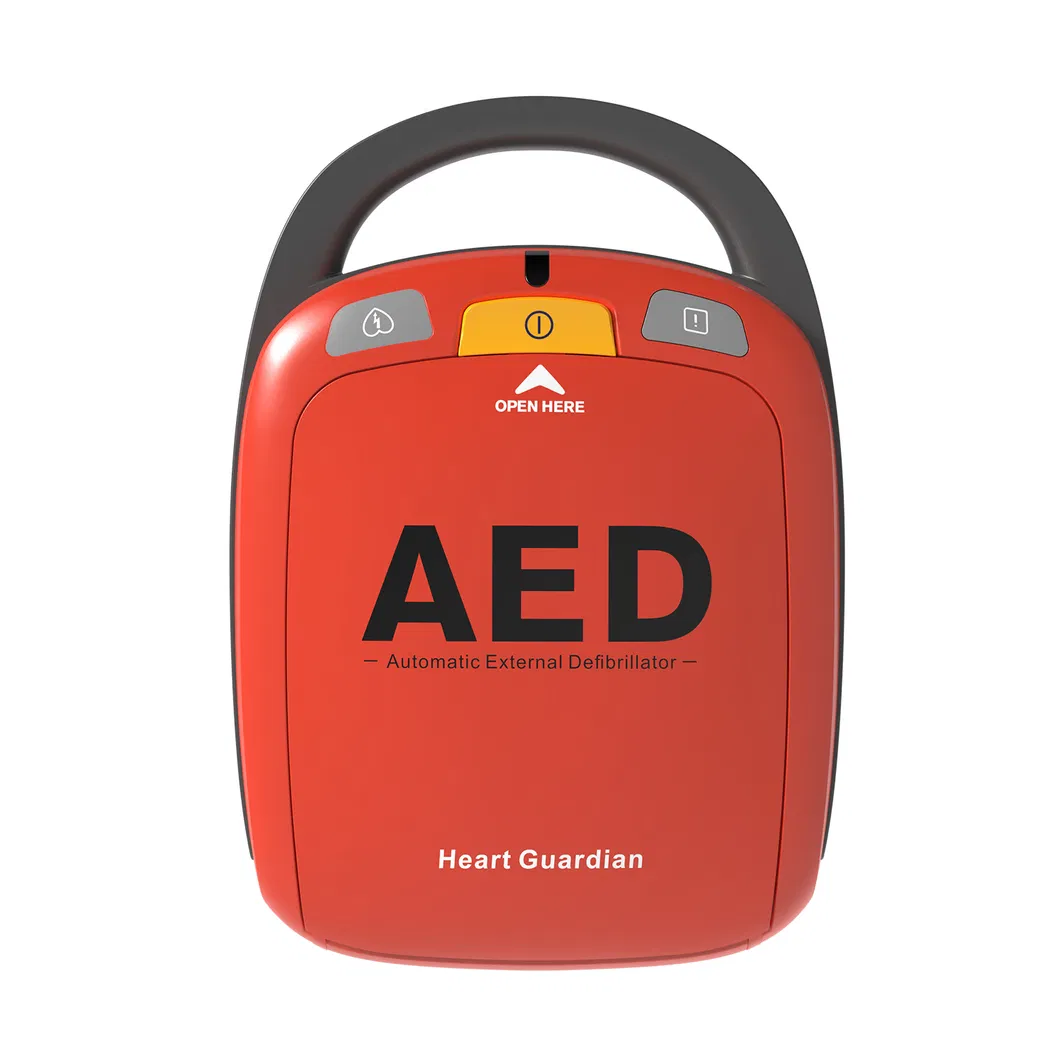

AED Display 2

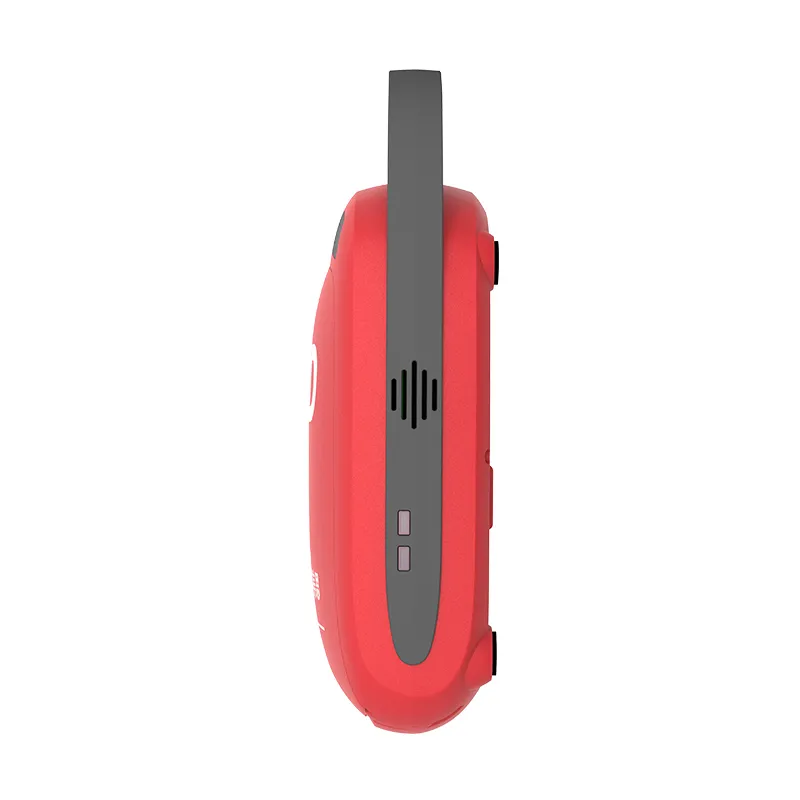

AED Display 3
Key Features
  • Biphasic Truncated Exponential waveform to minimize myocardial injury
  • High capacity Li-MnO2 battery supporting up to 400 shocks
  • Automatic recording of ECG data and ambient sounds

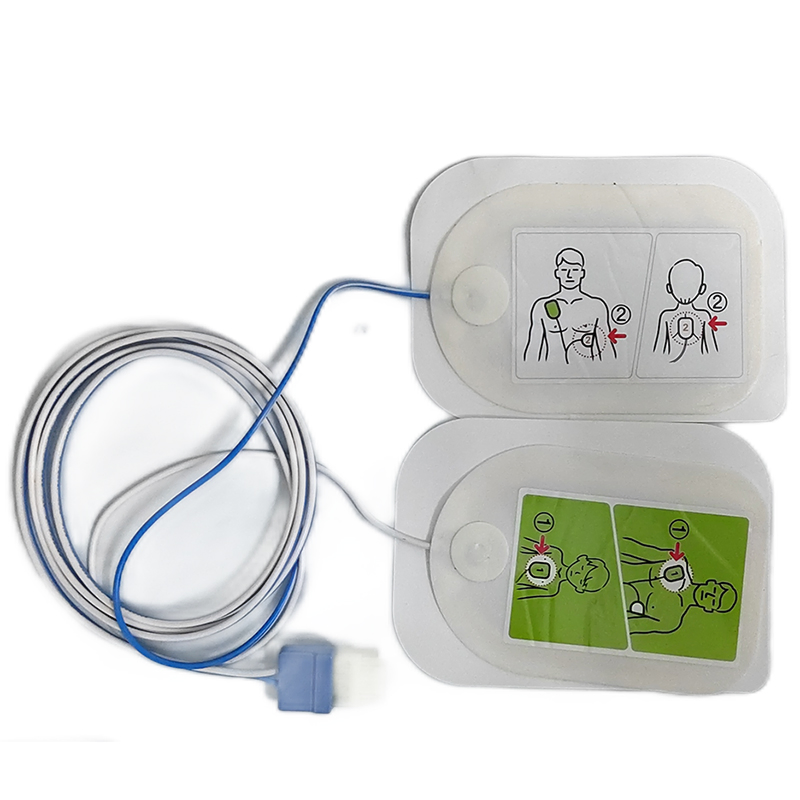

  • Preinstalled electrode pads compatible with both adults and children
  • One-step operation: power on automatically when cover is opened
  • Daily self-tests and automatic power-on self-tests
  • Dedicated adult mode and child mode settings
  • Automatic voice guidance throughout the complete operation
  • Real-time unit status indication and low battery alarm
  • Optional PC software for data retrieval and download

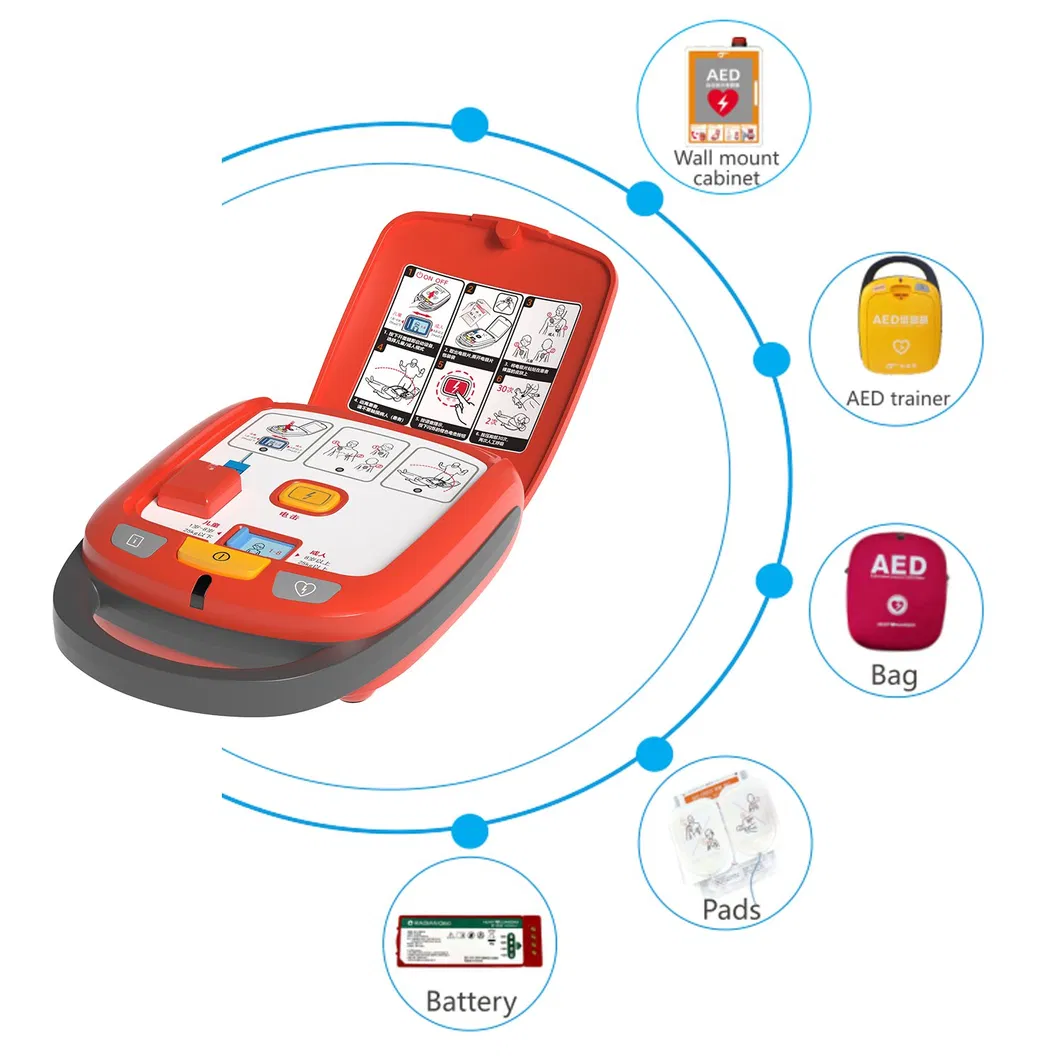

AED Feature 1

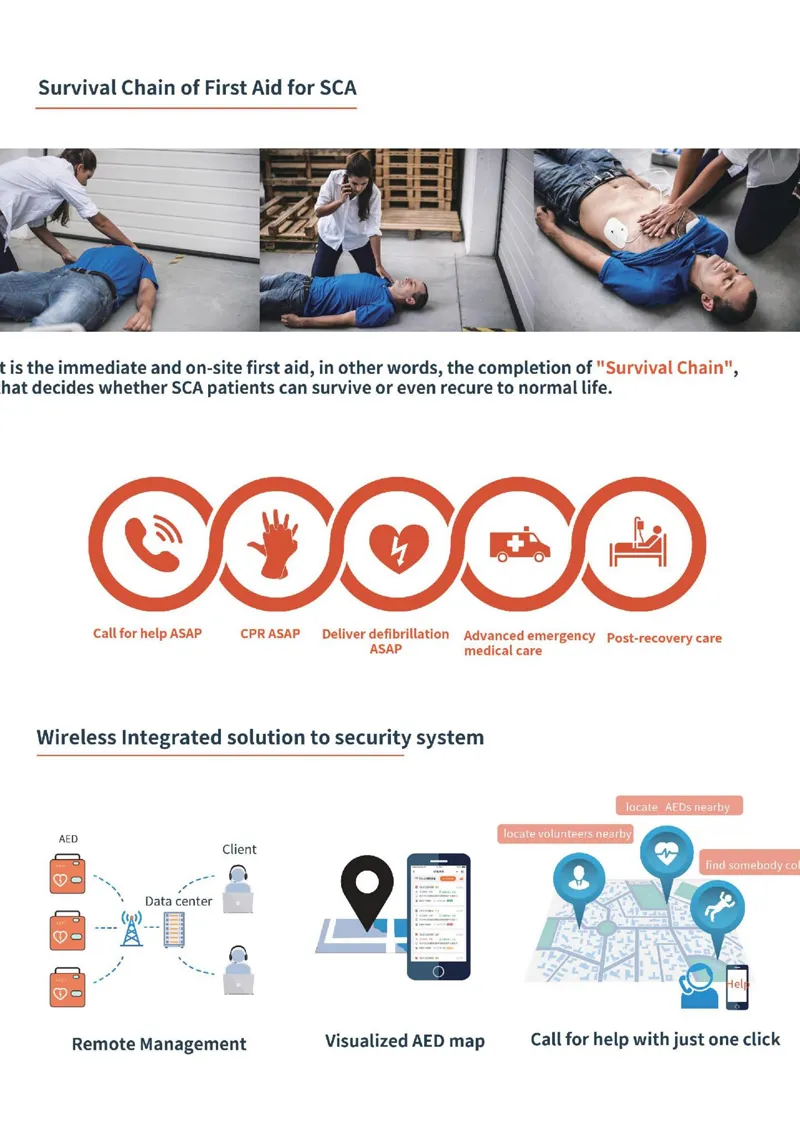

AED Feature 2
Technical Parameters
Parameter Specification Parameter Specification
ECG Analysis 8.5 Seconds Battery Pack Li-MnO2 12V, 6000 mAh (4yr life)
Hi-Cap Charging 8 Seconds Shock Frequency ≥ 400 times
Shock Output 50J (Child), 150J (Adult) Electrode Pads Disposable, Preinstalled (6yr life)
Data Storage 90 mins (ECG & Sound) Warranty 2 Years
Communication Bluetooth Weight 2.3 Kg
Voice Guide English/Chinese (Customizable) Operation Power, Shock buttons
AED Usage 1
AED Usage 2
Product Gallery
Frequently Asked Questions
What is the energy output for adult and pediatric patients?
The Altai DP1 provides a shock output of 150 Joules for adults and 50 Joules for children.
How long does the battery last and how many shocks can it deliver?
The non-rechargeable Li-MnO2 battery has a 4-year lifetime and is capable of delivering at least 400 shocks.
Can the device record rescue data?
Yes, the device automatically records up to 90 minutes of ECG data and ambient sounds during operation.
Are the electrode pads suitable for both adults and children?
Yes, the Altai DP1 comes with preinstalled electrode pads that are compatible with both adult and pediatric patients.
Is the AED easy for non-professionals to use?
Absolutely. It features one-step operation (power on when cover opens) and full automatic voice guidance to assist the user through every step.
What languages are available for the voice guide?
The standard configuration includes English and Chinese, but other languages can be customized upon request.
