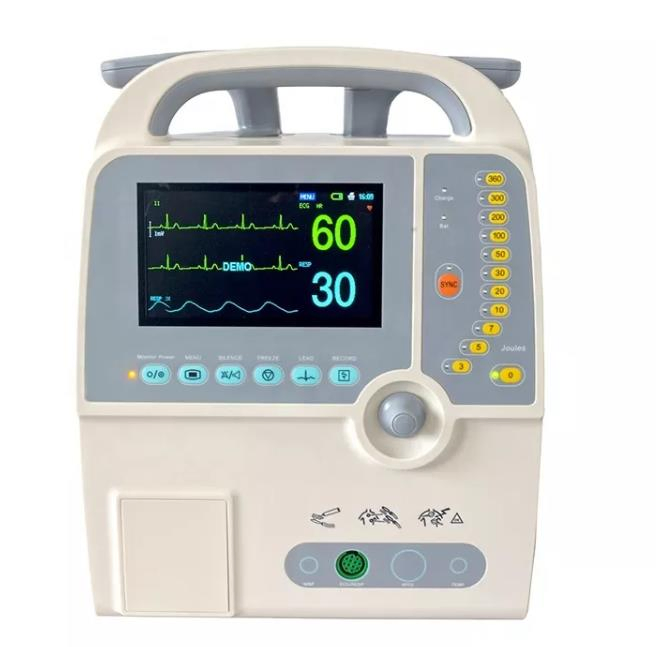

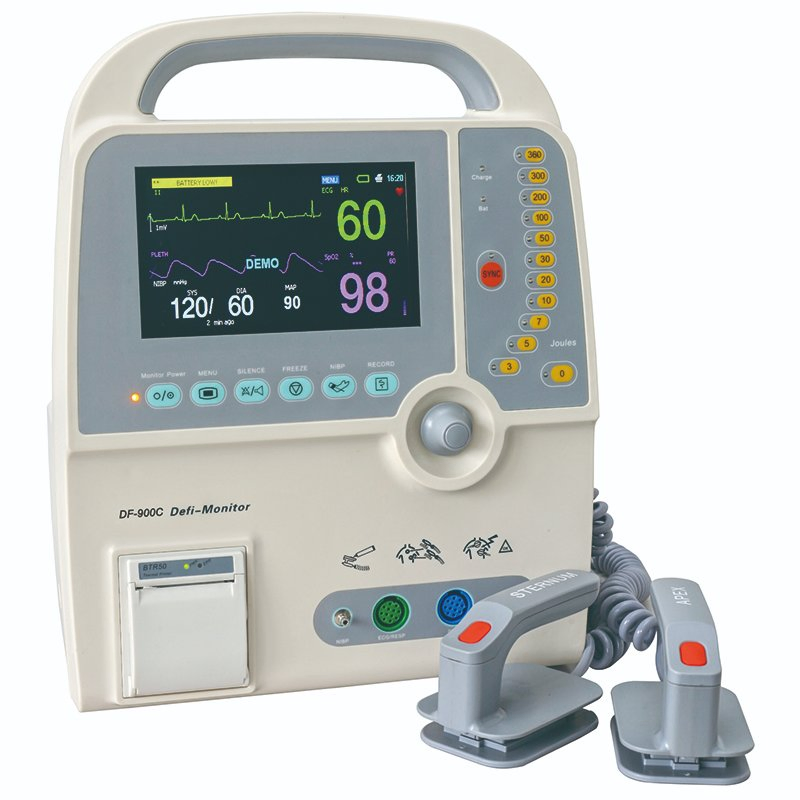

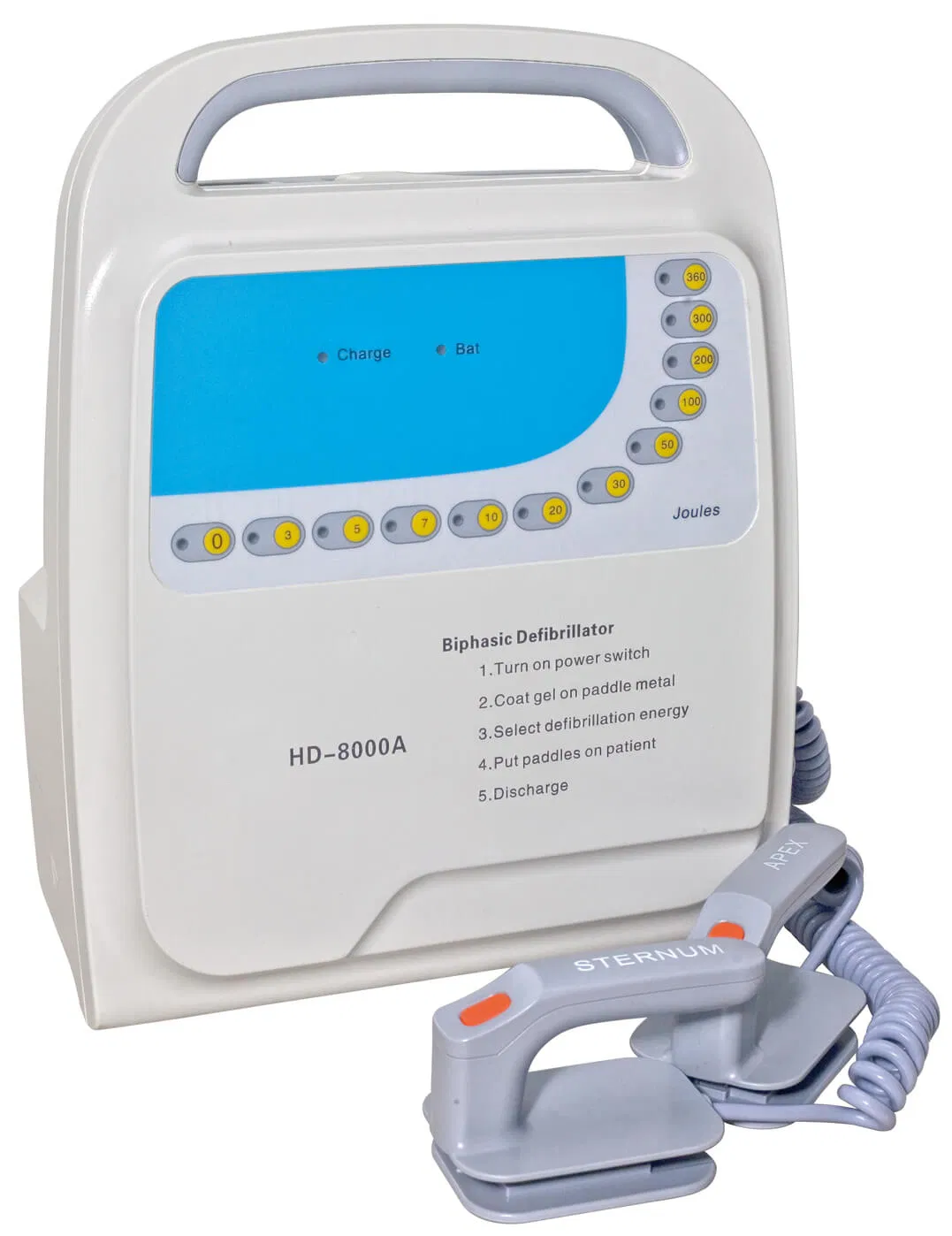

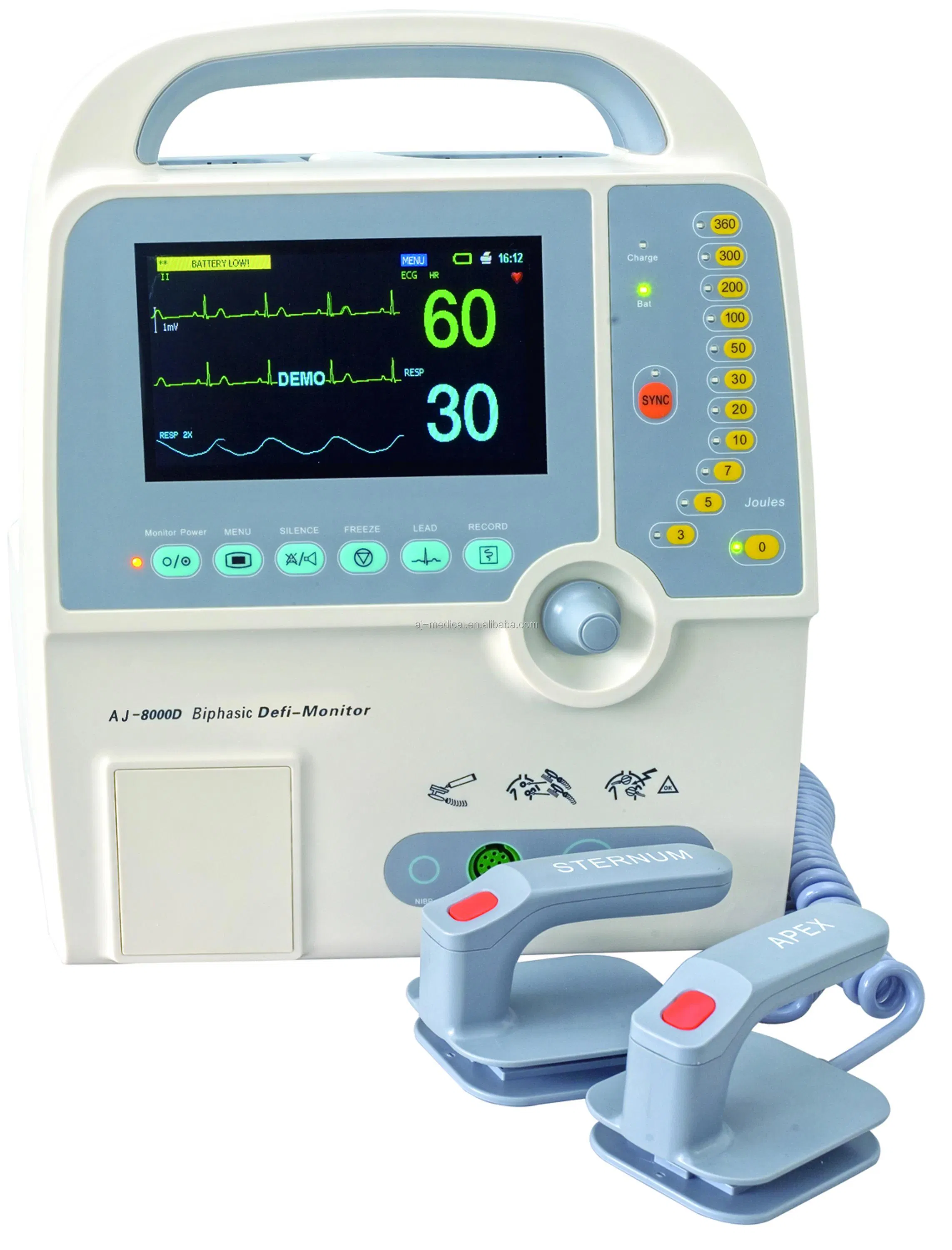

Emergency Room Clinictop Aed Portable Defibrillator with 12 Lead ECG
Emergency Room Clinictop Aed Portable Defibrillator with 12 Lead ECG
Emergency Room Clinictop Aed Portable Defibrillator with 12 Lead ECG
Emergency Room Clinictop Aed Portable Defibrillator with 12 Lead ECG
Emergency Room Clinictop Aed Portable Defibrillator with 12 Lead ECG
1 / 5
Emergency Room Clinictop Aed Portable Defibrillator with 12 Lead ECG
Emergency Room Clinictop Aed Portable Defibrillator with 12 Lead ECG
Emergency Room Clinictop Aed Portable Defibrillator with 12 Lead ECG
Emergency Room Clinictop Aed Portable Defibrillator with 12 Lead ECG
Emergency Room Clinictop Aed Portable Defibrillator with 12 Lead ECG

Emergency Room Clinictop Aed Portable Defibrillator with 12 Lead ECG

Customization: Available
Classification: Defibrillator
Type: Defibrillator
Send Inquiry

Product Description

i

Basic Specifications

Model NO.
OEM
Certification
CE, ISO13485
Group
Adult & Child
Warranty
1 Year
Power Source
Electricity
Usage
Medical Products
Material
Aluminum Alloy
After-Sale
Online Technical Support
Transport Package
Carton
Specification
L320xW205xH410
Origin
China
HS Code
9018909911
★

Key Features

✔Clear Voice Prompt System
✔Standard Built-in Recorder
✔Defibrillation Discharge Trigger Recording
✔ECG Waveform via Paddle Electrode
✔Delivered Energy Displayed on Screen
✔7 Inches TFT Colour Display
✔Standard Biphasic Technology
✔Optional SpO2 / AED Functions
📋

Technical Parameters

System Monitoring Parameters
ECG 3-lead / 5-lead ECG cable, or paddles (I, II, III, AVR, AVL, AVF, V)
NIBP Method: Automatic oscillation; Mode: Manual/Automatic
TEMP Measurement range: 20-45ºC
SpO2 Display: SpO2 value, pulse histogram, waveform, pulse
Pulse range 0~300bpm; Accuracy: ±2bpm
Defibrillator Performance
Modes Biphasic/Manual/External Synchronous/Asynchronous
Charge Time Less than 10 seconds to 360 Joules
Energy Selection 0, 3, 5, 7, 10, 20, 30, 50, 100, 200, 300, 360 Joules
Paddles Reusable adult paddles (integrated pediatric paddles)
AED Optional Adult (150J-200J); Children (30J-75J)
⚡

Power & Battery Requirements

AC Power Supply 100V~240V, 50Hz/60 Hz
Vehicle Voltage DC 12V (Option)
Battery Type Rechargeable Li-ion battery
Charging Time Minimum of 4 hours for full charging
Battery Capacity 100% battery provides 120-min monitoring or 30 discharges at 360J
📷

Product Display

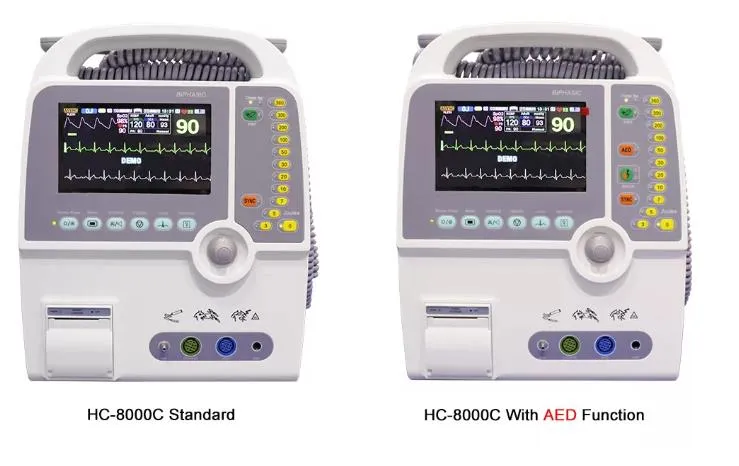

AED Portable Defibrillator 1

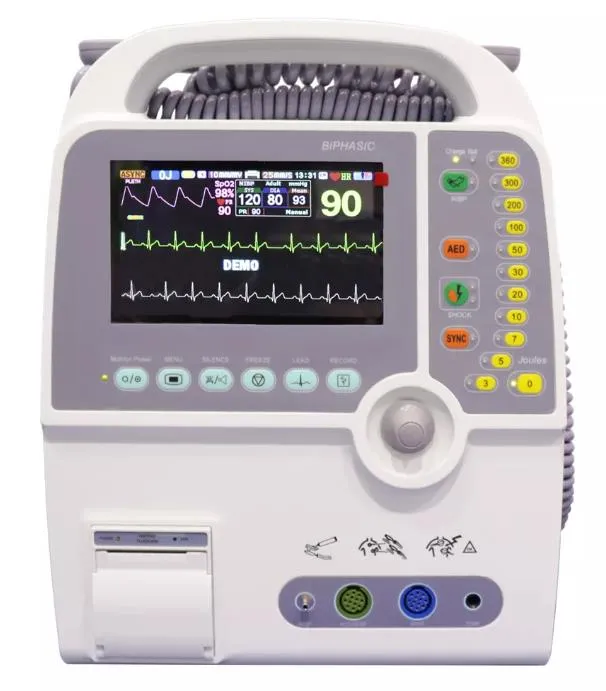

AED Portable Defibrillator 2
AED Portable Defibrillator 3

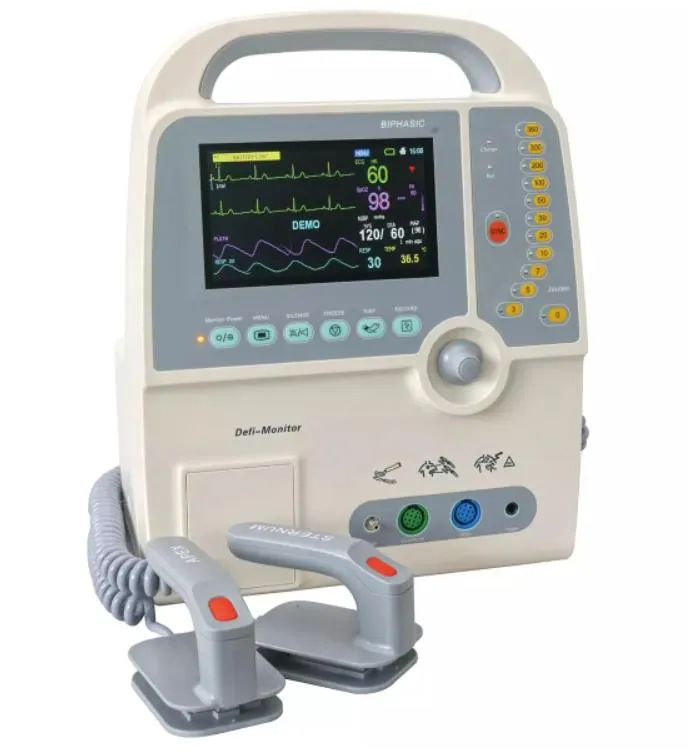

AED Portable Defibrillator 4
AED Portable Defibrillator 5

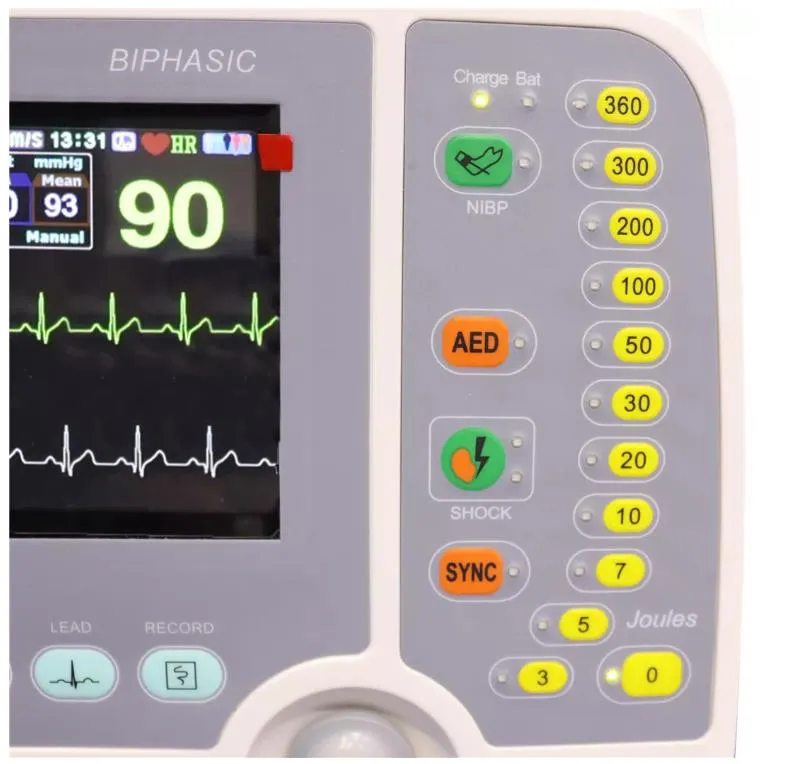

AED Portable Defibrillator 6
🏢

Facilities & Exhibition

Factory Overview

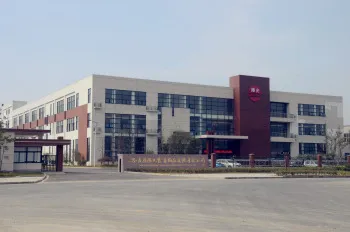

Factory Show

Office Environment

Office Show

Exhibition Gallery

Exhibition Show
?

Frequently Asked Questions

Q1: Do you accept OEM or ODM packages?
Of course. We have a professional design team who can assist you in designing the package according to your needs.
Q2: What is the minimum order quantity (MOQ)?
Usually, we accept 1 pc for trial orders. It depends on different items with different materials and sizes. Please contact us for details.
Q3: What certifications do you have for medical devices?
Our products have all relevant certifications approved, including CE and ISO13485 standards.
Q4: What information is needed for a detailed quote?
Please offer product specifications such as material, logo color, size, and quantity. You can also contact us directly with your requirements.
Q5: What is the standard delivery date?
Our products are normally shipped about 25-35 days after order confirmation.
Q6: What is the battery life and capacity of the defibrillator?
A 100% charged battery provides 120 minutes of monitoring or 30 discharges at maximum energy (360 joules).
