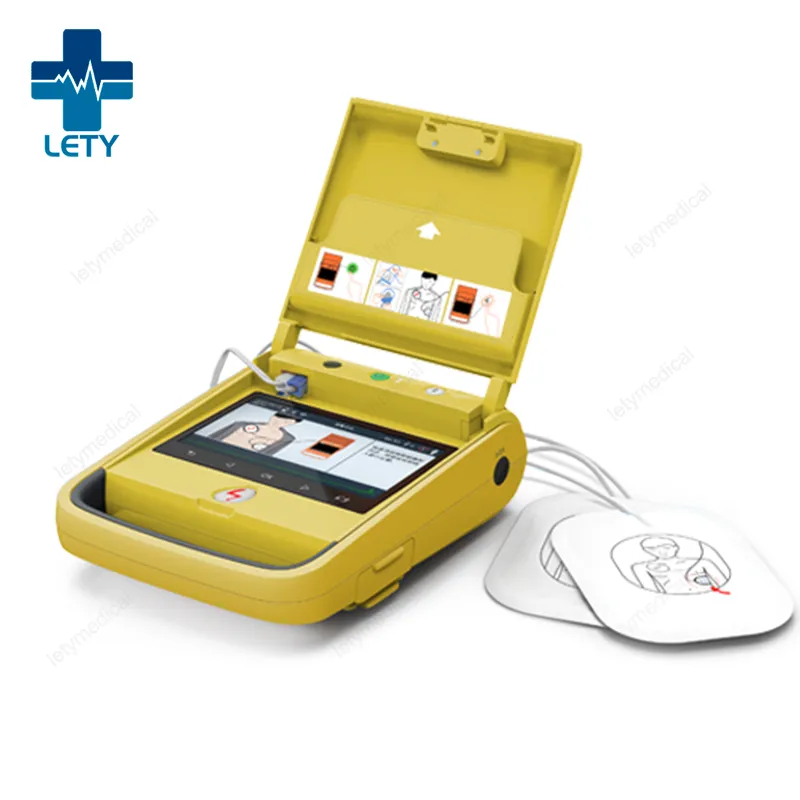

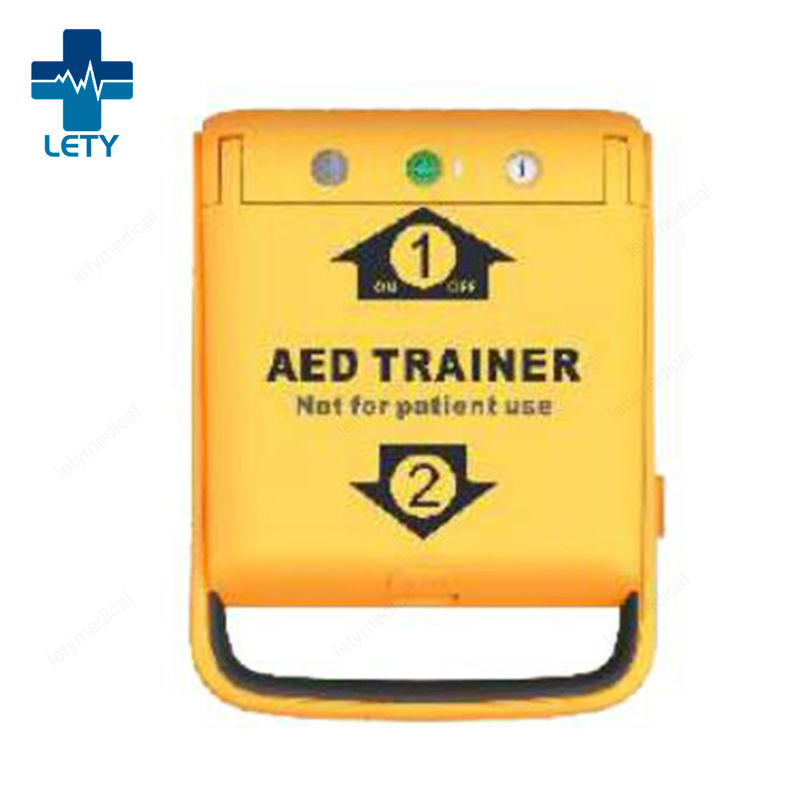

Defibrillator trainer automatic external defibrillator AED Trainer for CPR training

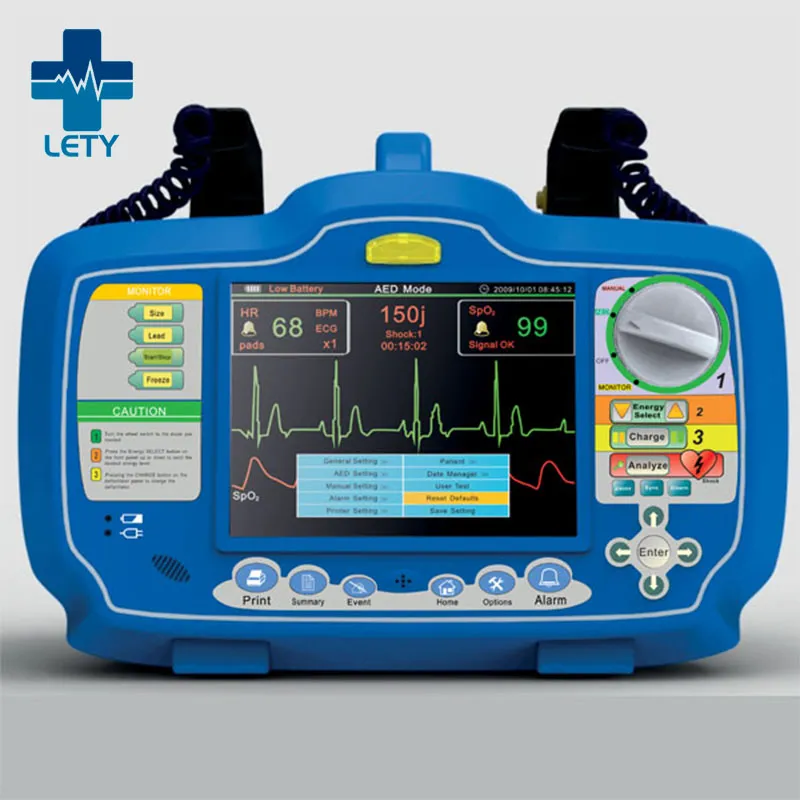

Biphasic Defibrillator First Aid Automatic External Aed Defibrillator

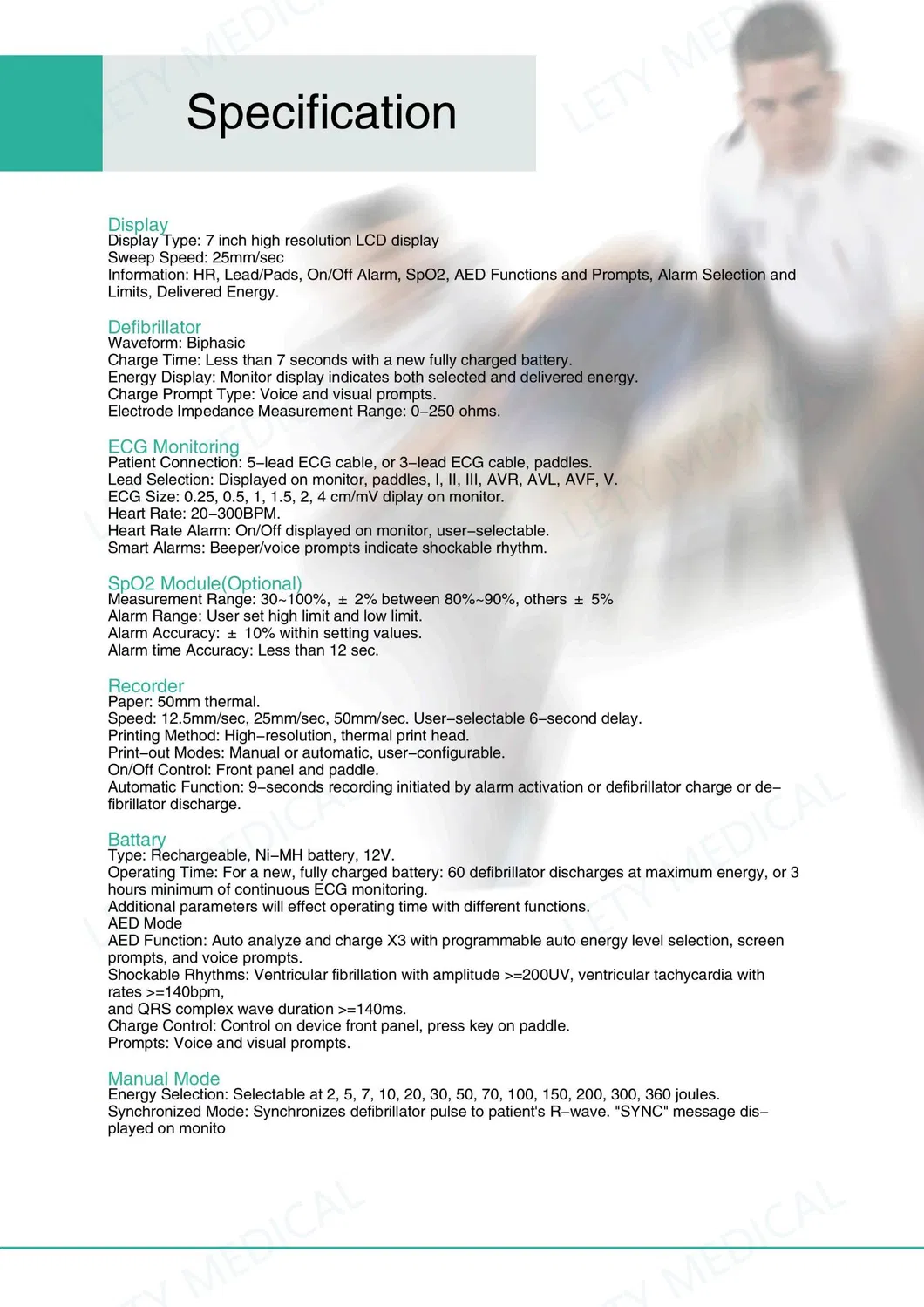

Screen Type: High-resolution display
Screen Size: 7 inches (17.7 cm) diagonally
Sweep Speed: 25mm/sec
Information: Heart Rate, Lead/Pads, Alarm On/Off, SpO2, AED Functions and Prompts, Alarm Selection and Limits, Delivered Energy.
Waveform: Biphasic
Charge Time: Less than 7 seconds with a new fully charged battery.
Energy Display: Monitor display indicates both selected and delivered energy.
Charge Prompt Type: Voice and visual prompts.
Electrode Impedance Range: 0-250 ohms.
Patient Connection: 3-lead ECG cable, or 5-lead ECG cable, paddles.
Lead Selection: Displayed on monitor, paddles, I, II, III, AVR, AVL, AVF, V.
ECG Size: 0.25, 0.5, 1, 1.5, 2, 4 cm/mV display on monitor.
Heart Rate: 20-300BPM.
Smart Alarms: Beeper/voice prompts indicate shockable rhythm.
Type: Rechargeable, Ni-MH battery, 12V.
Operating Time: 60 defibrillator discharges at max energy or 3 hours minimum continuous ECG monitoring.
Measurement Range: 30~100%, ± 2% between 80%~90%.
Alarm Range: User set high limit and low limit.
Paper: 50mm thermal.
Speed: 12.5mm/sec, 25mm/sec, 50mm/sec.
Automatic Function: 9-seconds recording initiated by alarm or charge/discharge.
AED Function: Auto analyze and charge X3 with programmable auto energy levels.
Manual Energy Selection: 2, 5, 7, 10, 20, 30, 50, 70, 100, 150, 200, 300, 360 joules.
Synchronized Mode: Synchronizes pulse to patient's R-wave.
