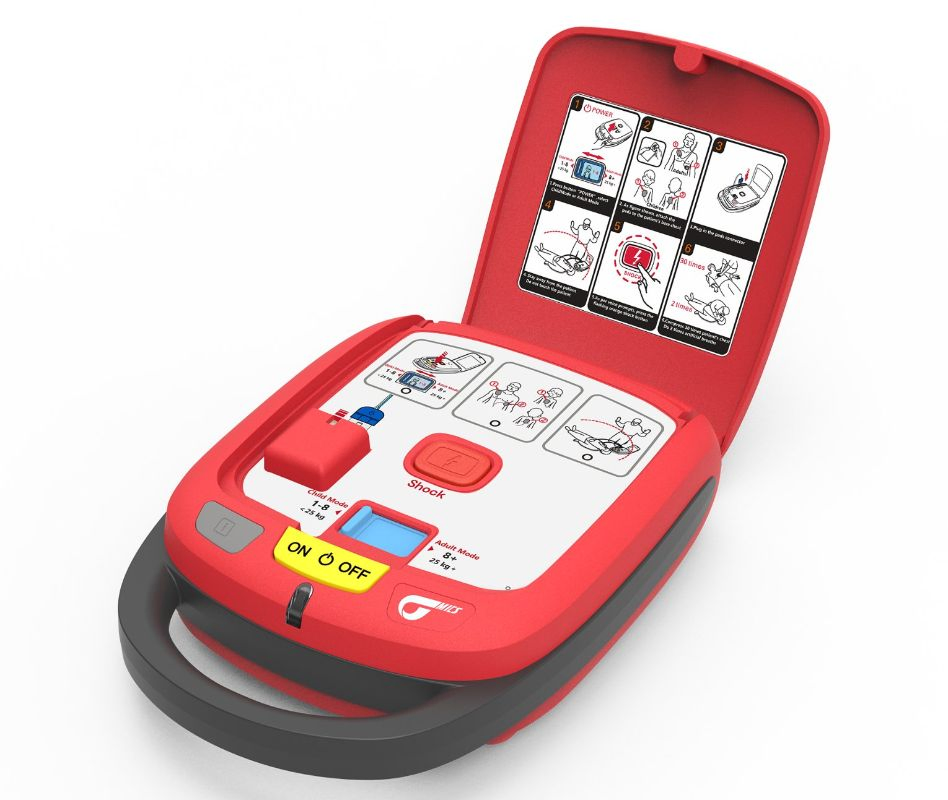

Aed Defibrillator (Automatic External Defibrillator) for First Aid of Cardiac Sudden Death
Aed Defibrillator (Automatic External Defibrillator) for First Aid of Cardiac Sudden Death
Aed Defibrillator (Automatic External Defibrillator) for First Aid of Cardiac Sudden Death
Aed Defibrillator (Automatic External Defibrillator) for First Aid of Cardiac Sudden Death
Aed Defibrillator (Automatic External Defibrillator) for First Aid of Cardiac Sudden Death
1 / 5
Aed Defibrillator (Automatic External Defibrillator) for First Aid of Cardiac Sudden Death
Aed Defibrillator (Automatic External Defibrillator) for First Aid of Cardiac Sudden Death
Aed Defibrillator (Automatic External Defibrillator) for First Aid of Cardiac Sudden Death
Aed Defibrillator (Automatic External Defibrillator) for First Aid of Cardiac Sudden Death
Aed Defibrillator (Automatic External Defibrillator) for First Aid of Cardiac Sudden Death

Aed Defibrillator (Automatic External Defibrillator) for First Aid of Cardiac Sudden Death

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

◈ Basic Information
Model NO. Altai DP1
Battery Pack No Rechargeable Li-Mno2 Battery (12V, 6000mAh)

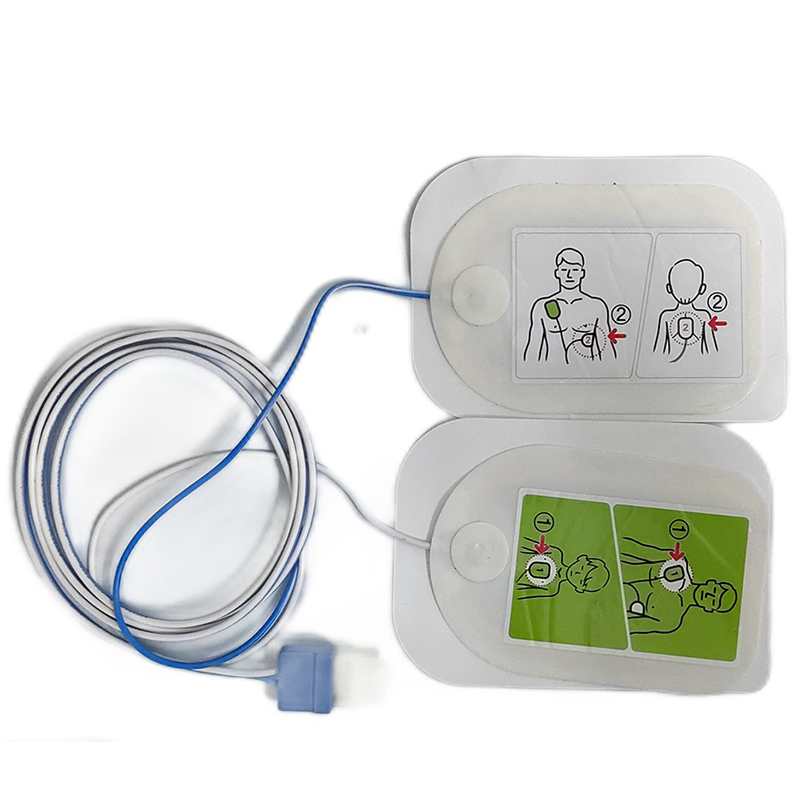

Electrode Pads Preinstalled, Adult/Child Compatible
Storage 90 Minutes Each for ECG Data and Around Sounds
Transport Package Carton
Specification 320*230*85 mm
HS Code 9018199000
Production Capacity 50, 000 Sets/Year
◈ Product Description

Altai DP1: AED Defibrillator (Automatic External Defibrillator) for First Aid of Cardiac Sudden Death

★ Key Features

  • Low energy BTE to minimize myocardial injury
  • Non-rechargeable Li-MnO2 battery with long duration
  • Preinstalled electrode pads, compatible with adult and child
  • One step operating: cover open and power on simultaneously
  • Automatic voice guide with customized languages
  • Available with adult mode and child mode
  • Alarm for low battery capacity
  • Automatic indication of device status
  • Automatic recording of ECG data (90 mins)
  • Automatic recording of surrounding sounds (90 mins)
  • Daily self-test and automatic self-test upon power on

🚀 Advantages

  • Automatic compensation of waveform as per load impedance
  • Shorter time in ECG analysis and shock preparation
  • Simultaneous ECG analysis and precharging
  • Higher success rate in defibrillating
  • Minimum injury to myocardium
  • Better for rehabilitation
  • Faster in response

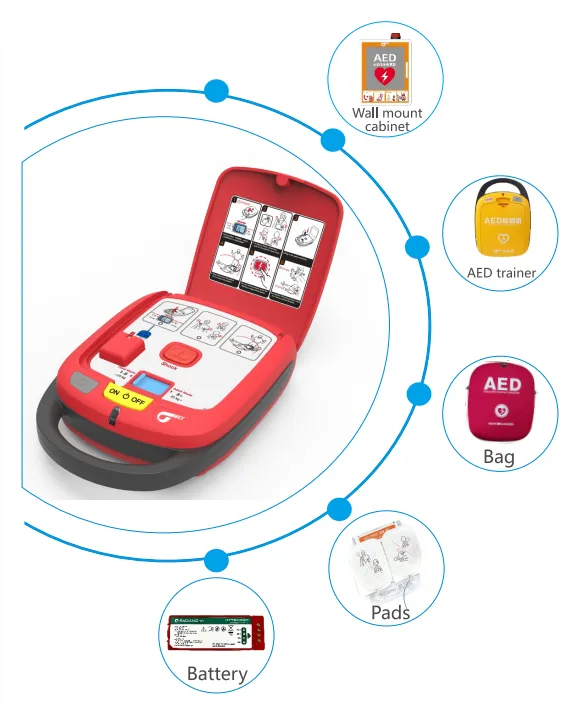

AED Defibrillator Main Unit
◈ Technical Parameters
Parameter Specification Parameter Specification

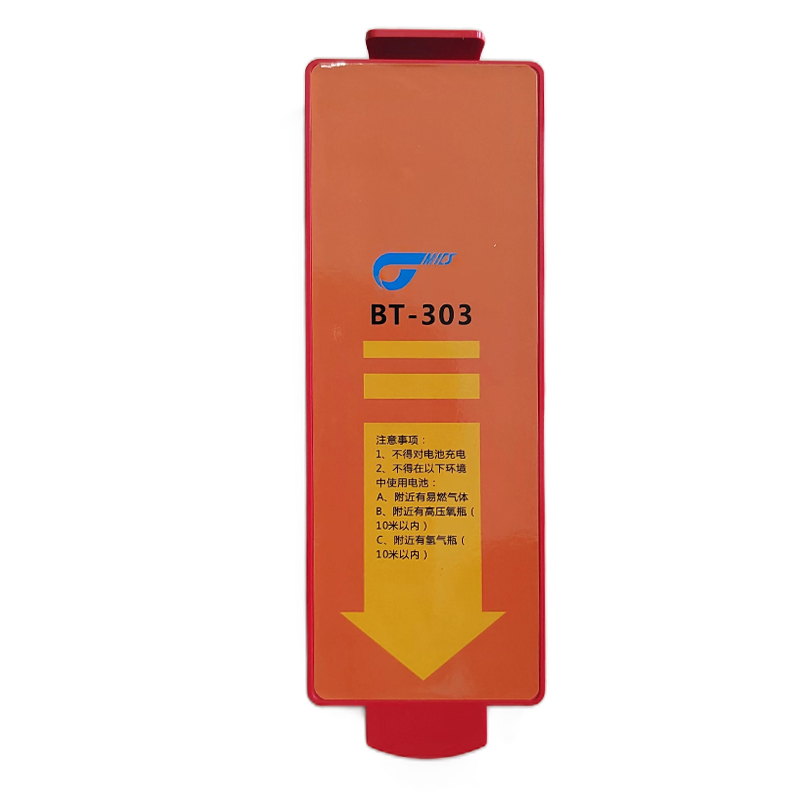

ECG Analysis 8.5 Second Battery Pack Li-MnO2, 12V, 6000 mAh, 4 year lifetime
Hi-Cap Charging 8 Second Shock Frequency Not less than 400 times
Max Shock Output 50 J (child), 150 J (adult) Electrode Pads Disposable, Preinstalled, 6 year lifetime
Data Storage 90 mins ECG & Sound Voice Guide English/Chinese/Customized
Data Transfer Bluetooth Net Weight 2.3 Kg
Warranty 2 year Standard Config Main unit, Battery, Pads, Carry case
◈ Detailed Photos

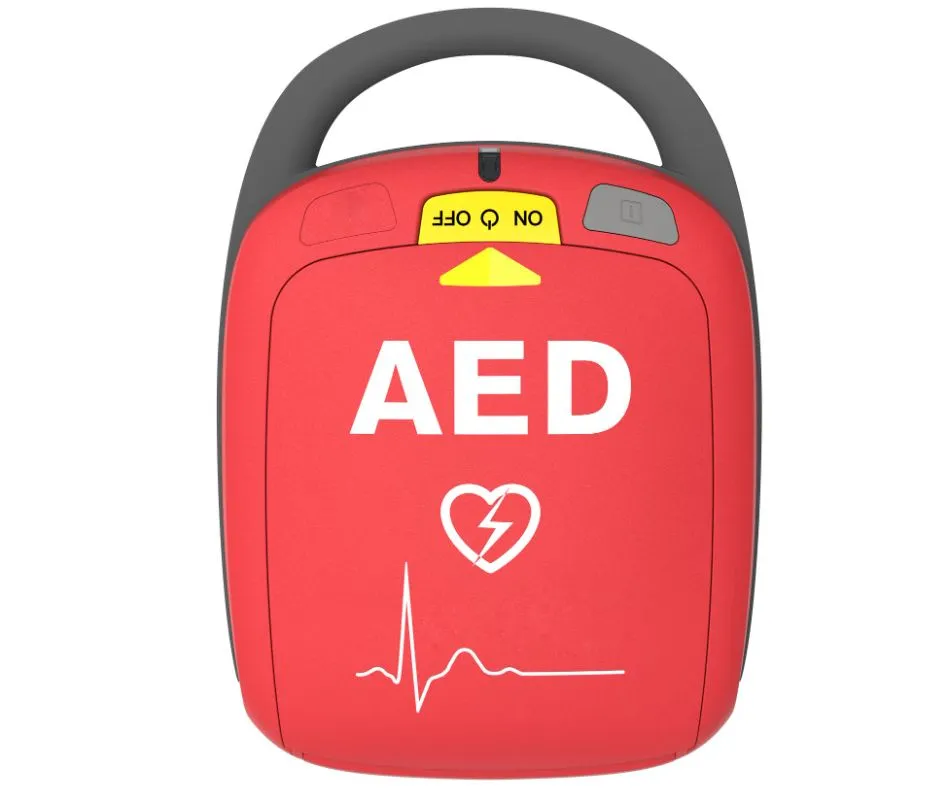

AED Detail 1

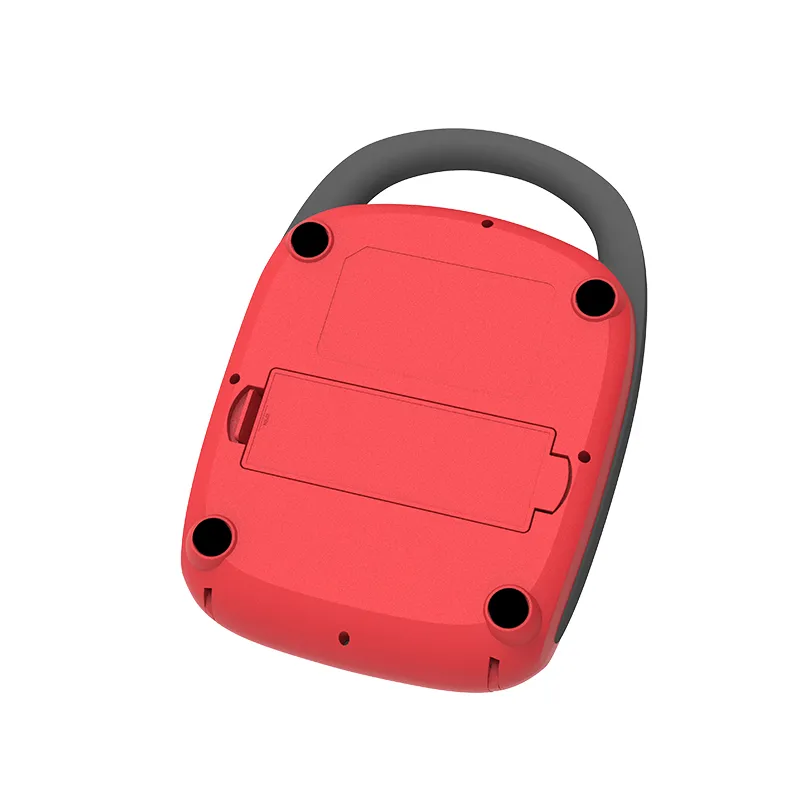

AED Detail 2

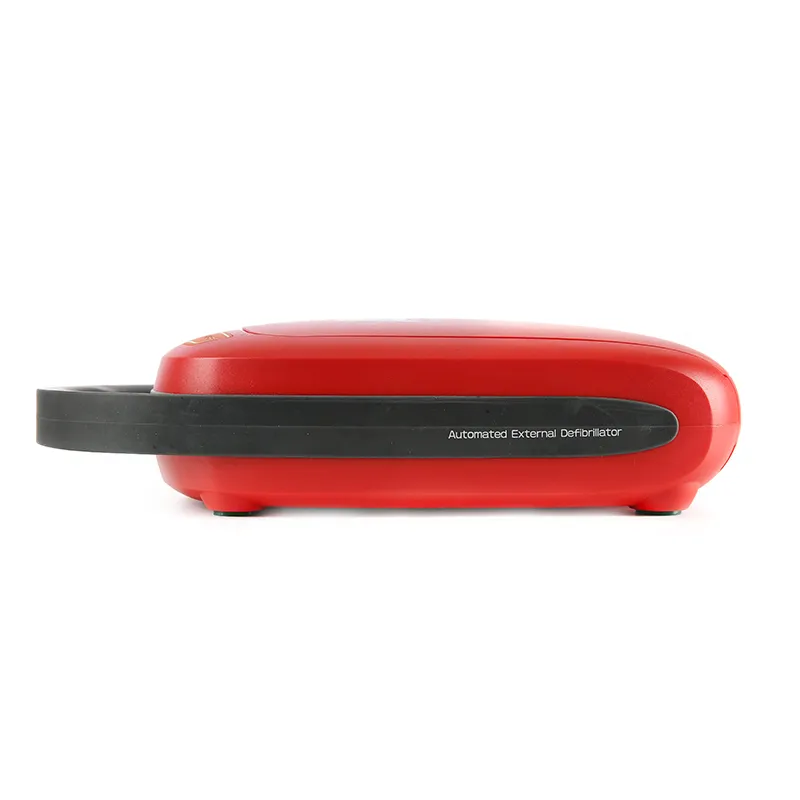

AED Detail 3

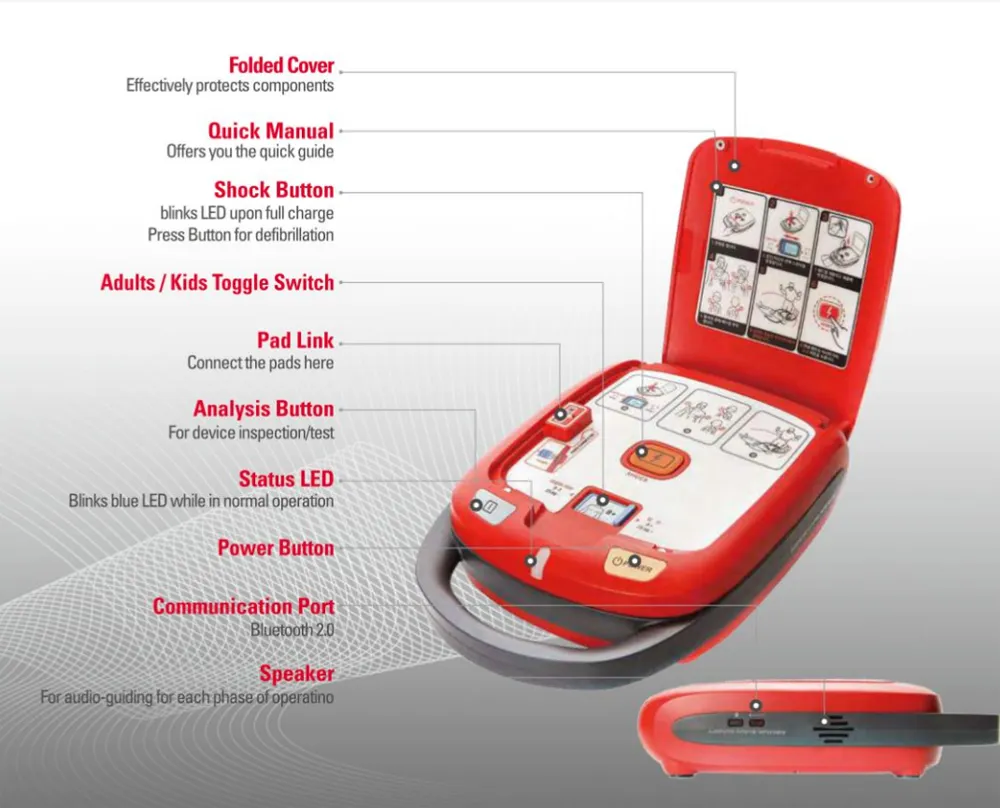

AED Detail 4

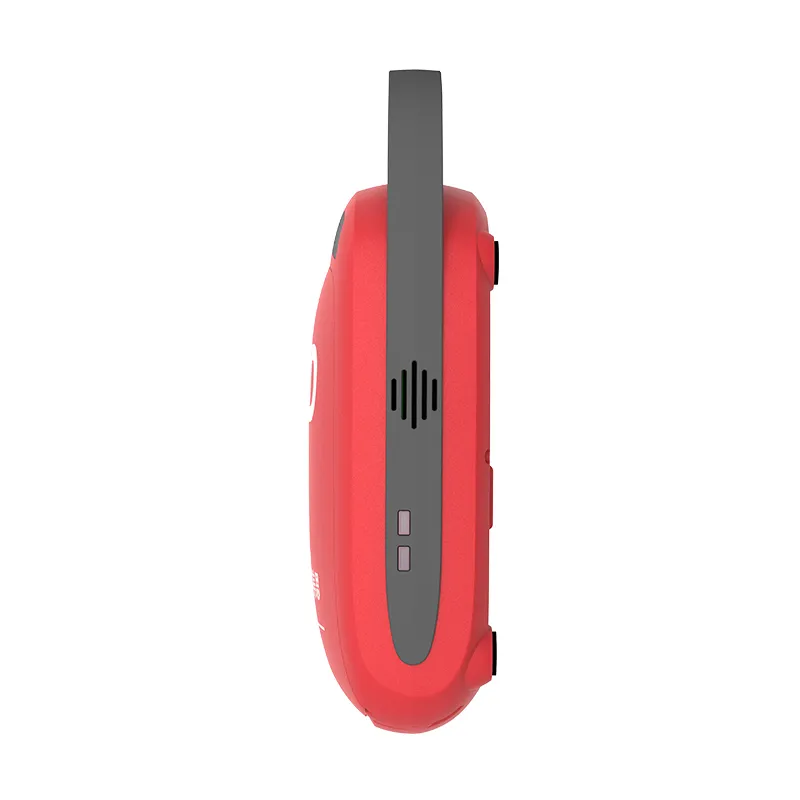

AED Detail 5
AED Detail 6

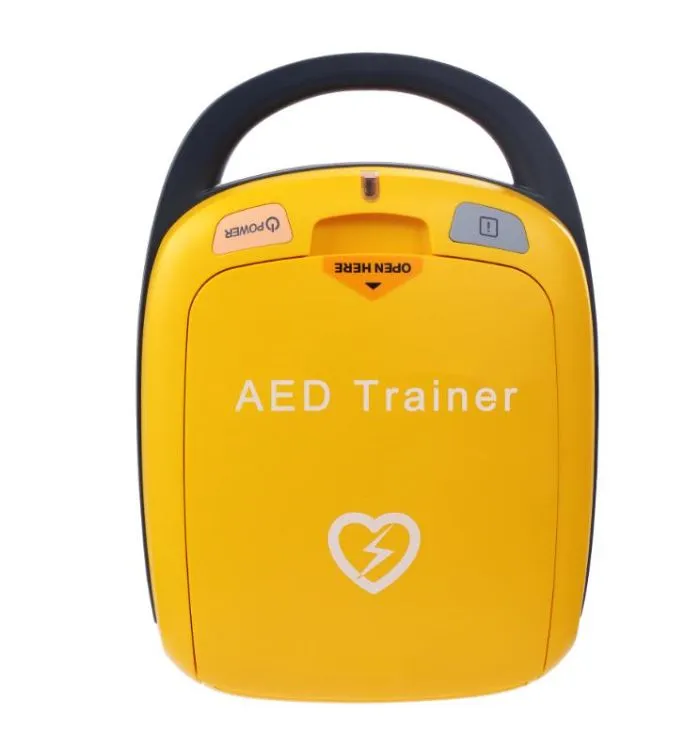

AED Detail 7
◈ Certifications

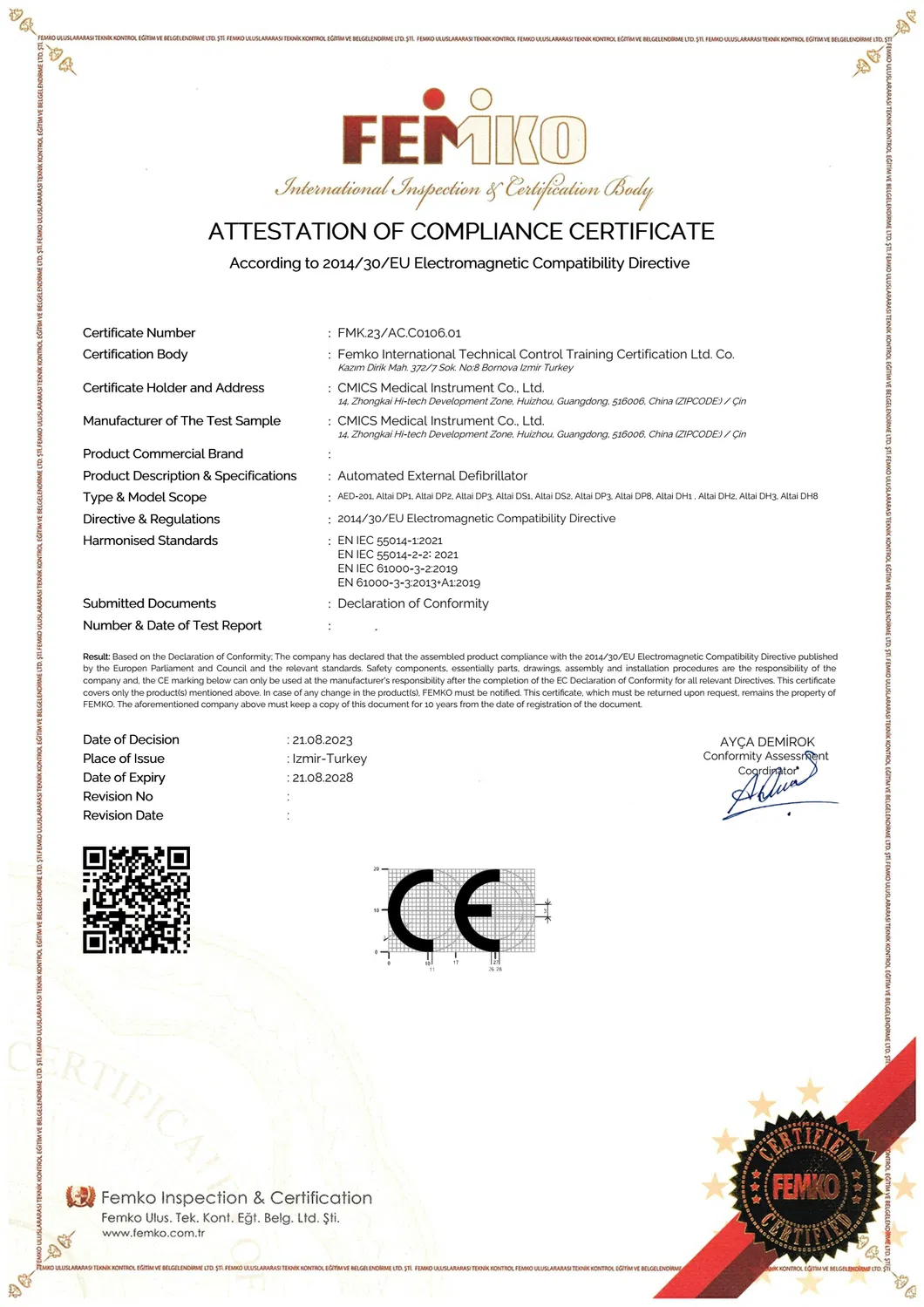

Certification 1

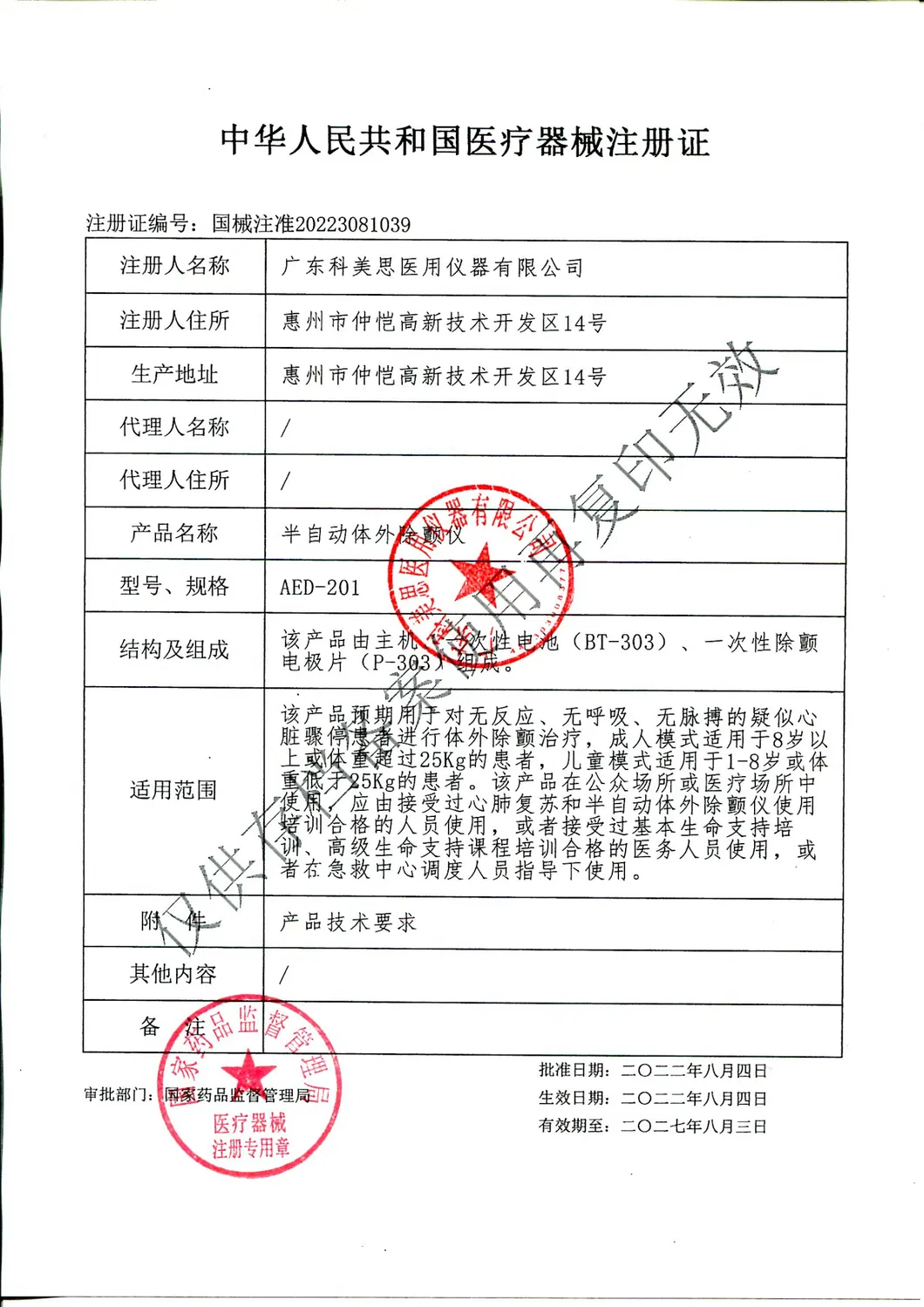

Certification 2

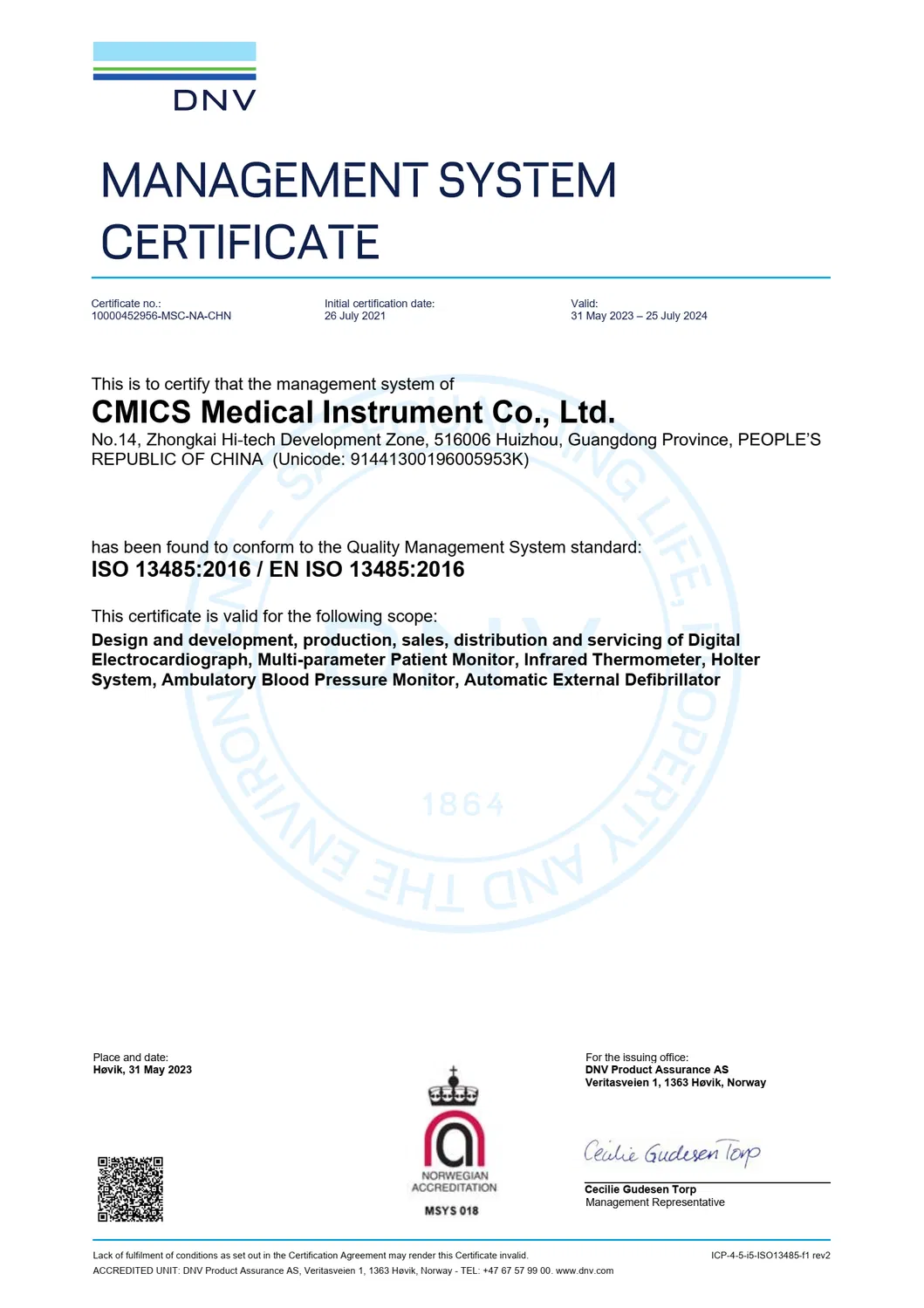

Certification 3
◈ Frequently Asked Questions
How long does the battery last?
The Altai DP1 uses a non-rechargeable Li-MnO2 battery with a 4-year lifetime, capable of delivering at least 400 shocks.
Is this AED suitable for children?
Yes, it features a dedicated child mode and comes with preinstalled electrode pads that are compatible with both adults and children.
Does the device perform self-checks?
Yes, the device performs daily self-tests and an automatic self-test every time it is powered on to ensure it is ready for emergency use.
How much data can the device store?
It can record up to 90 minutes of ECG data and 90 minutes of surrounding sounds for post-event analysis.
Is the operation complicated for non-medical users?
Not at all. It features one-step operation (power on when cover opens) and provides clear automatic voice guidance to lead the user through the process.
What is included in the standard package?
The standard configuration includes the main unit, one battery pack, one set of electrode pads (2 pcs), and a carry case.
◈ Production & Facility

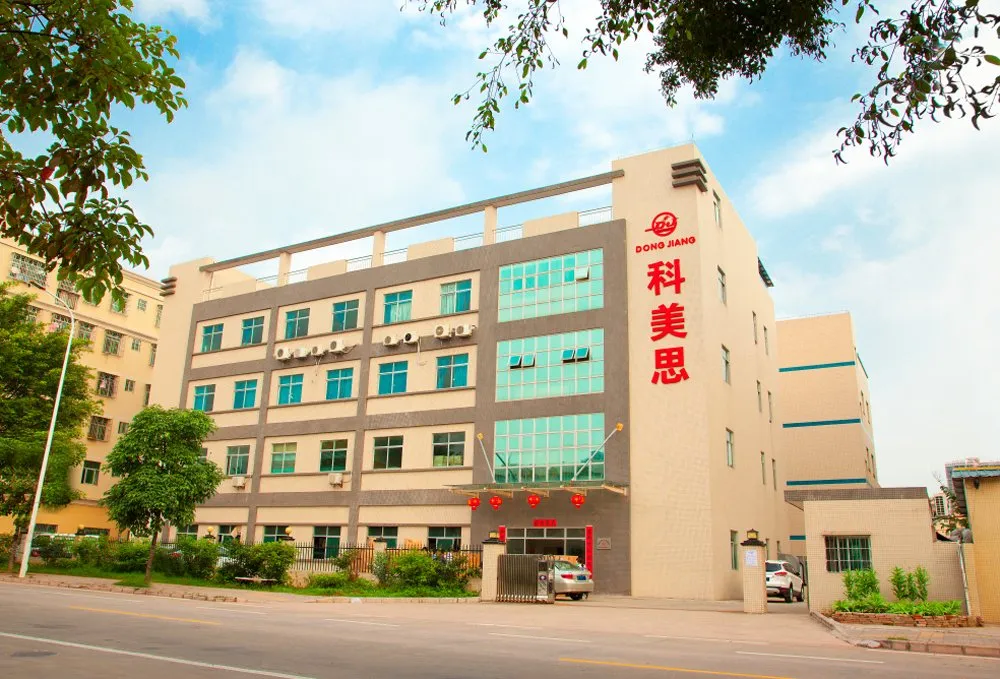

Facility 1
Facility 2

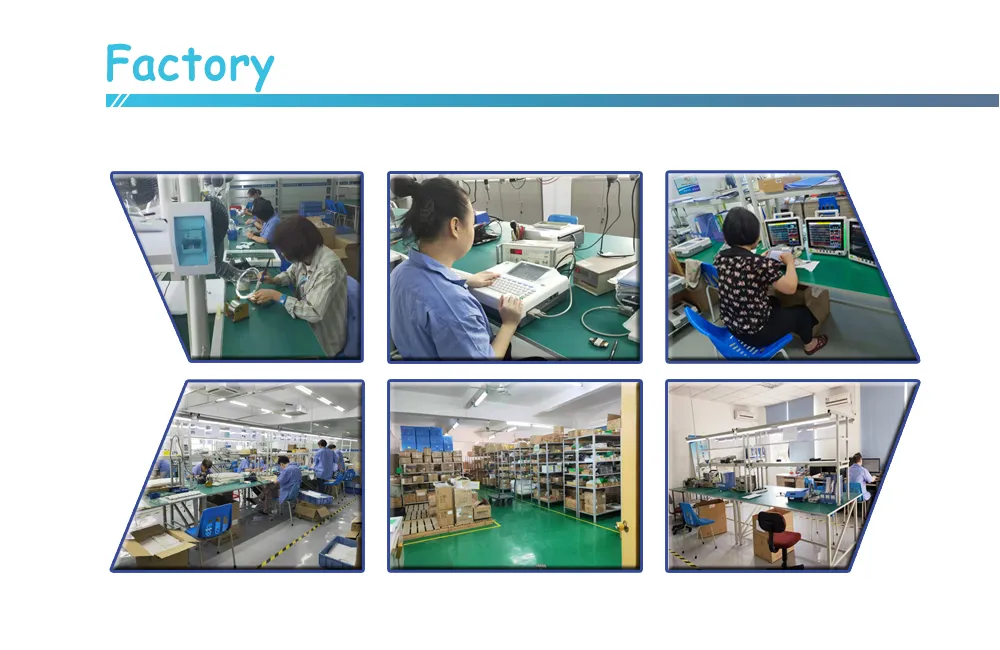

Facility 3
Facility 4
Facility 5
