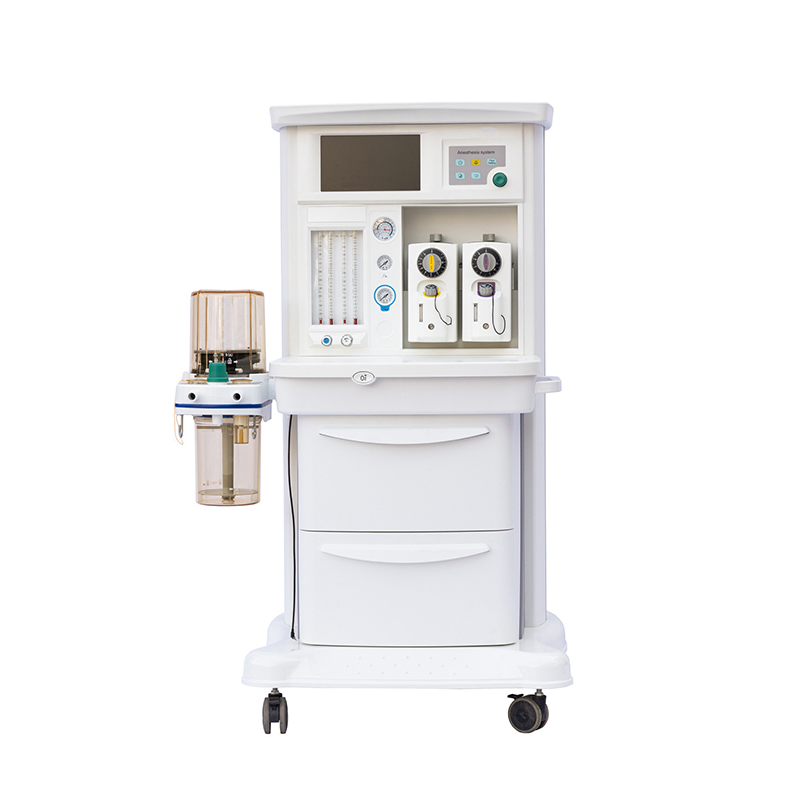

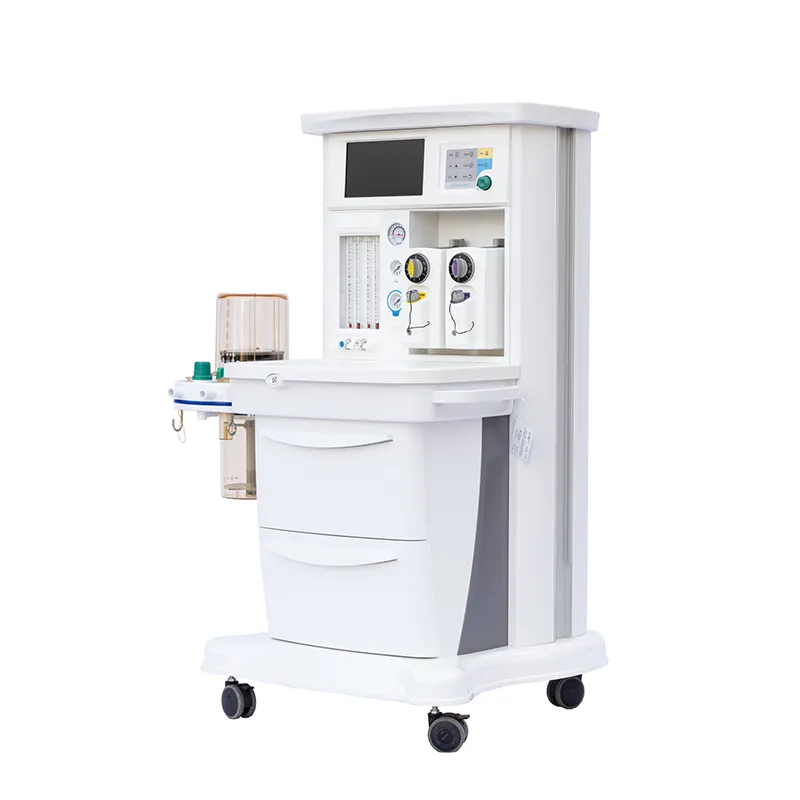

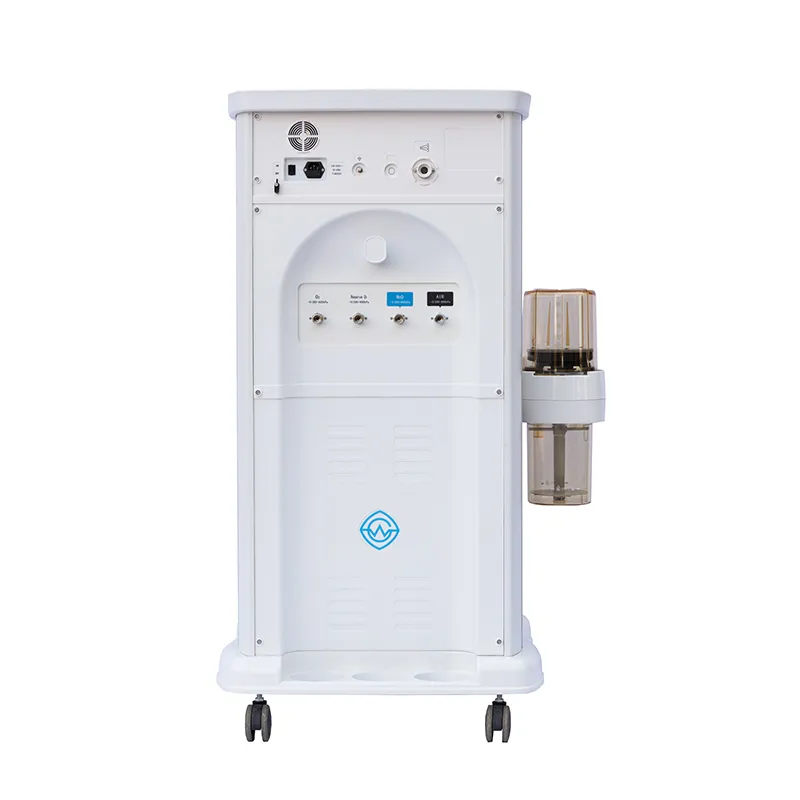

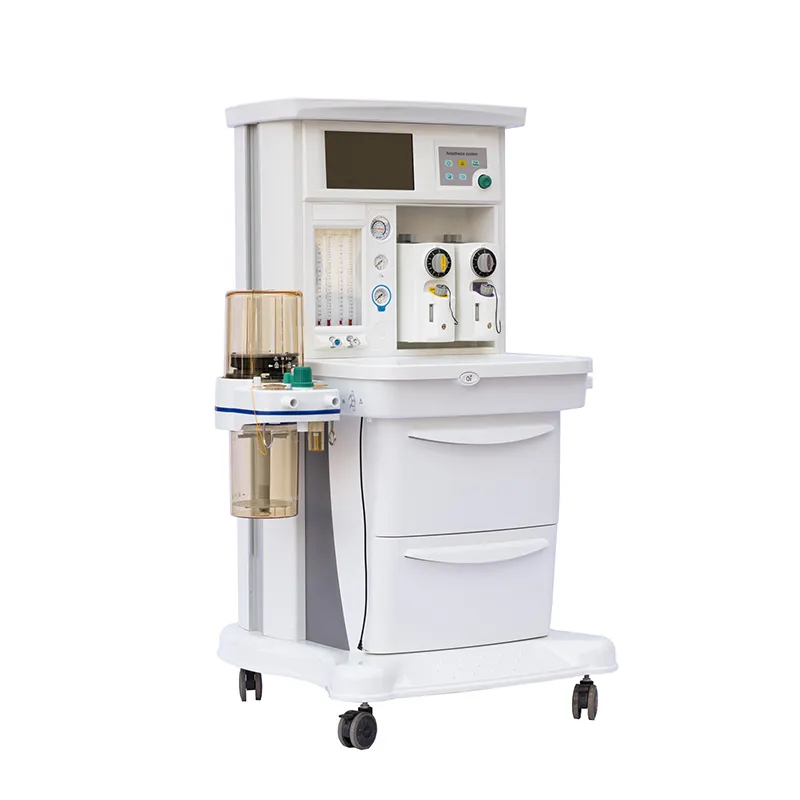

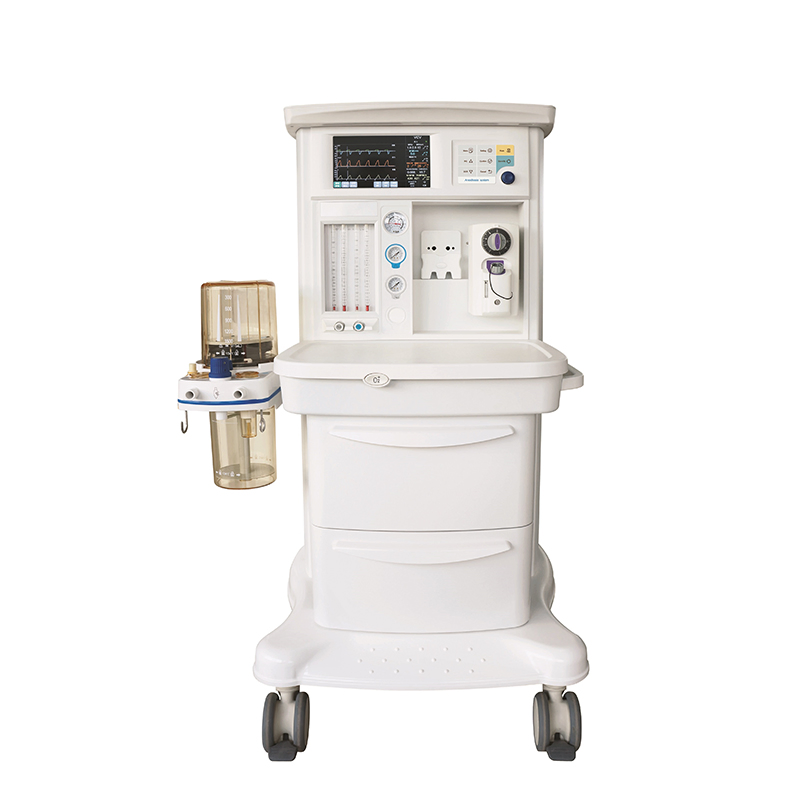

Medical Equipment Ysav6201A Good Quality Surgical Anesthesia Machine

1 / 5

Medical Equipment Ysav6201A Good Quality Surgical Anesthesia Machine

Customization:	Available
Certification:	ISO13485
Group:	All

Send Inquiry

Product Description

📋

Basic Information

Model NO.

YSAV6201A

Out Looking

Portable

With Ventilator

Yes

Certificate

CE, ISO

Scope of Application

Adult, Child

Transport Package

Wooden Case

Specification

CE certificate

Origin

China

HS Code

9018909000

Production Capacity

5,000 Sets/Year

🏥

Product Description

Medical Equipment YSAV6201A Good Quality Surgical Anesthesia Machine

Key Features

Integrated breathing circuit with APL valve, excellent tightness.
Replacing drive bellow is NOT required when operating adult/pediatric anesthesia.
Applied with 1 high-precision vaporizers. (Selectatec).
10.1 inch screen.
Real-time detection for loops, Paw, BPM, VT and compliance.
Comprehensive monitoring capabilities include ventilation parameters monitoring, preset parameters, alarm indication and breathing waveform monitoring.
ACGO available to connect with T/Bain circuit for open operation (Optional).

⚙️

Technique Specifications

Physical Specifications

Dimensions: 70*85*140cm
Weight: 65kg
Casters: Front wheels with lock
Screen: 10.1 inch LCD screen
Display graphic: Waveforms of P-T, F-T, V-T

Working Specifications

Power: AC 110V-240V, 50Hz/60Hz
Battery Power: ≥180 mins
Pipeline Supply Gas configuration: O2, N2O, Air (Optional)
Pipeline input range: 280-600Kpa (40-85psi)

Ventilator Specifications

Patient range: Adult/Pediatric
Modes: VCV, SIMV, Manual, STAND-BY, A/C (Assist/Control)
Working type: Electronic control, pneumatic driven
Tidal Volume range: 20-1500ml
Pressure range: 5-60cmH2O
Respiration rate range: 1-100bpm (1-40bpm under SIMV)
I:E range: 4:1-1:8
Ptrigger range: -20-0cmH2O
Minute volume range: >18L/Min
SIGH range: 0-5/100

System Standards & Monitoring

Hypoxic guard system: N2O cut-off Valve, O2 concentration >25%
Safety valve: <12.5Kpa
O2 Flush: 25-75L/min
Flow meter: 4 tubes, cascade 0-15L/min O2, 0-15L/min N2O, 0-15L/min air (Optional)
Volume of CO2 absorber: 2L
Vaporizer: 1 Selectetac, maximum 2 mounts (Isoflurane/Enflurane/Sevoflurane/Halothane)
Monitoring: VT, MV, Pmax, Pmean, Lung compliance, Freq, FiO2(optional), ETCO2(optional)

Alarms & Functions

Audio/Visual Alarms: No tidal volume, MV, Paw, Fio2(optional), Air failure, AC power failure, Battery low
Language: Chinese, English etc.
Self-test: Automatic

Optional Features

1. ACGO: Auxiliary Common Gas Outlet
2. Yoke system (Pin-index): Support 11L cylinder O2, N2O
3. AGSS: Anesthetic Gas Scavenging Systems

❓

Frequently Asked Questions

What is the patient application range for the YSAV6201A?

The YSAV6201A anesthesia machine is designed for both adult and pediatric patients, with a tidal volume range of 20ml to 1500ml.

How long can the machine operate on battery power during a power failure?

The device is equipped with a backup battery that provides at least 180 minutes of continuous operation.

What ventilation modes does this anesthesia machine support?

It supports multiple modes including VCV (Volume Control), SIMV (Synchronized Intermittent Mandatory Ventilation), Manual, STAND-BY, and A/C (Assist/Control).

Does the system include safety features for oxygen delivery?

Yes, it features a hypoxic guard system with an N2O cut-off valve to ensure the O2 concentration remains above 25%.

What parameters can be monitored on the 10.1-inch screen?

The screen provides real-time detection for loops, Paw, BPM, VT, compliance, and waveforms for P-T, F-T, and V-T.

Is the breathing circuit difficult to maintain?

No, it features an integrated breathing circuit with an APL valve for excellent tightness, and replacing the drive bellow is not required when switching between adult and pediatric patients.
