Cheap Price Medical Equipment Operating Room Anesthesia Machine

Customization:	Available
Type:	Anaesthesia Machine
Kind:	Operation Room

i

Basic Information

Model NO.

JINLING-850

Certification

ISO13485

Group

Adult and Children

LCD Display

8.4 inch Color TFT

Ventilation Mode

IPPV, SIPPV, VCV, PCV, IMV, SIMV, Manual, Standby

Tidal Volume

20-1500ml

Respiratory Rate

1-100bpm

PEEP Range

0-20CMH2o

Origin

China

Production Capacity

500 Unit/Month

★

Product Description

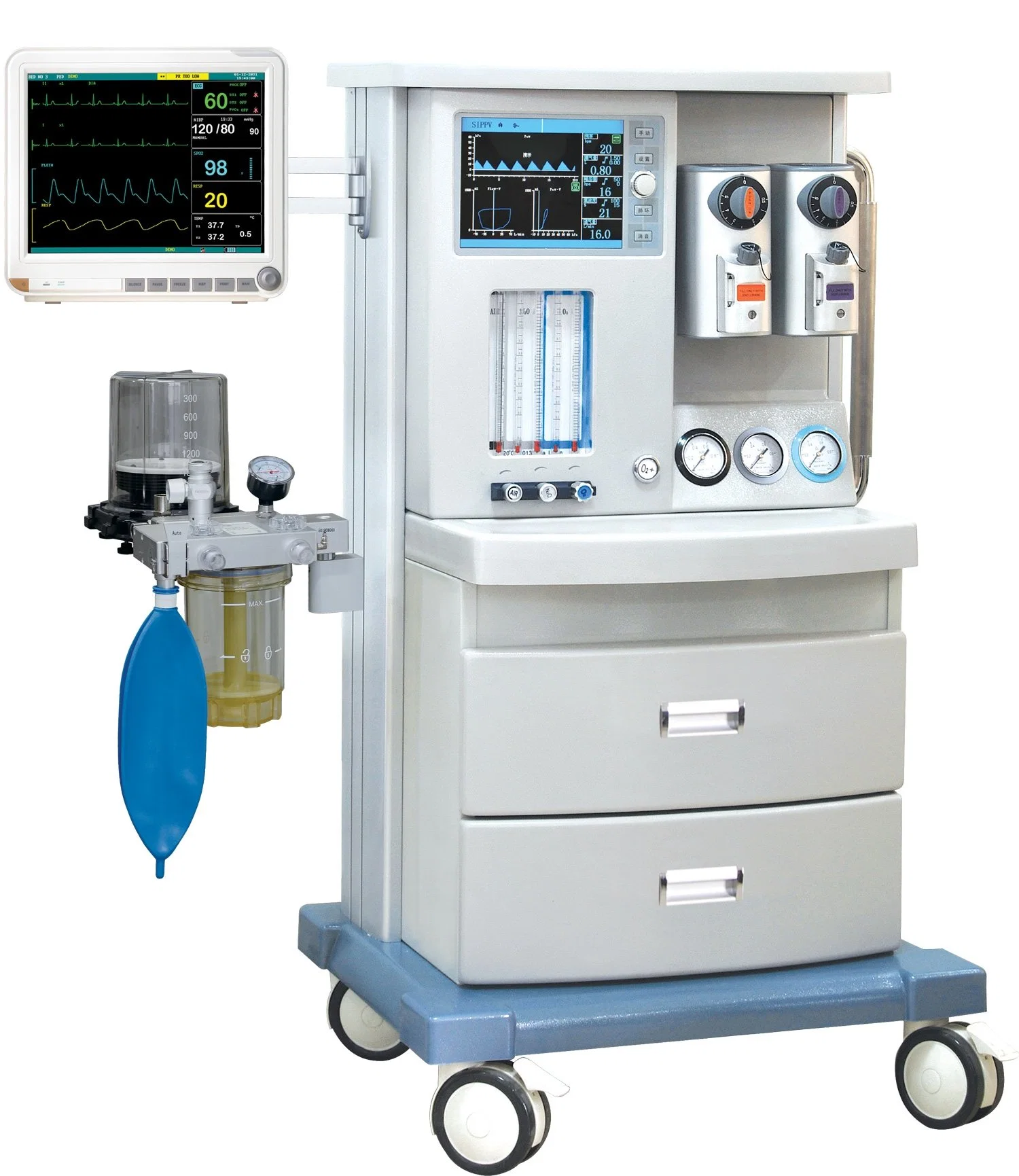

Operating Room Anesthesia Machine Medical Equipment

L

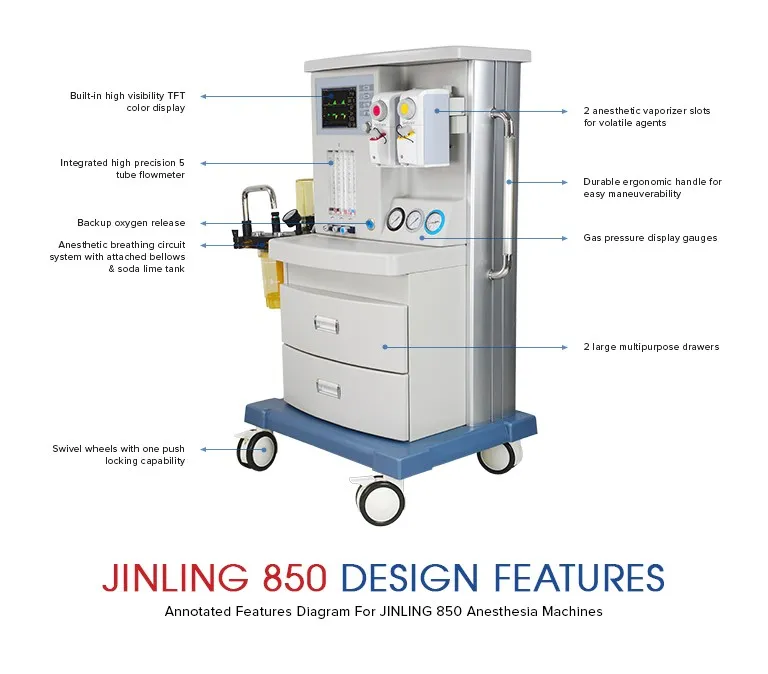

Common Features

Operating Modes: Pneumatically driven & electronically controlled, closed, semi-closed and semi-open.

Anesthesia Ventilator: Built-in 8.4 inch color TFT display, able to display Pressure-Time, Frequency-Time, Pressure-Volume and Frequency-Volume waveforms.

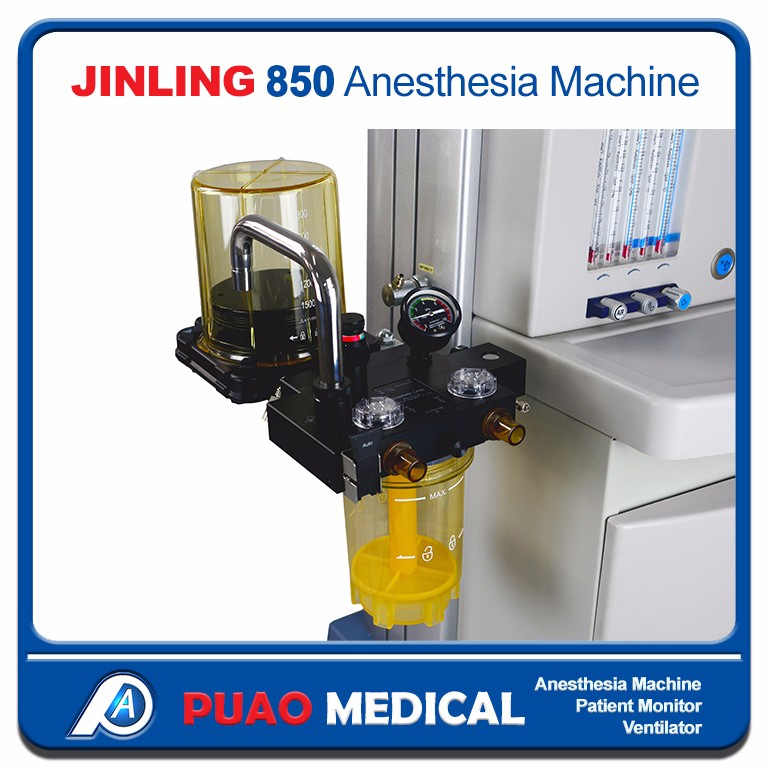

Standard integrated metallic modular respiratory circuit; completely solves the problem of gas sealing under high temperature disinfection.

Power Failure Support: Automatically converts to backup power mode during AC power outages.

Equipped with electronic pressure differential flow sensor and imported respiratory control valve.

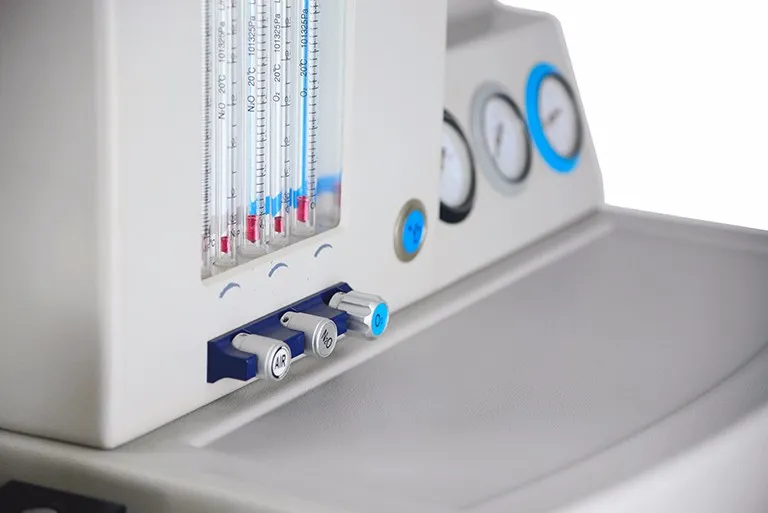

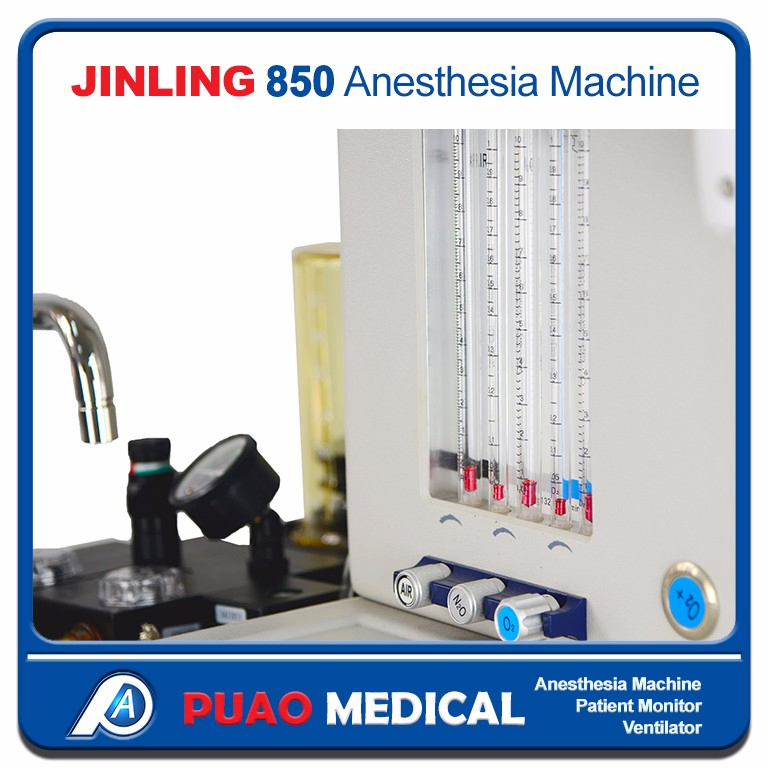

High precision five tube flowmeter with interlocking oxygen-nitrous oxide supply (O2 concentration ≥21%).

Comprehensive Alarms: Audible and visual alarms for tidal volume, airway pressure, oxygen concentration, asphyxia, and power failure.

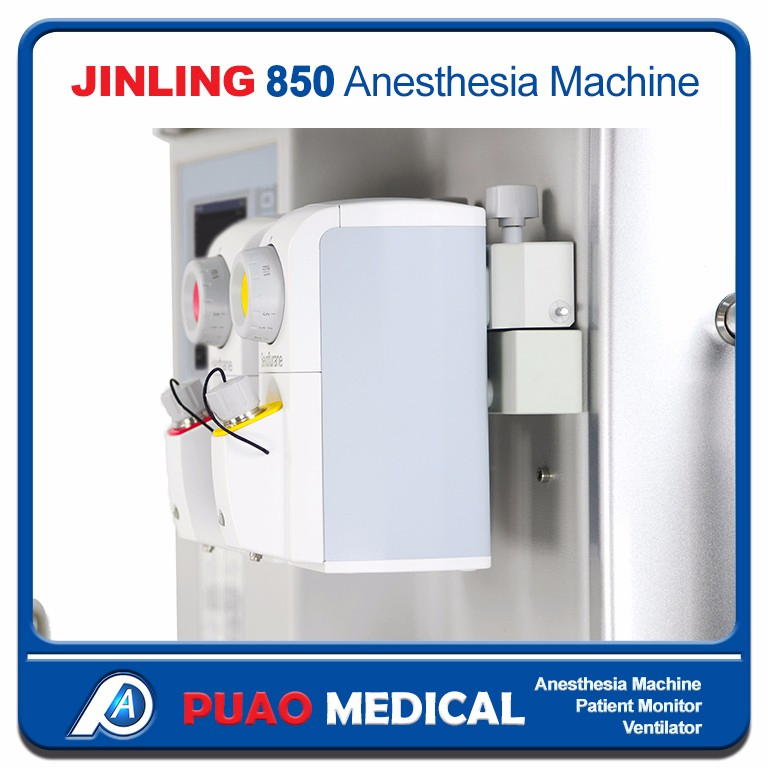

Vaporizer: Supports Enflurane, Isoflurane and Sevoflurane (Halothane optional) with self-compensating functionality.

Advanced international rotating Na-lime tank, easy-operate with one hand, temperature resistant to 134°C.

T

Technical Specifications

Parameter	Details (Jinling-850 Standard)
Display	8.4 inch TFT display
Flowmeter Range	O2: 0.1-10L/min; N2O: 0.1-10L/min; Air: 0.1-10L/min
Ventilation Mode	IPPV, SIPPV, VCV, PCV, IMV, SIMV, MANUAL, Standby
Back-up Power Supply	At least 4 hours
Tidal Volume	Adjustable: 20-1500ml; Display: 0-2000ml
Respiratory Rate	1-100bpm
I:E Ratio	8:1-1:10 (capable of inverse ratio ventilation)
PEEP Range	0-20cmH2O (electronically controlled)
Inspiratory Pressure Trigger	-10-10cmH2O (electronically controlled)
Inhaled Oxygen Monitor	21-100%
Vaporizer Slots	Double PA-I type slots

?

Frequently Asked Questions

Q1: What is the display size and type of the JINLING-850? A: The machine features a built-in 8.4-inch color TFT display that provides clear visualization of waveforms and parameters.

Q2: Which patient groups can use this anesthesia machine? A: It is designed for both adult and pediatric (children) patients, with a wide tidal volume range of 20ml to 1500ml.

Q3: How long does the battery last during a power failure? A: The integrated backup power supply ensures the machine can continue operating for at least 4 hours during AC power outages.

Q4: What ventilation modes are available? A: The JINLING-850 supports multiple modes including IPPV, SIPPV, VCV, PCV, IMV, SIMV, Manual, and Standby.

Q5: Is the respiratory circuit easy to disinfect? A: Yes, it features a standard integrated metallic modular respiratory circuit designed for high-temperature disinfection and easy cleaning.

Q6: Does it monitor oxygen concentration? A: Yes, it includes an inhaled oxygen concentration monitor with a range of 21% to 100% and features interlocking O2-N2O supply to ensure safety.
