Customization: Available
Type: Anaesthesia Machine
Kind: Surgery
Send Inquiry

Product Description

Basic Information
Model NO.
JINLING 850
Certification
ISO13485, ISO9001
Group
Adult
LCD Display
10.4 Inch TFT Display
Ventilation Mode
Ippv, Sippv, Vcv, Pcv, Imv, Simv, Manual, Standby
Tidal Volume
20-1500ml
Respiratory Rate
1-100bpm
PEEP
0-20CMH2O
Origin
China
Production Capacity
300
Advanced Medical Anesthesia Machine

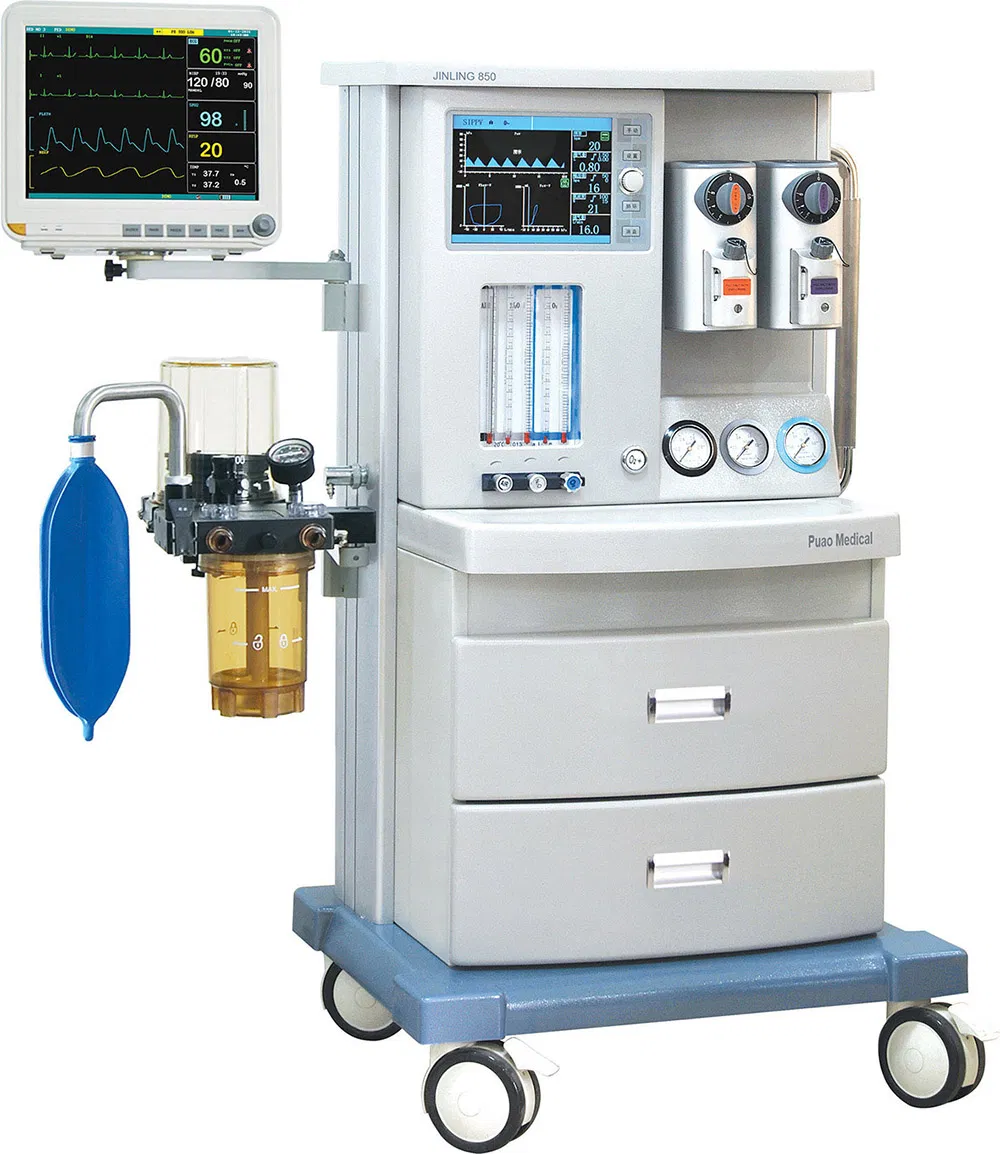

Anesthesia Machine Main View

Common Features

Operating Modes: Pneumatically driven & electronically controlled, closed, semi-closed and semi-open.

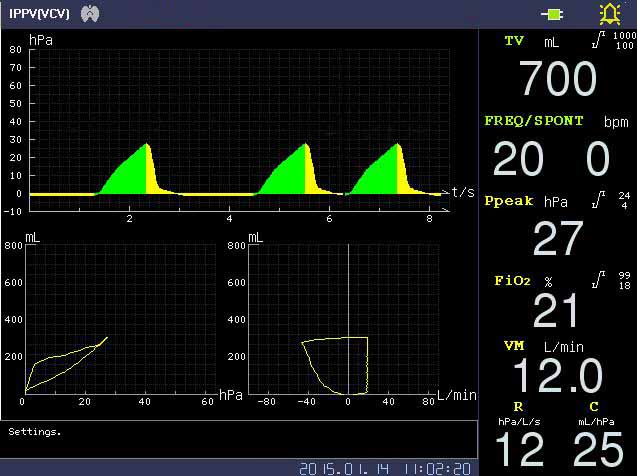

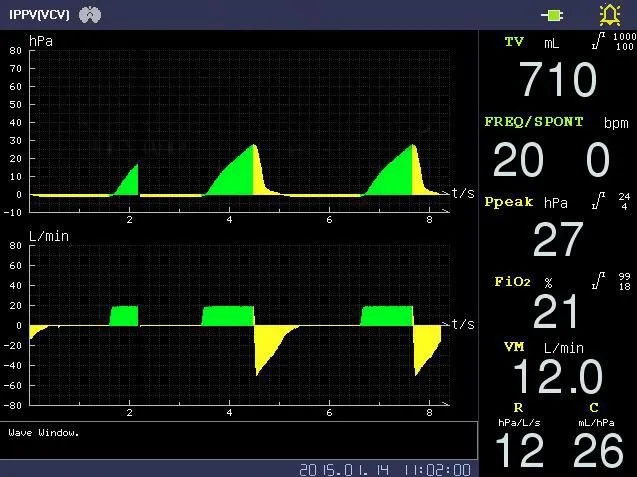

Anesthesia Ventilator: Built-in 10.4" color TFT display, showing Pressure-Time, Frequency-Time, Pressure-Volume and Frequency-Volume loops.
Modular Circuit: Standard integrated metallic modular respiratory circuit; high temperature disinfection compatible and gas-tight.
Safety Alarms: Audible/visual alarms for tidal volume, airway pressure, oxygen concentration, asphyxia, and power failure.
High Precision Flowmeter: Five tube flowmeter with interlocking oxygen-nitrous oxide supply (O2 > 21%).

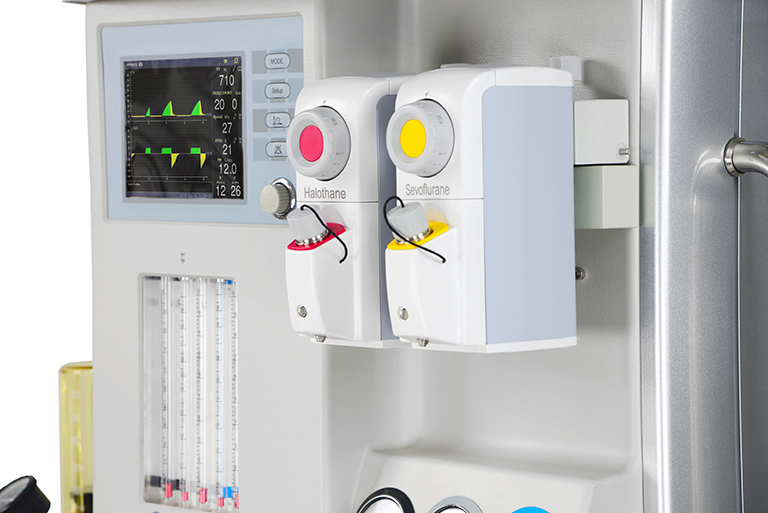

Vaporizer: Equipped with Enflurane, Isoflurane, and Sevoflurane options with self-compensating functionality.
Advanced APL Valve: Suitable for low and ultra-low flow anesthesia.

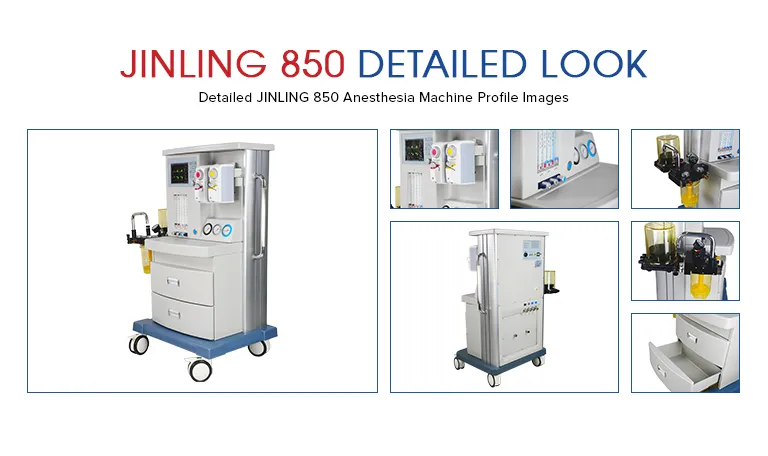

Machine Detail 1
Machine Detail 2
Machine Detail 3
Technical Specifications
Parameter Specification Details
ModelJINLING 850 (Advanced Model)
Display10.4 inch TFT display
Flowmeter RangeO2: 0.1-10L/min; N2O: 0.1-10L/min; Air: 0.1-10L/min
Ventilation ModeIPPV, SIPPV, VCV, PCV, IMV, SIMV, MANUAL, Standby
Back-up Power SupplyAt least 4 hours
Tidal VolumeAdjustable: 20-1500ml; Display: 0-2000ml
Respiratory Rate1-100bpm
I:E Ratio8:1-1:10
PEEP Range0-20cmH2O (Electronically controlled)
Vaporizer SlotsDouble PA-I type slots (0-5% concentration)
Frequently Asked Questions
● What are the available ventilation modes for JINLING 850?
The JINLING 850 supports multiple modes including IPPV, SIPPV, VCV, PCV, IMV, SIMV, Manual, and Standby to meet various clinical needs.
● Does the machine include a backup battery?
Yes, it features a built-in backup power supply that provides at least 4 hours of operation during AC power outages.
● Can the respiratory circuit be disinfected?
The machine uses a standard integrated metallic modular respiratory circuit designed for high-temperature disinfection to ensure safety and hygiene.
● What is the tidal volume range for this anesthesia machine?
The adjustable tidal volume range is 20-1500ml, making it suitable for a wide range of adult patients.
● How many vaporizers can be installed?
It is equipped with double PA-I type vaporizer slots, allowing for the use of two different anesthetic agents like Enflurane, Isoflurane, or Sevoflurane.
● What parameters are monitored on the display?
The 10.4-inch TFT display shows real-time waveforms including Pressure-Time, Frequency-Time, Pressure-Volume, and Frequency-Volume loops.
