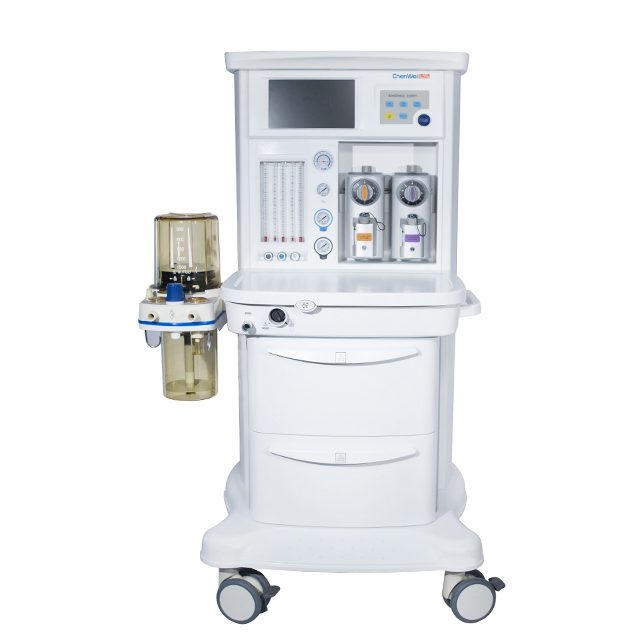

Chenwei Medical Equipment Anesthesia Machine Cwm-301d
Chenwei Medical Equipment Anesthesia Machine Cwm-301d
Chenwei Medical Equipment Anesthesia Machine Cwm-301d
Chenwei Medical Equipment Anesthesia Machine Cwm-301d
1 / 4
Chenwei Medical Equipment Anesthesia Machine Cwm-301d
Chenwei Medical Equipment Anesthesia Machine Cwm-301d
Chenwei Medical Equipment Anesthesia Machine Cwm-301d
Chenwei Medical Equipment Anesthesia Machine Cwm-301d

Chenwei Medical Equipment Anesthesia Machine Cwm-301d

Customization: Available
Type: Medical Equipment
Function: Anaesthesia System
Send Inquiry

Product Description

Basic Information

Model NO.
CWM-301D
Certification
CE, ISO13485
LCD Display
With LCD Display
Group
Adult and Children
Transport Package
Standard Export Packing
Specification
ISO, CE
Trademark
CW
Origin
China
HS Code
9018907090
Production Capacity
5000PCS/Year

Product Description

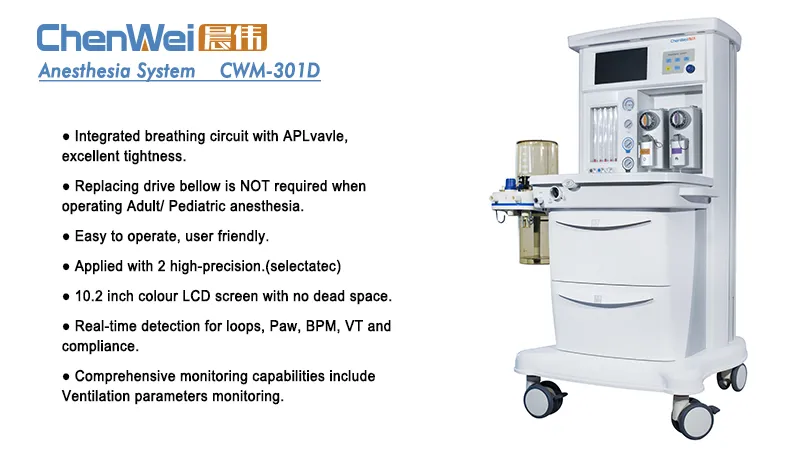

Anesthesia Machine (CWM-301D) Overview:

✓10.1'' color LCD touch screen interface.
✓Applied for closed, semi-open inhalation anesthesia.
✓Controlled or assisted ventilation modes.
✓Monitoring and displaying patients' ventilation parameters.
✓Suitable for both adult and child patients.

Key Technical Features:

●APL valve integration for safety and pressure control.
●Excellent air tightness, designed for easy operation, cleaning, and disinfection.
●Advanced concentration control with temperature, flow, and pressure compensation technology.
●Optional high-precision imported vaporizers (Isoflurane, Enflurane, Sevoflurane).
●Gas driven and electrical control system.

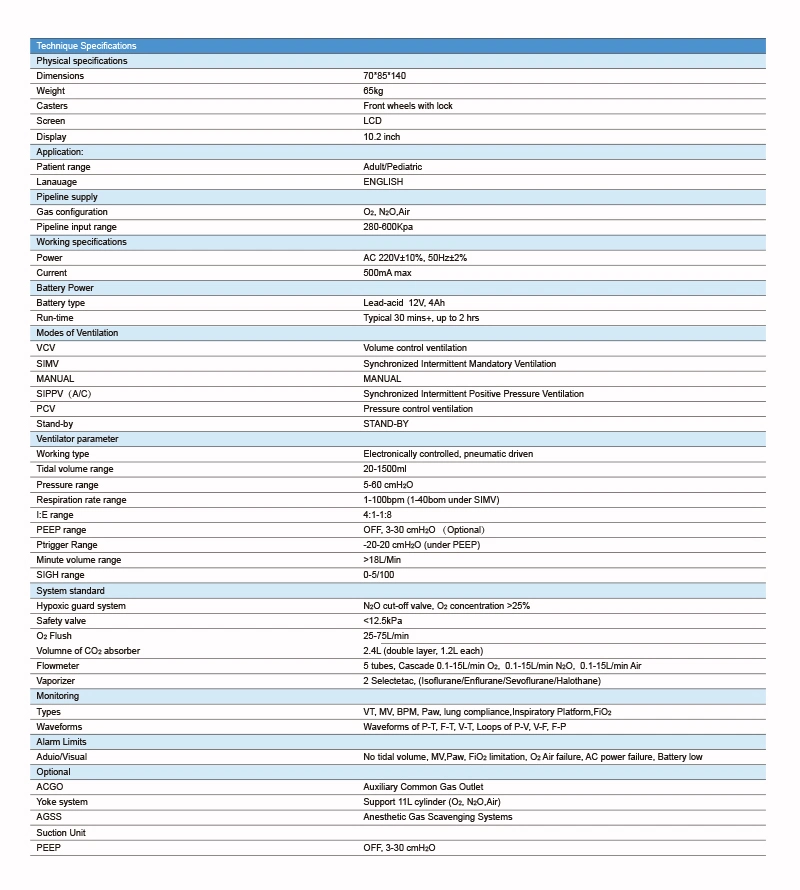

Main Specifications:

Power Supply220V AC ± 10%, 50Hz ± 2%, built-in battery for backup
Gas SourceO², N² O, Air
Oxygen Flush25 to 75L/minute
Ventilation ModesVCV, A/C, SIMV, MANUAL, PCV, PSV, STAND-BY
Parameters MonitoringVT, MV, BPM, Paw, Lung compliance, Inspiratory platform, FiO2
Waveform DisplayPressure-time, Flow-time, Volume-time, Pressure-volume loop, Flow-volume loop

Alarm & Protection Systems:

⚠Optimal third-class alarm unit for comprehensive safety.
⚠Alarms for: Tidal volume high/low, Minute volume high/low, Airway pressure high/low, Apnea, O² Concentration high/low.
⚠Technical Alarms: Low voltage, AC power failure, gas source failure, airway malfunction.
⚠Safety Protection: Prompt for parameter limitations and protection against unreasonable settings.
Anesthesia Machine CWM-301D Detail 1

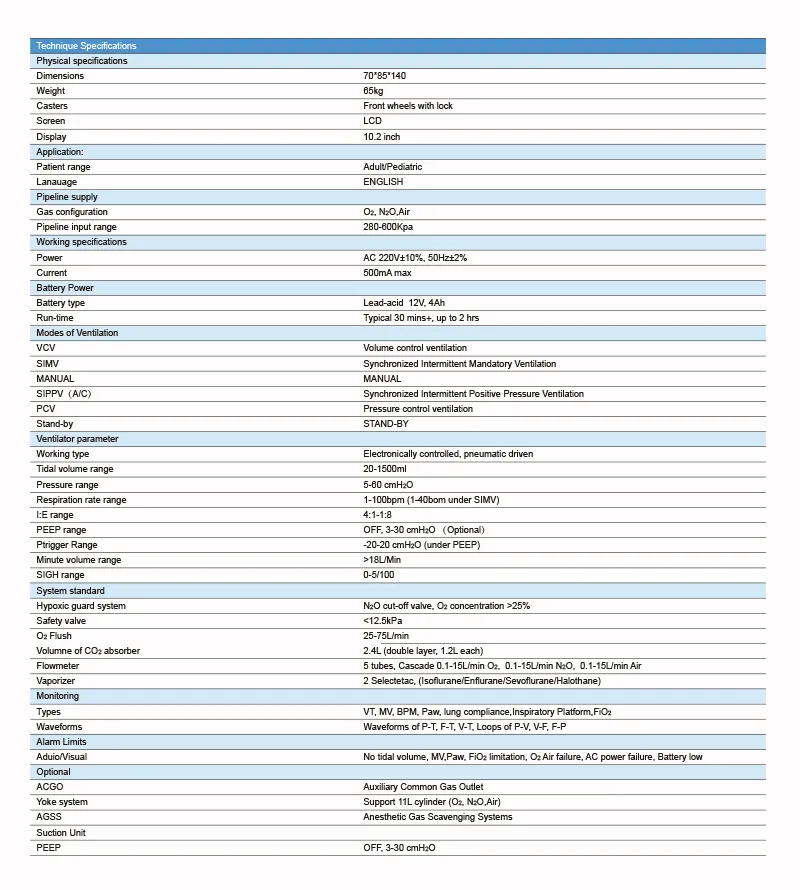

Anesthesia Machine CWM-301D Detail 2

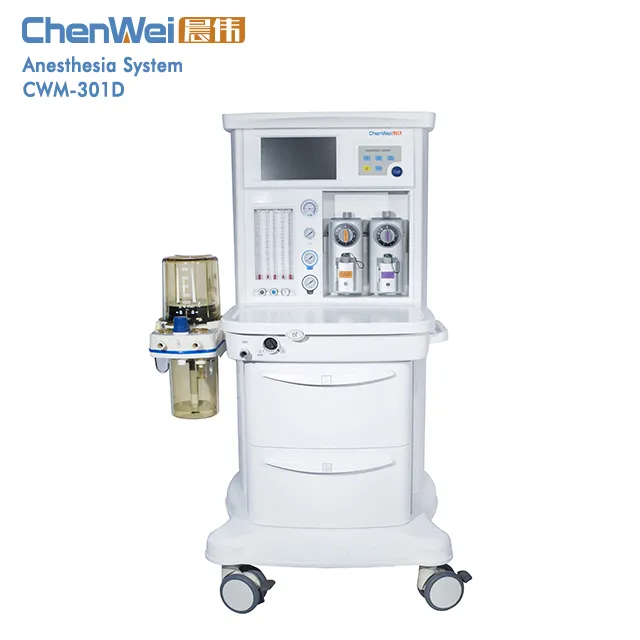

Anesthesia Machine CWM-301D Detail 3
Anesthesia Machine CWM-301D Detail 4
Anesthesia Machine CWM-301D Detail 5

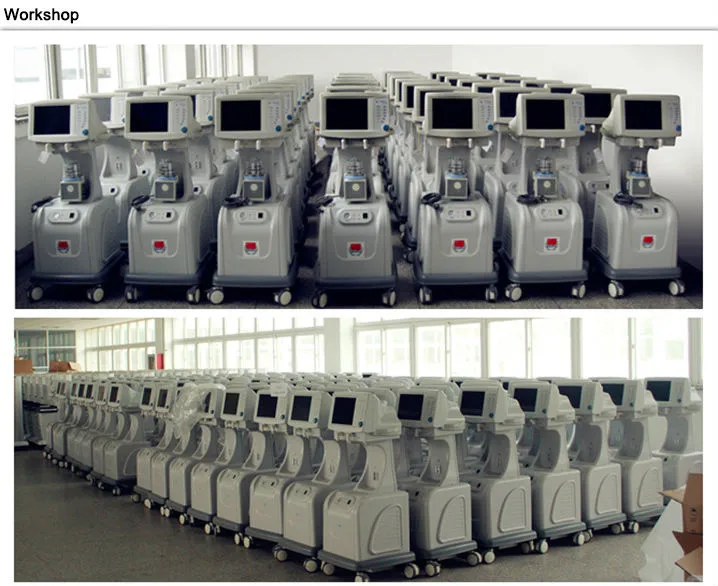

Anesthesia Machine CWM-301D Detail 6

Frequently Asked Questions

1. What patient groups is the CWM-301D suitable for?
The CWM-301D anesthesia machine is versatile and designed for use with both adult and pediatric patients.
2. Does the machine have a backup power supply?
Yes, it features a built-in battery for backup to ensure continuous operation in case of AC power failure.
3. What are the primary ventilation modes available?
The machine supports multiple modes including VCV, A/C, SIMV, MANUAL, PCV, PSV, and STAND-BY to meet various clinical needs.
4. How is the user interface designed?
It features a 10.1-inch color LCD touch screen that displays ventilation parameters and multiple waveforms simultaneously for clear monitoring.
5. Can the machine handle different types of anesthetic gases?
Yes, it is compatible with O², N² O, and Air, and can be equipped with optional vaporizers for Isoflurane, Enflurane, and Sevoflurane.
6. What safety alarms are included?
It includes a third-class alarm system for tidal volume, minute volume, airway pressure, apnea, oxygen concentration, and gas source failure.
