Customization: Available
Type: Anaesthesia Machine
Kind: Surgery
Send Inquiry

Product Description

i
Basic Specifications
Model
JinLing 850
Certification
ISO13485, ISO9001
Group
Adult
Display
8.4 Inch LCD Color Screen
Tidal Volume
0-1500ml
Resp. Rate
1-100bpm
I:E Ratio
4:1-1:4 or 8:1-1:10
HS Code
9018907010
★
Top-Grade Anesthesia Machine Workstation

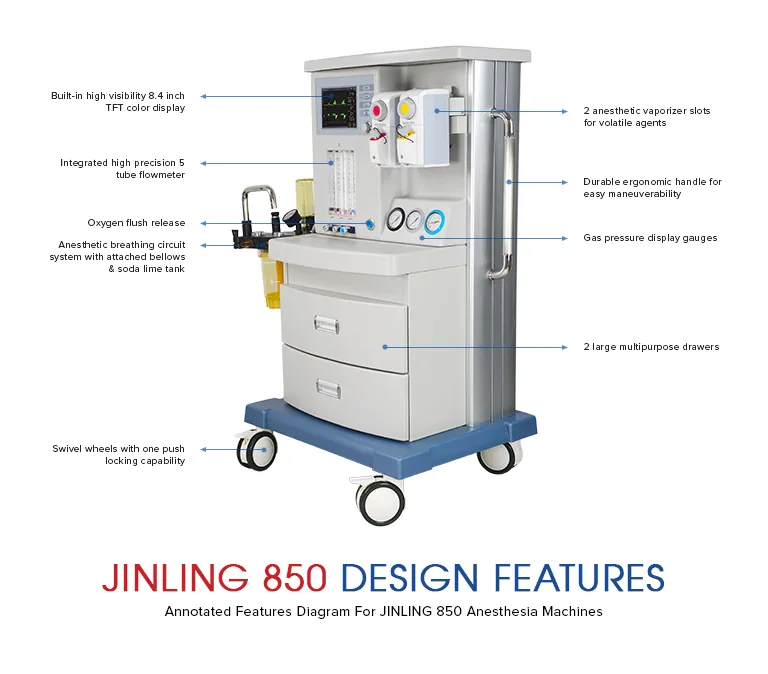

Anesthesia Machine Workstation

Model: JinLing 850

Key Features

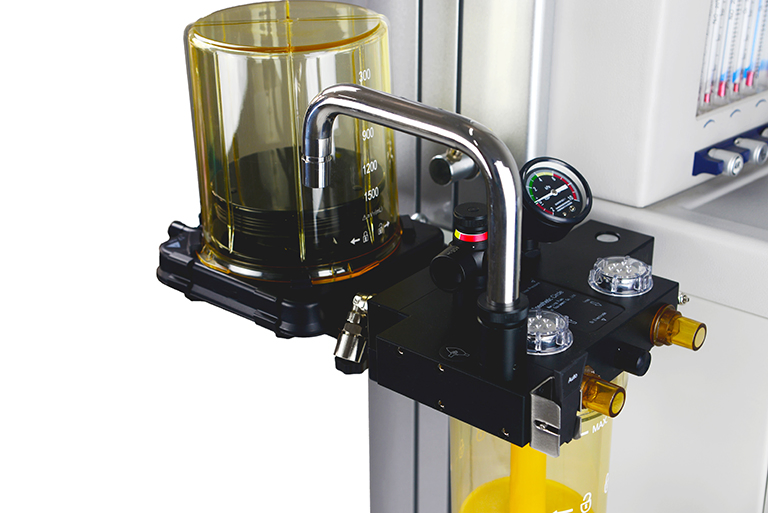

  • Standard integrated metallic modular respiratory circuit; completely solves gas sealing issues under high-temperature disinfection.
  • High precision five-tube flowmeter with interlocking oxygen-nitrous oxide supply (min 21% O2 output).
  • Environmentally friendly frame with automated self-checking and self-calibrating sensors.
  • Advanced and stable Adjustable Pressure Limiting (APL) valve for low-flow anesthesia.
  • Advanced international rotating Na-lime tank, single-hand operation, temperature resistant to 134°C.
  • Optional Multi-parameter Patient Monitor support.

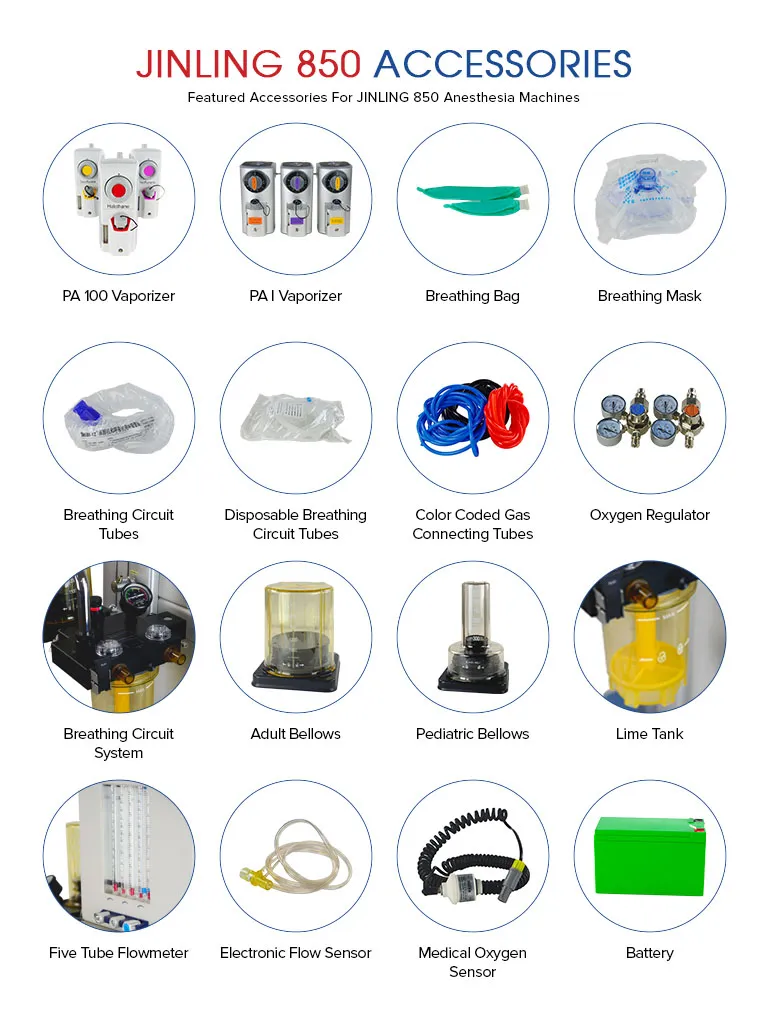

Anesthesia Equipment Detail 1
Anesthesia Equipment Detail 2
⚙
Technical Specifications
Flowmeter Range O2/N2O/Air: 0.1-10L/min
Ventilation Modes IPPV, SIPPV, VCV, IMV, SIMV, MANUAL, Standby
Back-up Power At least 4 hours battery operation
Tidal Volume Range 10-1500ml (Display range: 0-2000ml)
PEEP Range 0-20cmH2O (Electronically controlled)
SIGH Function 1 sigh breath every 80-120 breaths
O2 Monitor 21-100% inhaled oxygen concentration
Vaporizer Slots Double PA-I type slots (0-5% range)
Workstation View 1
Workstation View 2
Frequently Asked Questions
What type of display does the JinLing 850 use?

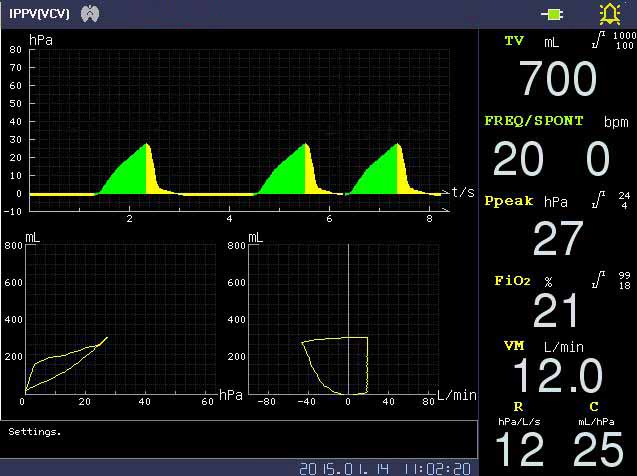

The workstation is equipped with an 8.4-inch TFT color LCD screen for clear visualization of parameters.
Is the respiratory circuit easy to disinfect?
Yes, it features a standard integrated metallic modular circuit that supports high-temperature disinfection and ensures excellent gas sealing.
What ventilation modes are available?
The system supports multiple modes including IPPV, SIPPV, VCV, IMV, SIMV, and MANUAL mode for comprehensive patient care.
How long does the battery backup last?
The built-in back-up power supply provides at least 4 hours of continuous operation in case of a power failure.
Can this machine be used for low-flow anesthesia?
Yes, the advanced Adjustable Pressure Limiting (APL) valve is specifically designed to be suitable for low and ultra-low flow anesthesia.
What is the tidal volume range for this model?
The JinLing 850 offers an adjustable tidal volume range from 10ml to 1500ml, making it versatile for different clinical needs.
