Product Description

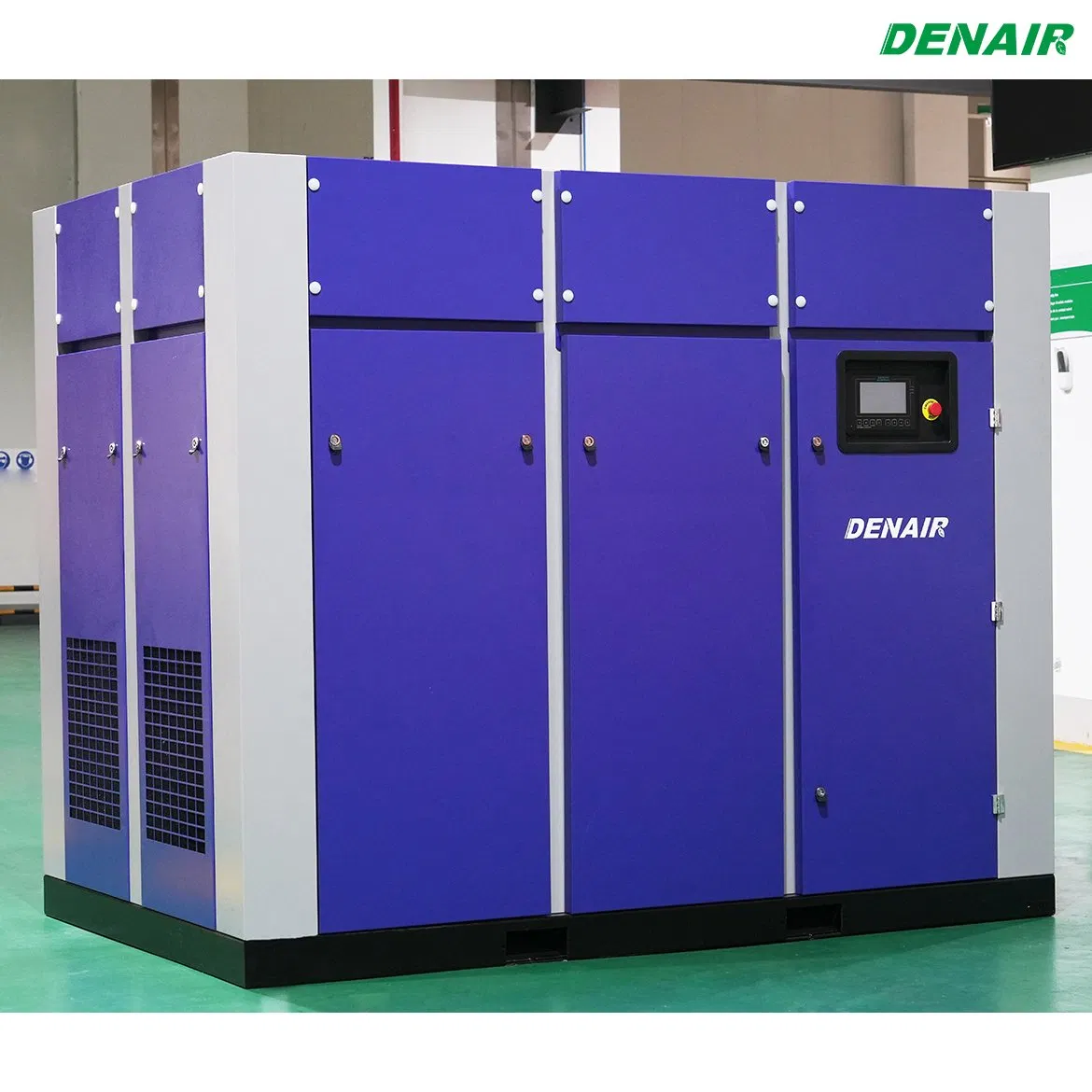

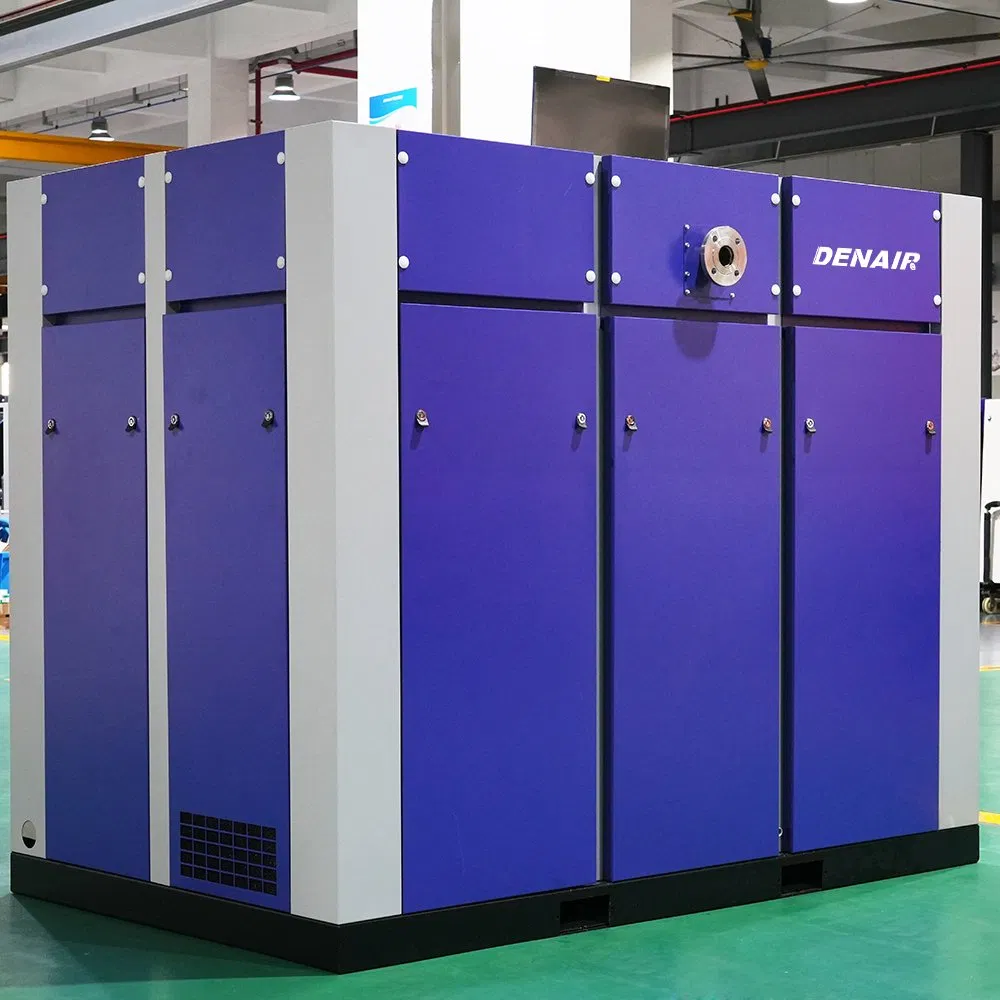

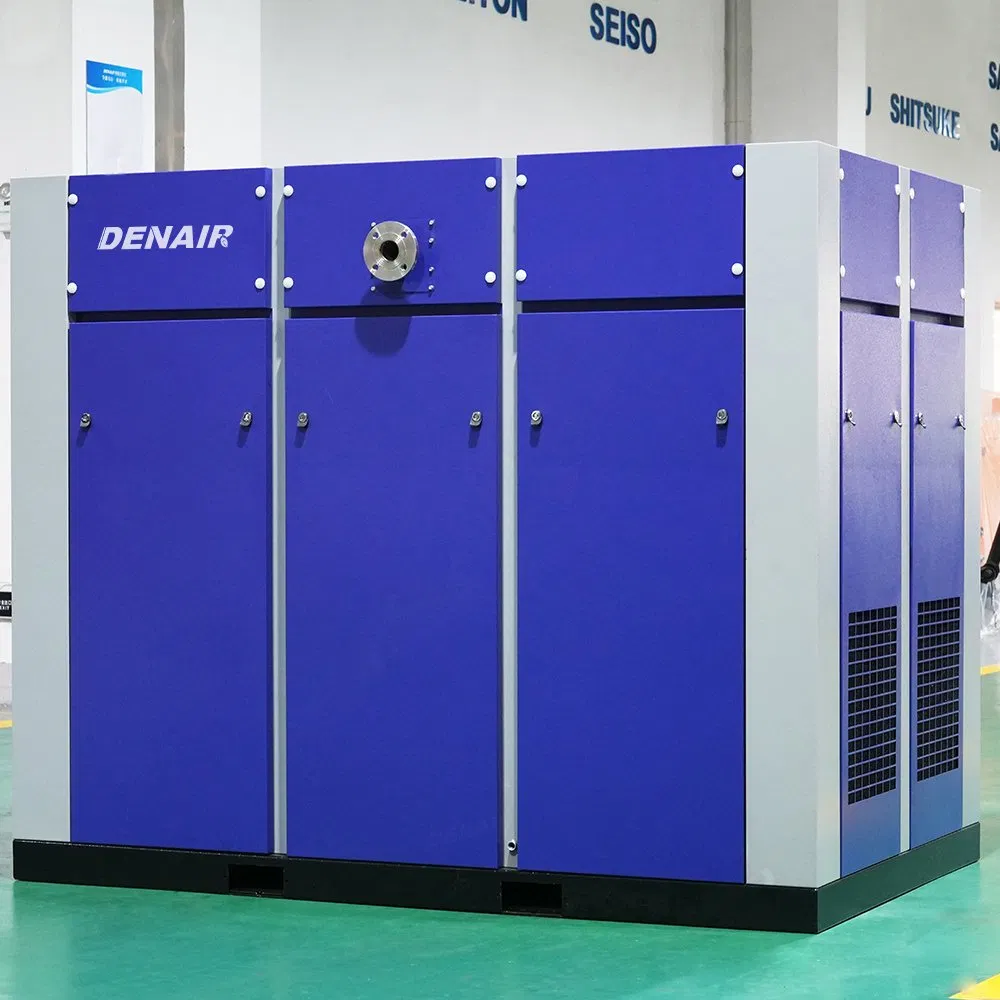

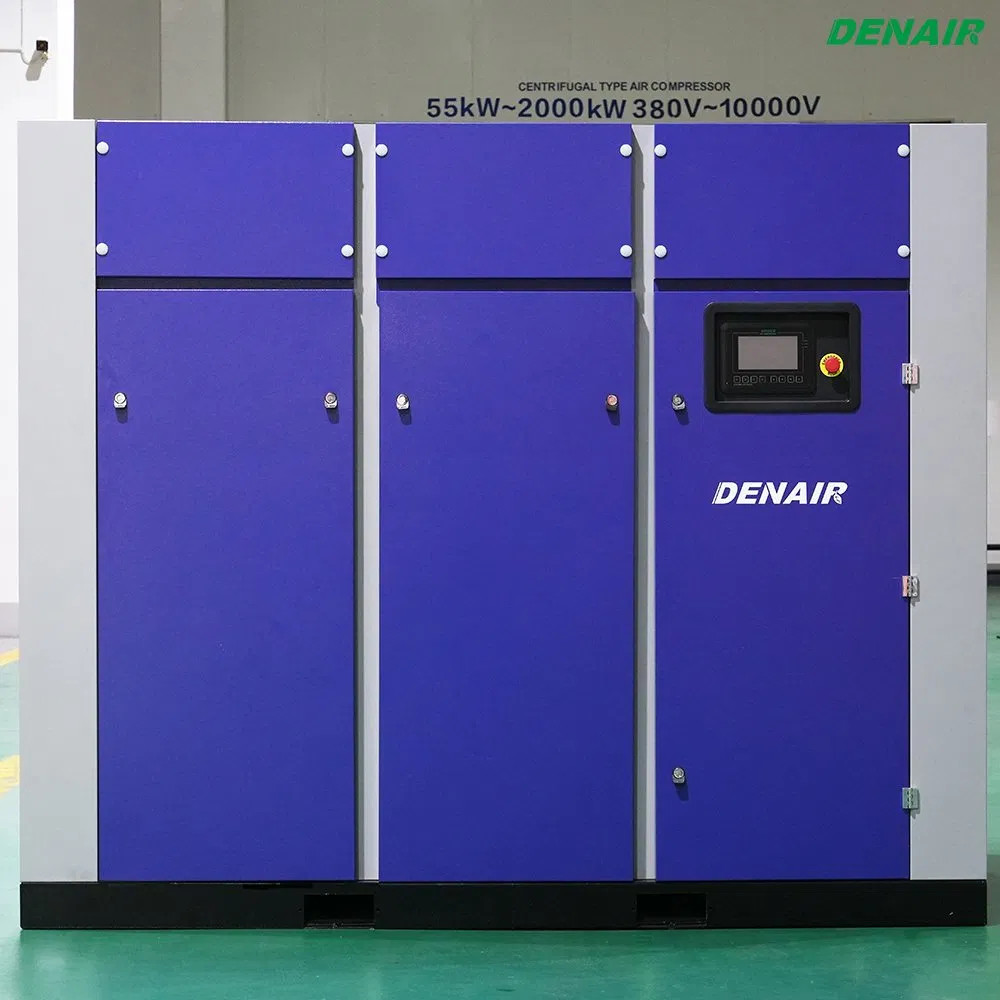

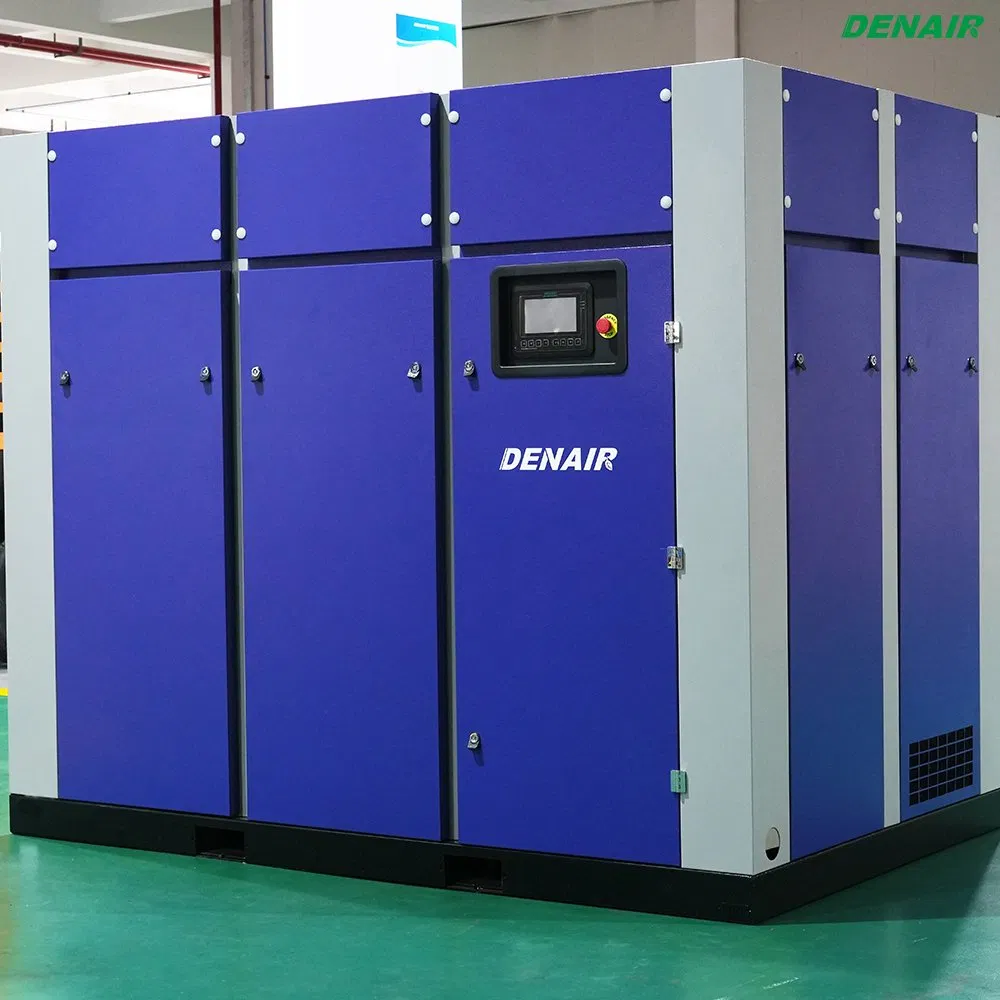

Industrial Silent Medical Dry Oil Free Direct Drive Rotary Double Screw Type Air Compressor Advantages
1

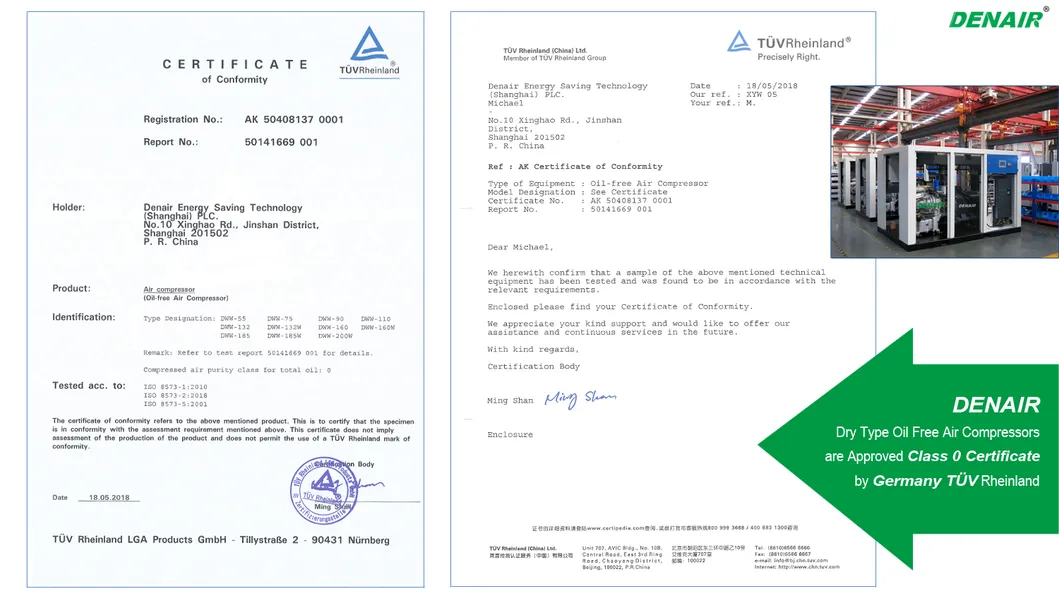

Clean air 100% oil-free, class 0 oil free air according to ISO8537-1
2
Adopt high-quality air end made in Germany
3
Technology patent used in oil free compressed air system
4
Significant energy saving, environmental-friendly and pollution-free
5
Low operation and maintenance cost
6
Powerful microcomputer controller and touch screen
7
Designed especially for medical, pharmacy, instrument, coating, chemical industry and food processing, etc.

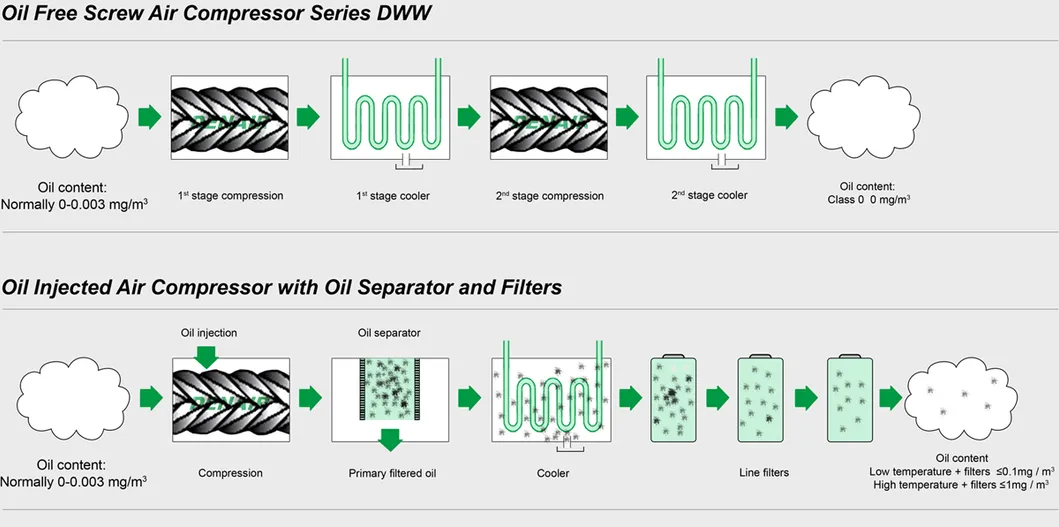

Comparison: Dry Oil Free vs Lubricated Screw Compressor
Technical Parameters
| Model |
Max Pressure (bar) |
Capacity 50Hz (m³/min) |
Capacity 60Hz (m³/min) |
Motor Power (kW) |
Cooling Method |
Noise dB(A) |
Weight (kg) |
| DWW-45 | 7/8/10 | 7.07/7.03/5.51 | 7.16/6.48/5.37 | 45 | Air/Water | 80 | 2630 |
| DWW-55 | 7/8/10 | 9.37/9.34/8.11 | 8.87/8.25/7.1 | 55 | Air/Water | 80 | 2650 |
| DWW-75 | 7/8/10 | 12.72/12.69/11.58 | 12.6/11.69/10.43 | 75 | Air/Water | 82 | 2850 |
| DWW-110 | 7/8/10 | 19.16/19.13/16.72 | 17.5/17.47/15.41 | 110 | Air/Water | 85 | 3050 |
| DWW-160 | 7/8/10 | 27.4/27.38/23.98 | 27.28/27.26/26.38 | 160 | Air/Water | 85 | 3385 |
| DWW-250W | 7/8/10 | 43.71/43.66/39.16 | 44.27/44.24/37.2 | 250 | Water | 90 | 4950 |

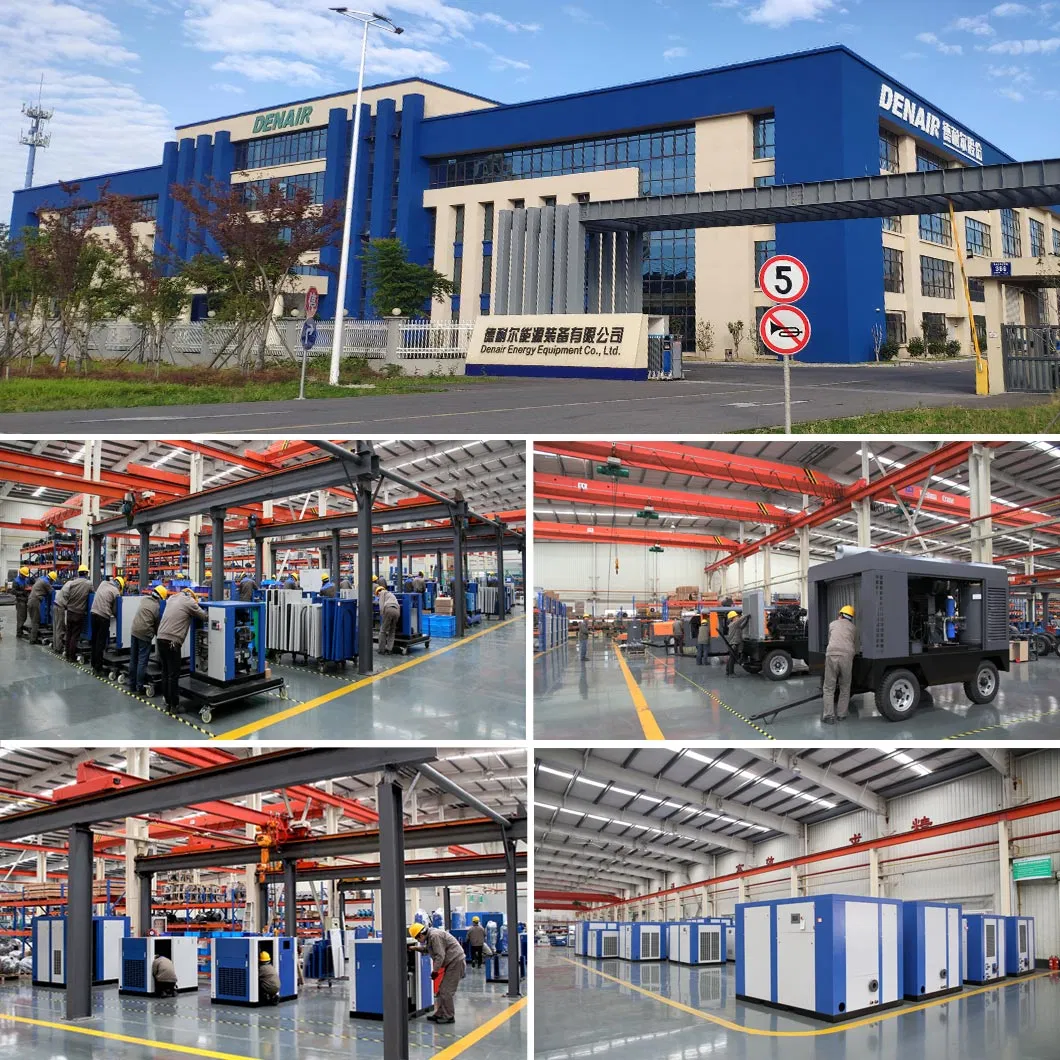

Factory & Exhibition Showcase
Packing & Delivery
Why Choose Our Solutions?

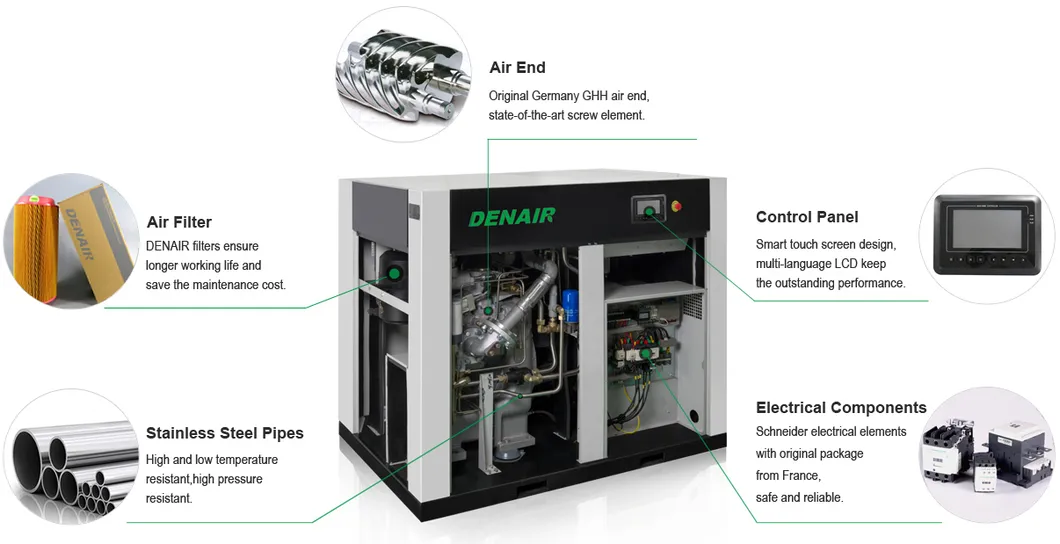

Original high-performance air end, larger air delivery, lower noise.
Oil free screw air compressor passed CE, ISO9001 Quality Certification.
One of the top leading air compressor manufacturers.
Complete before-on-after sales service with immediate response.
High efficiency motor with performance up to 96%.
Frequently Asked Questions
Are you a factory or a trading company?
We are a professional manufacturing factory.
What are the warranty terms for your machines?
We provide a two-year warranty for the machine and ongoing technical support according to your needs.
Do you provide spare parts for the machines?
Yes, we provide all necessary spare parts to ensure long-term operation.
How long does it take to arrange production?
For standard 380V 50HZ units, we can deliver within 10 days. For custom electricity requirements or colors, delivery is within 22 days.
Can you accept OEM orders?
Yes, with a professional design team, OEM orders are highly welcome and supported.
What industries are these compressors suitable for?
They are specifically designed for medical, pharmacy, instrument, coating, chemical, and food processing industries where oil-free air is critical.
