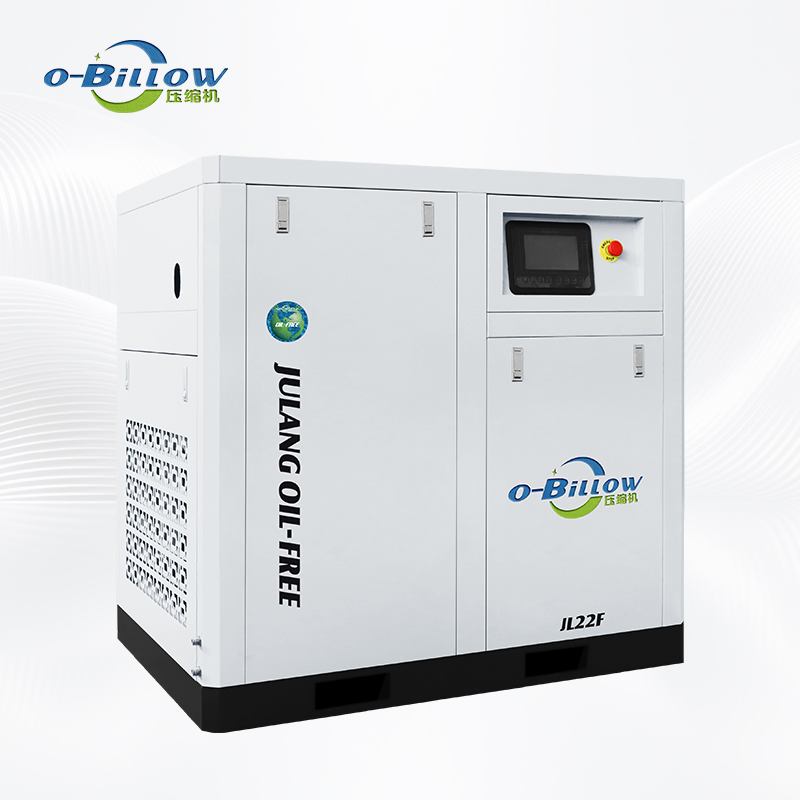

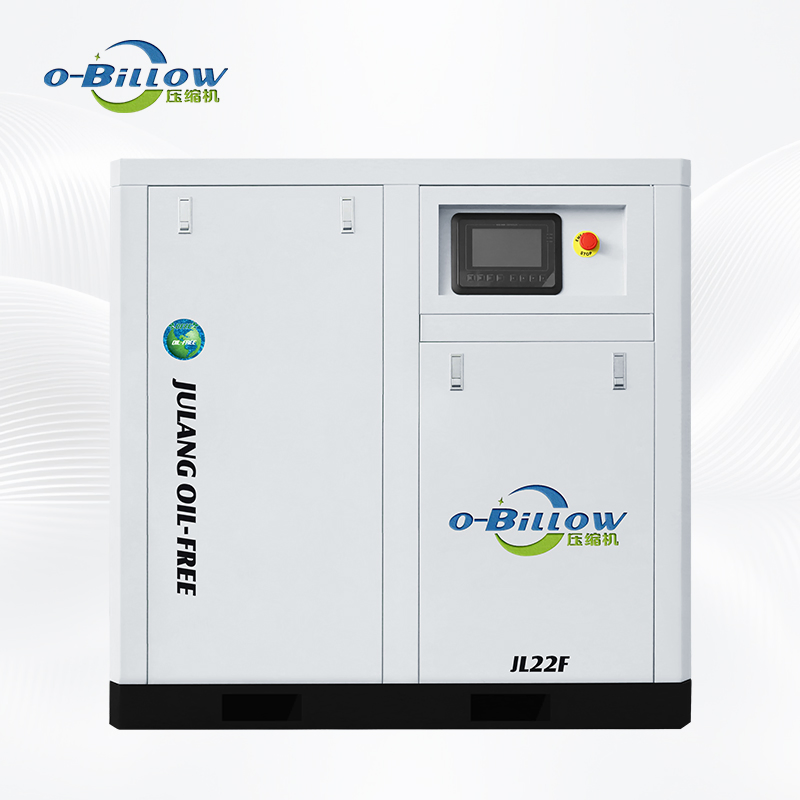

22kw Oil-Free Screw Air Compressor, Water-Lubricated for Medical & Food
22kw Oil-Free Screw Air Compressor, Water-Lubricated for Medical & Food
22kw Oil-Free Screw Air Compressor, Water-Lubricated for Medical & Food
22kw Oil-Free Screw Air Compressor, Water-Lubricated for Medical & Food
22kw Oil-Free Screw Air Compressor, Water-Lubricated for Medical & Food
1 / 5
22kw Oil-Free Screw Air Compressor, Water-Lubricated for Medical & Food
22kw Oil-Free Screw Air Compressor, Water-Lubricated for Medical & Food
22kw Oil-Free Screw Air Compressor, Water-Lubricated for Medical & Food
22kw Oil-Free Screw Air Compressor, Water-Lubricated for Medical & Food
22kw Oil-Free Screw Air Compressor, Water-Lubricated for Medical & Food

22kw Oil-Free Screw Air Compressor, Water-Lubricated for Medical & Food

Customization: Available
After-sales Service: 1years
Warranty: 1years
Send Inquiry

Product Description

i
Basic Information
Model NO.
JL-22F
Lubrication Style
Oil-free
Cooling System
Air/Water Cooling
Power Source
AC Power
Cylinder Position
Horizontal
Structure Type
Closed Type
Installation Type
Stationary Type
Type
Single Screw Compressor
Radiator Material
Cooper (7-8 Years Service Life)
Intake Valve
304 Stainless Steel
Motor
IP55, F-Level Insulation
Package Size
800.00cm * 700.00cm * 930.00cm
!
Product Description

This Oil-Free Screw Air Compressor utilizes proprietary technology from Japan's Mitsui. We are an integrated source manufacturer, controlling the entire process from R&D and core component production to final assembly. This ensures full quality control and allows us to offer high-performance compressors with exceptional cost-effectiveness and reliable stability.

P

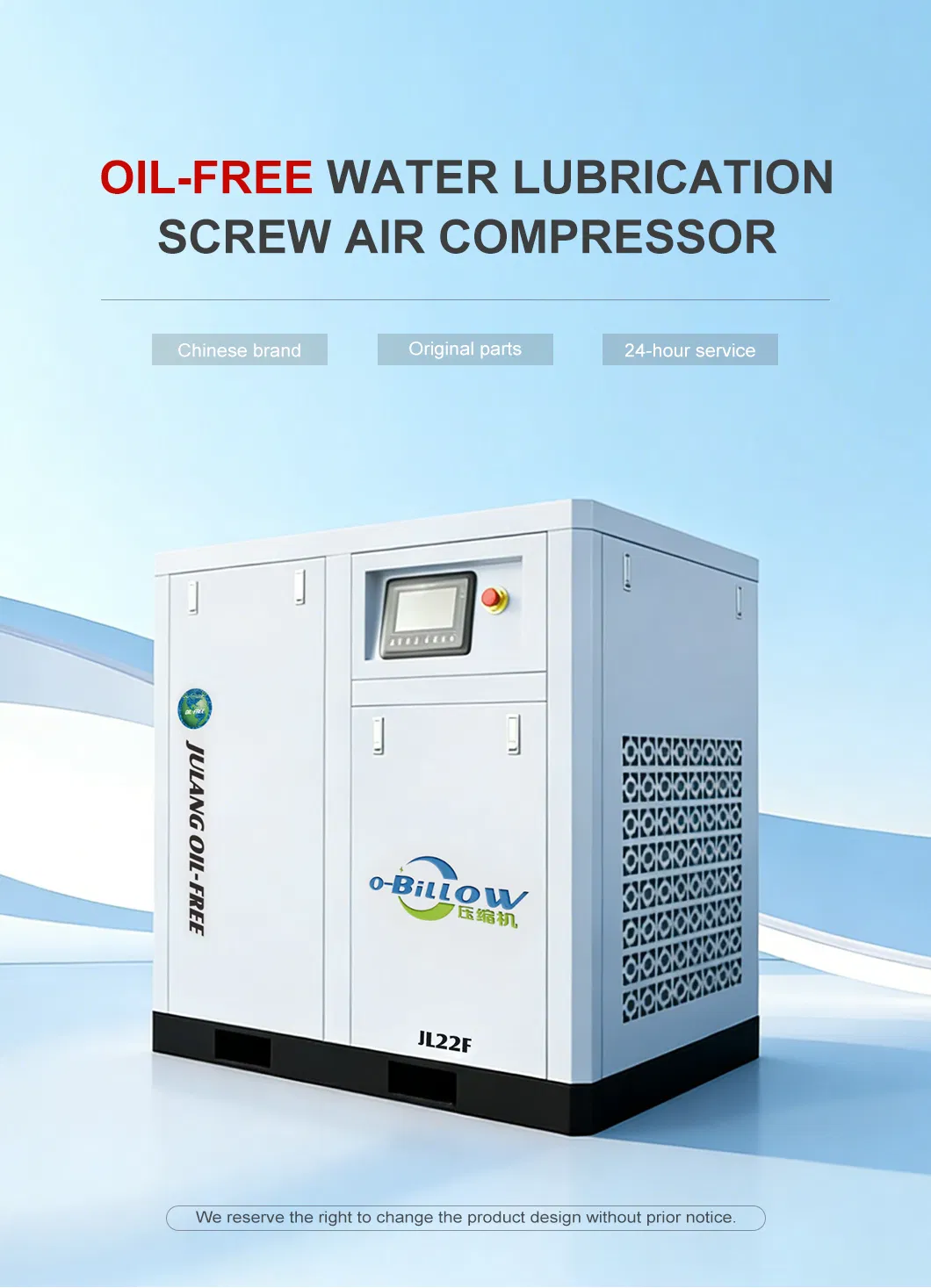

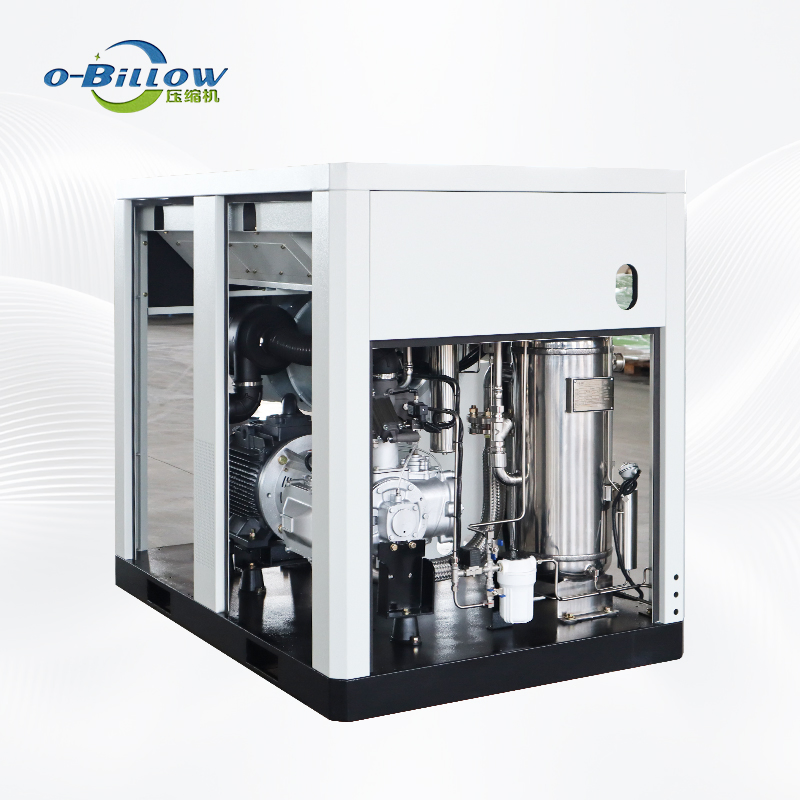

Perspective
Perspective View
T
Product Parameters

Normal Pressure Series Specifications

Model Power (kw) Pressure (bar) Air Flow (m³/min) Noise dB(A) Outlet Weight (kg) Dimension (mm)
ZW7.5FW-8/107.58/101.00/0.8060RP 3/43001100*760*1060
ZW11FW-8/10118/101.60/1.4063RP 3/43501100*760*1060
ZW15FW-81582.5065RP 15101306*945*1219
ZW22FW-8/10228/103.60/3.2068RP 16501520*1060*1323
ZW37FW-8/10378/106.20/5.8071RP 1 1/48501760*1160*1412

Low Pressure Series Specifications

Model Power (kw) Pressure (bar) Air Flow (m³/min) Noise dB(A) Outlet Weight (kg) Dimension (mm)
ZW15DF-41142.5058RP16001306X945X1219
ZW22DF-41543.6060RP18001520X1060X1323
ZW37DF-42245.0061RP1 1/410501760X1160X1412
L

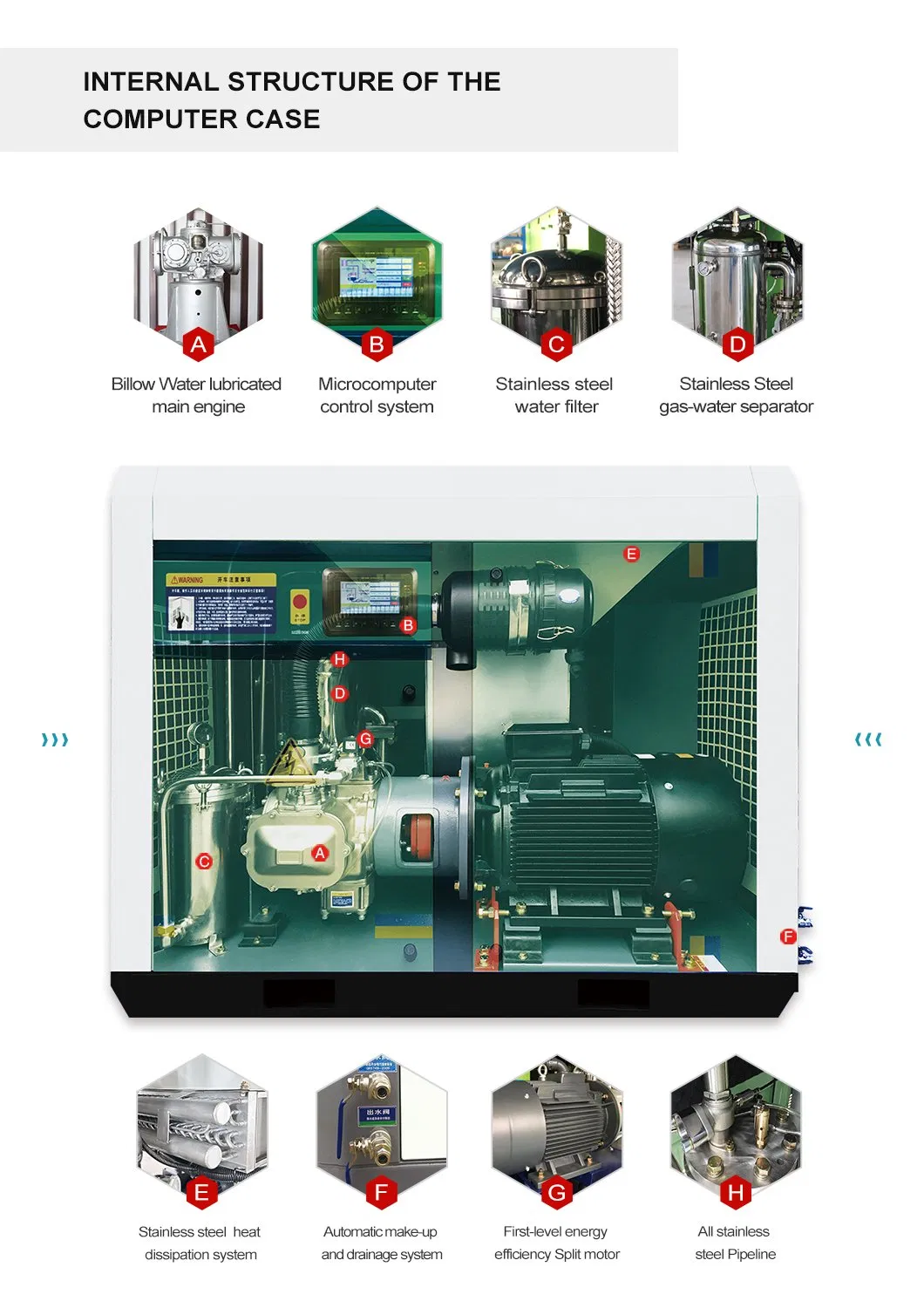

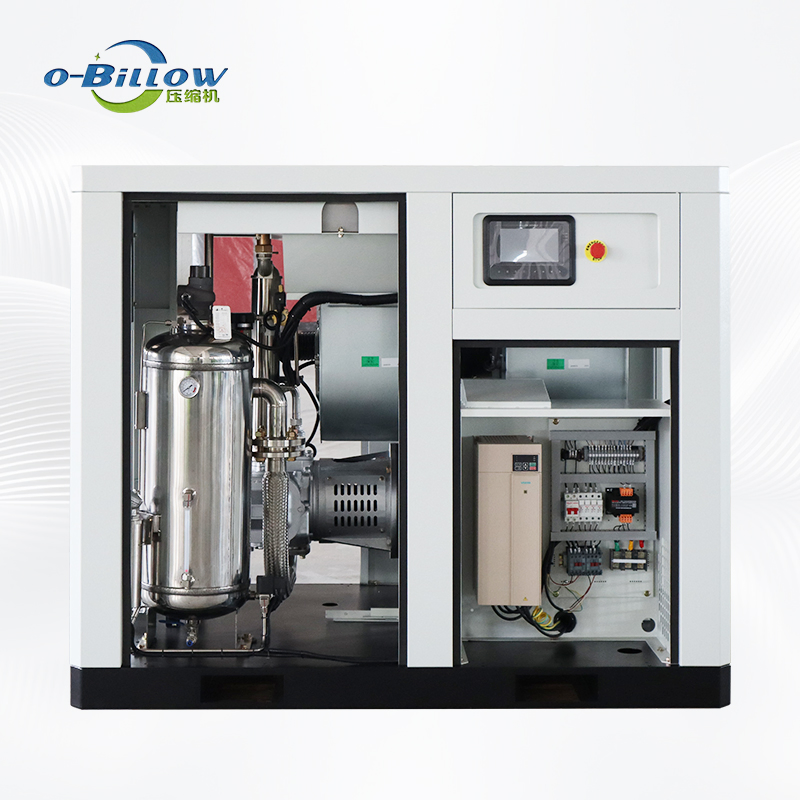

Product Internal Layout
Internal Layout
C

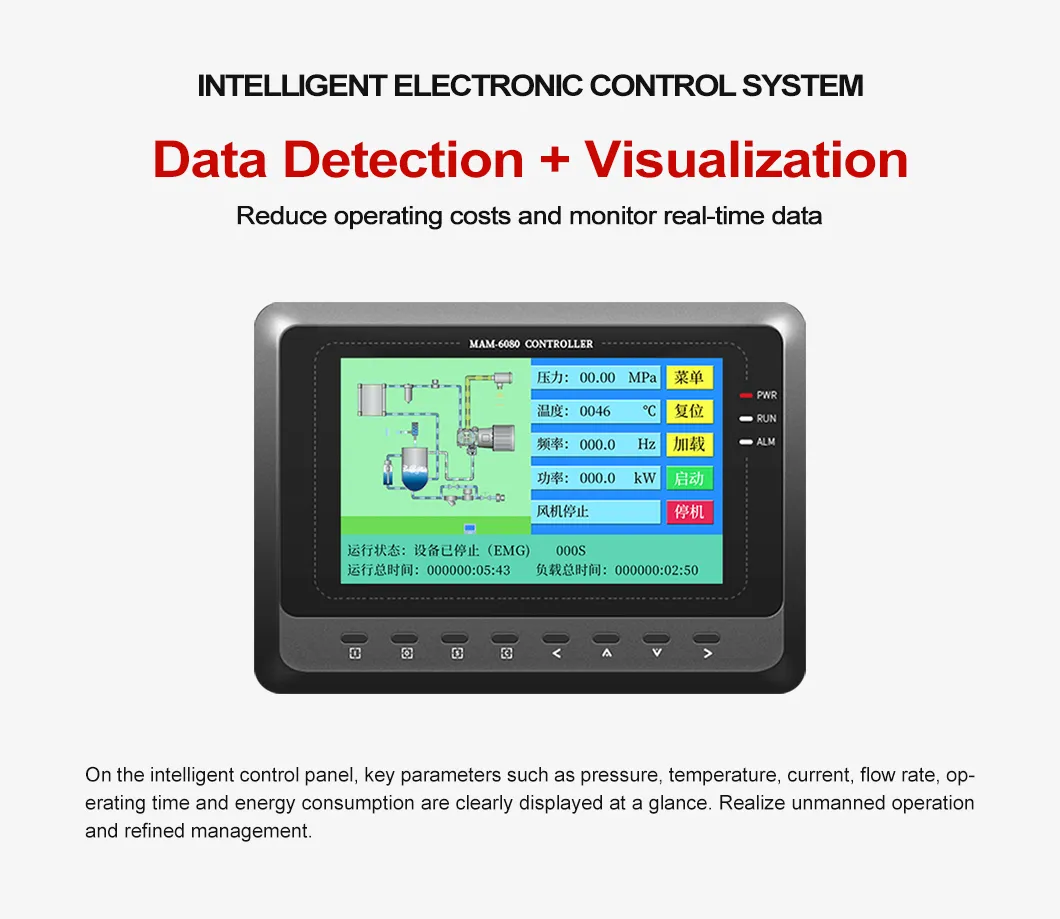

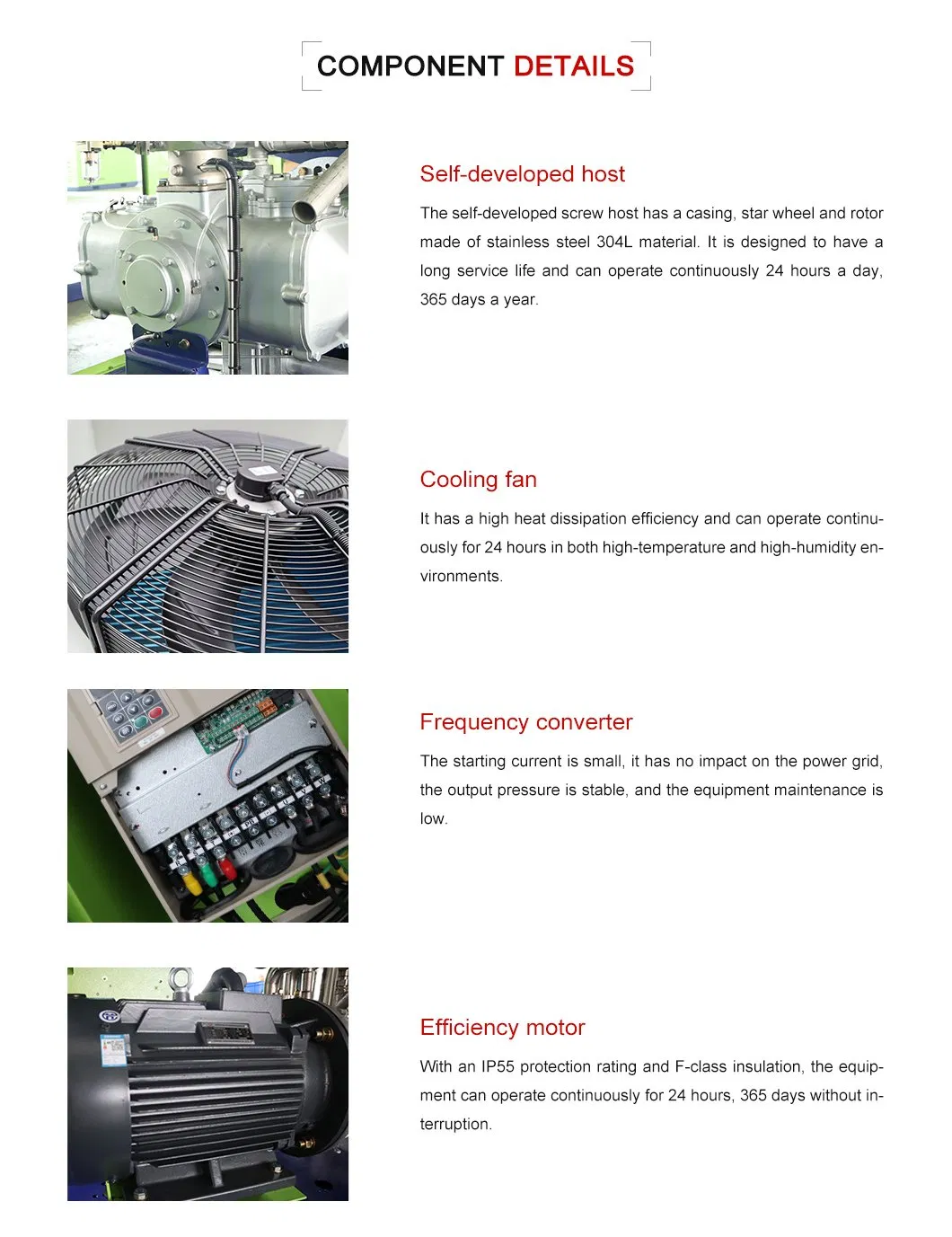

Internal Components
Component 1 Component 2
U
Use Cases
Use Cases
S
Certifications
Certifications
F

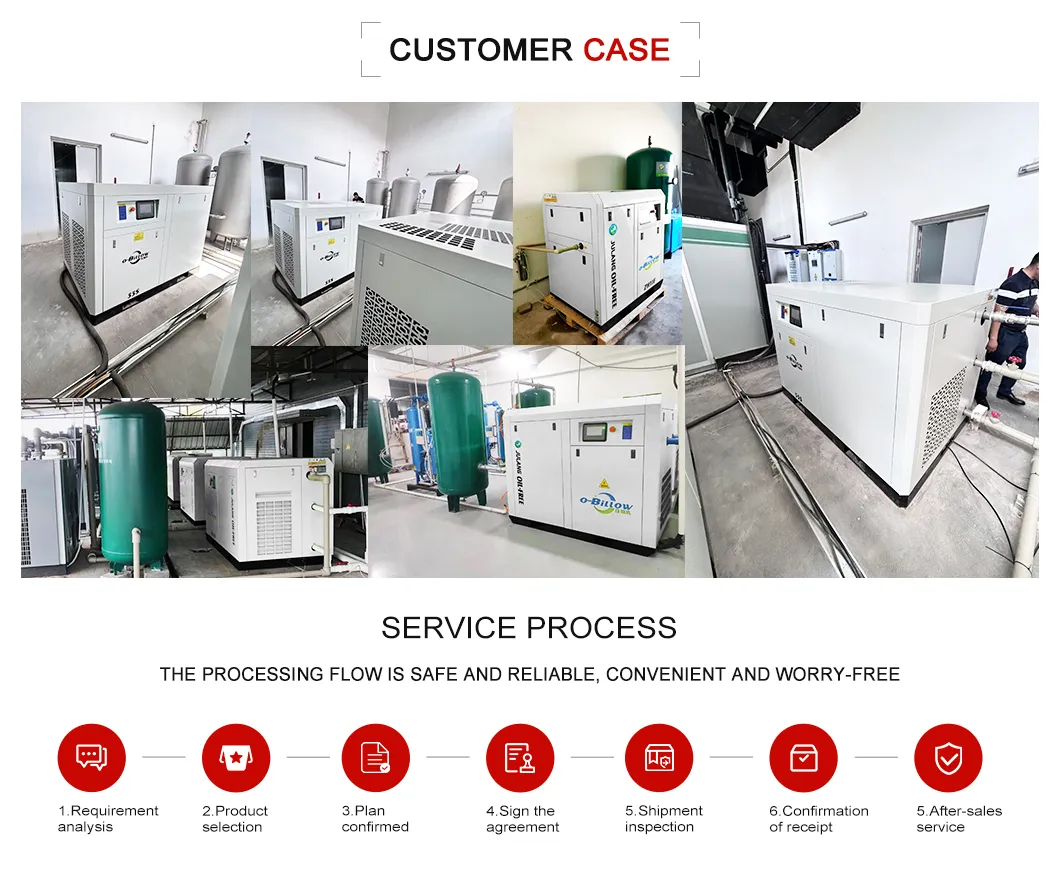

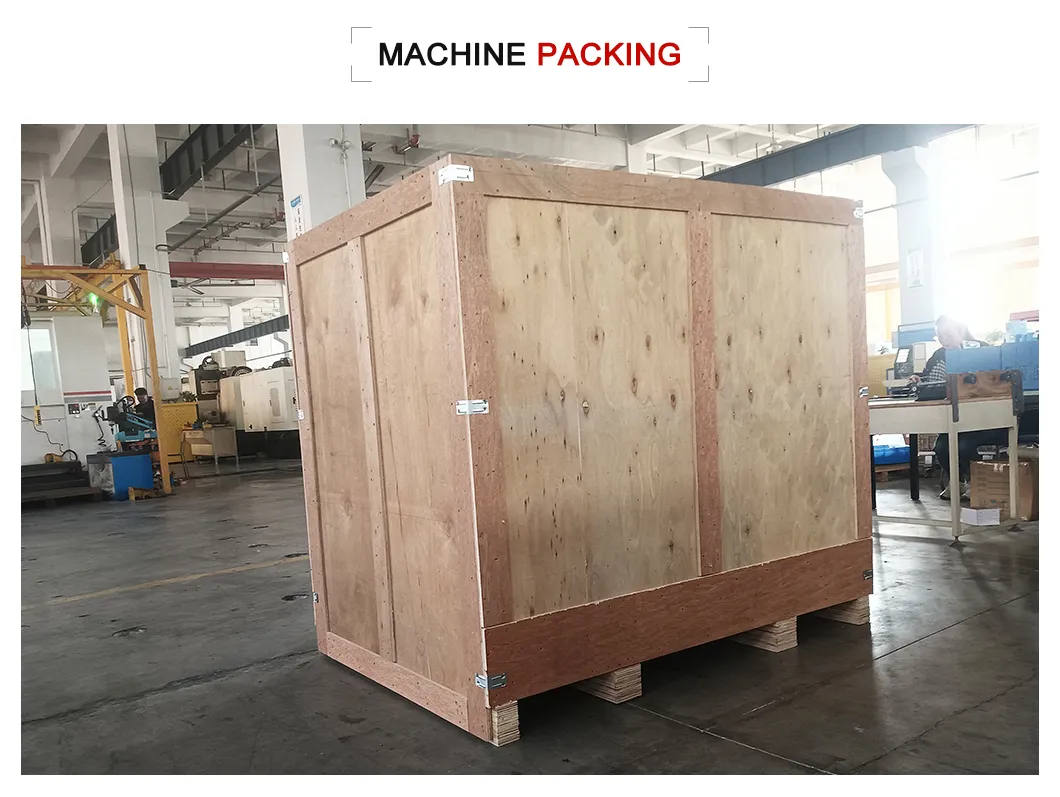

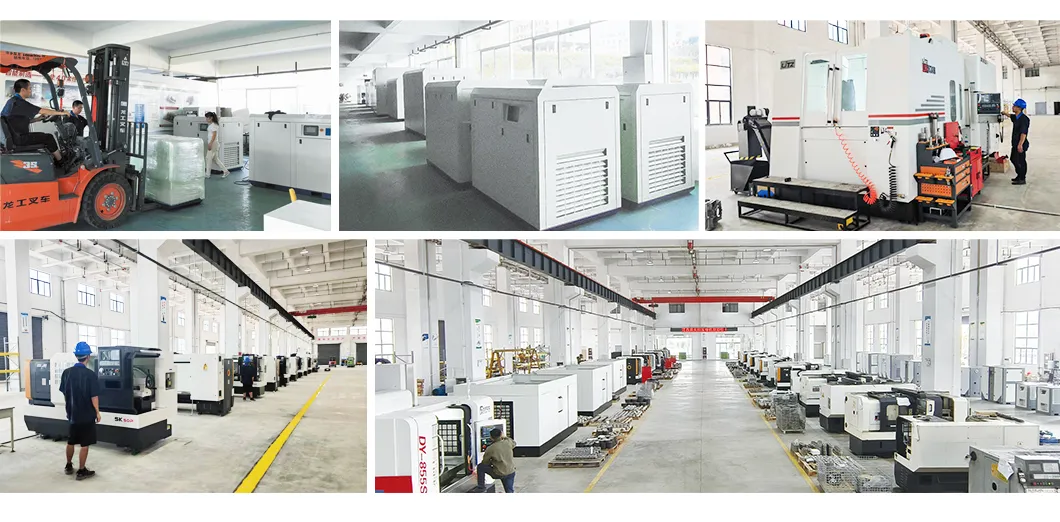

Factory Photos
Factory 1 Factory 2 Factory 3 Factory 4
Frequently Asked Questions
What are the main benefits of an oil-free screw air compressor?
Oil-free compressors provide 100% pure, oil-free air, which is essential for sensitive industries like medical, food, and electronics to prevent contamination.
Is the JL-22F model suitable for medical applications?
Yes, the water-lubricated oil-free technology is specifically designed to meet the stringent air quality requirements of the medical and food sectors.
What cooling options are available for this series?
The system supports both Air Cooling and Water Cooling systems, allowing flexibility based on your facility's environment and requirements.
What is the expected service life of the radiator?
The radiator is made of high-quality copper, which offers a service life of 7-8 years, significantly longer than standard aluminum radiators.
What kind of motor protection does the compressor have?
The compressor is equipped with an IP55 rated motor with F-level insulation, ensuring high reliability and safety in industrial environments.
What consumables are required for maintenance?
The primary consumables are the water filter and air filter, making maintenance straightforward and cost-effective.
