Complete solution leader in oilless air pump field

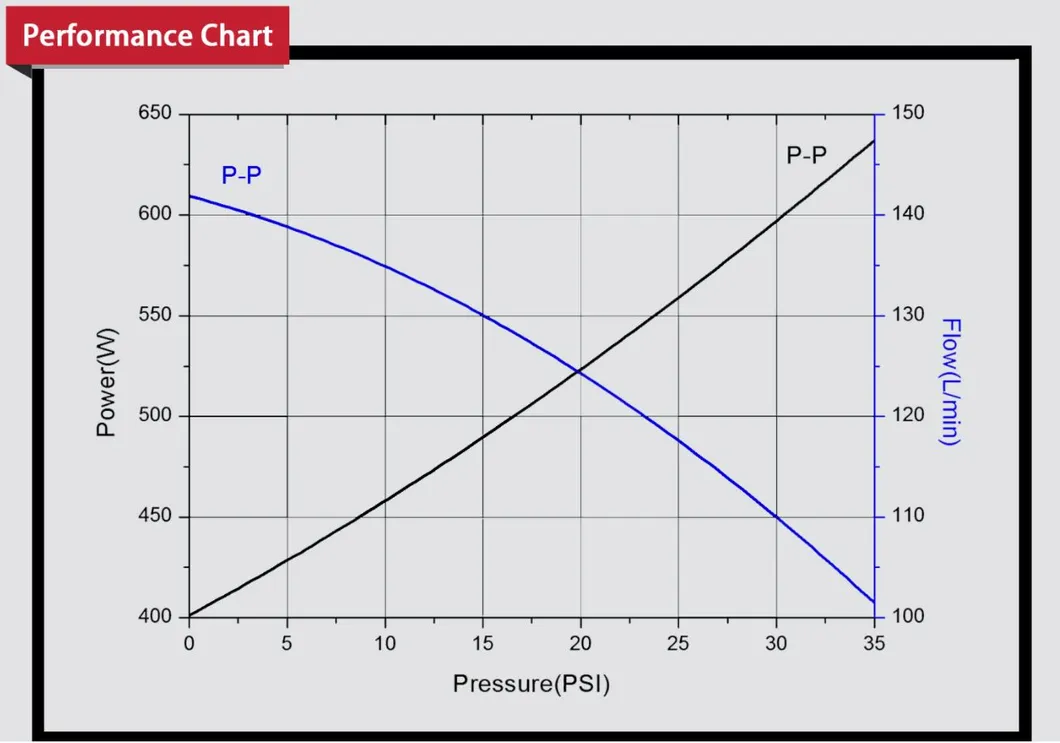

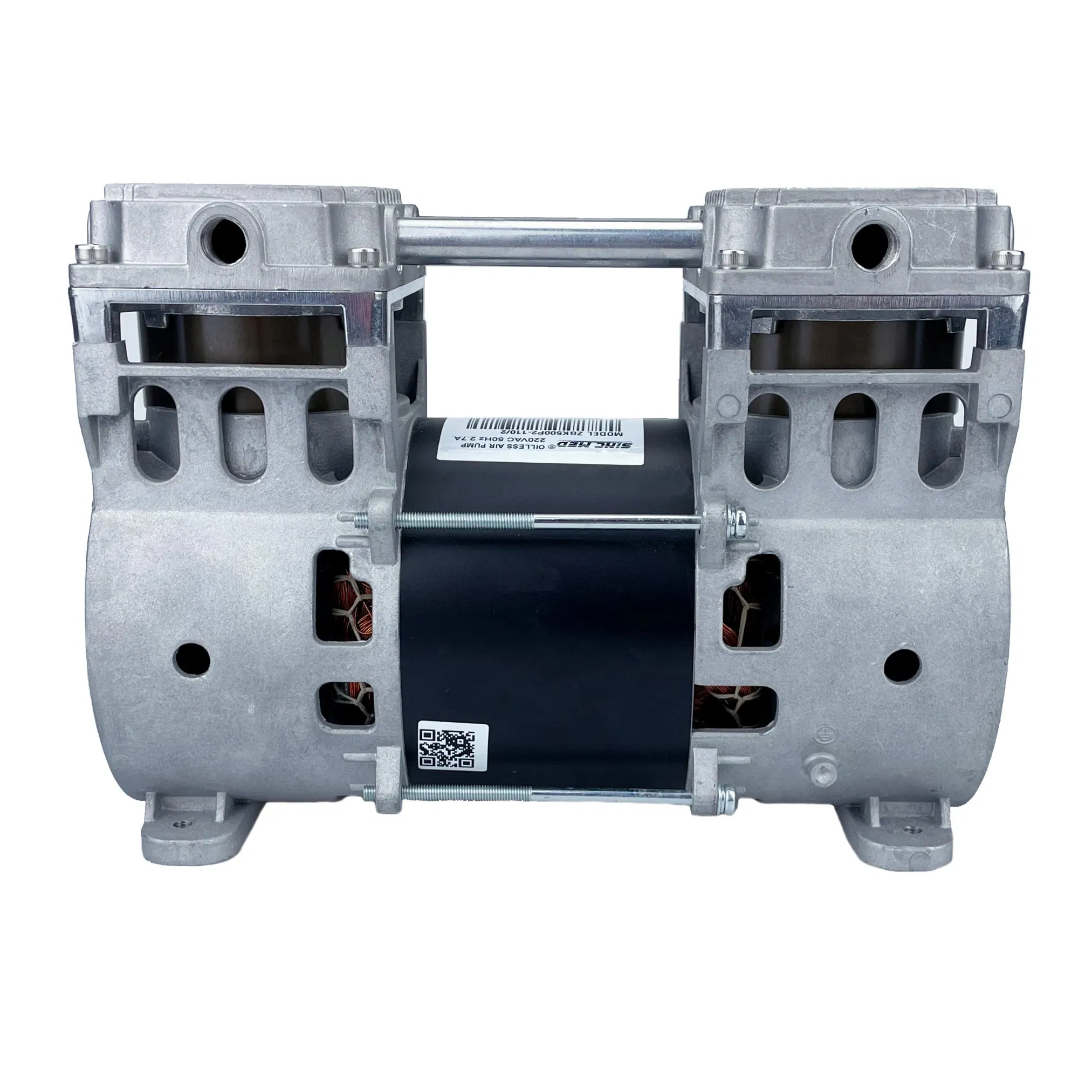

| Performance Data | 110V/60HZ | 220V/50HZ |
|---|---|---|
| Head configuration | Pressure parallel flow | Pressure parallel flow |
| Current at rated load | 5.6A | 2.7A |
| Power at rated load | 590W | 580W |
| Flow at rated load | 110L/MIN | 110L/MIN |
| Pressure at rated load | 30PSI(2BAR) | 30PSI(2BAR) |
| Speed at rated load | 1650RPM | 1400RPM |
| Noise | <59dB | <59dB |
| Electrical Data | ||
| Motor type[Capacitance] | P.S.C(35uF) | P.S.C(14uF) |
| Motor insulation class | B | B |
| Thermal switch | 145°C | 145°C |
| General Data | ||

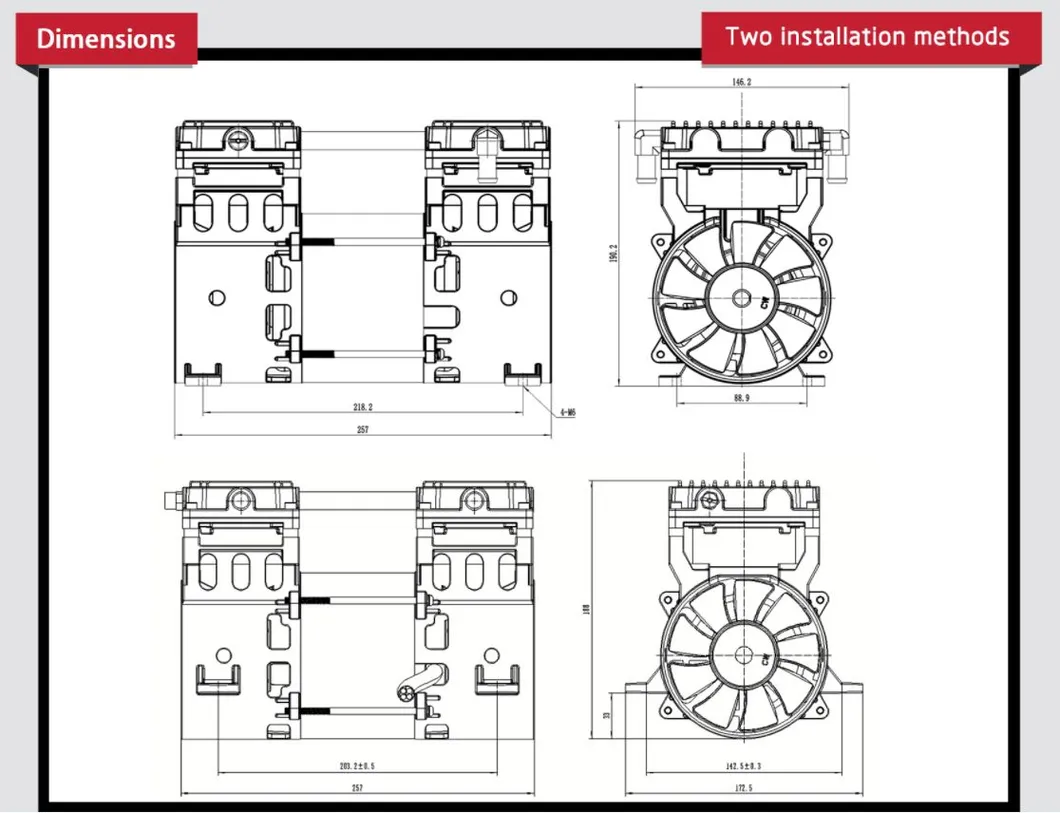

| Dimension(LXWXH) | 257X146X190MM | 257X146X190MM |
| Net weight | 10KG | 10KG |
| Application | For 10L oxygen concentrator use | |
🔹 Bearing: Standard product with ERB bearing, 14000 hours operation. Customized imported TPI/NSK bearing options available.

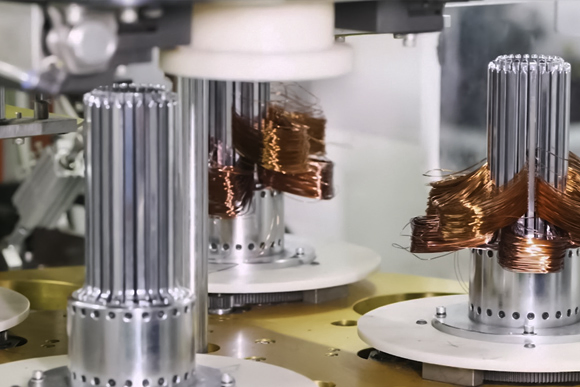

🔹 Motor: Coil adopts fine pure copper enameled wire. Rotor uses famous brand silicon steel sheets.
🔹 Valve: Valve steel from Sweden SANDVIK; excellent flexibility and durability. Thickness from 0.08mm to 1.2mm.
🔹 Piston Ring: Wear-resistant high temperature resistance; ensures more than 10,000 hours of service life.

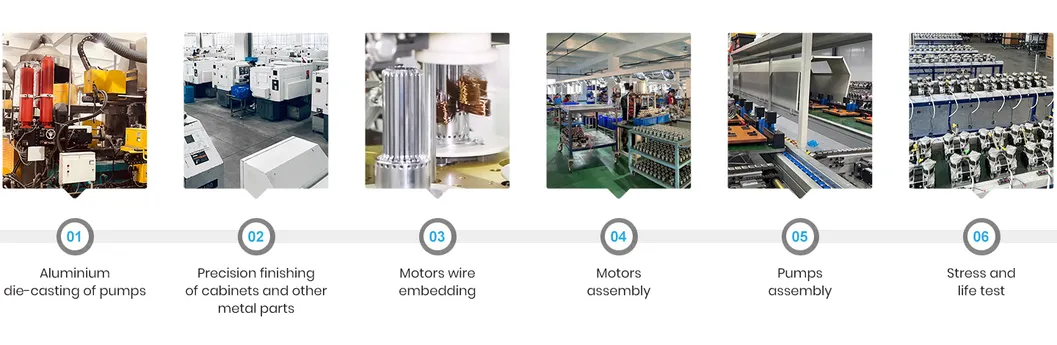

All main parts are designed and produced in-house, including aluminum die-casting, motor production, and precision finishing. With a capacity of 300,000 units per month, we provide professional OEM/ODM services for high-end customization.
The facility includes 8 motor production lines, 16 aluminum die-casting machines, and over 150 high-precision CNC lathes. Every pump undergoes rigorous testing in specialized laboratories, including high/low temperature, ROHS, and life cycle testing.
Products have passed ETL, CE, and CCC certifications. We hold more than 20 invention and utility patents, and have been recognized as a National High-Tech Enterprise.
