Product Description

🔹 Basic Specifications
Model NO. Kindsway-3000
Trademark Kindsway
Origin China
Production Capacity 10000
🔹 Product Overview

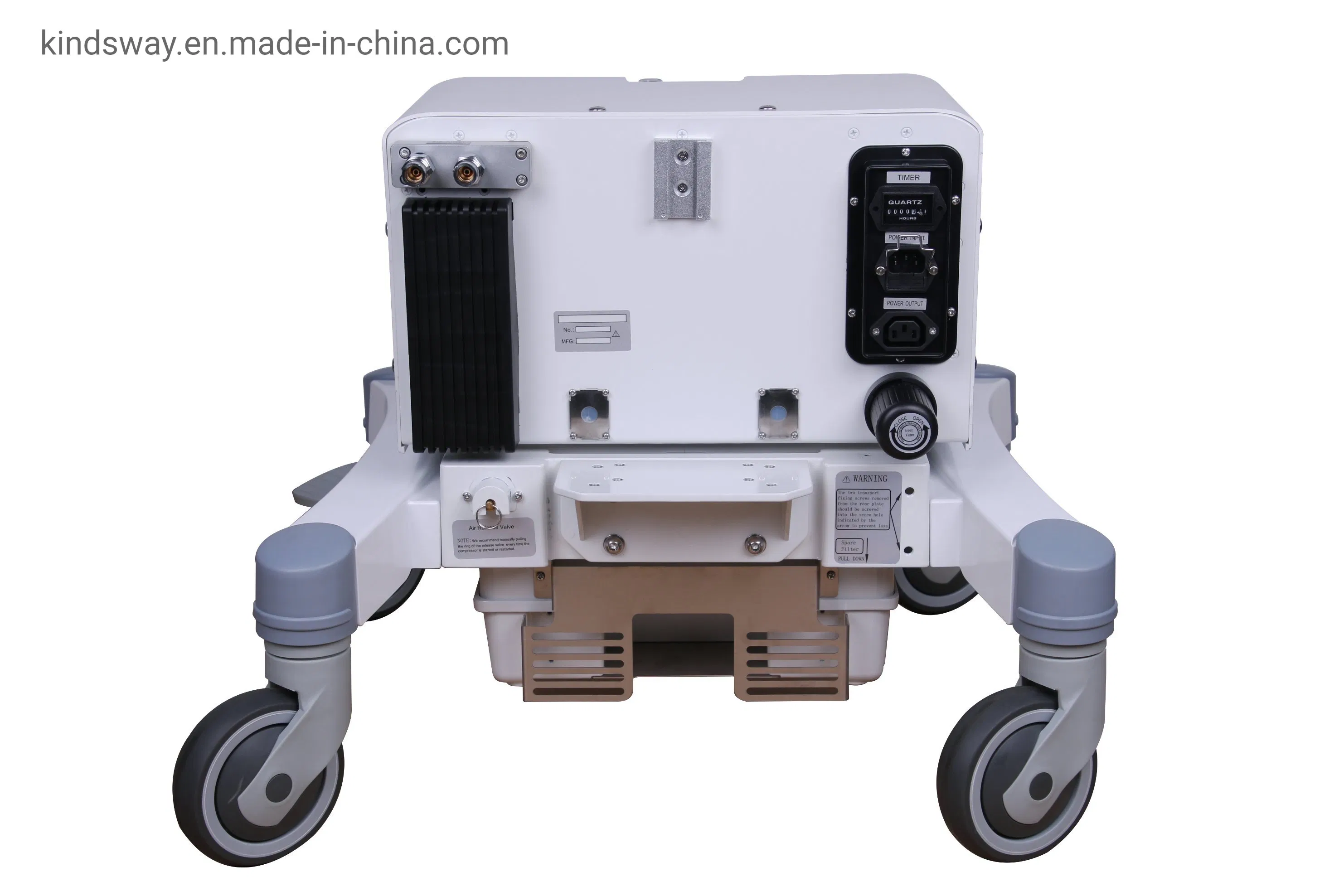

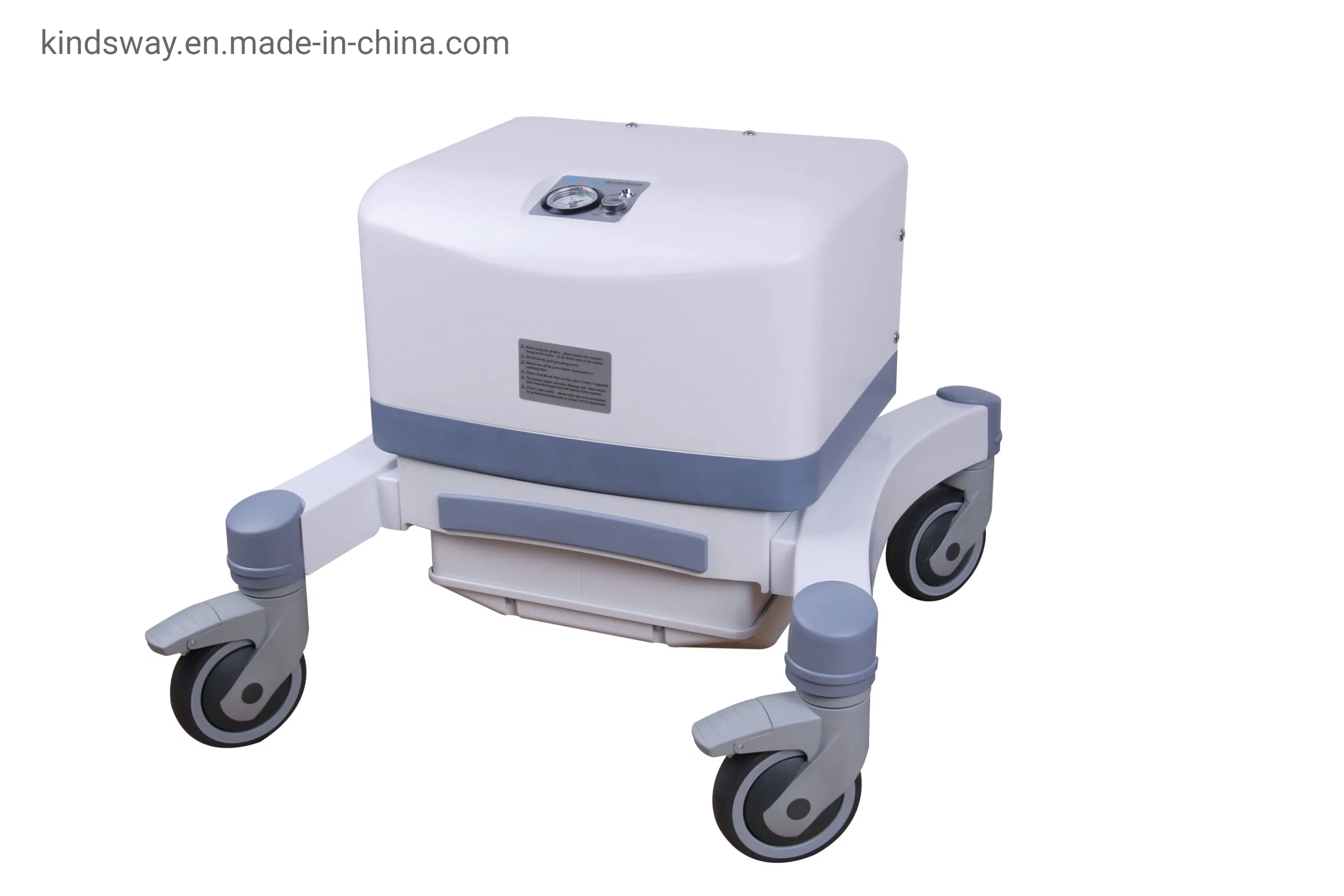

Medical Air Compressor Kindsway-3000

Integrated with American GAST/THOMAS oil-free pump, multiple well-known pneumatic components such as Japanese SMC & UK NORGREN, resulting in further savings on operating and maintenance costs.

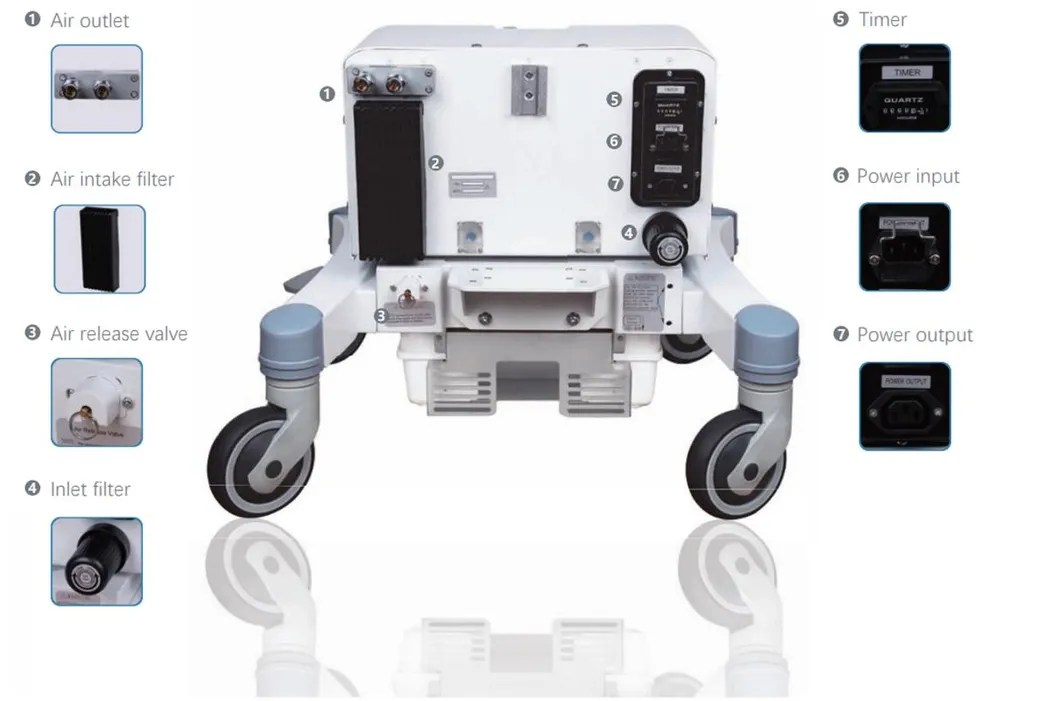

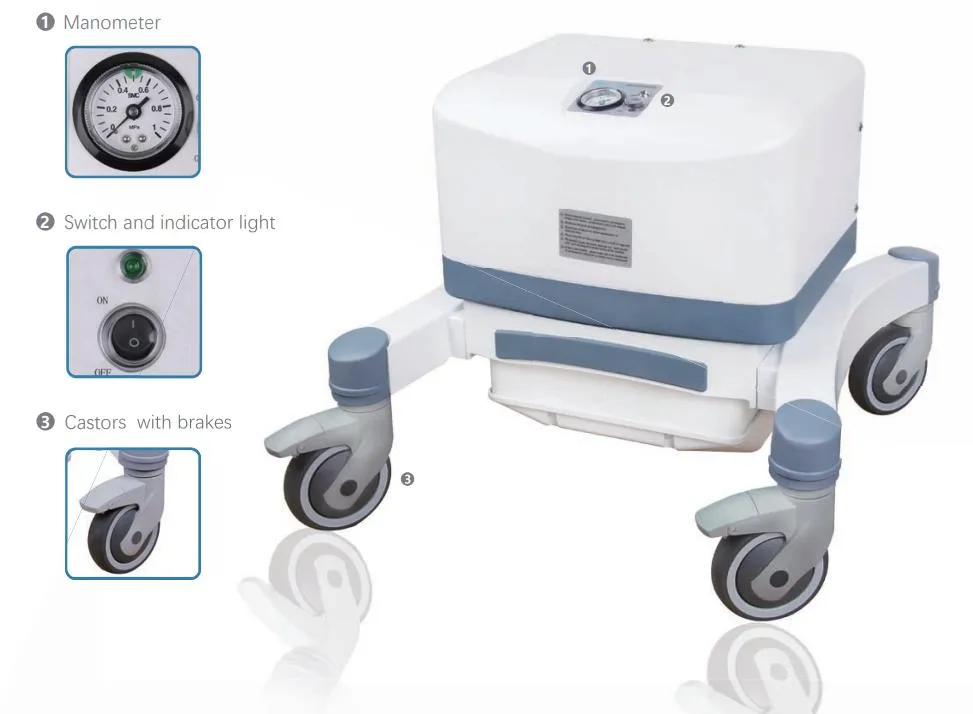

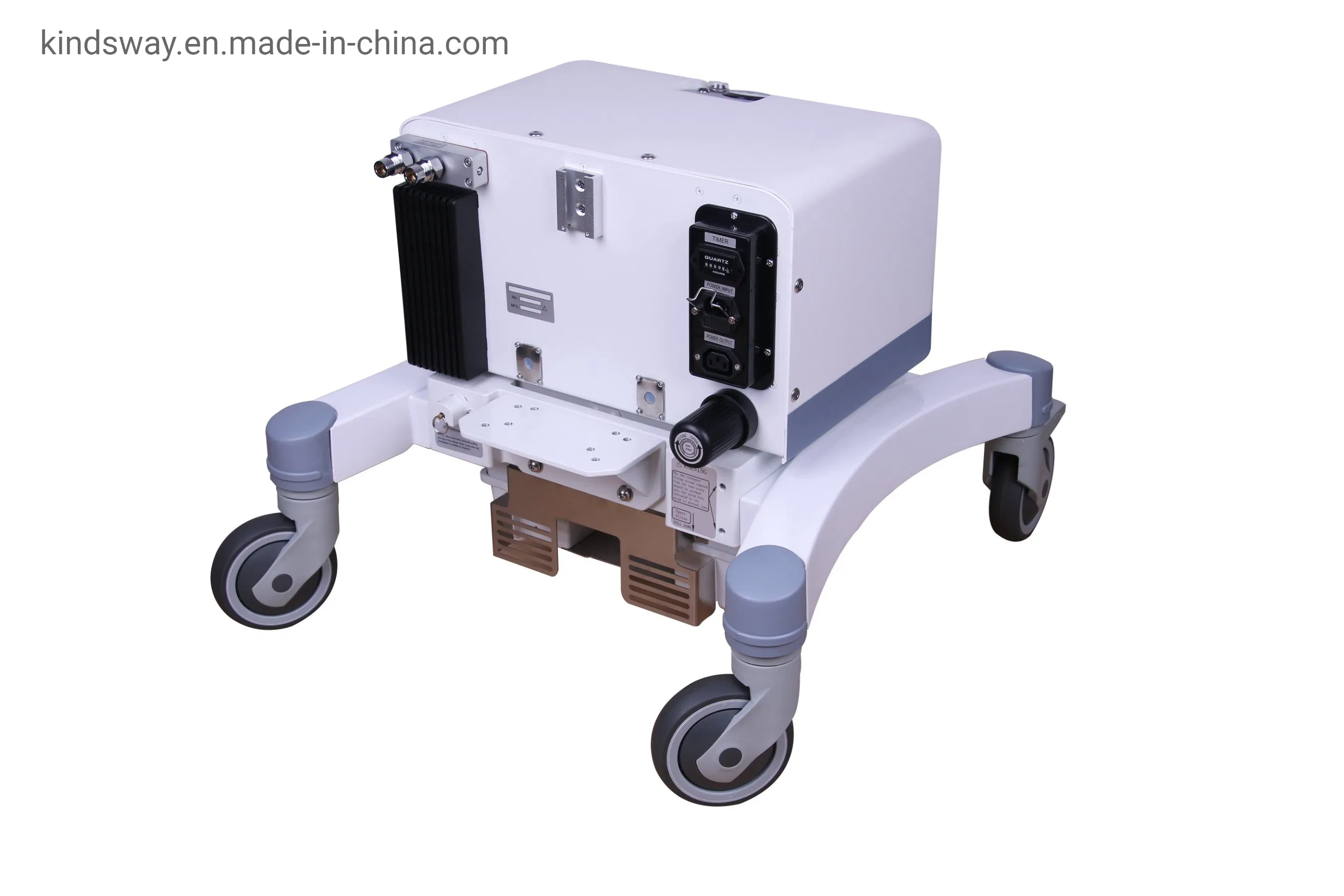

Medical Air Compressor Kindsway-3000 Description Medical Air Compressor Kindsway-3000 Components Medical Air Compressor Kindsway-3000 Internal View
🔹 Operation & Workflow

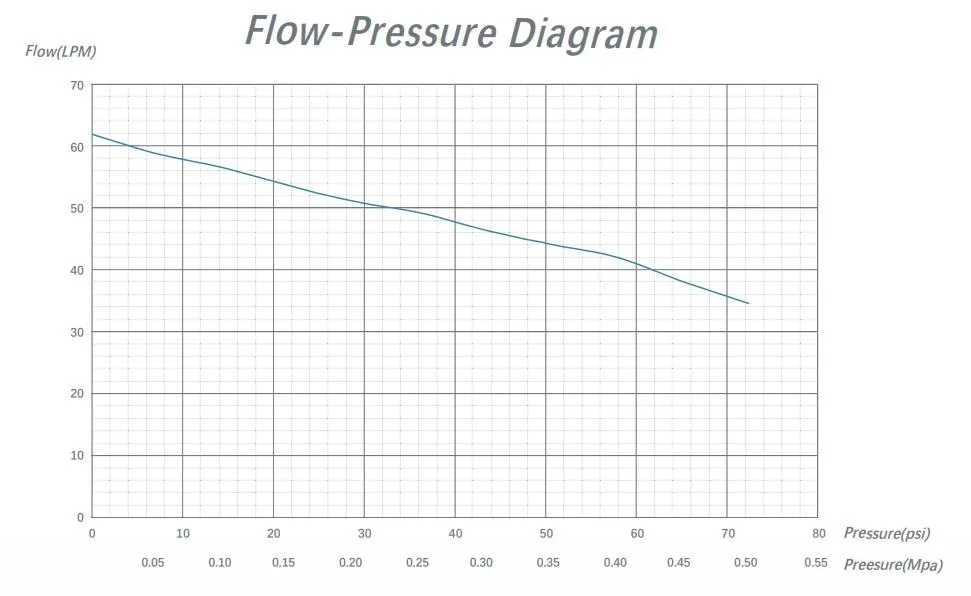

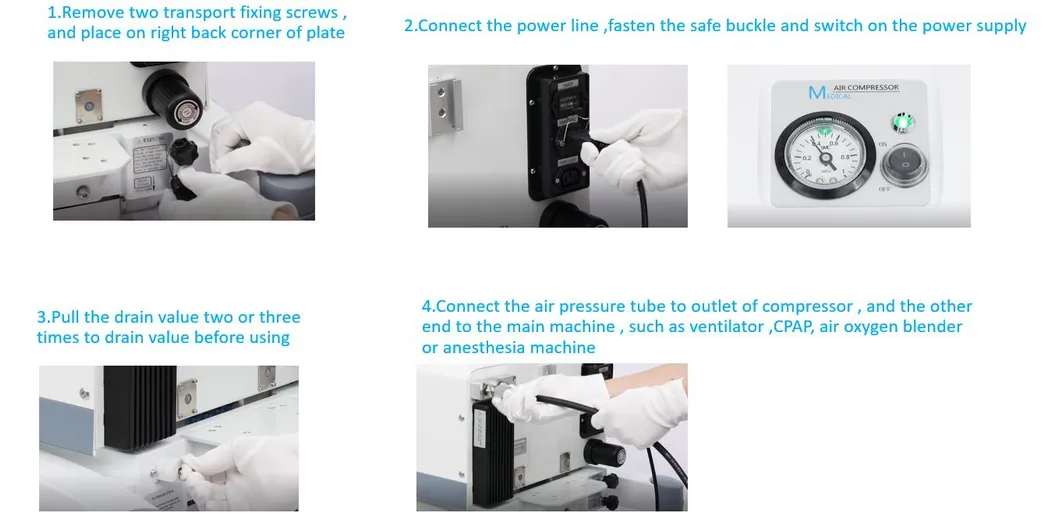

Kindsway-3000 Design Kindsway-3000 Operation Diagram Kindsway-3000 Interface

Compressed air pump produces compressed air with high temperature and high pressure. The compressed air will be cooled down by cooling system. The water trap will drain off the moist in compressed air, and the pressure regulator will reduce the pressure of compressed air to operating pressure then finally the air can be supplied through the outlet.

🔹 Production Show

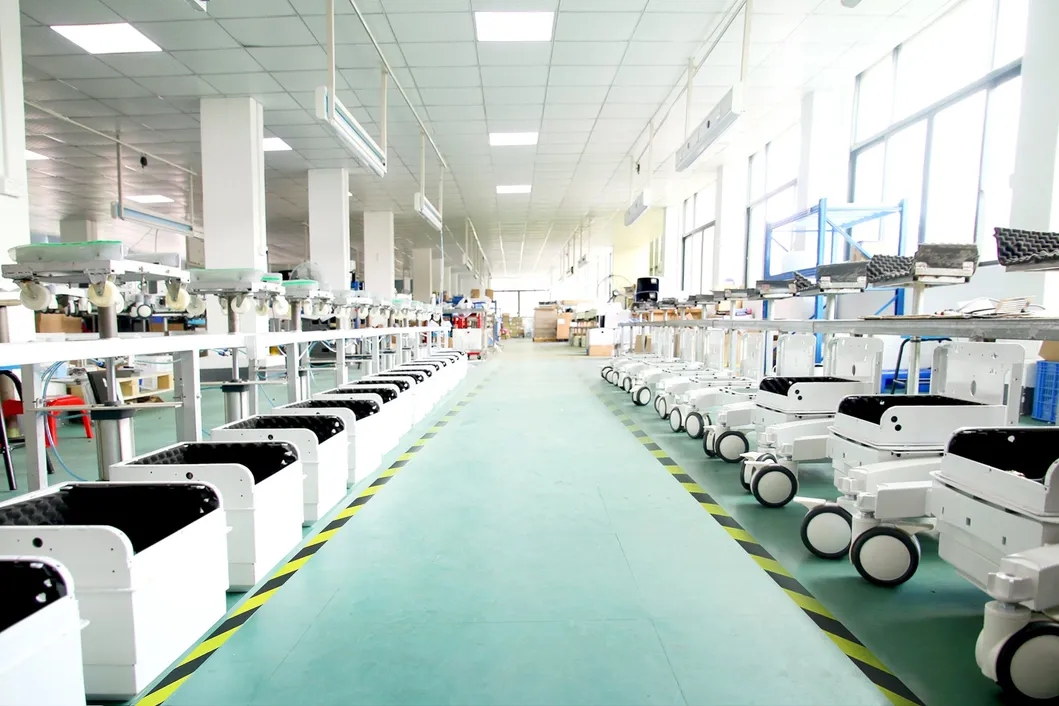

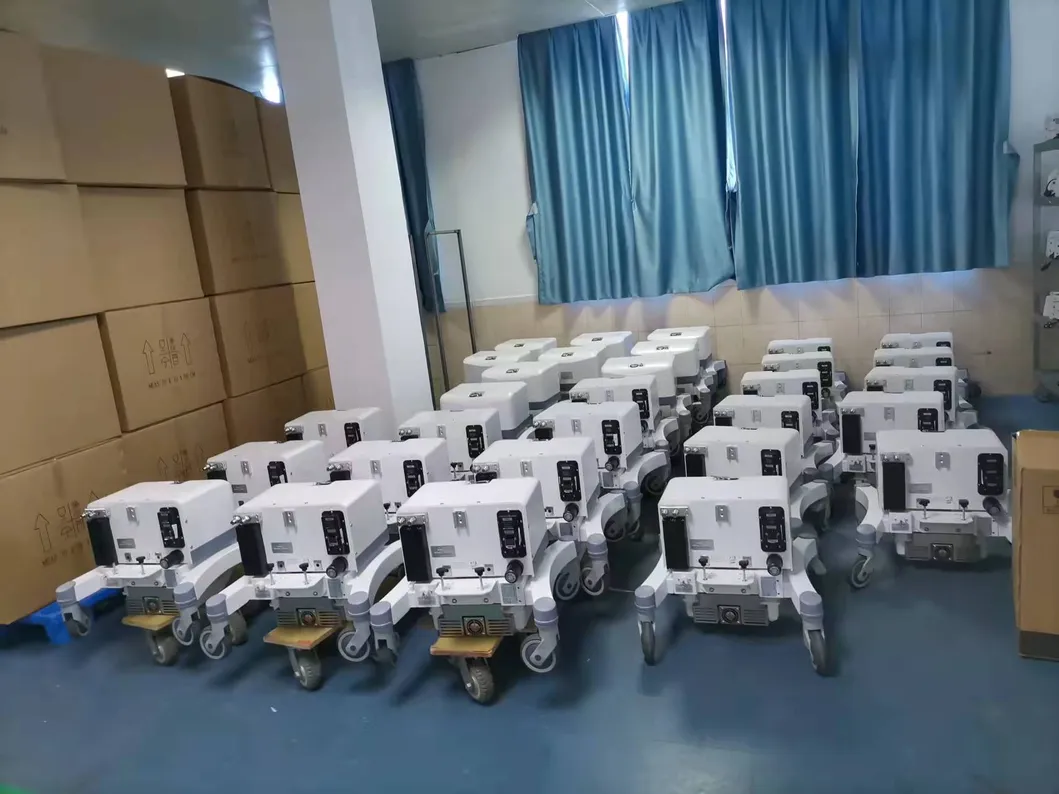

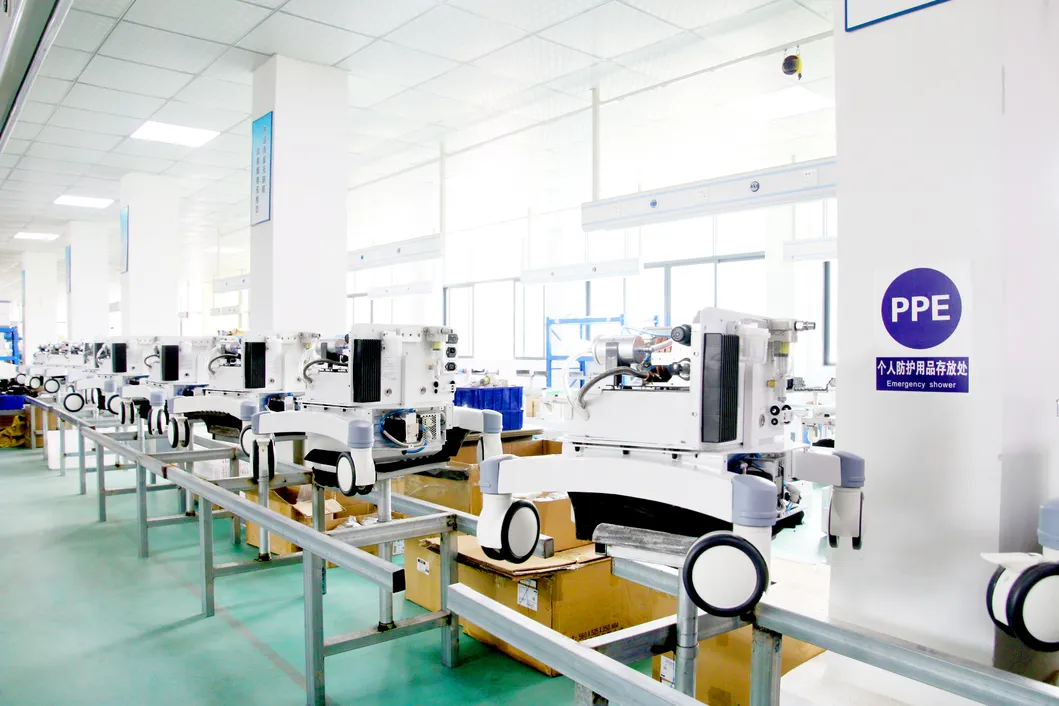

Production Show 1 Production Show 2 Production Show 3
🔹 Clinic Application

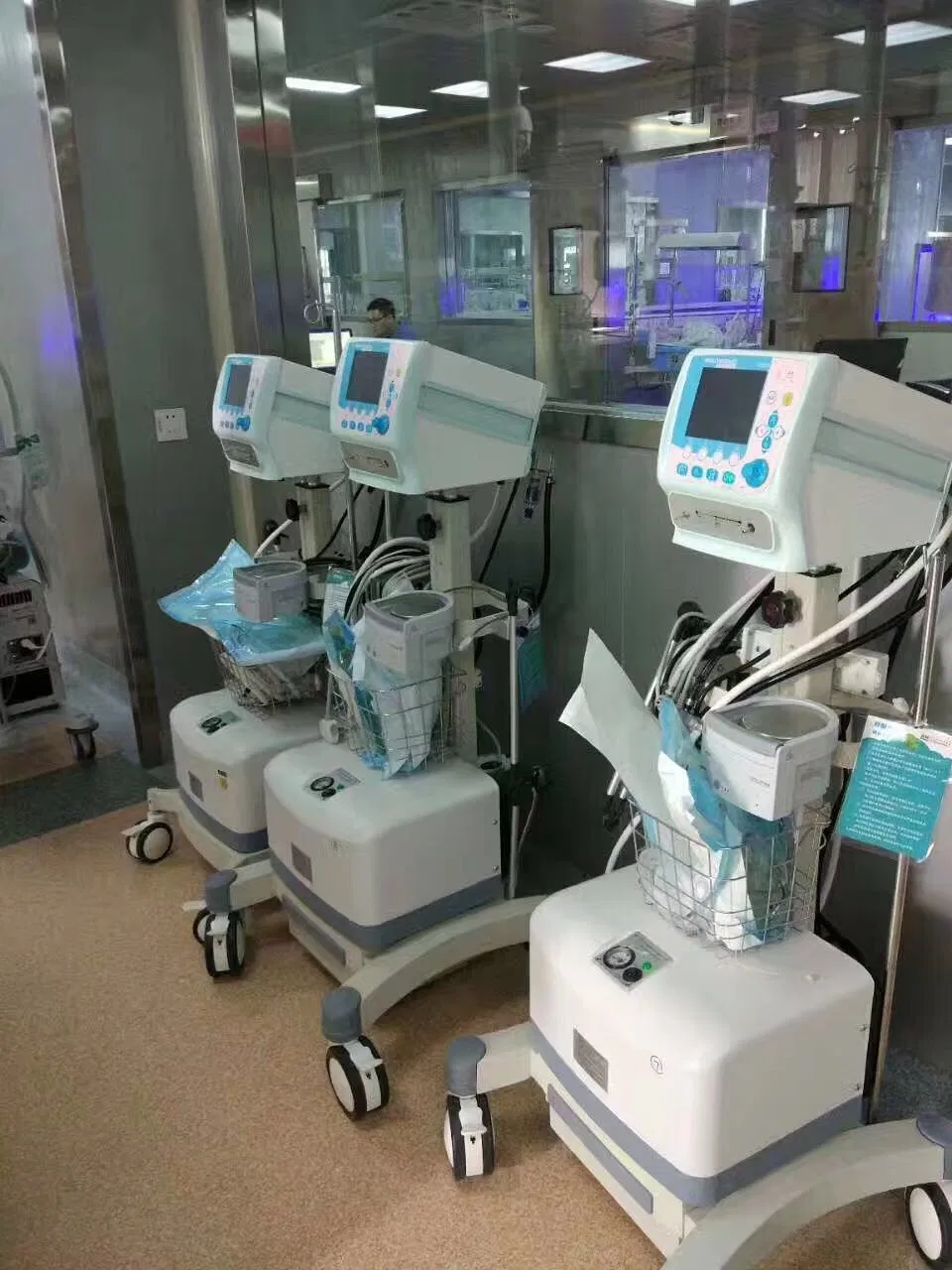

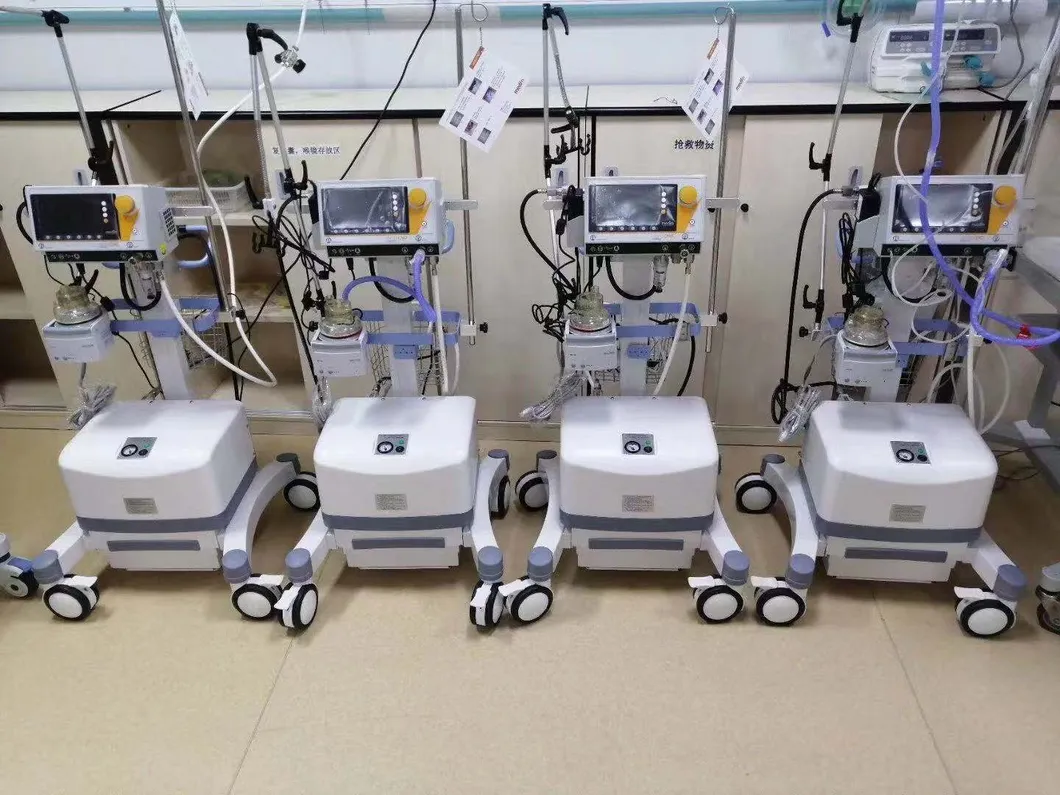

Clinic Application 1 Clinic Application 2
🔹 Technical Data
Outlet flow (3-4 bar)60L/min
Peak flow120L/min
Voltage/Frequency220V/ 50Hz, 110V/50-60Hz
Outlet connectionNIST
Sound level53-55dB(A)
Mode of operationContinuously
Condensed water separationAutomatic
Outlet pressure0.3 Mpa - 0.4 Mpa (3 bar - 4 bar)
Air tank capacity0.5L
Safety valve operating pressure7 bar
Pressure adjustmentPressure regulator
Dimensions (W*D*H)580 × 580 × 480 mm
Net Weight / Gross Weight52KG / 55KG
🔹 Installation & Safety Requirements
✓Check the exterior and parts for any damage or missing components upon unboxing.
✓The medical air compressor must be operated on a flat surface.
✓Important: Remove the stabilizing screws used for transport and replace them with the provided plugs before use.
✓Ensure the power supply cord is well grounded to prevent electrical hazards.
✓Operating current must correspond to the main power input specifications.
✓Use power cables adapted to the maximum operating current to avoid overheating risks.
🔹 Frequently Asked Questions
Q1: What brand of pump is used in the Kindsway-3000?
The system integrates high-quality American GAST or THOMAS oil-free pumps for reliable performance.
Q2: How loud is the compressor during operation?
The noise level is maintained between 53-55dB(A), making it suitable for clinical environments.
Q3: Does the water drainage require manual intervention?
No, the separation and drainage of condensed water are handled automatically by the system.
Q4: What is the maximum peak flow rate?
The Kindsway-3000 provides a peak flow rate of up to 120L/min.
Q5: Can it be used with different power voltages?
Yes, models are available for both 220V/50Hz and 110V/50-60Hz power supplies.
Q6: What should be done before using the machine for the first time?
It is critical to remove the transport stabilizing screws and replace them with the provided plugs to ensure proper operation.
