Product Description

📋

Basic Specifications

Model NO.
JINLING 850
Certification
ISO13485
Group
Adult and Children
Display
8.4 Inch TFT Display
Tidal Volume
20~1500ml
Ventilation Mode
IPPV, SIPPV, VCV, IMV, SIMV, Manual, Standby
Back up Power
At least 4 Hours
PEEP Range
0~20CMH2O

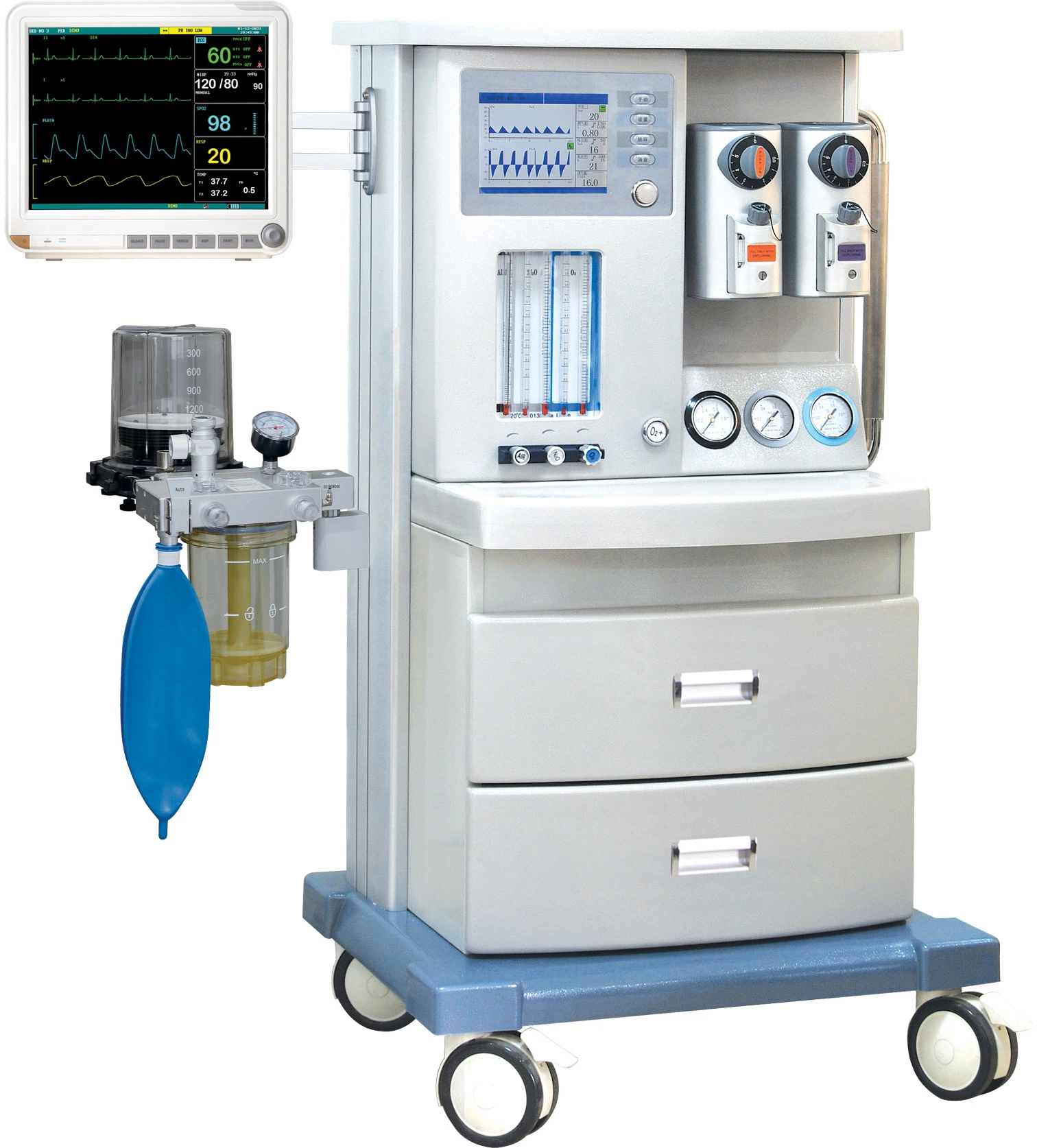

Medical Equipment Hospital Top-Grade Jinling 850 Standard Anesthesia Machine

Anesthesia Machine View 1
Anesthesia Machine View 2
Anesthesia Machine Detail 1

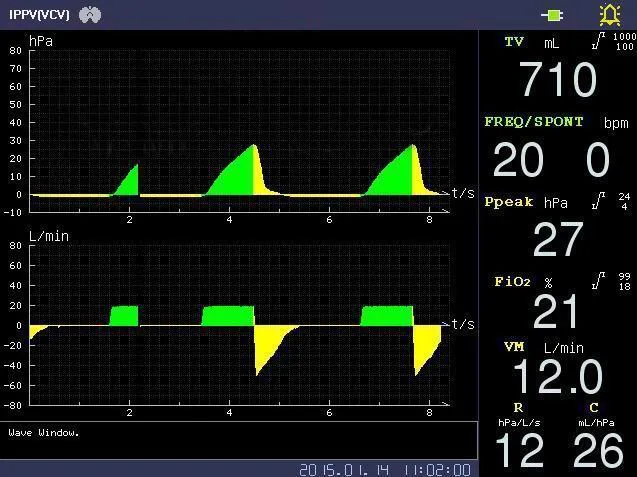

Anesthesia Machine Detail 2
Anesthesia Machine Full View
🌟

Common Features

  • Standard integrated metallic modular respiratory circuit; completely solves the problem of gas sealing under high temperature disinfection.

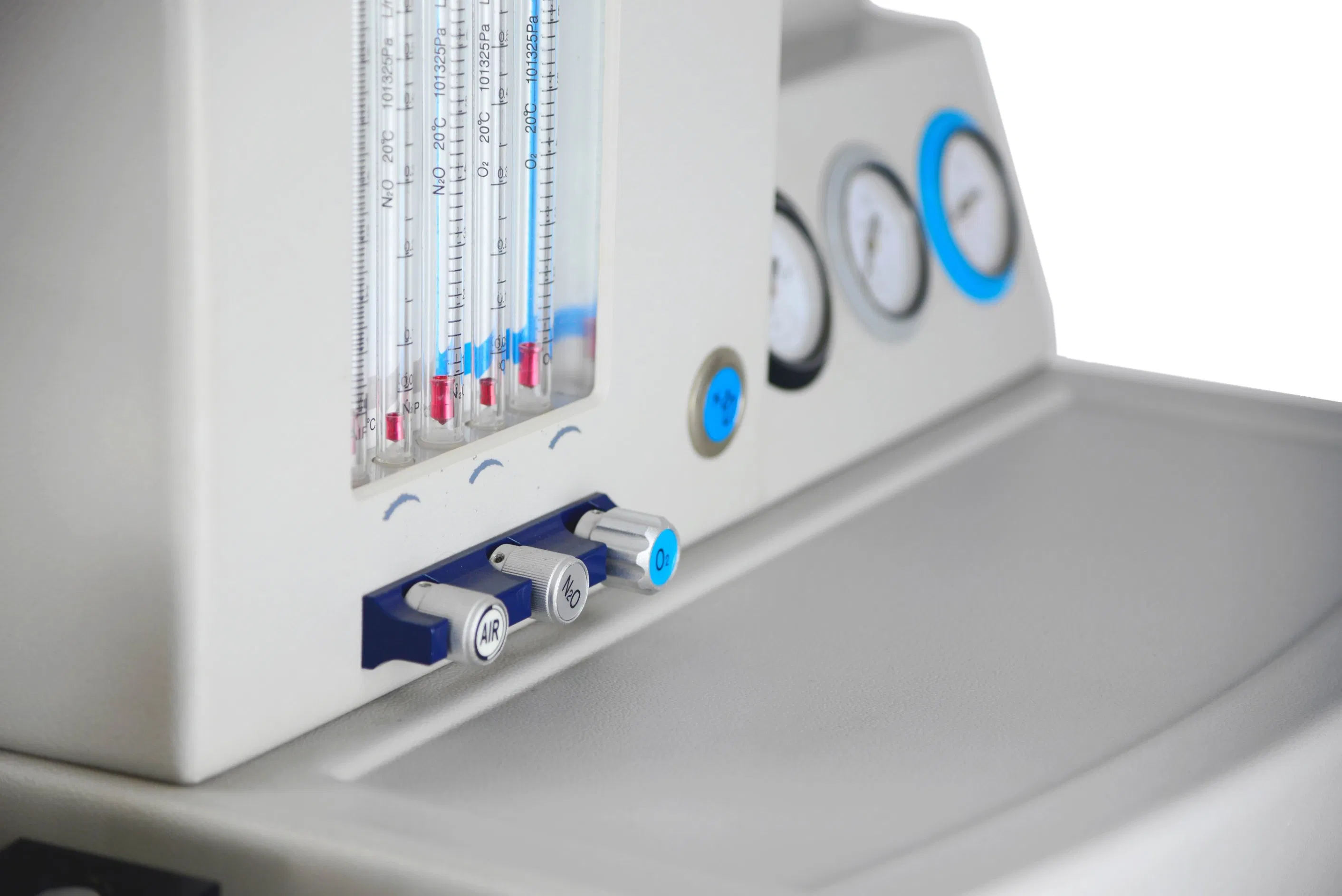

  • High precision five tube flowmeter, fitted with interlocking oxygen-nitrous oxide supply, guarantees oxygen output is never lower than 21%.
  • Nonhazardous environmentally friendly frame with automated self-checking function during startup and an automatic self-calibrating sensor.
  • Advanced and stable Adjustable Pressure Limiting (APL) valve, suitable for low and ultra low flow anesthesia.
  • Equipped with advanced international rotating Na-lime tank, easy-operate with one hand, temperature resistant to 134°C.
📊

Technical Specifications

Model850 (Standard Model)
Display8.4 inch TFT display
Flowmeter RangeO2: 0.1-10L/min; N2O: 0.1-10L/min; Air: 0.1-10L/min
Ventilation ModeIPPV, SIPPV, VCV, IMV, SIMV, MANUAL, Standby
Tidal VolumeAdjustable range: 10-1500ml (Display: 0-2000ml)
Respiratory Rate1-100bpm
I:E Ratio8:1-1:10 (Capable of inverse ratio ventilation)
Vaporizer SlotsDouble PA-I type slots (0-5% Concentration)
Interface Detail
Side View
Rear View
Component View
❓

Frequently Asked Questions

What is the tidal volume range for the Jinling 850?
The adjustable tidal volume range is 10ml to 1500ml, making it suitable for both adult and pediatric patients.
How long can the machine operate on backup power?
The built-in backup power supply ensures the machine can operate for at least 4 hours in case of a power failure.
Is the respiratory circuit easy to disinfect?
Yes, it features a standard integrated metallic modular respiratory circuit that supports high-temperature disinfection and ensures excellent gas sealing.
What ventilation modes are supported?
It supports multiple modes including IPPV, SIPPV, VCV, IMV, SIMV, Manual, and Standby mode.
Does the machine include a safety mechanism for oxygen delivery?
Yes, the high-precision flowmeter is fitted with an interlocking oxygen-nitrous oxide supply to guarantee that oxygen output is never lower than 21%.
