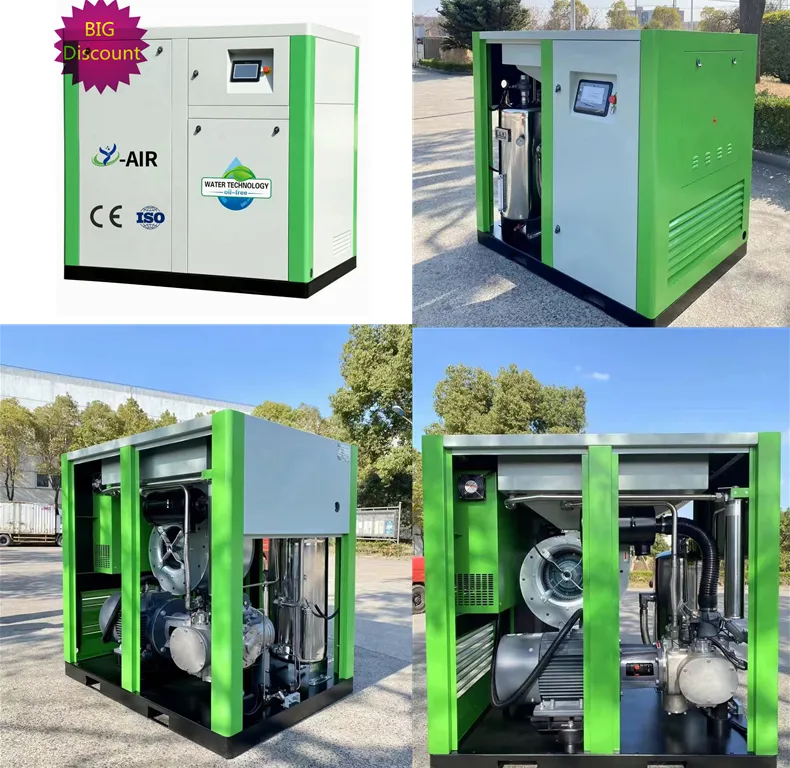

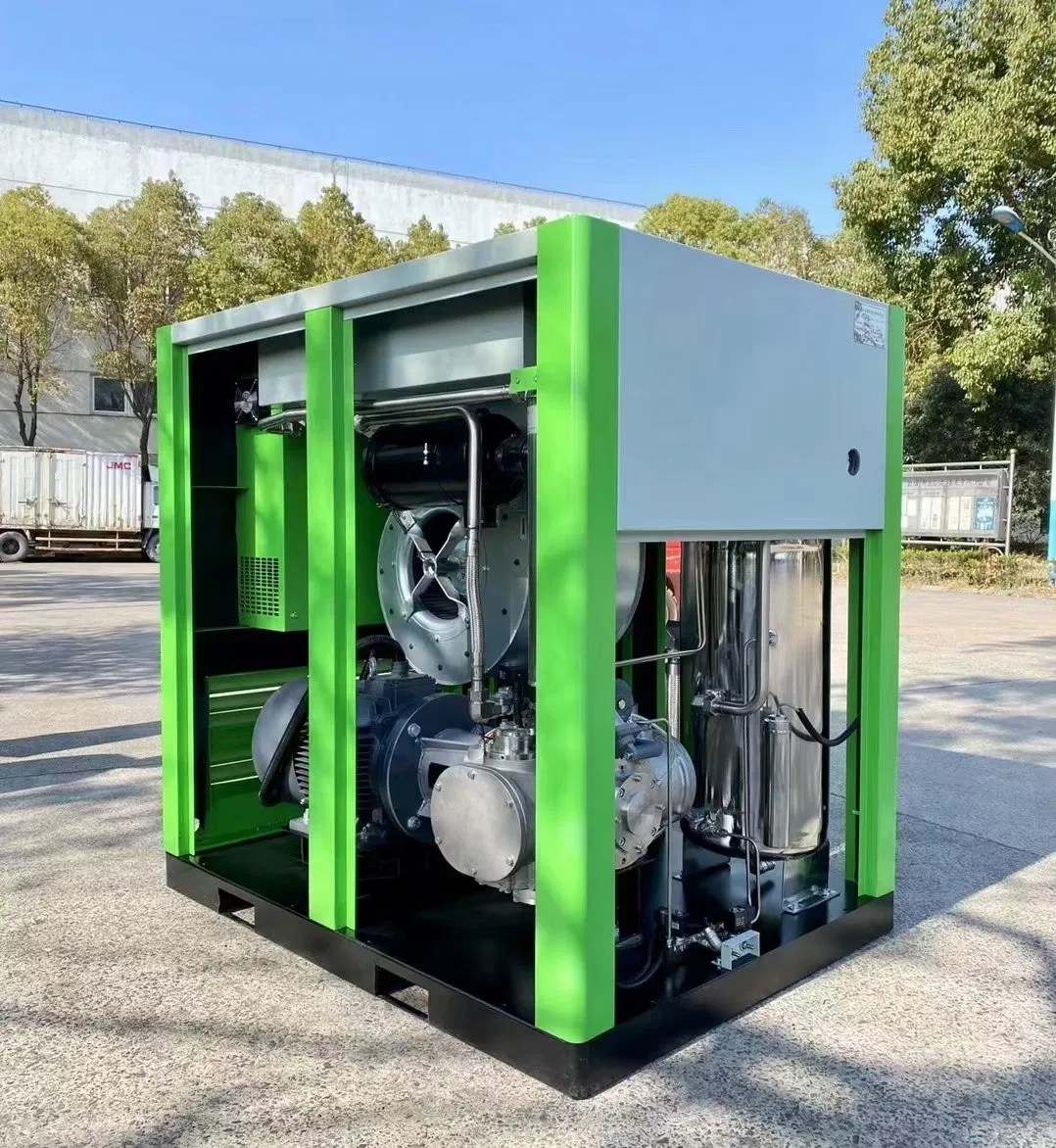

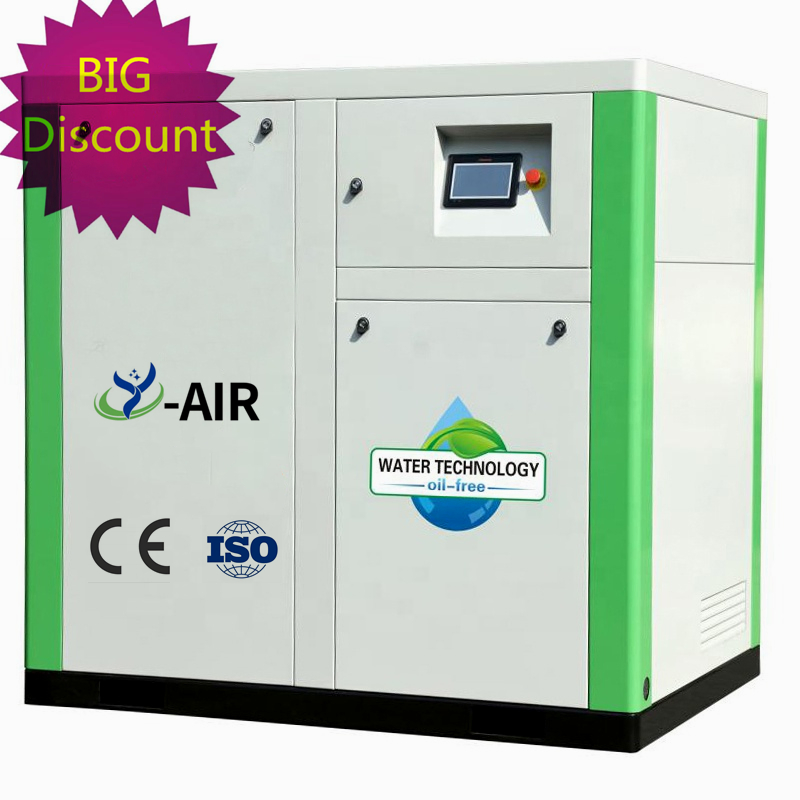

7-16bar Silent 100% No Oil Free/Oilless Direct Driven Stationary Rotary Screw Type Air Compressor Water Lubricated for Medical/Food Industrial

1 / 5

7-16bar Silent 100% No Oil Free/Oilless Direct Driven Stationary Rotary Screw Type Air Compressor Water Lubricated for Medical/Food Industrial

Customization:	Available
After-sales Service:	5 Years for The Air End, and 2 Years for The Whole
Warranty:	2 Years

Send Inquiry

Product Description

Technical Specifications

Model NO.

YOF-10A-100A

Lubrication Style

Oil-free

Cooling System

Water Cooling

Power Source

AC Power

Structure Type

Closed Type

Type

Single Screw Compressor

Certification

CE/ISO9001/TUV/ASME

Voltage

380V/220V/230V/400V/440V/415V

Motor Power

10HP-100HP 7.5kw-75kw

Air Flow

0.7-13.6m3/Min

Working Pressure

100psi - 435psi

Noise

68 dB(a)

Motor IP

IP67/55/54

Starting Mode

Y-△

Product Overview

Factory Advantages

19 years of expertise in R&D, production, and sales of air compressors.
Certified by CE, SGS, and ISO with over 20 invention patents.
Products exported to 132 countries and regions worldwide.
5-year warranty provided for air compressors.
Promise: Every machine will run efficiently for more than 15 years.

Key Features & Technology

Air end: Germany Technology. 30 years designed lifetime.

Motor: 100% rare earth permanent magnet motor.

Inverter: High-efficiency inverter can save 30% energy.

Warranty: 5 years for the air end, 2 years for the whole compressor.

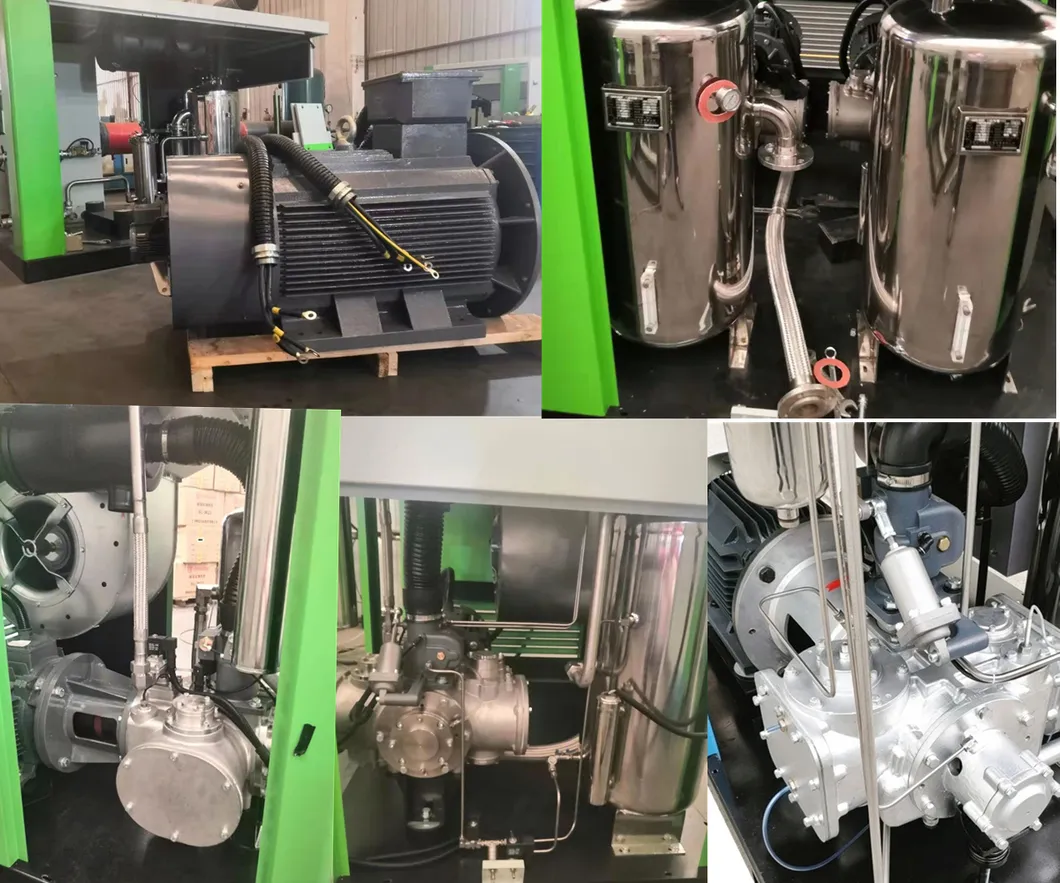

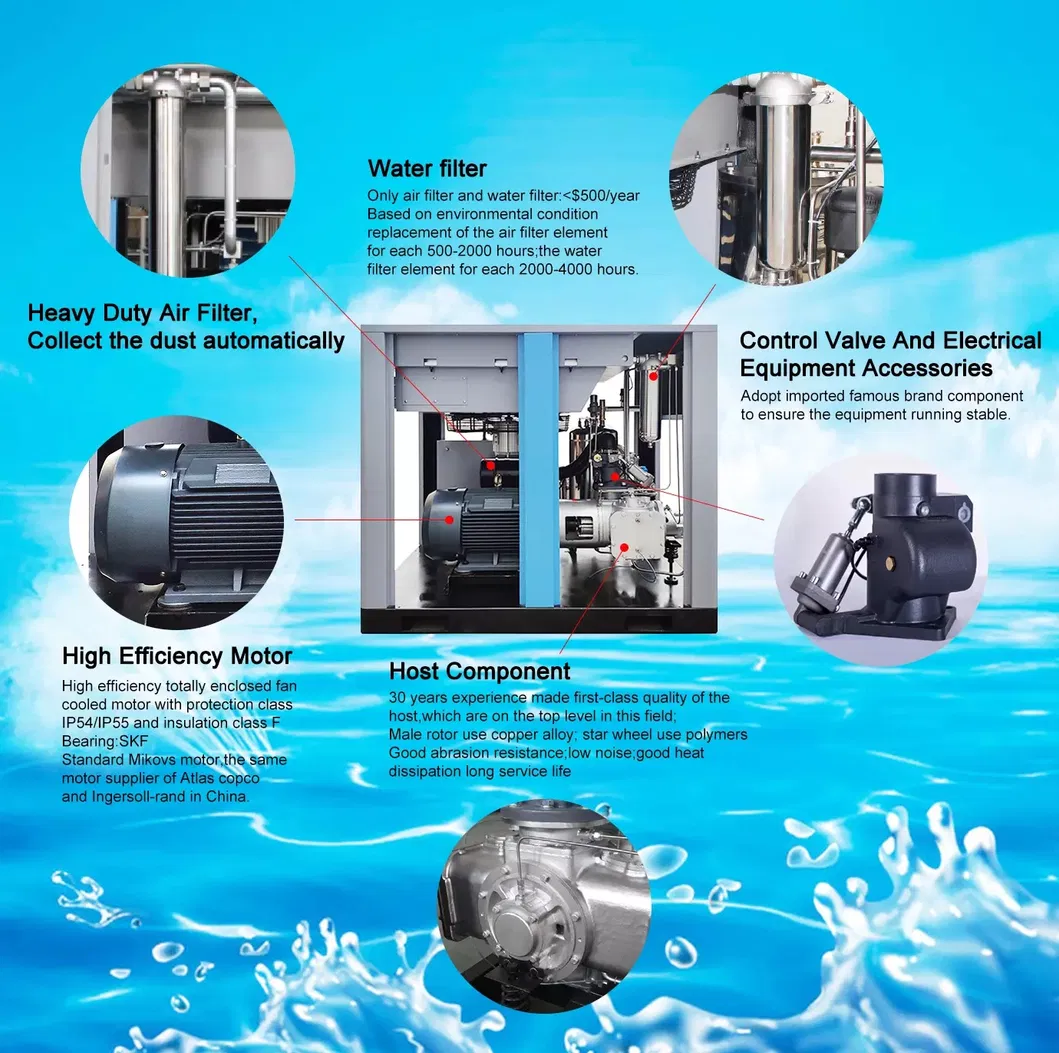

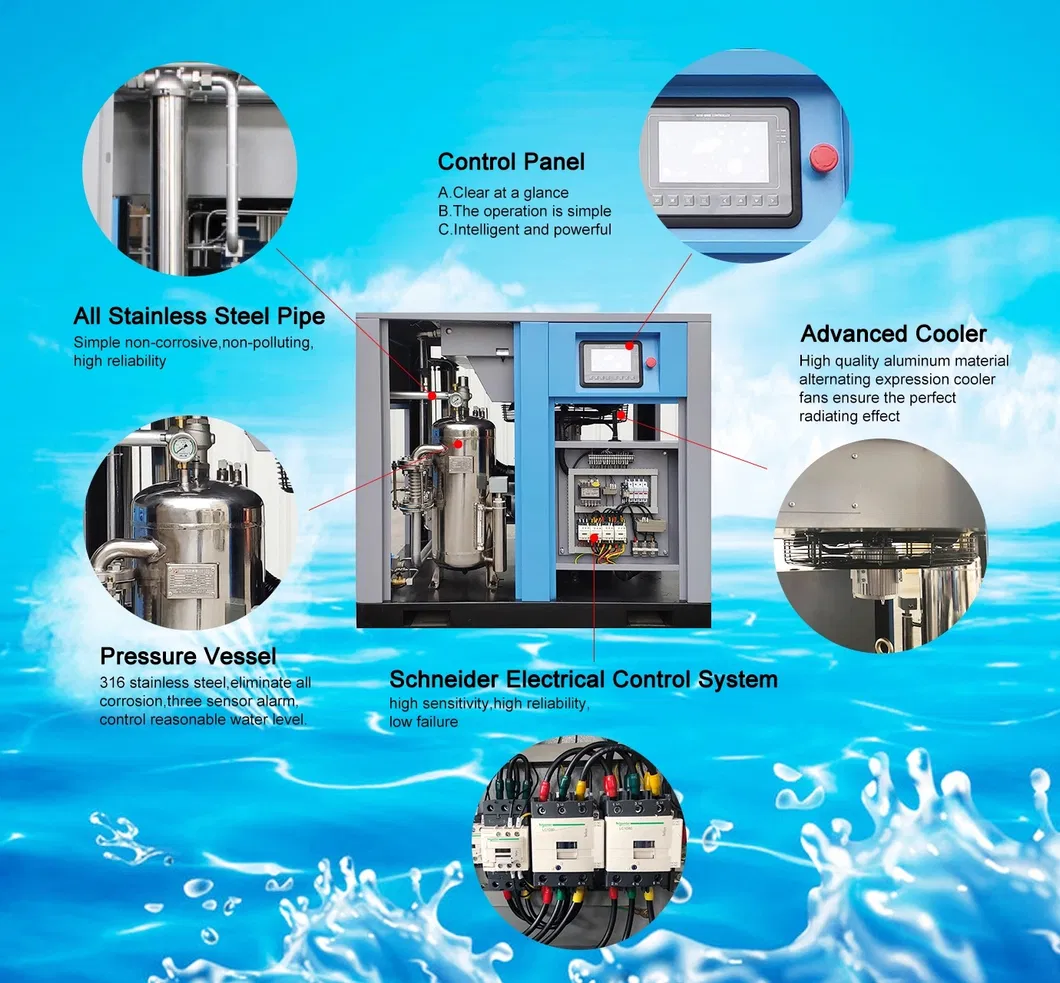

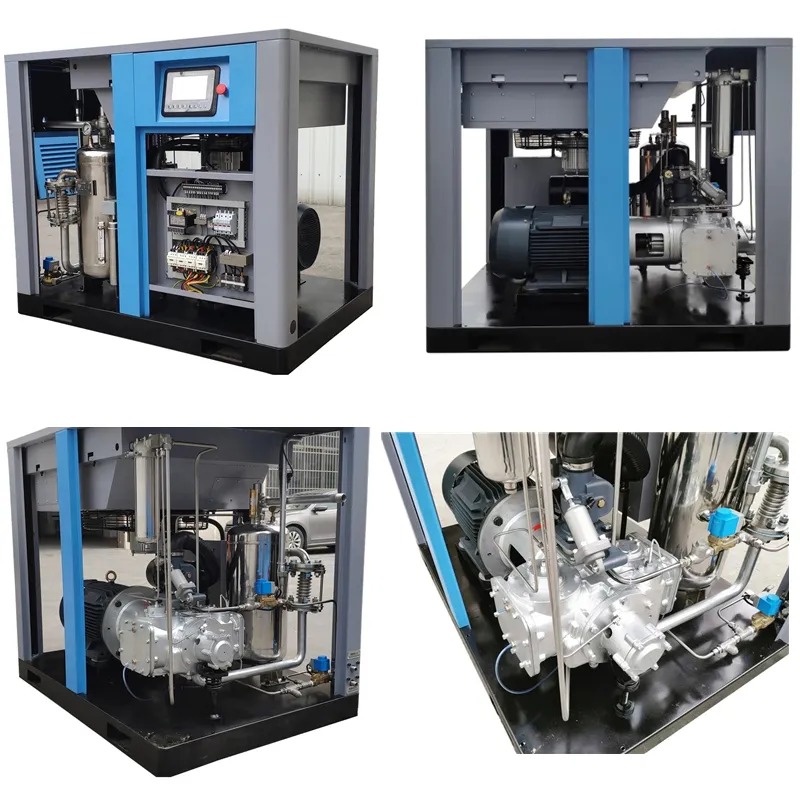

Advanced Engineering

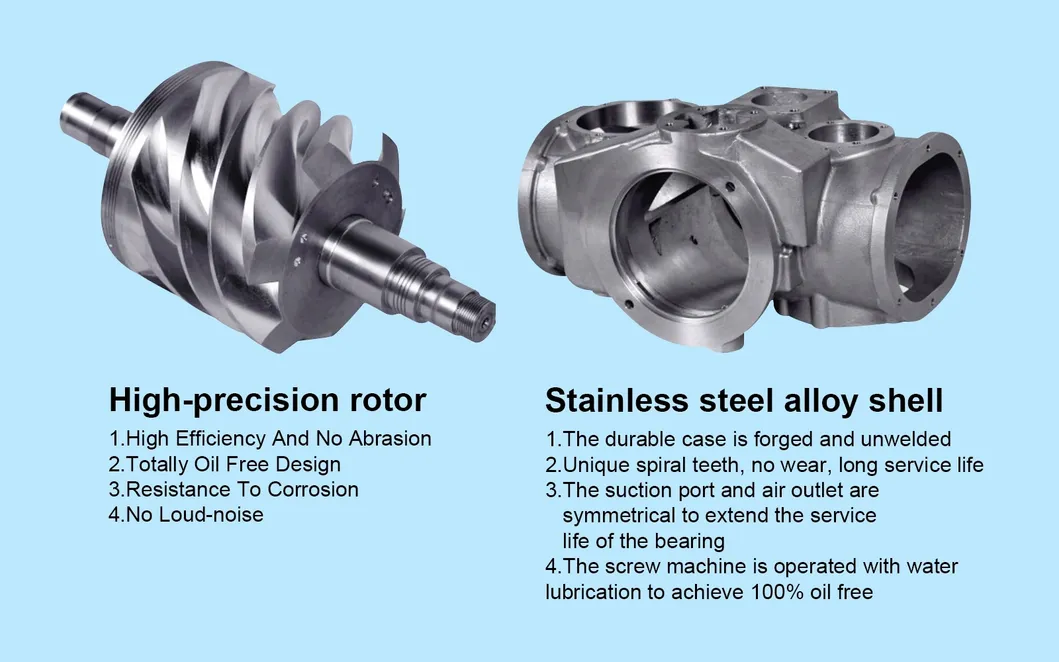

Original GHH-RAND airend from Germany.
100% oil free air certified by Germany TUV.
Centrifugal Fan for superior cooling effect.
Stainless Steel Piping and Hydraulic Inlet Valve System.
Special venturi tube and double-layer structure for noise reduction.
Touch Screen PLC with intelligent control.

Model Parameters

Model	Air Flow (m³/min)				Power	Noise	Outlet	Dimension (mm)	Weight
Model	7bar	8bar	10bar	13bar	kw	dB	inch	WDH	kg
YOF-10A	1.1	1.0	0.85	0.7	7.5	55	G3/4''	13008001300	500
YOF-20A	2.4	2.2	2.1	1.8	15	57	G1''	15209001350	650
YOF-40A	5.3	5.0	4.3	3.6	30	60	G11/4''	165010501560	980
YOF-60A	8.0	7.7	6.9	6.0	45	63	G11/2''	215013001650	1060
YOF-100A/W	13.6	13.0	11.3	10.1	75	67	G2''	240014501740	1480

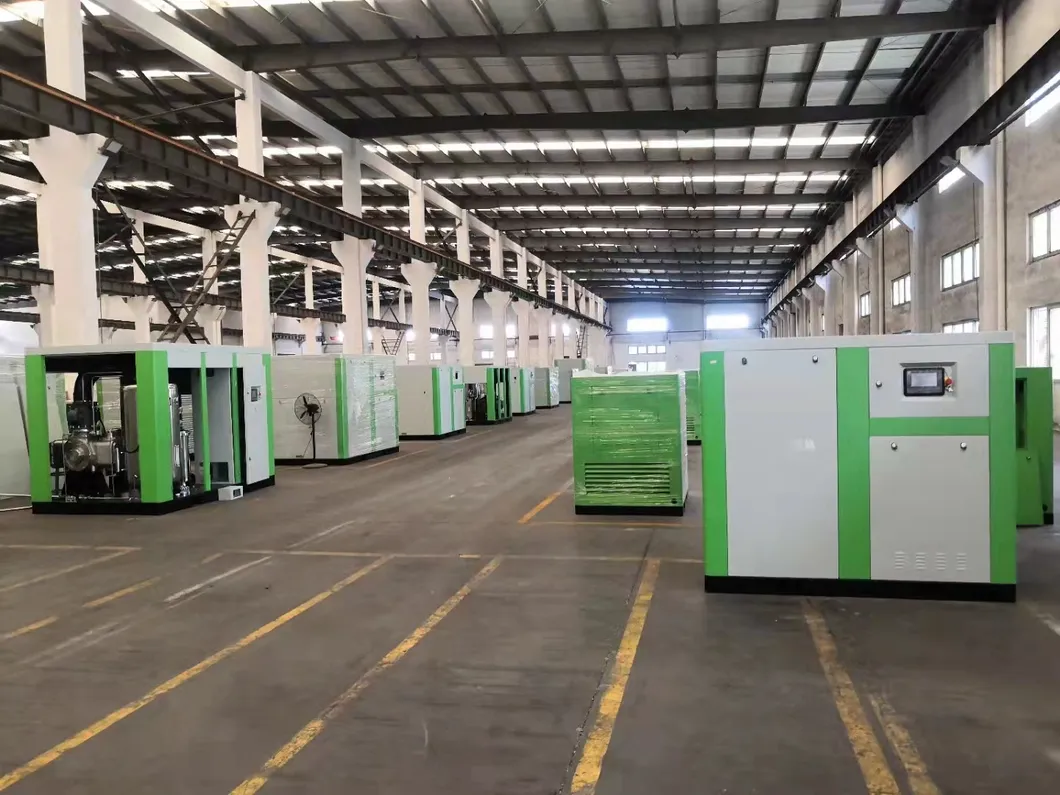

Quality Control & Packaging

1. Installation Inspection: Comprehensive check of motor nameplates, pipeline integrity, and screw locking.

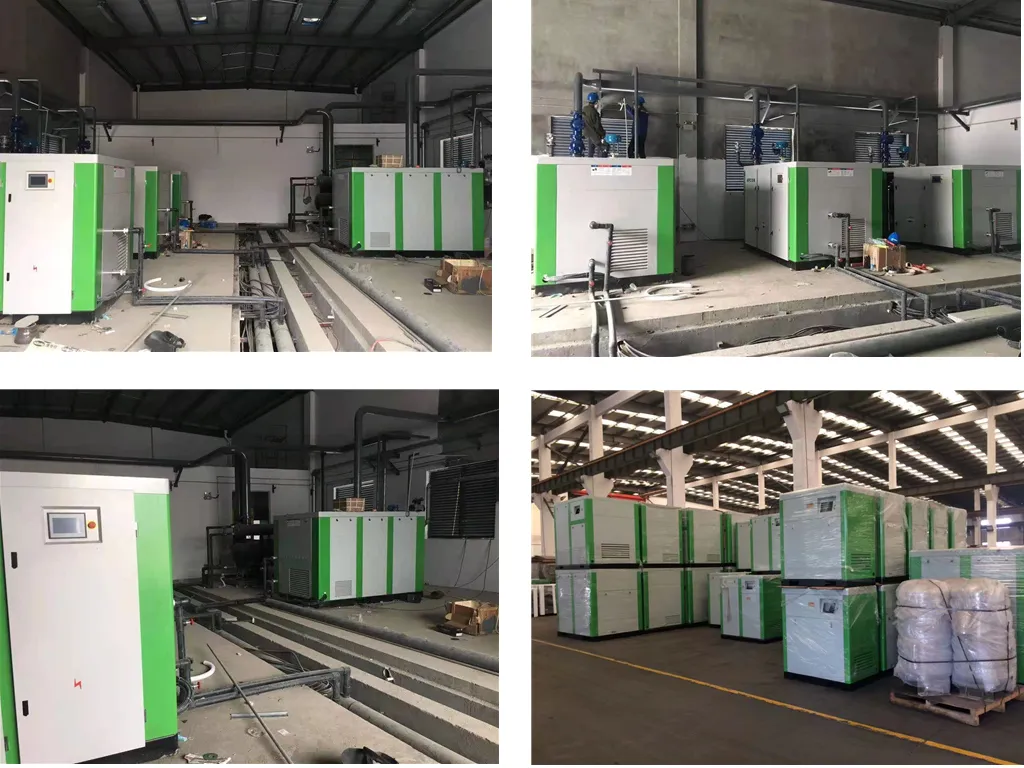

2. Factory Testing: 48-hour thermal stability test ensuring voltage, current, and pressure meet requirements.

3. Triple-Layer Packaging: Surface paint protection, anti-collision buffer cotton, and non-fumigation wooden cases for safe transport.

Frequently Asked Questions

Q1. Why do customers choose our air compressors? We have specialized in screw air compressors for 18 years. Our German Standard production lines ensure high reliability for both agents and end-users.

Q2. Are you a manufacturer or a trading company? We are a professional manufacturer with a large modern factory in China. Both OEM and ODM services are fully supported.

Q3. What is the typical delivery time? Generally, delivery takes 7-15 days. For urgent orders, we can arrange expedited production.

Q4. How long is the warranty period? We offer a 2-year warranty for the whole machine and a 5-year warranty for the screw air end (excluding consumable parts).

Q5. What is the expected lifespan of the compressor? Our air compressors are designed to be used for at least 10 to 15 years with proper maintenance.

Q6. How is the after-sales service handled? We provide 24-hour online service, including installation instructions and troubleshooting. Well-trained engineers are also available for overseas support.
