Product Description

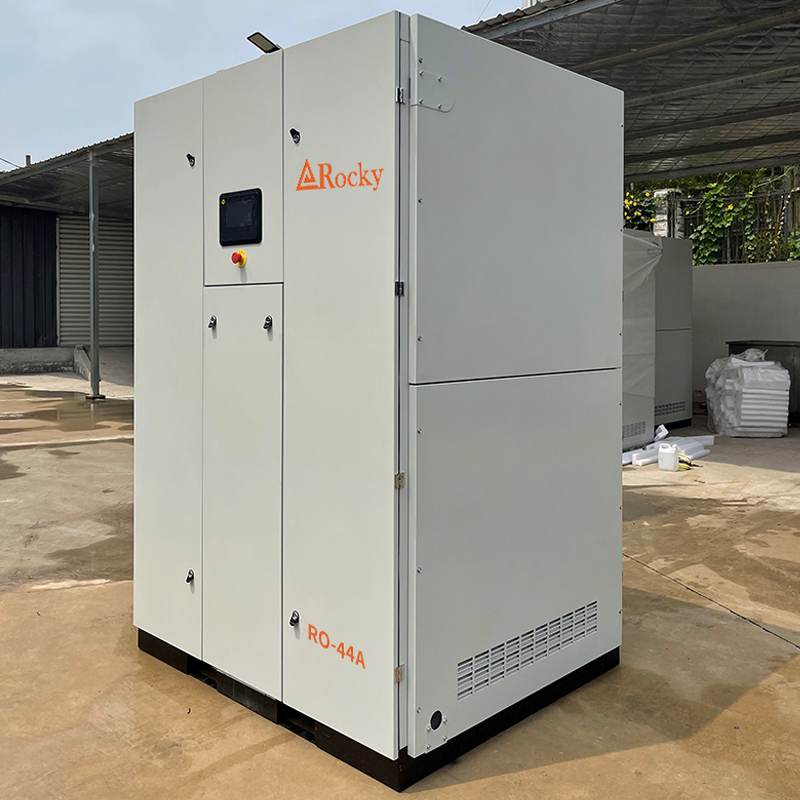

Industrial Oil-Free Scroll air Compressor RO-44A for Medical Applications
Compared with traditional compressors, oil-free scroll compressors have excellent performances such as novel structure, compact size, light weight, low noise, long life and low maintenance cost. Known as "maintenance-free air compressor", it is an ideal model for air compressors below 50HP.

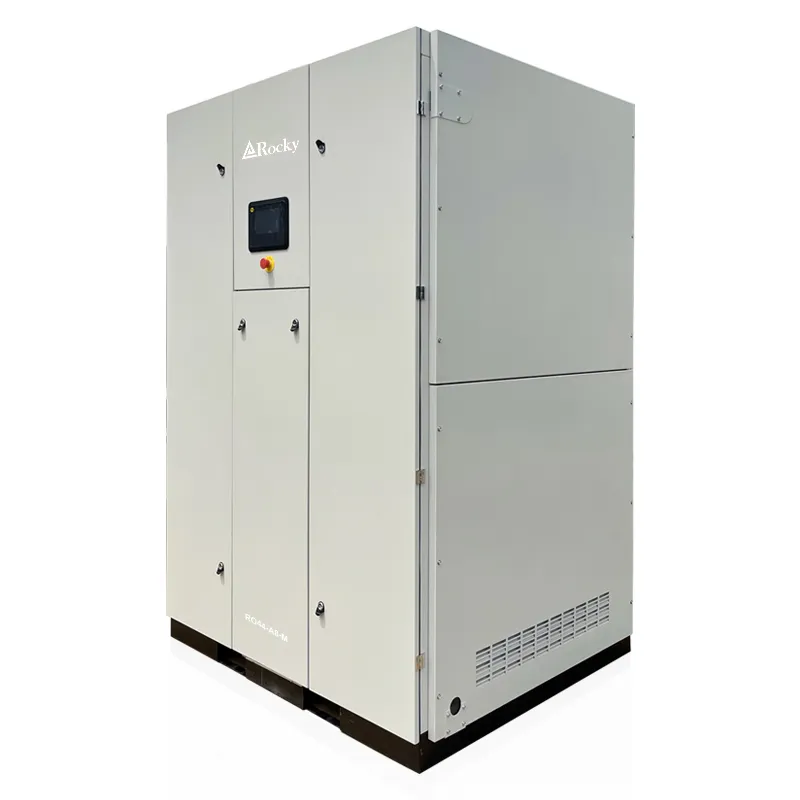

Product Parameters
Capacity
4.8 m3/min (4800L/min)
Rated Power
44kw IE3 IP55 F class
Scroll Air End

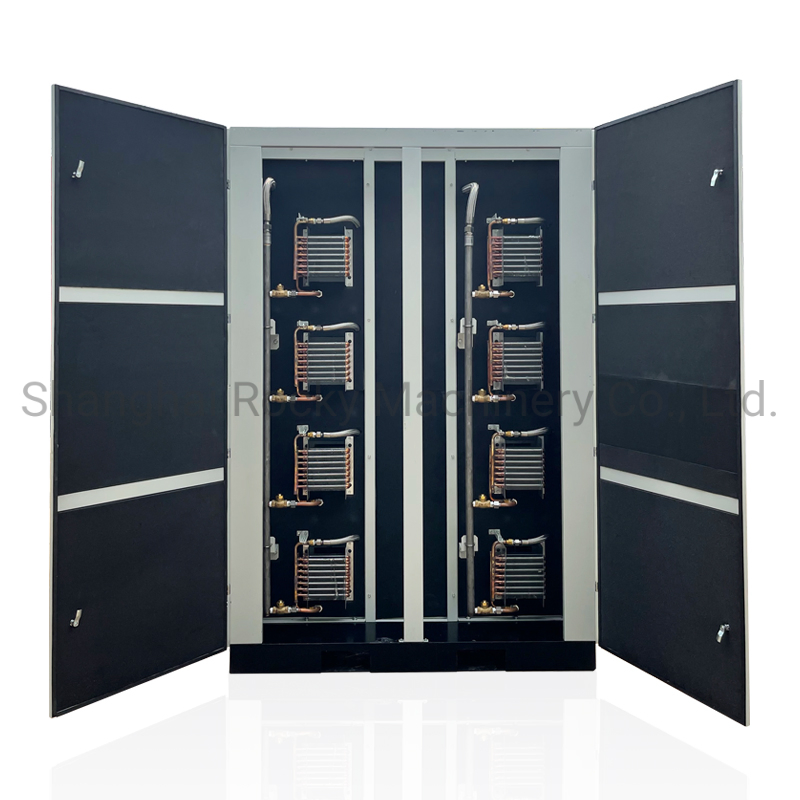

5.5kw * 8pcs
Control Type
Pressure sensor control, 7" touch screen PLC
| Model |
8bar (m³/min) |
10bar (m³/min) |
Power (kW) |
Air-end Qty |
Noise dB(A) |
Dimension (mm) |
Weight (Kg) |
| RO-11A | 1.20 | 1.10 | 11 | 5.5*2 | 60 | 852*1274*1330 | 450 |
| RO-15A | 1.60 | 1.36 | 14.8 | 3.7*4 | 63 | 1565*1274*1330 | 700 |
| RO-22A | 2.40 | 2.20 | 22 | 5.5*4 | 63 | 1565*1274*1330 | 730 |
| RO-33A | 3.60 | 3.30 | 33 | 5.5*6 | 65 | 1565*1274*1775 | 1020 |
| RO-44A | 4.80 | 4.40 | 44 | 5.5*8 | 68 | 1565*1274*1775 | 1250 |
Advantages
🛡️ 100% Oil-Free
Can be used in any industry, especially suitable for users with high oil content requirements for compressed air.
🔇 Quiet Operation
The operation noise of the scroll air compressor is extremely low, and the working environment is healthier.
⚙️ Convenient Installation
It occupies a small area and can be installed near the gas point, reducing pipe network installation costs.
🛠️ Simple Maintenance
No need to replace or add lubricating oil. Only a small amount of consumables need regular replacement.
🌱 Zero Pollution
Only discharge of condensate water, no other harmful substances, meeting sustainable development requirements.
Frequently Asked Questions
Q1: What makes the RO-44A suitable for medical and dental use?
The RO-44A provides 100% oil-free air (Class 0), which is critical for medical applications like oxygen supply, ventilators, and dental tools to prevent contamination.
Q2: How quiet is the scroll air compressor compared to screw types?
Scroll compressors are significantly quieter due to fewer moving parts and a continuous compression process, making them ideal for indoor or office-adjacent installations.
Q3: What are the maintenance requirements for an oil-free scroll machine?
Maintenance is minimal. Since no lubricating oil is used in the compression chamber, you only need to replace air filters and basic consumables periodically.
Q4: Can this unit handle continuous 24/7 operation?
Yes, the multi-host design (5.5kw * 8) allows for efficient load management and reliability for industrial processes requiring constant air supply.
Q5: Does the RO-44A come with a built-in air tank?
The RO-44A is a high-capacity industrial model designed for integration into existing air systems; smaller "T" models in the series typically include integrated tanks.
Q6: What is the significance of the Class 0 Oil-Free certification?
Class 0 is the strictest air quality standard, ensuring there is zero risk of oil contamination in the compressed air stream, protecting sensitive products and equipment.
