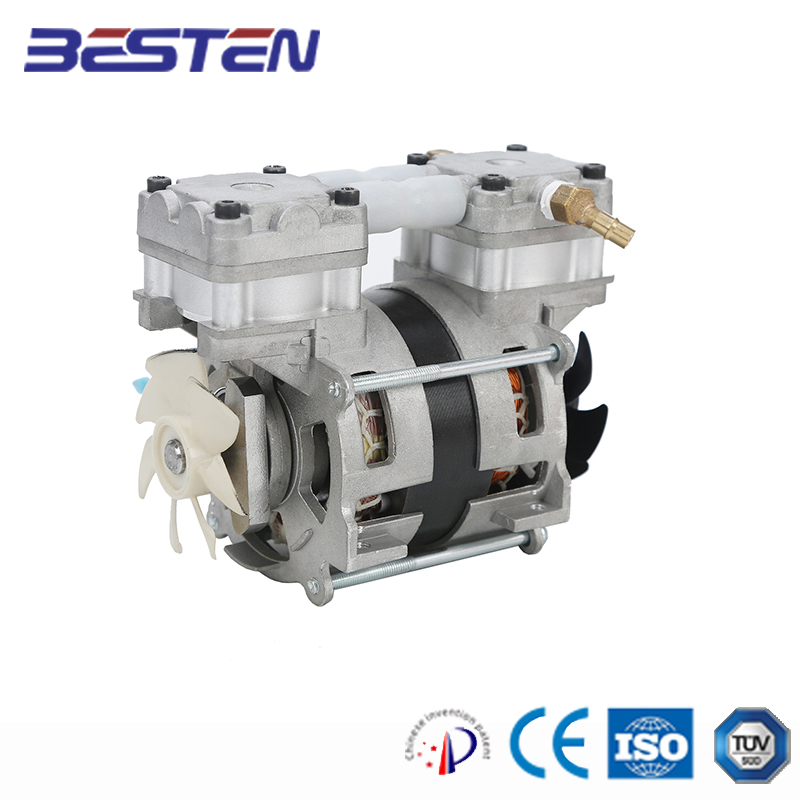

Small Oil-Free Air Compressor Vacuum Pump for on-Line Medical Testing Equipment in Laboratory Air Compressor for Beauty Instrument Pump for Sputum Aspirator

1 / 5

Small Oil-Free Air Compressor Vacuum Pump for on-Line Medical Testing Equipment in Laboratory Air Compressor for Beauty Instrument Pump for Sputum Aspirator

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

📦 Basic Information

Model NO.

BST80AF/BS

Principle

Mixed-Flow Compressor

Application

Back Pressure Types

Performance

Low Noise, Variable Frequency, Explosion-Proof

Lubrication Style

Oil-free

Drive Mode

Electric

Power Source

AC Power

Noise Level

≤54dB(a)

📊 Technical Specification

Parameter	Specification
Voltage/frequency	220-240V/50Hz; 110-115V/60Hz
Input Power	100W
Speed	≥1380 - 1650 r/min
Rated Pressure	140KPa
Max Pressure	200KPa
Vacuum Degree	-88KPa
Rated Volume Flow	1.05m3/h @ 140KPa
Ambient Temperature	-5~40 ºC
Insulation Class	B
Net Weight	2.2Kg
Dimensions	14089116mm

🏥 Typical Applications

Respirator (ventilator)

Oxygenerator

Disinfectant sprayer

Blood analyzer

Clinical aspirator

Dental vacuum drying oven

Air suspension system

Massage chair

⭐ Key Advantages

✔ Saves 10-30% energy compared to ordinary manufacturers.

✔ Widely used in medical oxygen generators and ventilators.

✔ Supports extreme conditions: -41 to 70 ºC and 0-6000 meters altitude.

✔ High-end durability: 7,000 to 15,000 hours trouble-free operation.

✔ Fast delivery: 1,000 units generally completed within 25 days.

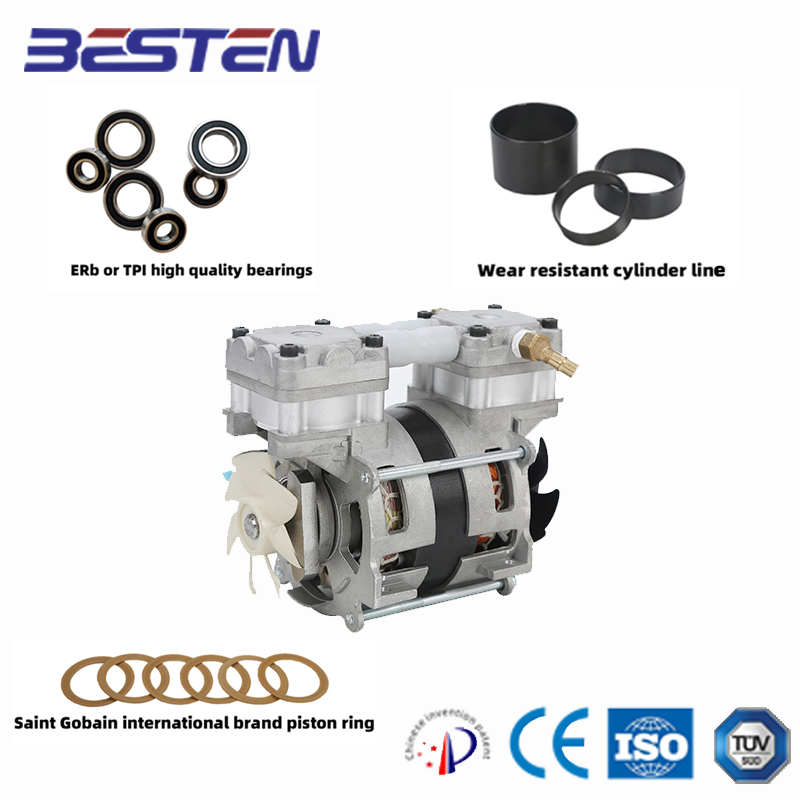

⚙️ Machine Components

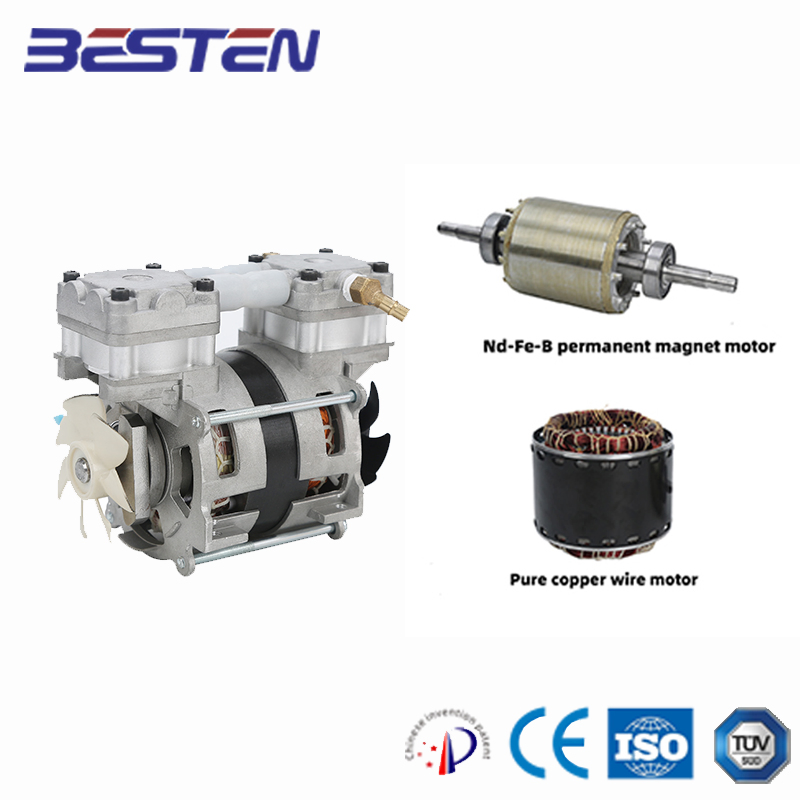

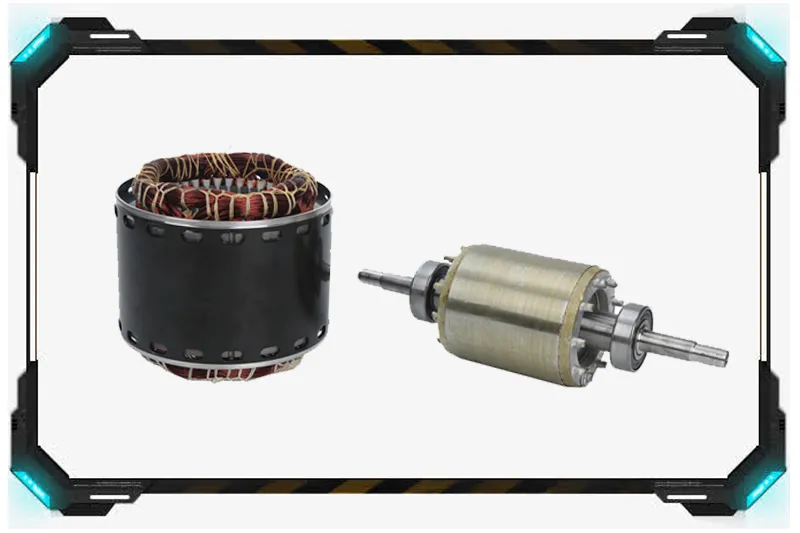

Motor

1. Fine pure copper enameled wire coil and premium silicon steel sheet rotor.
2. Insulation grade B or F available.
3. Built-in thermal protector.
4. Flexible voltage options: AC100V-240V, DC6V-200V.

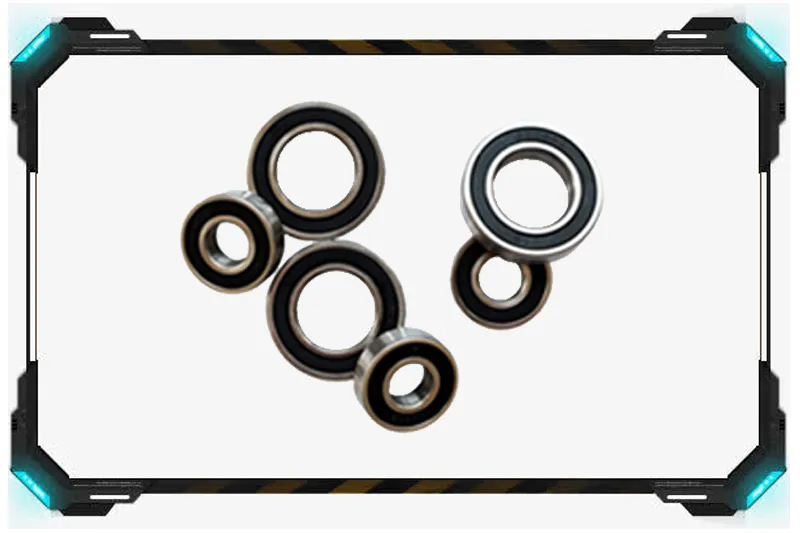

Precision Bearing

1. Special oil-free compressor bearings, temperature tolerant from -50ºC to 180ºC.
2. Ensures no fault operation for up to 20,000 hours.
3. Options for imported premium bearings according to working conditions.

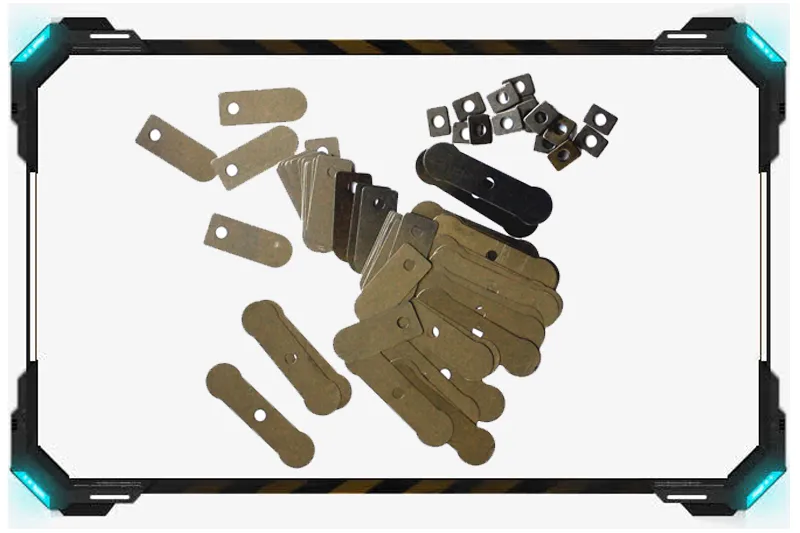

Valve Plates

1. Custom Swedish Steel for maximum flexibility and durability.
2. Thickness from 0.08mm to 1.2mm, supporting pressure up to 1.2 MPa.

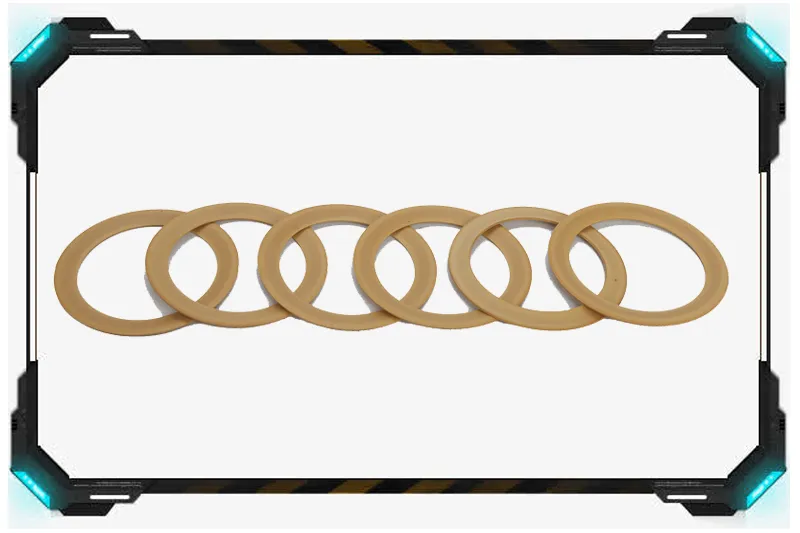

Piston Ring

1. Polytetrafluoroethylene (PTFE) composite material.
2. Wear-resistant and high-temperature resistant.
3. Service life exceeding 10,000 hours.

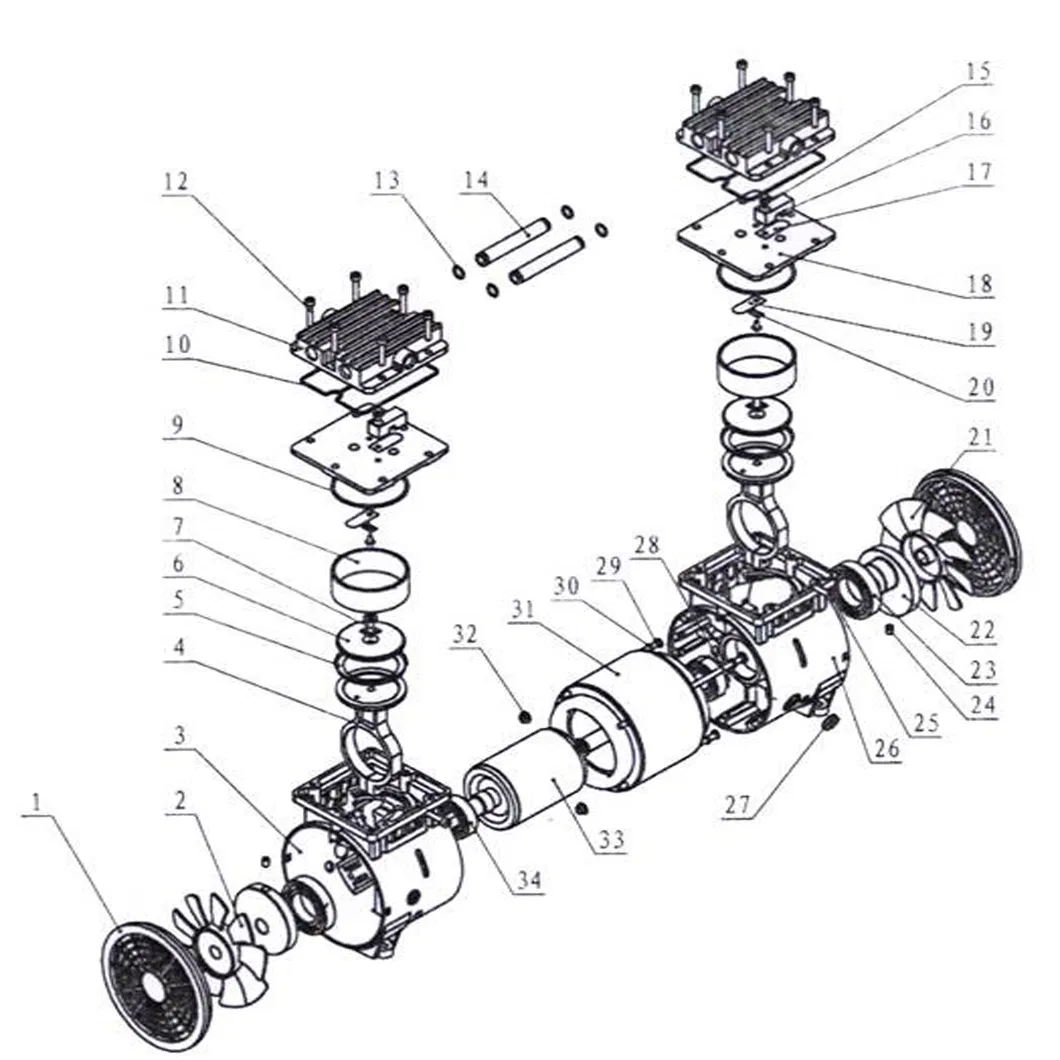

🔍 Construction & Parts List

No.	Name	Material
1	Fan cover	Reinforced nylon 1010
3	Left box	Die-cast aluminum alloy YL104
4	Connecting rod	Die-cast aluminum alloy YL104
5	Piston cup	PHB filled PTFE
8	Air cylinder	Aluminum alloy 6A02T4
11	Cylinder head	Die-cast aluminum alloy YL102
17	Air outlet valve	Swedish quenching steel
31	Stator	High quality electric steel

❓ Frequently Asked Questions

Q1: Are you a factory or a trading company?

A1: We are a professional factory specializing in air compressor solutions.

Q2: What are the warranty terms for the machine?

A2: We offer a two-year warranty for the machine along with technical support tailored to your specific needs.

Q3: Do you provide spare parts for the machines?

A3: Yes, we provide necessary spare parts to ensure continuous operation of the equipment.

Q4: How long does it take to arrange production?

A4: Generally, a production run of 1,000 units can be delivered within 25 days.

Q5: Can you accept OEM orders?

A5: Yes, with our professional design team, OEM orders are highly welcome.

Q6: Can you accept non-standard customization?

A6: Absolutely. We have the capability to develop, research, and customize new products based on your specific requirements.
