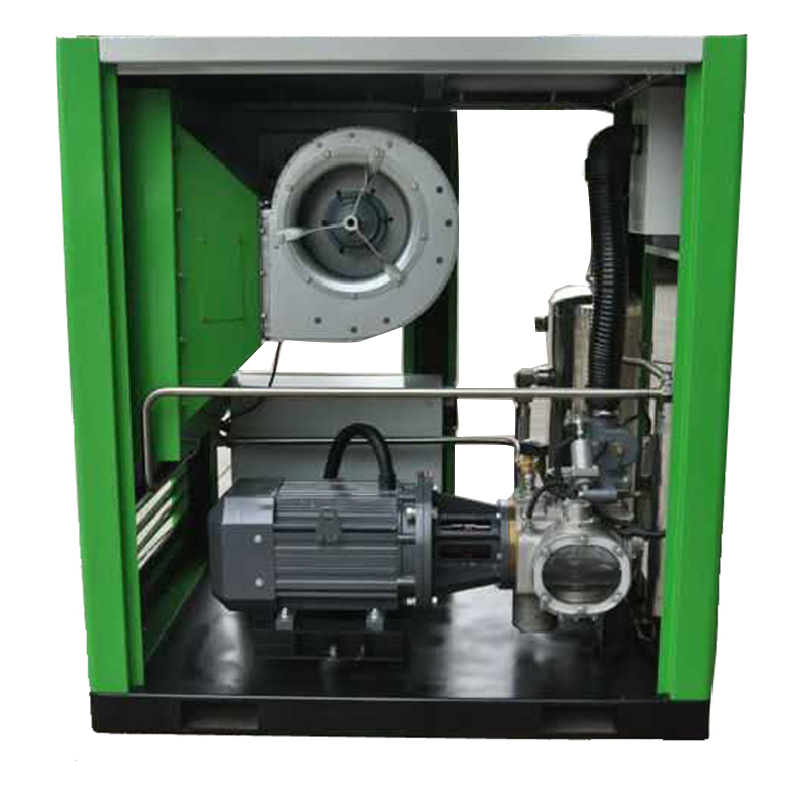

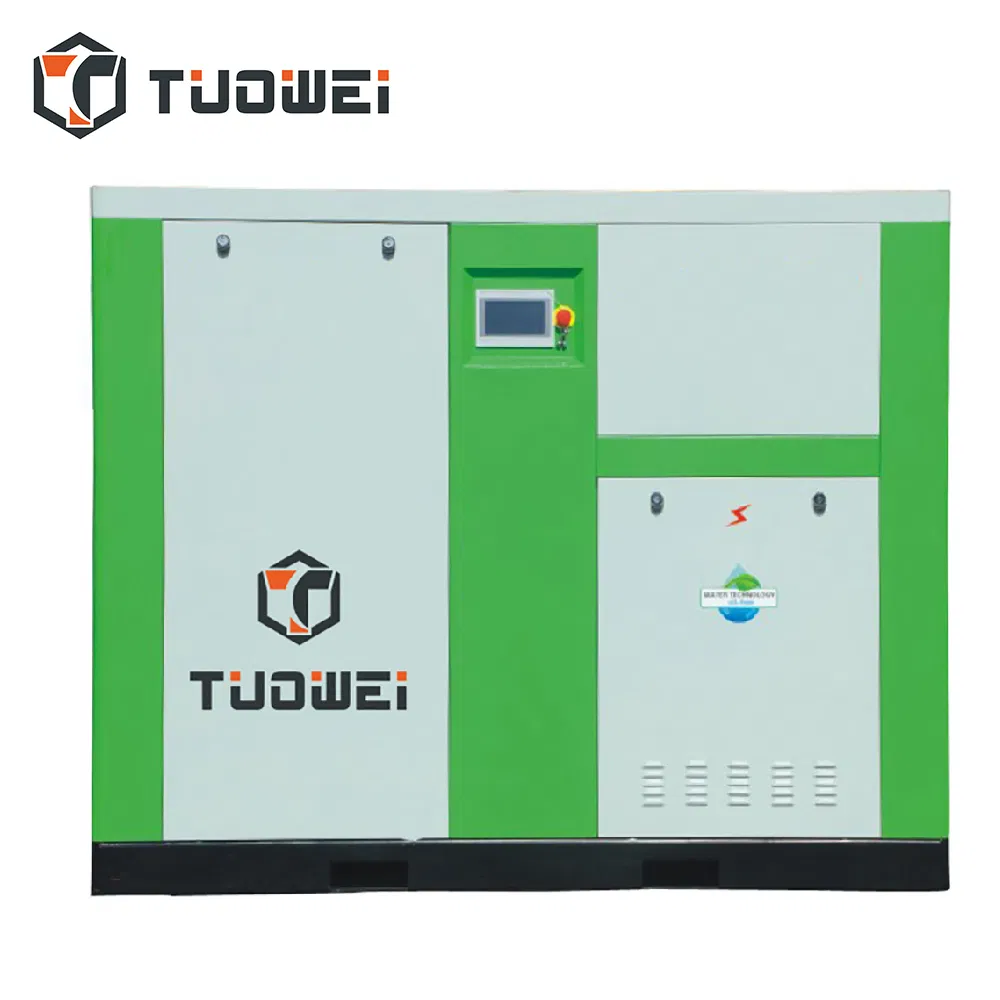

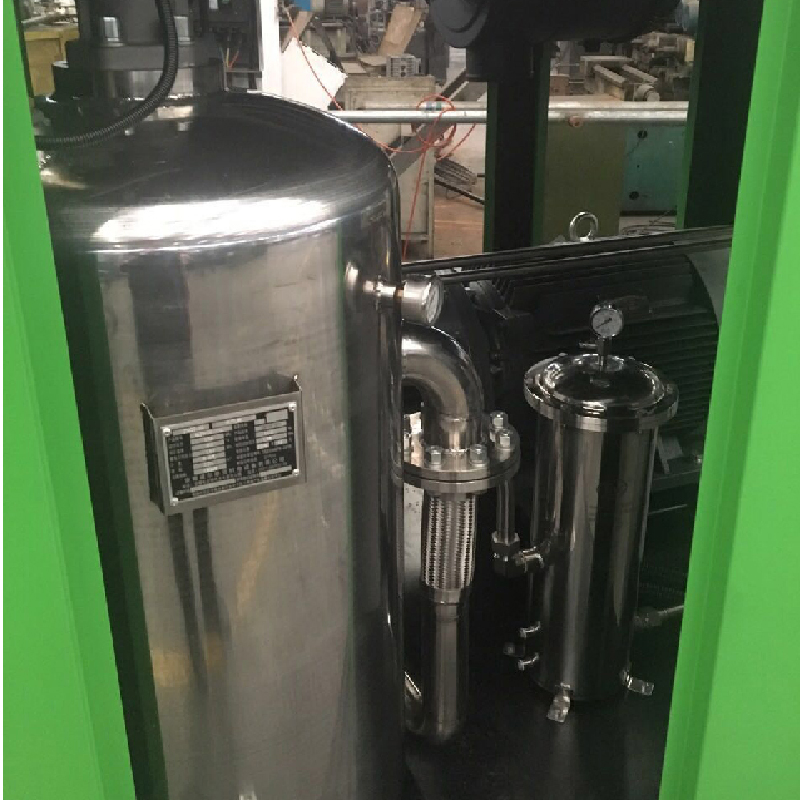

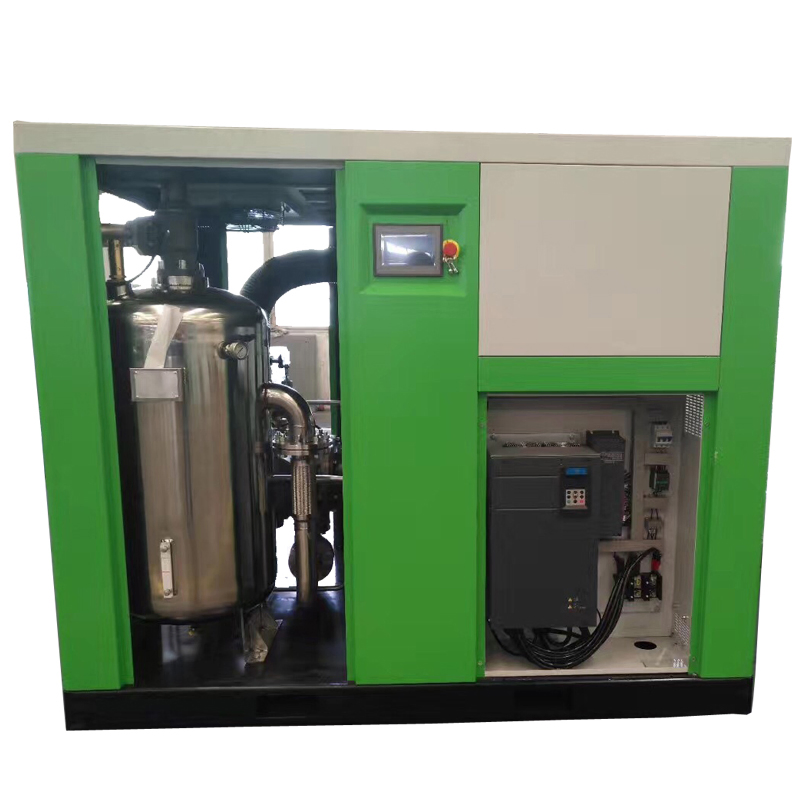

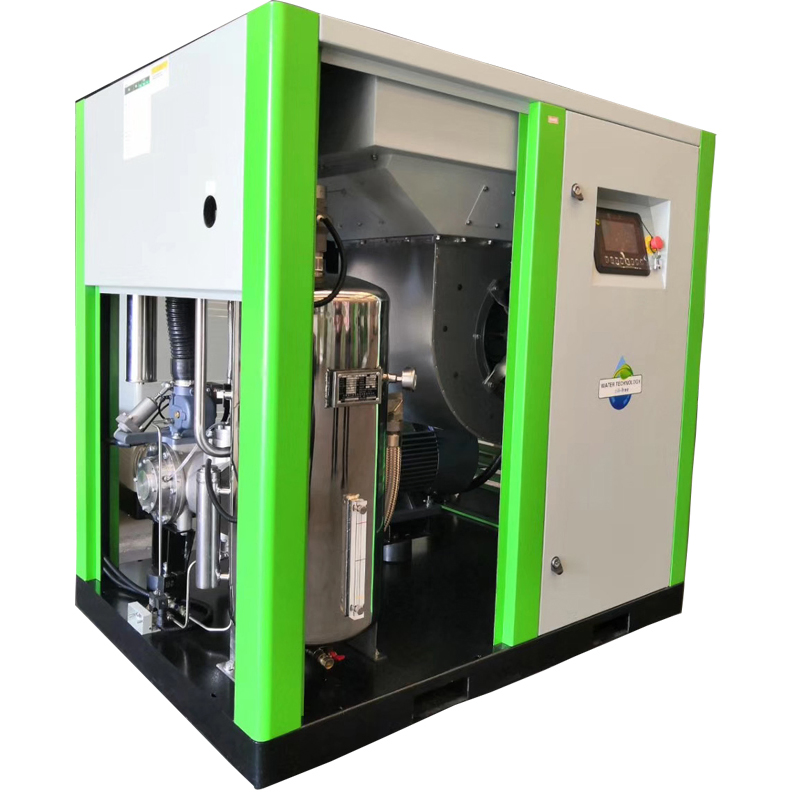

15-400 Kw Industrial Silent/Mute Medical Dry Oil Free Air Compressor Oilless Direct Drive Screw Air Compressor

1 / 5

15-400 Kw Industrial Silent/Mute Medical Dry Oil Free Air Compressor Oilless Direct Drive Screw Air Compressor

Customization:	Available
Lubrication Style:	Oil-free
Cooling System:	Water Cooling

Send Inquiry

Product Description

⚙️ Basic Information

Model NO.

SGM75

Power Source

AC Power

Cylinder Position

Vertical

Structure Type

Closed Type

Installation Type

Stationary Type

Type

Single Screw Compressor

Driven Method

Direct Driven

Working Pressure

8-12.5bar

Capacity

8.8/8.3/7.8m3/Min

Motor

IP23/IP54

Advantages

Energy Saving

Color

Customized Color

Transport Package

Standard Export Wooden Packaging

Specification

2500*1400*1500

HS Code

8414804100

Production Capacity

300 Sets/Per Month

📦 Packaging & Delivery

Package Size

130.00cm * 95.00cm * 220.00cm

Package Gross Weight

380.000kg

📄 Product Description

Model	Pressure		Capacity		Motor	Noise dB(A)	Dimension (LWH mm)	Weight (KGS)
Model	Psi	Bar	Cfm	m3/min	kw/hp	Noise dB(A)	Dimension (LWH mm)	Weight (KGS)
SGM08	116/145	8/10	40.65/36.01	1.15/1.02	7.5/10	58	15507751445	630
SGM11	116/145/174	8/10/12	54.73/46.61/36.02	1.55/1.32/1.02	11/15	58	10807501020	280
SGM15	116/145/174	8/10/12	84.74/74.86/56.85	2.40/2.12/1.61	15/20	63	10807501020	300
SGM18	116/145/174	8/10/12	109.46/92.51/75.21	3.10/2.62/2.13	18.5/25	65	13808501185	430
SGM22	116/145/174	8/10/12	123.59/110.52/92.16	3.50/3.13/2.61	22/30	65	13808501185	450
SGM30	116/145/174	8/10/12	176.55/148.30/112.29	5.00/4.20/3.18	30/40	66	13808501185	500
SGM37	116/145/174	8/10/12	215.39/184.32/169.84	6.10/5.22/4.81	37/50	67	150010001345	650
SGM45	116/145/174	8/10/12	257.76/216.45/199.50	7.30/6.13/5.65	45/60	68	150010001345	680
SGM55	116/145/174	8/10/12	338.98/303.67/262.00	9.60/8.60/7.42	55/75	70	180012501670	1150
SGM75	116/145/174	8/10/12	441.38/403.24/347.10	12.50/11.42/9.83	75/100	73	180012501670	1200

Motor Protection Class: IP23/IP54/IP55 or as per your required
Voltage Options: 380V/50Hz/3ph, 380V/60Hz/3ph, 220V/50Hz/3ph, 220V/60Hz/3ph, 440V/50Hz/3ph, 440V/60Hz/3ph, or as per your requests.

❓ Frequently Asked Questions

What is the rotor speed for the air end?

The rotor speed is 2980rmp.

What is your lead time?

Usually 5-7 days. For OEM orders, it is approximately 15 days.

Can you offer water cooled air compressors?

Yes, we can provide water cooled types, though air cooled is our standard configuration.

What are your payment terms?

We accept T/T, L/C, Western Union, and can process payments in USD, RMB, and other major currencies.

Do you accept customized voltage?

Yes, we support various voltages including 380V, 220V, 440V at 50Hz or 60Hz (3ph), or according to your specific requirements.

What is the warranty for your air compressors?

We offer a one-year warranty for the entire air compressor (excluding consumable spare parts) and provide technical support as needed.
