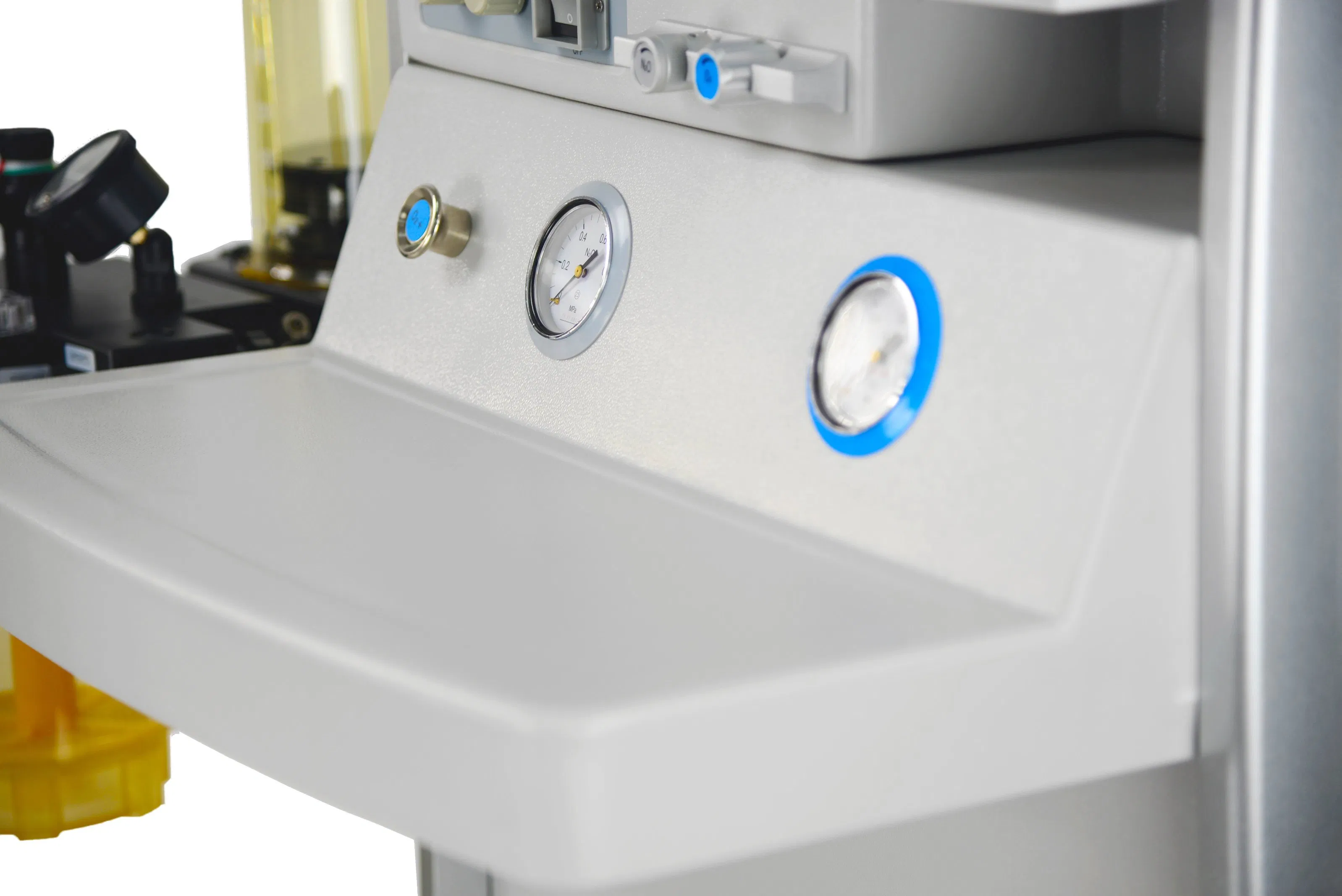

Factory Supply ICU Medical Surgical Analgesia Equipment Movable Anesthesia Machine
Factory Supply ICU Medical Surgical Analgesia Equipment Movable Anesthesia Machine
Factory Supply ICU Medical Surgical Analgesia Equipment Movable Anesthesia Machine
Factory Supply ICU Medical Surgical Analgesia Equipment Movable Anesthesia Machine
Factory Supply ICU Medical Surgical Analgesia Equipment Movable Anesthesia Machine
1 / 5
Factory Supply ICU Medical Surgical Analgesia Equipment Movable Anesthesia Machine
Factory Supply ICU Medical Surgical Analgesia Equipment Movable Anesthesia Machine
Factory Supply ICU Medical Surgical Analgesia Equipment Movable Anesthesia Machine
Factory Supply ICU Medical Surgical Analgesia Equipment Movable Anesthesia Machine
Factory Supply ICU Medical Surgical Analgesia Equipment Movable Anesthesia Machine

Factory Supply ICU Medical Surgical Analgesia Equipment Movable Anesthesia Machine

Customization: Available
Type: Anaesthesia Machine
Kind: Surgery
Send Inquiry

Product Description

Basic Information

Model NO.
JINLING 01B
Certification
CE, ISO13485
Group
Adult
LCD Display
With LCD Display
Ventilation Mode
A/C, IPPV, SIPPV, Manual, IMV, SIMV
Tidal Volume
50-1500ml
(I:E) Ratio
4:1~1:10
Respiratory Rate
1~99 Bpm
Display
5.4 Inch TFT Display
Trademark
JINLING
Origin
China
HS Code
9018907010

Product Overview

ICU Medical Surgical Analgesia Equipment Movable Anesthesia Machine

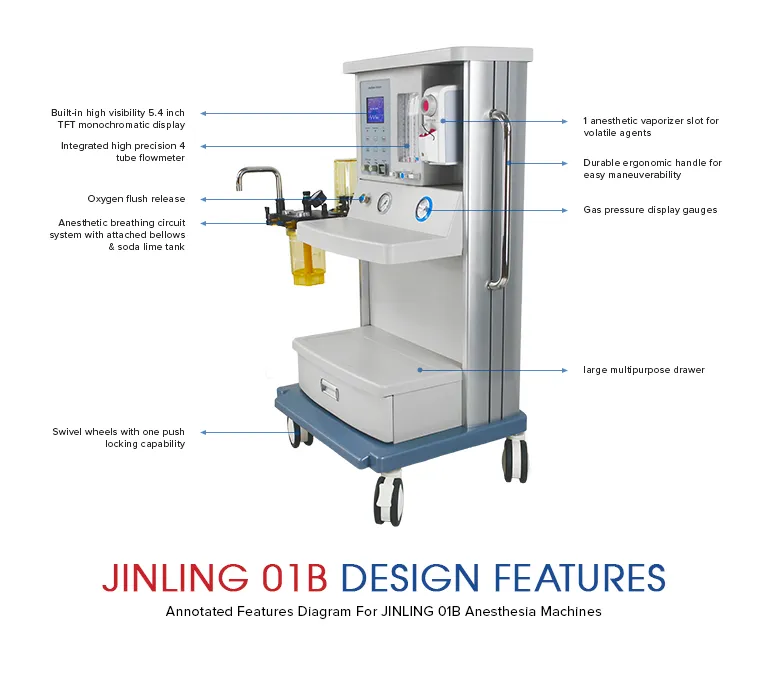

Anesthesia Machine View 1

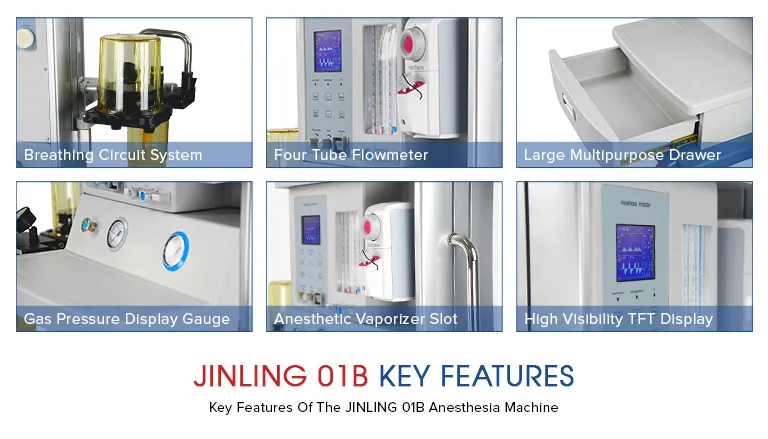

Anesthesia Machine View 2

Key Features

  • Operating Modes: Pneumatically driven & electronically controlled, closed, semi-closed and semi-open.

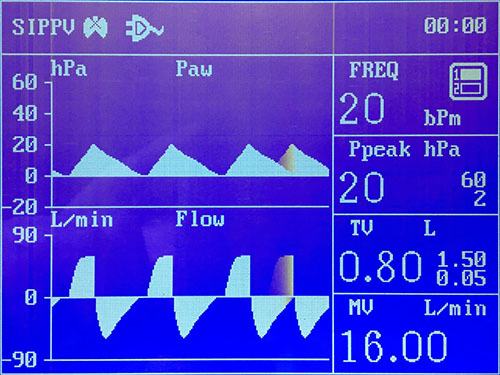

  • Anesthesia Ventilator: Built-in 5.4 inch TFT display, displaying Pressure-Time and Frequency-Time waveforms.
  • Integrated metallic modular respiratory circuit: High temperature disinfection compatible, gas-tight and easy to clean.
  • Equipped with electronic pressure differential flow sensor and imported respiratory control valve.
  • Vaporizer: Supports Enflurane, Isoflurane, and Sevoflurane with self-compensating functionality.
  • High precision four-tube flowmeter with interlocking oxygen-nitrous oxide supply (min 21% O2).
  • Nonhazardous environmentally friendly frame with automated self-checking and self-calibrating sensors.
  • Power Failure Support: Automatic backup power mode during AC outages.
  • Advanced Alarms: Audible/visual alerts for tidal volume, airway pressure, asphyxia, and power/oxygen failure.
  • Advanced rotating Na-lime tank using imported PPSU material (temperature resistant to 134°C).

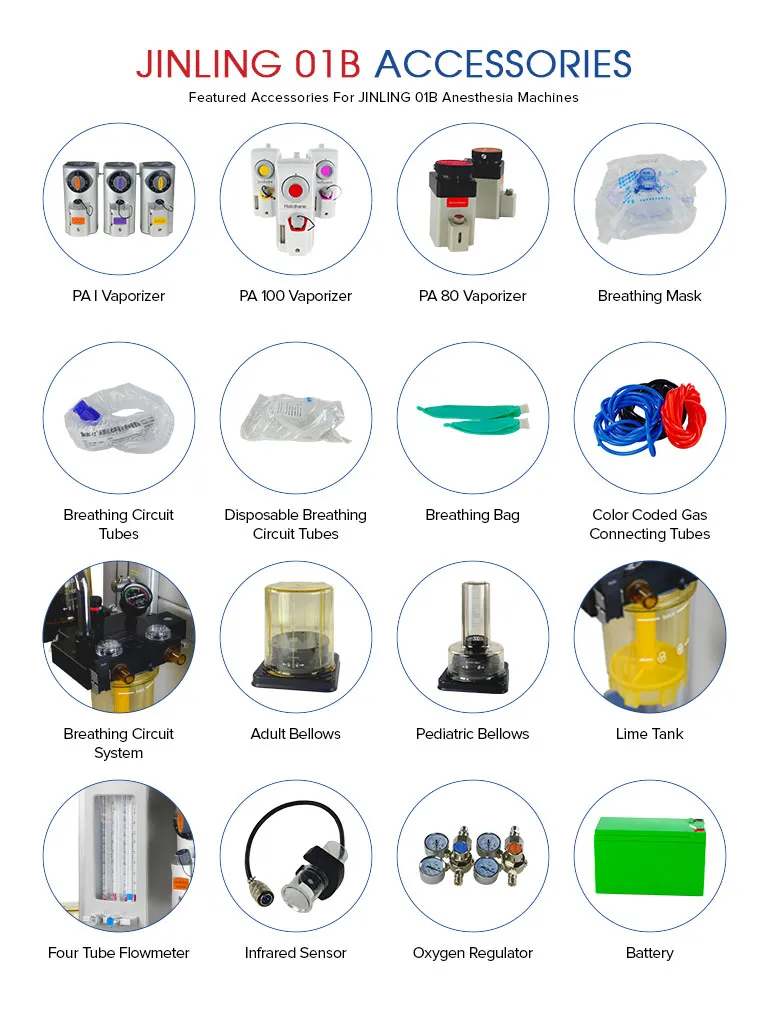

Anesthesia Machine Detail

Technical Specifications

Parameter Details
ModelJINLING-01B Advanced Model
Display5.4 inch TFT display
Flowmeter RangeO2: 0.1-10L/min; N2O: 0.1-10L/min
Ventilation ModeIPPV, SIPPV, IMV, SIMV, MANUAL
Back-up PowerAt least 4 hours
Tidal VolumeAdjustable: 50-1500ml; Display: 0-2000ml
Respiratory Rate1-99bpm
I:E Ratio4:1-1:10 (Inverse ratio supported)
Oxygen Flush25~75L/min
Vaporizer SlotsDouble PA-I type slots
Anesthesia Machine Component 1
Anesthesia Machine Component 2

Frequently Asked Questions

What ventilation modes does the JINLING 01B support?
The machine supports multiple modes including IPPV, SIPPV, IMV, SIMV, and Manual ventilation to accommodate various clinical needs.
Is the respiratory circuit easy to disinfect?
Yes, it features a standard integrated metallic modular respiratory circuit that is completely sealed and resistant to high-temperature disinfection.
How long does the backup battery last?
The built-in backup power supply ensures the machine can continue operating for at least 4 hours during an AC power failure.
What is the range for tidal volume adjustment?
The tidal volume is adjustable from 50ml to 1500ml, making it suitable for a wide range of adult patients.
Does it have safety features for oxygen supply?
Yes, it is fitted with an interlocking oxygen-nitrous oxide supply system that guarantees oxygen output is never lower than 21%.
What type of display is used for monitoring?
The machine is equipped with a 5.4-inch TFT display that shows real-time Pressure-Time and Frequency-Time waveforms.
