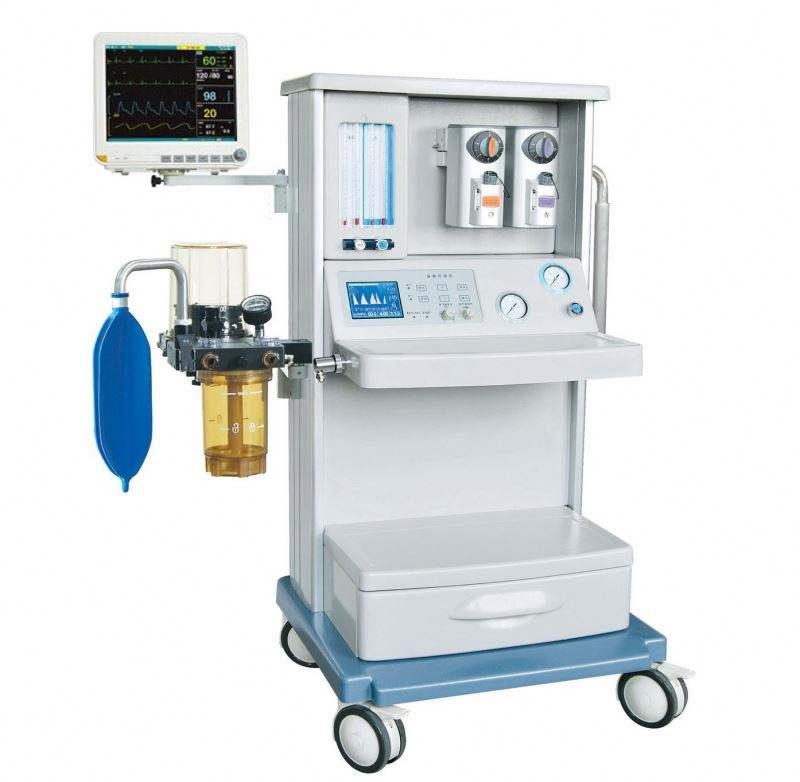

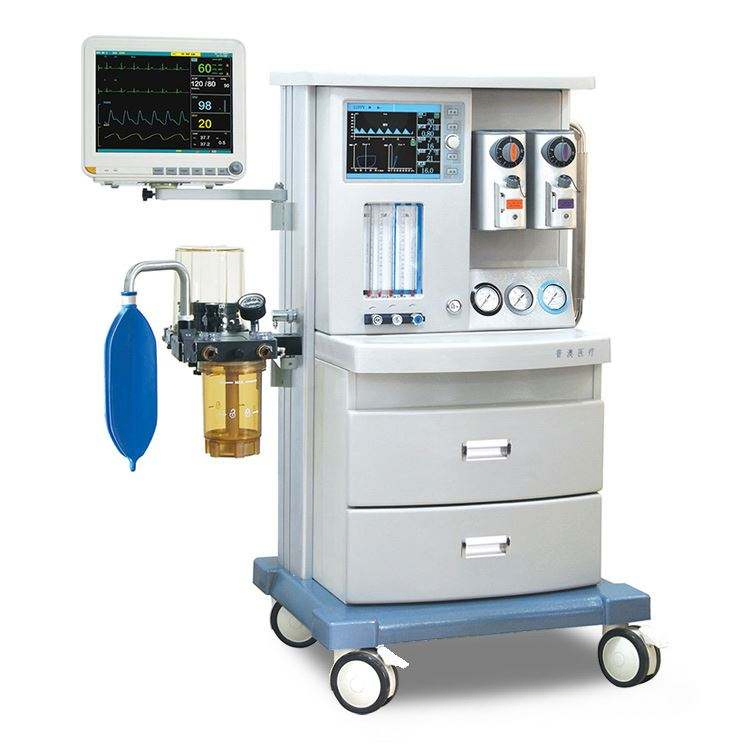

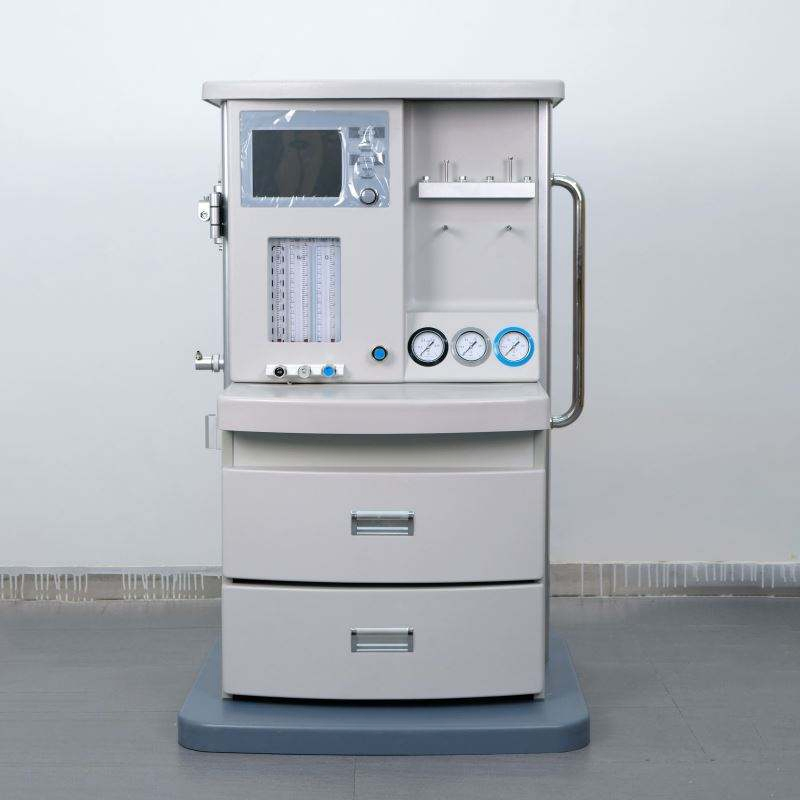

High Quality Hospital ICU Equipment Medical Anesthesiology ICU Anesthesia Machine

Customization:	Available
Warranty:	1 Year
Respiratory Rate:	1~99bpm

📊 Basic Information

Model NO.

AM-850

Power Source

Electric

Peep

0 ~ 20 Hpa

Screen

10.4 '' LCD Display Screen

Quality Certification

CE

Material

Metal, Plastic, Steel

Tidal Volume

0 ~ 1500 Ml

Scope of Application

Adult, Child

After-Sale Service

Online Technical Support

Model Name

Anaesthesia Instruments

Inspiratory Plateau

0~1s

Instrument Classification

Class II

Oxygen Flush

25~75 L/Min

Transport Package

Carton

Specification

CE, ISO

📝 Product Description

Common Features

Operating Modes: Pneumatically driven & electronically controlled, closed, semi-closed and semi-open.

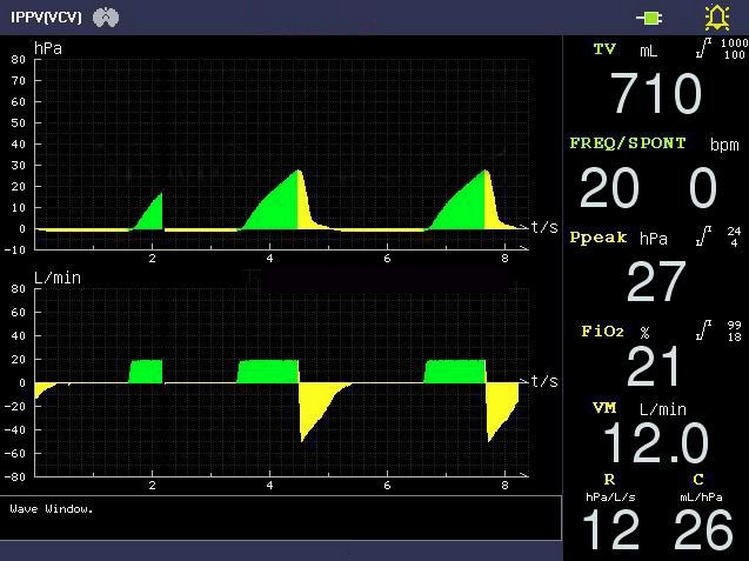

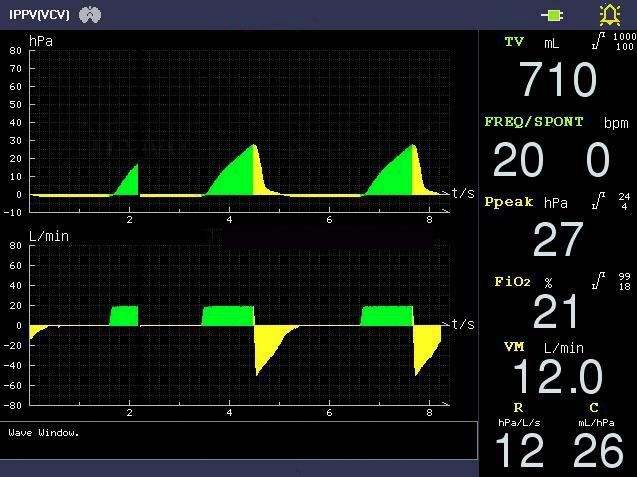

Anesthesia Ventilator: Built-in 8.4 inch color TFT display, able to display Pressure-Time, Frequency-Time, Pressure-Volume and Frequency-Volume waveforms.
Standard integrated metallic modular respiratory circuit; completely solves the problem of gas sealing under high temperature disinfection.
Power Failure Support: Automatically converts to backup power mode during AC power outages.
Equipped with electronic pressure differential flow sensor and imported respiratory control valve for stable response.
High precision five tube flowmeter with interlocking oxygen-nitrous oxide supply to guarantee oxygen output ≥ 21%.

⚙️ Technical Specifications

Parameter	Specification Details
Screen	10.4 '' LCD Display Screen
Suitable For	Adult & Child
Mode	Pneumatically powered and electrically controlled system
Circuit	Breathing circuit integrated standards
Flowmeters	5 Tubes: O2 (0.1~10L/Min), N2O (0.1~10L/Min), Air (0.1~10L/Min)
Respiratory Rate	1~99 bpm
Oxygen Flush	25~75 L/min
PEEP	0 ~ 20 hPa
I/E Ratio	8:1 ~ 1:10 (Inverse ratio ventilation supported)
Tidal Volume	0 ~ 1500 ML
O2 Concentration	21%~100%
Power Requirement	~220-240V, 50/60Hz

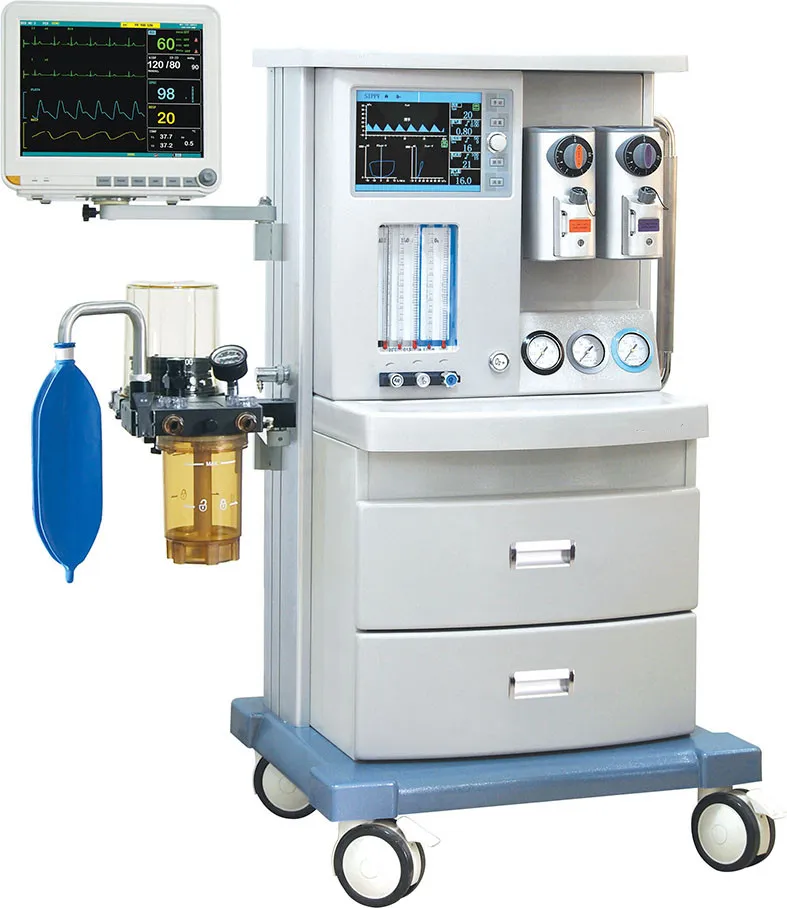

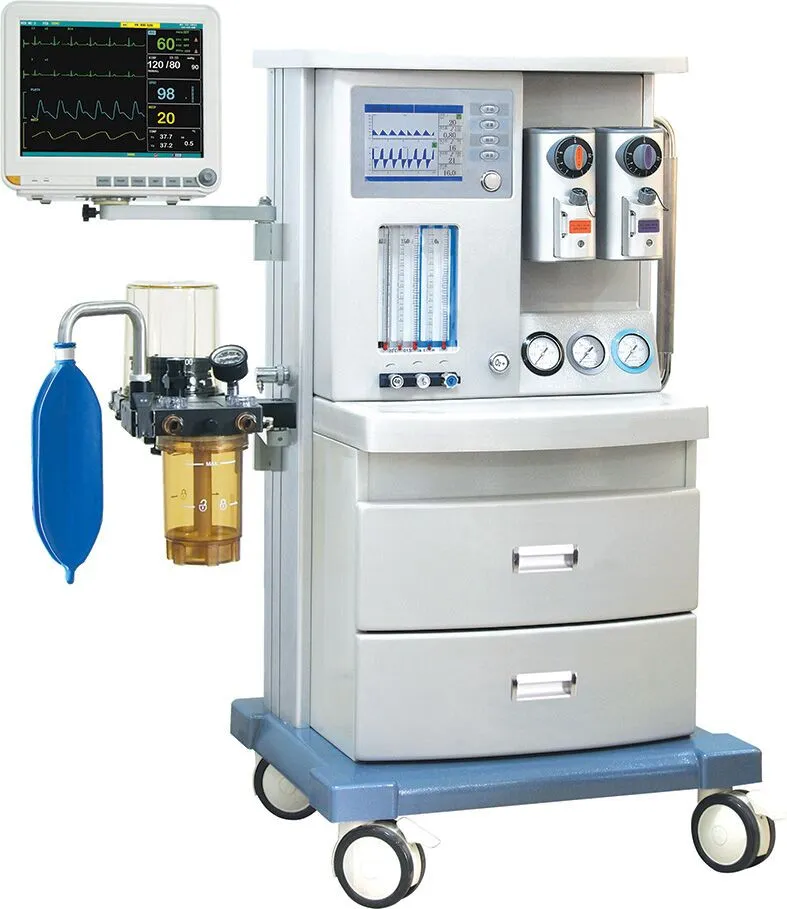

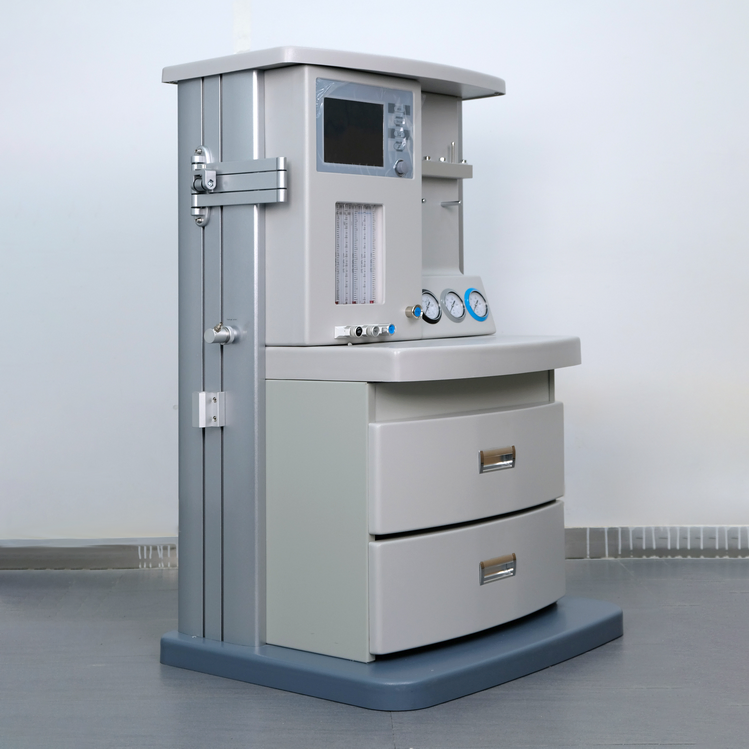

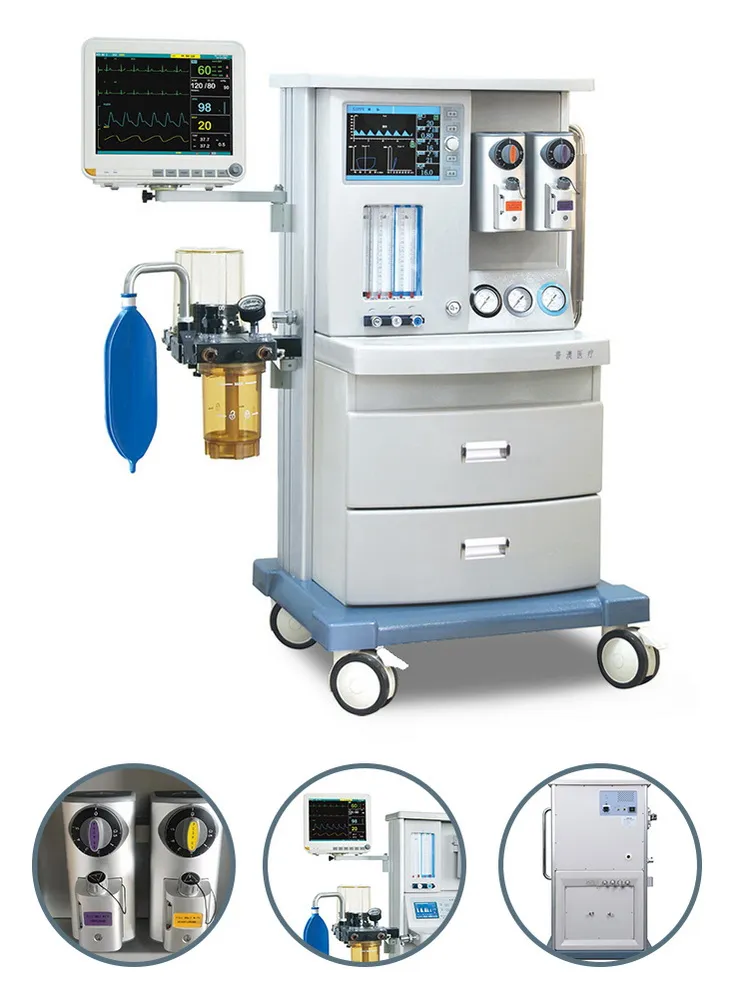

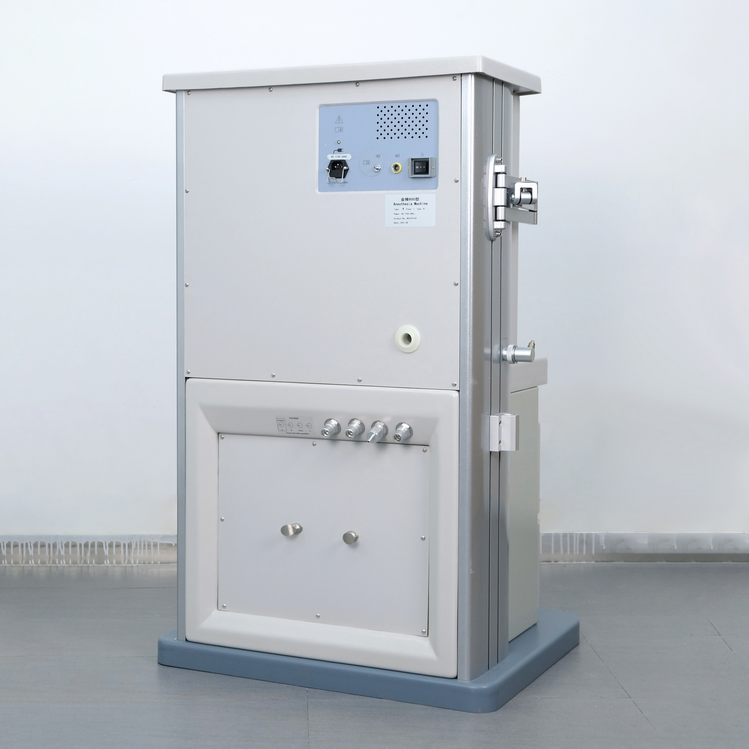

🖼️ Detail Images

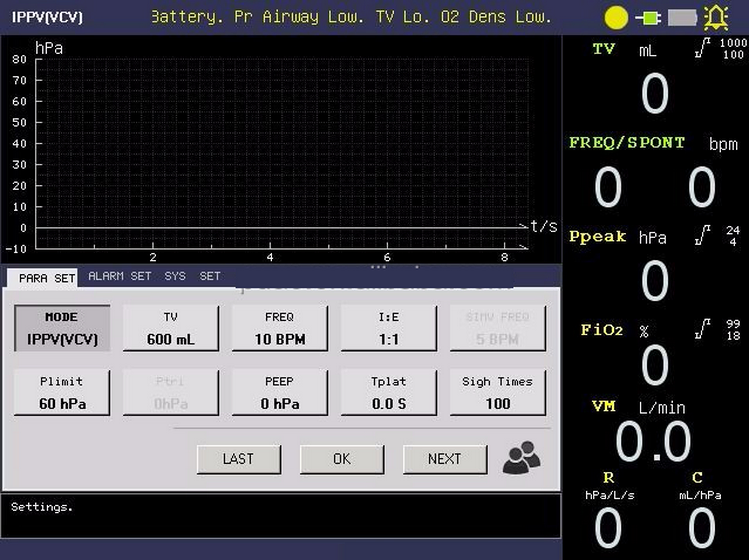

🏥 Application Scenarios

💎 Why Choose Our Equipment

❓ Frequently Asked Questions

Q1: What patient groups is the AM-850 anesthesia machine suitable for? A: The machine is designed for a wide range of applications, suitable for both adult and pediatric patients.

Q2: How does the machine handle power outages? A: It features an automatic conversion to backup power mode during AC power outages to ensure continuous patient safety.

Q3: What are the main display features of the ventilator? A: It includes a 10.4'' LCD screen capable of displaying real-time waveforms for Pressure-Time, Frequency-Time, and Pressure-Volume loops.

Q4: Is the respiratory circuit easy to maintain? A: Yes, it uses a standard integrated metallic modular respiratory circuit that is easy to clean and supports high-temperature disinfection.

Q5: What is the tidal volume range of this equipment? A: The tidal volume range is adjustable from 0 to 1500 ml, providing flexibility for different clinical needs.

Q6: Does the machine include safety alarms for oxygen levels? A: Yes, it includes audible and visual alarms for oxygen concentration and pressure, ensuring the oxygen output is never lower than 21%.
