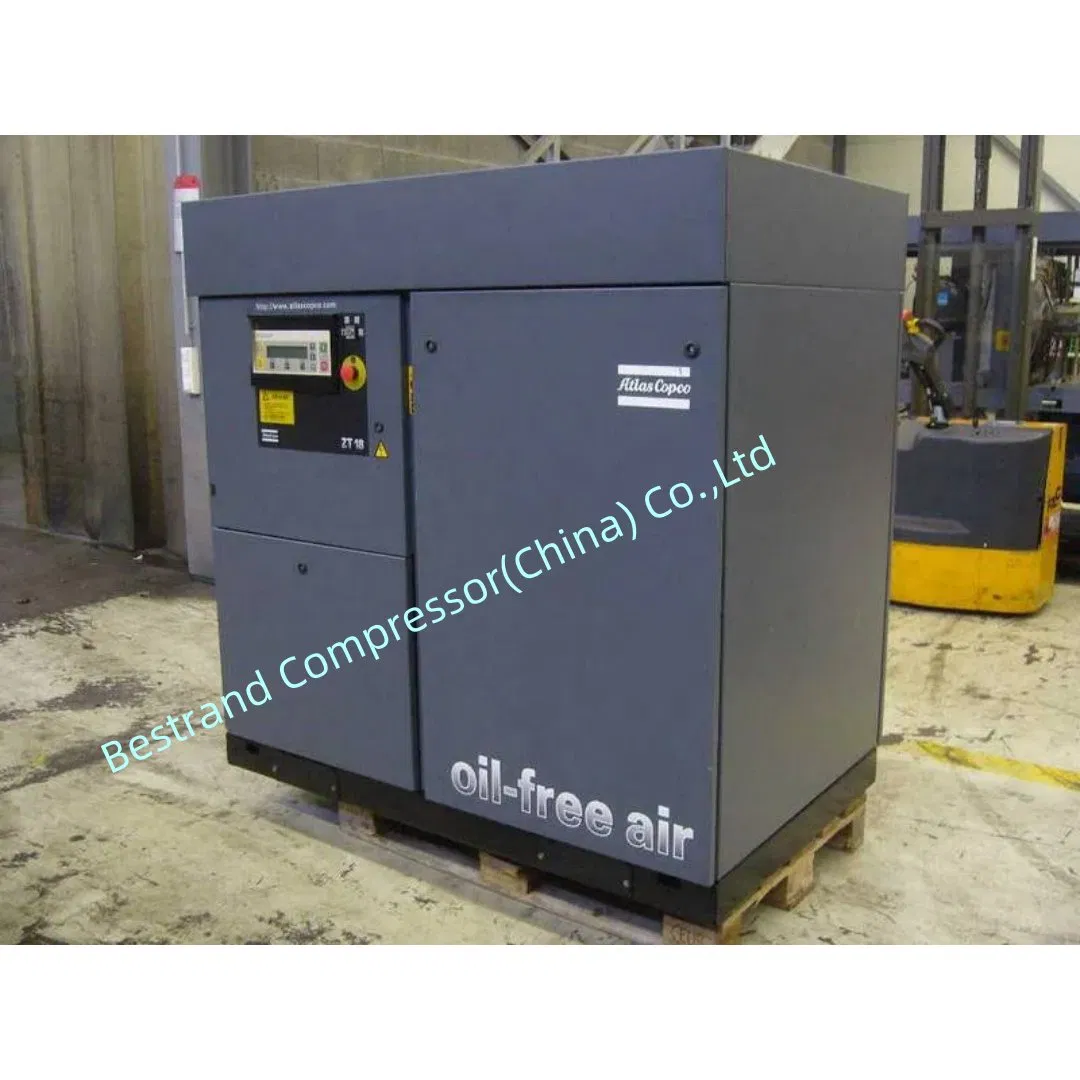

High-Performance Atlas Copco Zt18 Oil-Free Air Compressor for Medical Use
High-Performance Atlas Copco Zt18 Oil-Free Air Compressor for Medical Use
High-Performance Atlas Copco Zt18 Oil-Free Air Compressor for Medical Use
High-Performance Atlas Copco Zt18 Oil-Free Air Compressor for Medical Use
High-Performance Atlas Copco Zt18 Oil-Free Air Compressor for Medical Use
1 / 5
High-Performance Atlas Copco Zt18 Oil-Free Air Compressor for Medical Use
High-Performance Atlas Copco Zt18 Oil-Free Air Compressor for Medical Use
High-Performance Atlas Copco Zt18 Oil-Free Air Compressor for Medical Use
High-Performance Atlas Copco Zt18 Oil-Free Air Compressor for Medical Use
High-Performance Atlas Copco Zt18 Oil-Free Air Compressor for Medical Use

High-Performance Atlas Copco Zt18 Oil-Free Air Compressor for Medical Use

Customization: Available
After-sales Service: Video Technical Support
Warranty: 2 Years
Send Inquiry

Product Description

📋 Basic Information
Model NO.
ZT 18
Cooling System
Air Cooling
Power Source
AC
Installation Type
Stationary Type
Type
Screw
Weight (Kg)
995
Air Capacity
3-2.3m3/Min
Pressure
7.5-10bar
⚙️ Product Description
Air Compressor
Oil-Free Air Compressor
Item Technical Value
Applicable IndustriesHotels, Manufacturing Plant, Food & Beverage Factory, Construction works, Energy & Mining
After Warranty ServiceVideo technical support, Online support, Spare parts, Field maintenance
ConditionNew
ConfigurationStationary
Warranty2 Years
CoolingAir Cooling
📊 Product Parameters
Technical data ZT 18
Normal effective working pressure bar(e) 7.5 8.6 10
psi 109 123 145
Actual free air delivery* l/sec 50.5 47.7 38.4
cfm 107 101.1 81.4
m3/min 3 2.9 2.3
Power kW 18.5KW / 25HP
Dimensions (L x W x H) mm 1760 X 1026 X 1621
Noise Level dB(A) 67

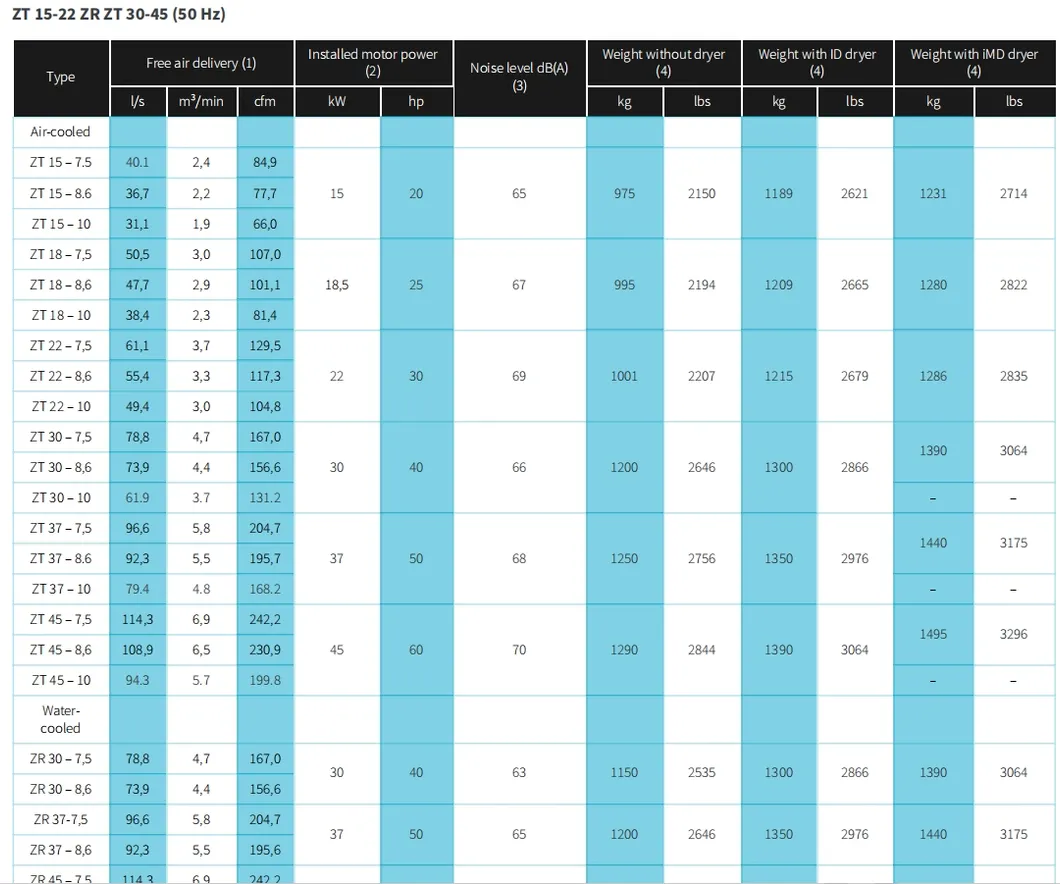

Parameters chart
💡 Product Feature & Flow Chart

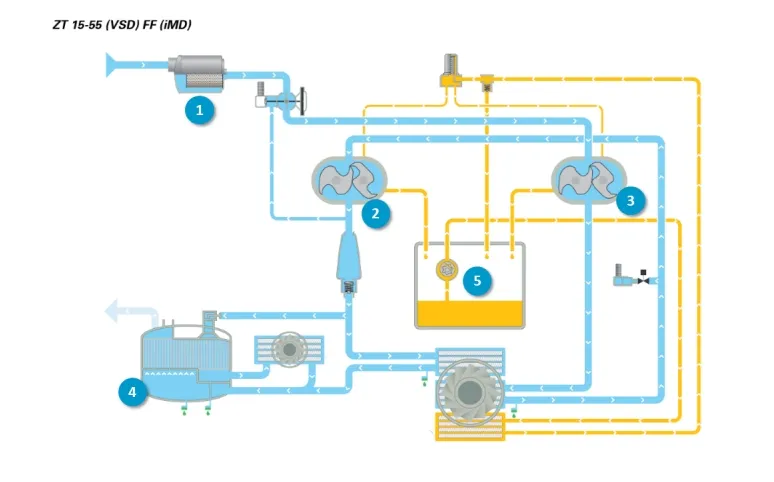

Flow Chart
1
Inlet & Filtration The air is drawn into the compressor through the inlet filter where the air is cleaned. It passes through the throttle valve with an integrated blow-off valve for load/unload regulation.
2
First Compression & Cooling Air pressure is raised to an intermediate level and then cooled in the intercooler. A moisture separation system removes water before entering the high-pressure stage.
3
Second Compression & Cooling The pressure is brought to its final level. Compressed air goes through a pulsation damper and an aftercooler for final cooling and moisture evacuation.
4
Integrated Dryer Cooled wet air is mixed with regeneration air and enters the dryer, ensuring a guaranteed dew point for dry compressed air.
5
Oil Flow A high-efficiency oil pump path ensures bearings and gears stay lubricated and cool without any oil coming into contact with the air.
🛠️ Inside the Robust Design

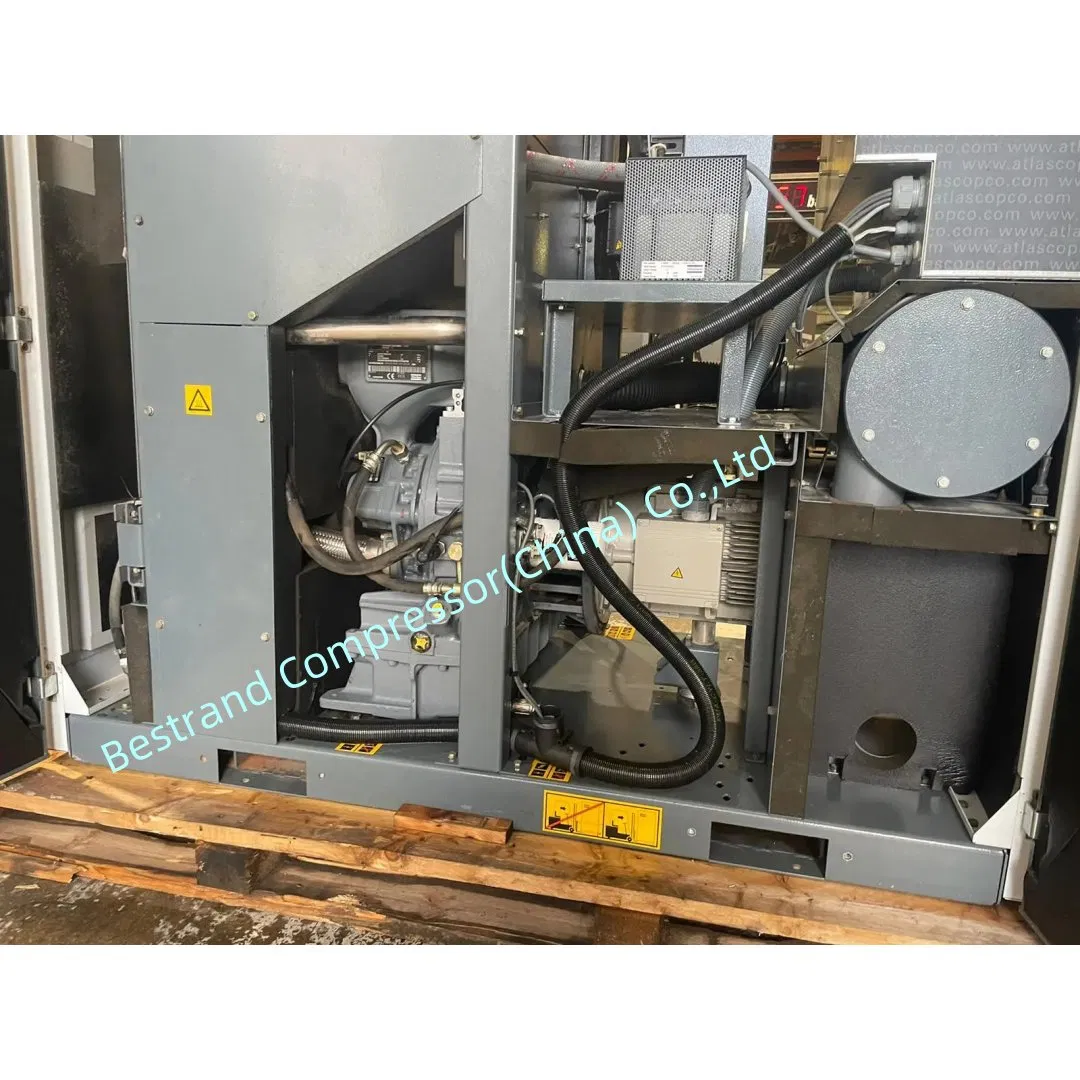

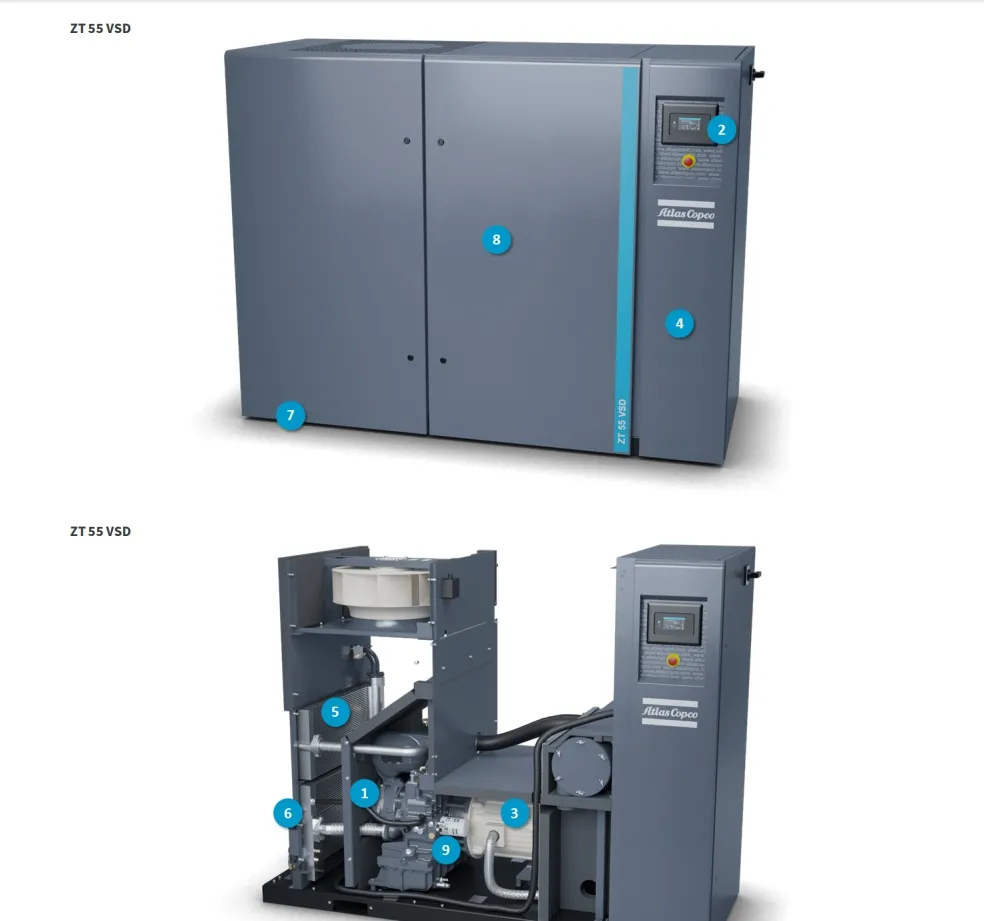

Internal view

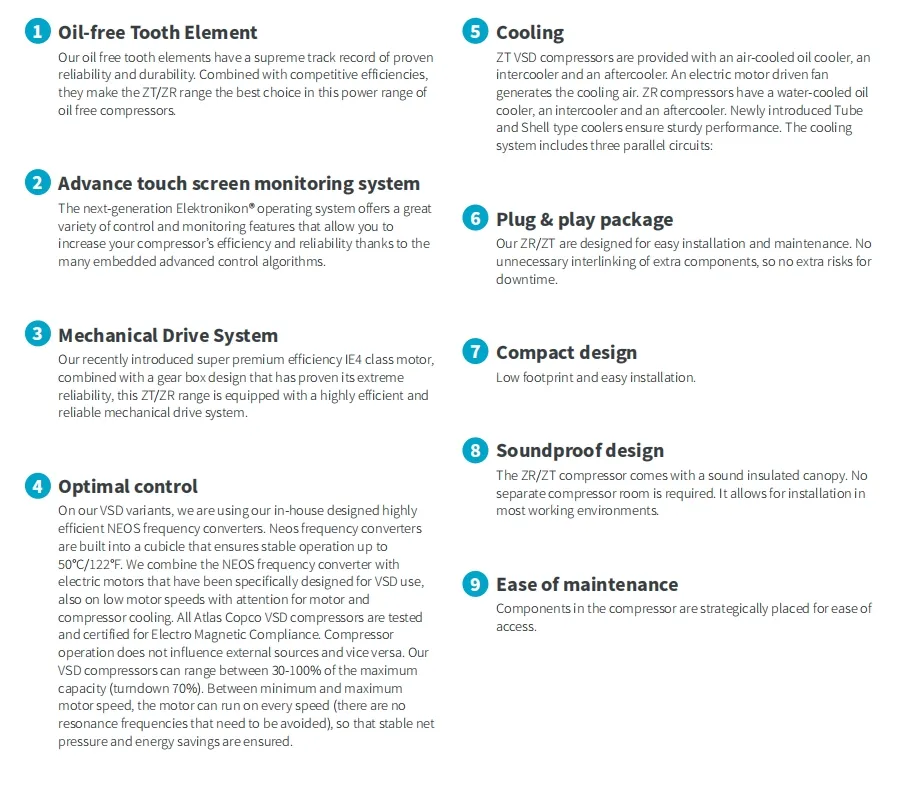

Components
Oil-free Tooth Element Proven reliability and durability for supreme performance in oil-free air delivery.
Advanced Touch Monitoring Next-generation operating system with advanced control algorithms for efficiency.
Mechanical Drive System Equipped with high-efficiency IE4 class motors and reliable gear box designs.

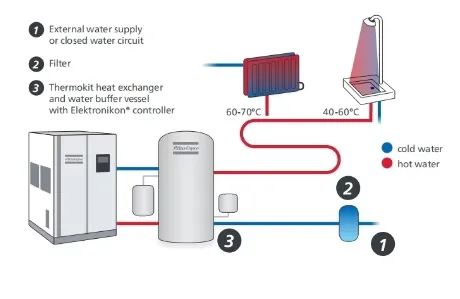

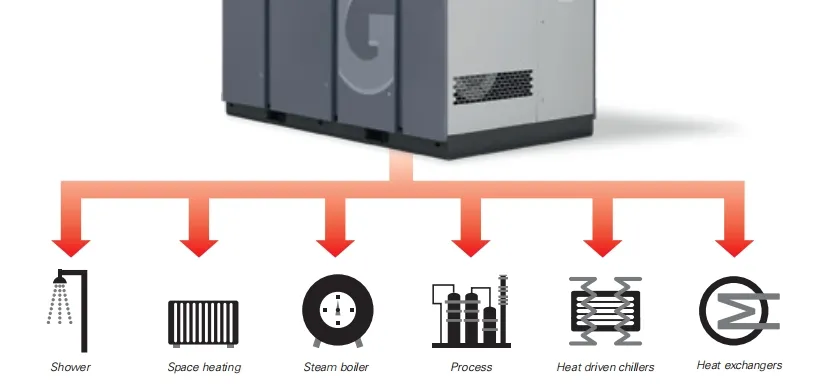

♻️ Heat Recovery & Smart Solutions

Recovering compressed heat can reduce costs on installation, maintenance, and energy by up to 75%. This system can eliminate the need for extra boilers by utilizing heat for industrial processes or sanitary facilities.

Heat recovery
Energy Saving
  • Central Controller for multiple compressor management.
  • Variable Speed Drive (VSD) for energy stability.
  • High-efficiency air receivers and dryers.
  • AIRNET distribution pipe system with 10-year guarantee.
🚀 Industry Applications
Electronics Clean, dry air (Class 0) for microscopic debris removal from computer chips.
Textiles Ready-to-use solutions with quick installation for high-capacity production.
Oil & Gas 100% oil-free air for control, instrument, or buffer air applications.
Automotive Integrated packages designed for long-lasting performance to eliminate downtime.

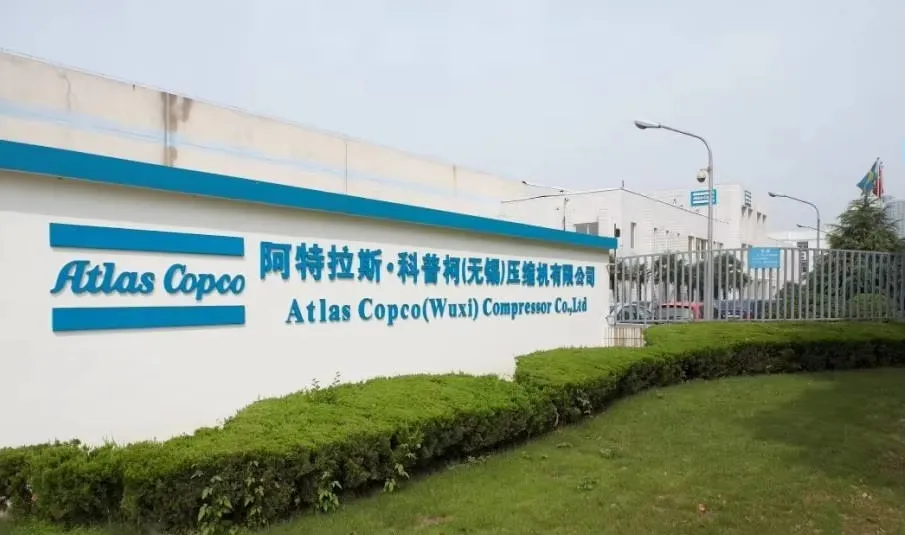

Factory Use

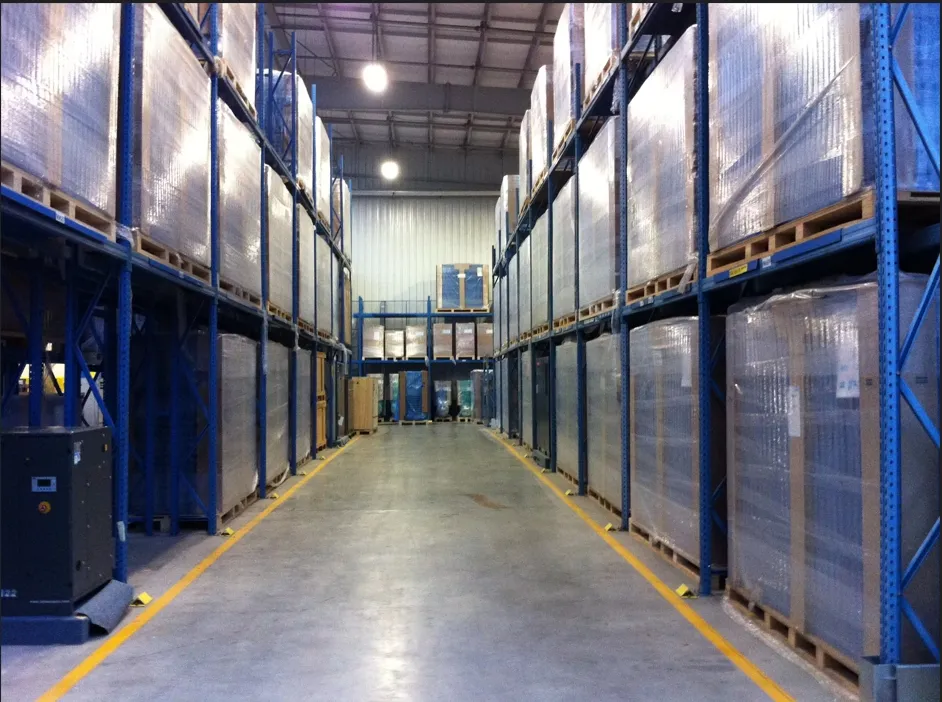

Industrial Application

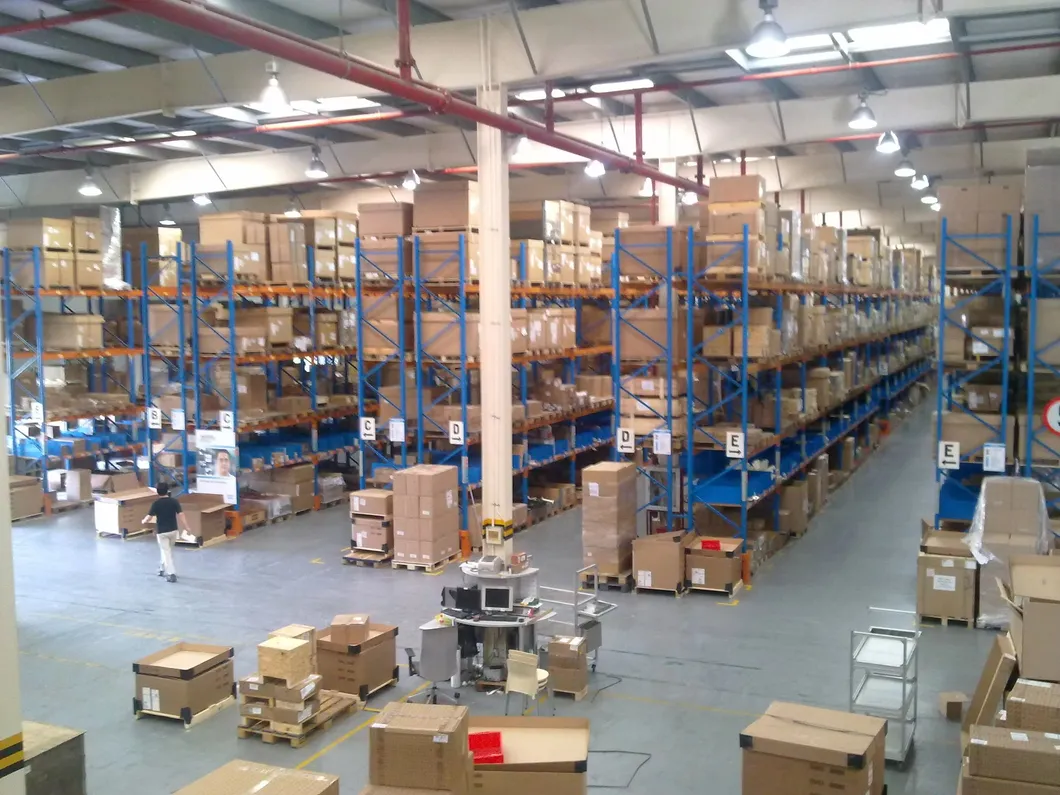

Compressed Air System
Frequently Asked Questions
What are the main advantages of this oil-free air compressor?
It provides 100% oil-free air (Class 0), ensuring no contamination in sensitive industries like food, medical, and electronics. It also features high energy efficiency and low noise levels.
How is the product quality guaranteed?
Every machine undergoes a final inspection before shipment. We provide a 2-year guarantee for the machine and a 5-year guarantee for major components like the motor and air end.
Can this compressor be used in extreme temperatures?
Yes, the system is designed to operate stably in environments up to 50°C (122°F), making it suitable for a wide range of global climates.
What included components can I purchase?
We offer a full range including air compressors, drilling rigs, air dryers, air filters, and high-quality replacement parts.
What are the accepted payment and delivery terms?
We accept various delivery terms including FOB, CFR, CPD, CIF, DDU, and DDP. Payments can be made via T/T, L/C, Western Union, or Paypal.
Is the installation complex for new facilities?
No, the design focuses on "Plug & Play" simplicity. The compact, soundproof design allows for installation in most working environments without a separate compressor room.
