Anesthesia Machine with CE

Customization:	Available
Type:	Anaesthesia Machine
Kind:	Surgical Operation

Send Inquiry

Product Description

Basic Specifications

Model NO.

MJ-560B1

Certification

CE, ISO13485

Group

Adult & Children

LCD Display

With LCD Display

Vaporizer

Automatic Compensation for Pressure, Temperature

Gas Choice

Halothane, Enflurane, Isoflurane, Sevoflurane

Main Body

High-Strength Engineering Plastic Rack

Gas Source

O2, N2O: 0.27~0.55MPa

Flow Meter

O2: 0.1~1.0L/Min, 1.1~10L/Min

Tidal Volume

50~1500ml

Respiratory Rate

4~80 Bpm

Package

Wooden Case

Product Description

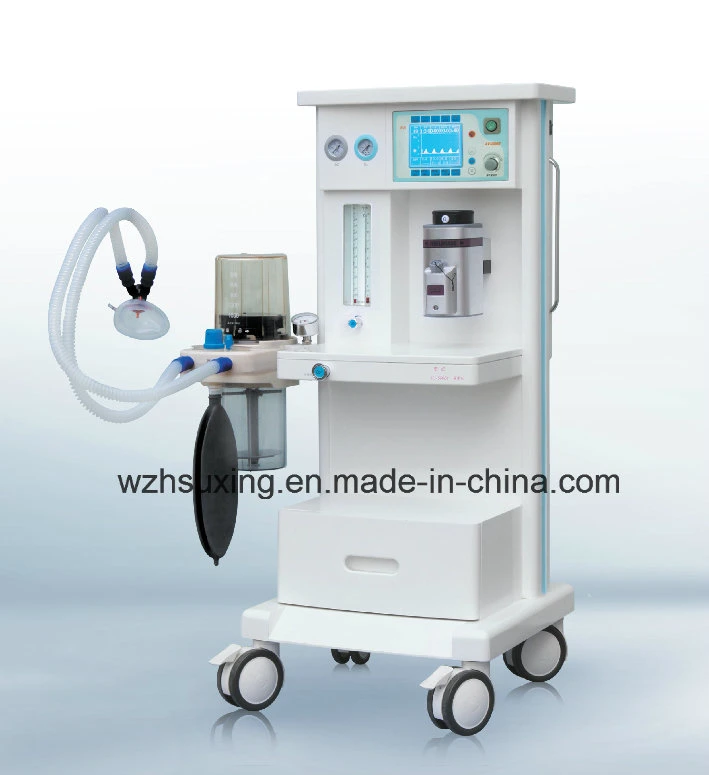

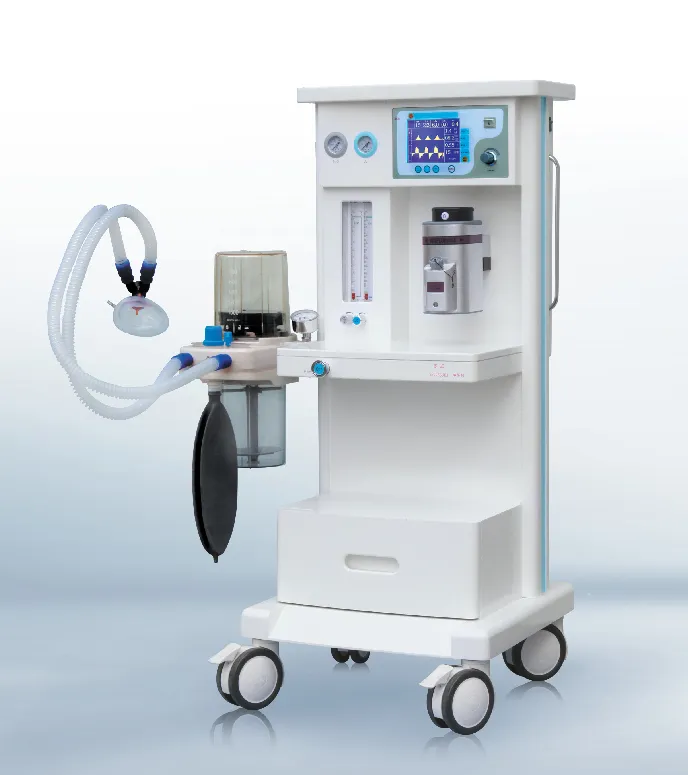

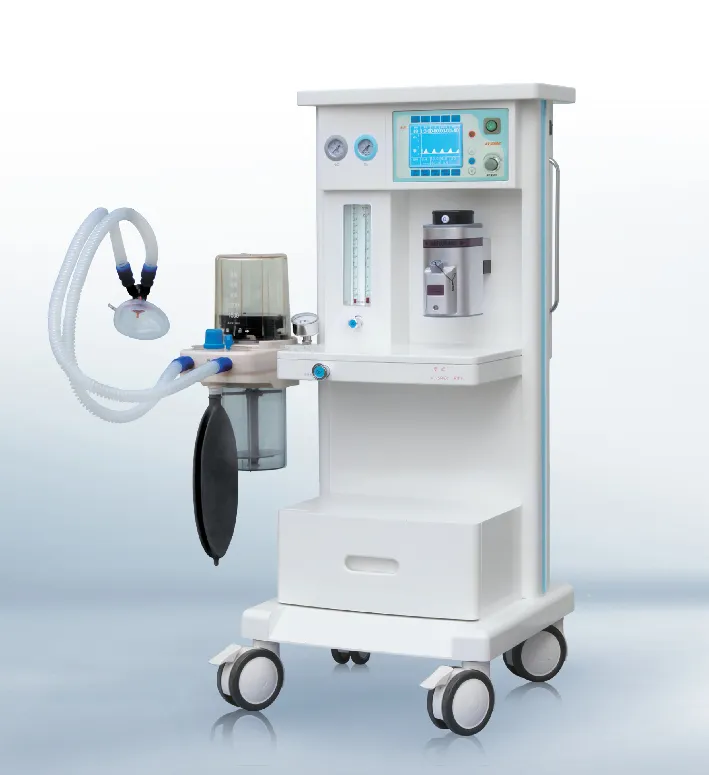

MJ-560B1 Anesthesia Machine (Simple Type)

High-precision Vaporizer designed with stable concentration output.
Automatic compensation for pressure, temperature, and flow rate.
Reliable pneumatic transmission system.
Economic and proper configuration of technologies.
Modularized design for easy upgrading as required.

Technical Parameters

Main Body	High-strength engineering plastic rack, light and corrosion resistant
Scope of Application	Adult, Child
Rapid Oxygen Supply	25~75L/min
Low Oxygen Alarm	Sound alarm when oxygen pressure < 0.2MPa
Respiratory Circuit	Working mode: all-close, semi-close, semi-open; Releasing pressure: 0.5~7 kPa
Respiratory Bellows	Bellows for adults and children; range: 0~1500 ml
Display Mode	High-definition 4.8" LCD screen display
Ventilation Mode	IPPV, MANUAL (Monitoring of tidal volume, ventilation volume, respiratory rate)
I:E Ratio	2:1 ~ 1:4
Pressure Range	1.0 ~ 6.0 kPa

Frequently Asked Questions

Q1: Which patient groups can use the MJ-560B1 anesthesia machine? A: The machine is designed for a wide scope of application, suitable for both adult and pediatric patients.

Q2: What types of anesthetic gases are compatible with the vaporizer? A: The high-precision vaporizer supports Halothane, Enflurane, Isoflurane, and Sevoflurane. One kind can be chosen based on specific requirements.

Q3: Does the machine have built-in safety alarms? A: Yes, it includes a low oxygen pressure alarm system that triggers a sound alert when the oxygen pressure drops below 0.2MPa.

Q4: What are the ventilation modes available? A: It supports IPPV (Intermittent Positive Pressure Ventilation) and MANUAL modes, with real-time monitoring of tidal and ventilation volumes.

Q5: What is the tidal volume range for this model? A: The MJ-560B1 offers a versatile tidal volume range from 50ml up to 1500ml, catering to different clinical needs.

Q6: How is the monitoring data displayed? A: Parameters such as respiratory rate, I/E ratio, and airway peak pressure are displayed on a high-definition 4.8-inch LCD screen.
