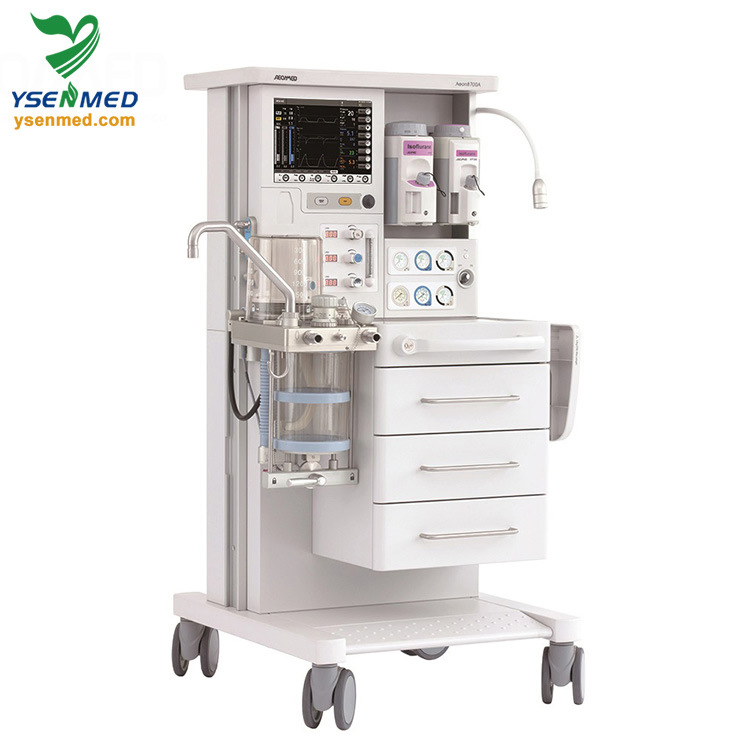

| Physical & Environment Specifications | |
| Dimensions (W×H×D) | 1403mm×704mm×750mm |
| Weight | 100kg |
| Electrical Mains | 100~240V AC, 50/60Hz |
| Battery | 24V DC, minimum 120 min |
| Pneumatic Specifications | |
| Gas Supply | Air, O2, N2O; 280kPa ~ 600kPa |
| O2 flush | 25~75L/min |
| Ventilator Specifications | |
| Patient Types | Adult, Pediatric |

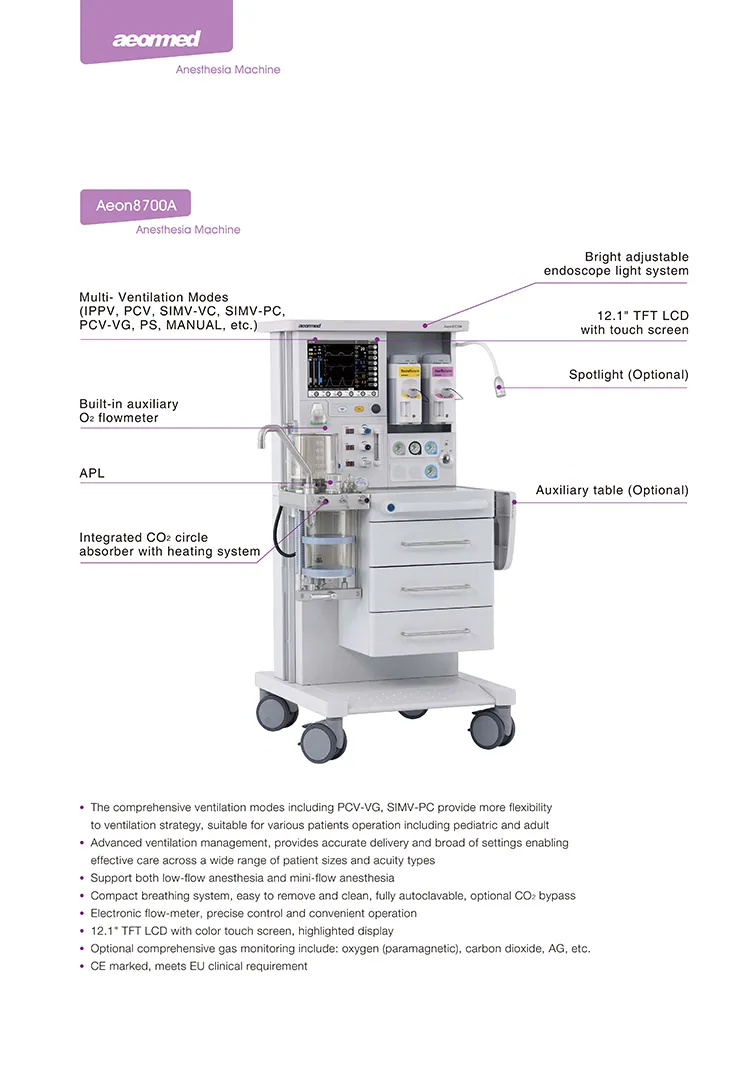

| Ventilation Modes | IPPV, PCV, SIMV+PS, PS and Manual |
| Tidal Volume | 20~1500ml |
| Ventilation Frequency | 4~100bpm |
| Display | 12.1 in; TFT color touch screen |
| Graph Display | Waveform of P-t, F-t, V-t, CO2-t (option), Paw-V Loop, V-Flow Loop |
