Basic Information
Lubrication Style
Oil-free
Cooling System
Air Cooling
Structure Type
Closed Type
Installation Type
Stationary Type
Type
Twin-Screw Compressor
Gas Displacement
0.7-67.5 M3/Min
Voltage
380V/220V/230V/400V/440V/415V
Air End
Double Screw (Germany Technology)
Certification
CE/ISO9001/ASME/SGS
Product Description

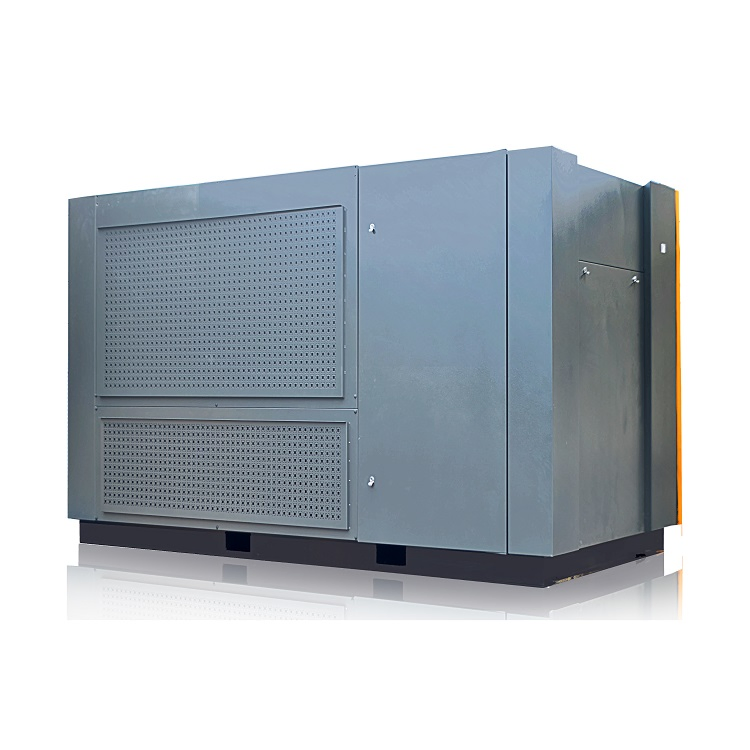

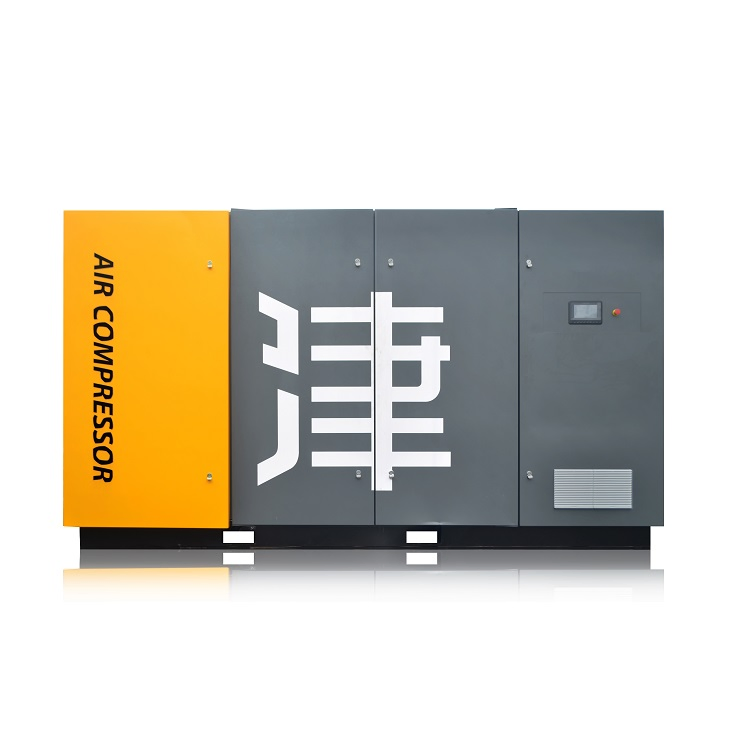

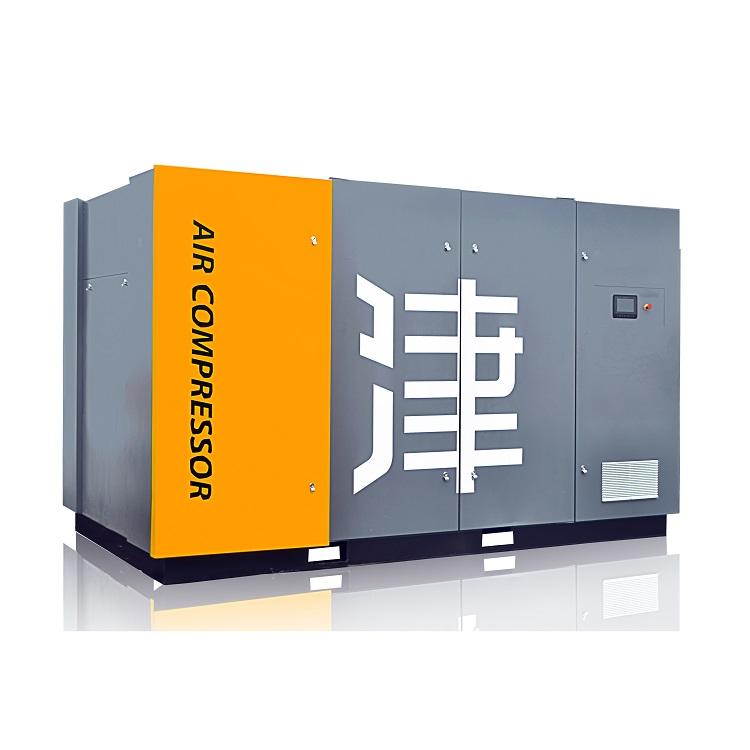

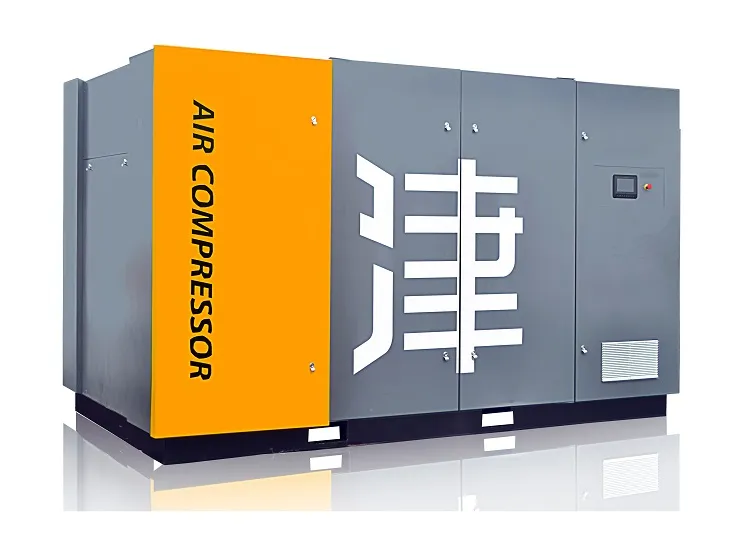

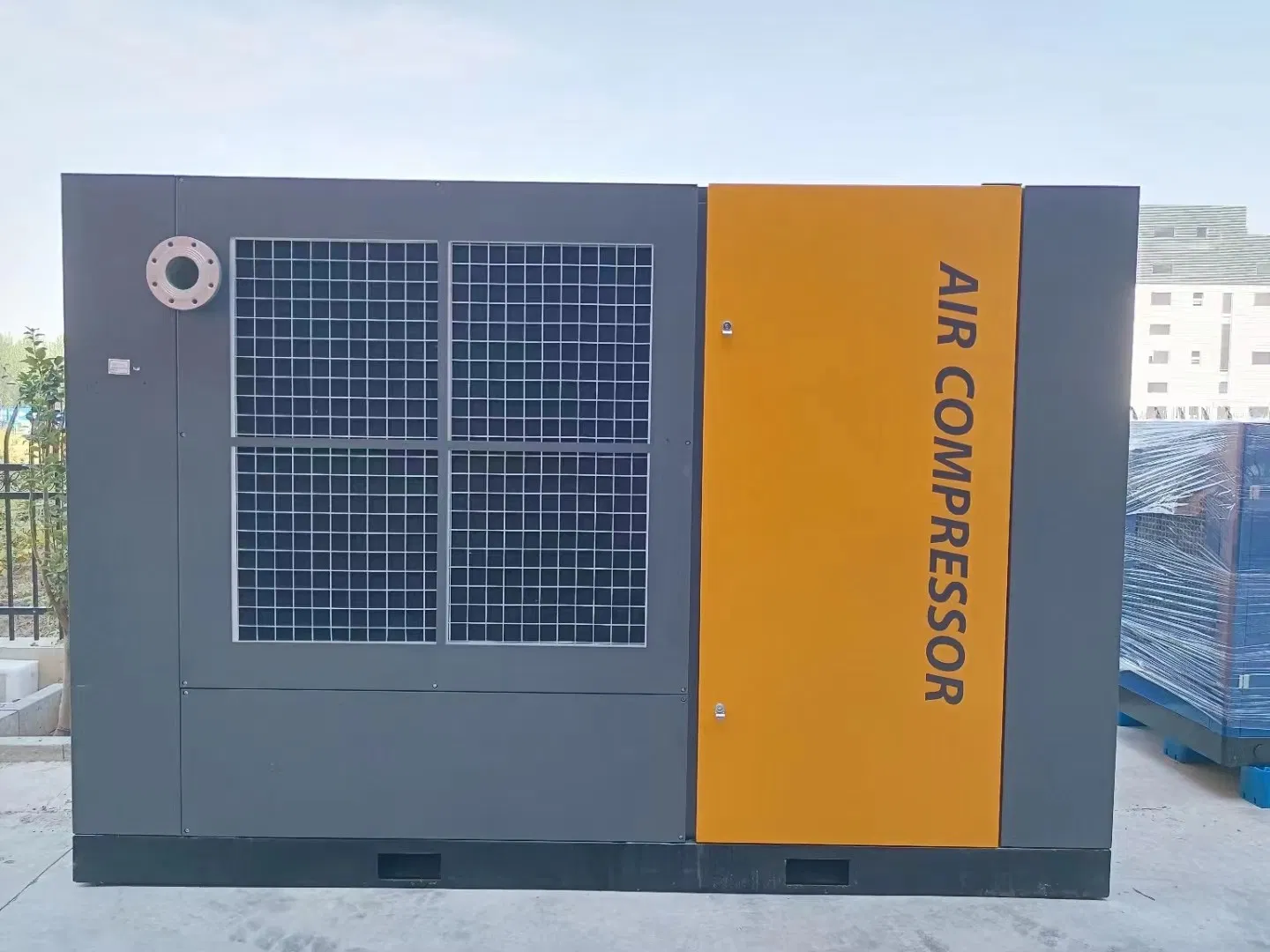

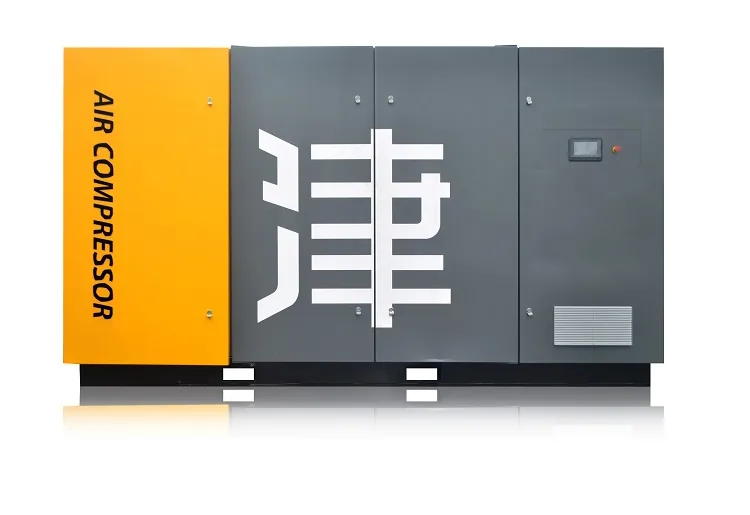

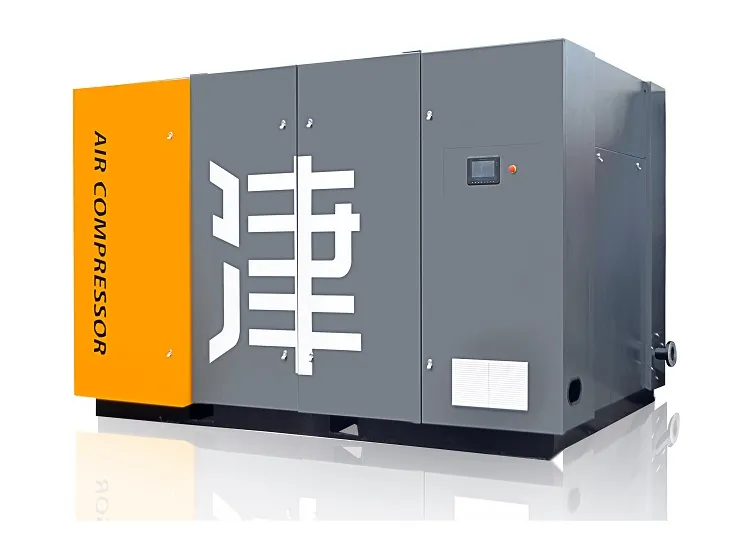

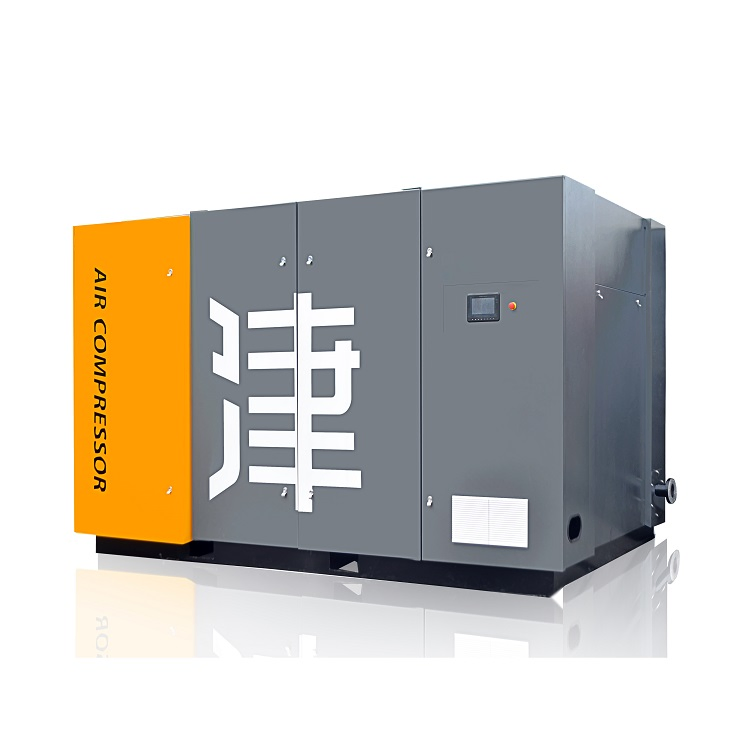

Two-stage compression permanent magnet VSD screw air compressor
Intelligent Touch-Screen
Direct-driven System
Air Cooling Method
7/8/10/13 bar Pressure
High Efficiency Air Filter
Stainless Steel Material
Advanced Piping Design
Key Advantages
Advanced Split Type Design
The air end and motor are connected by the coupling, ensuring trouble-free maintenance and high reliability.
High-Efficiency Air End
Double screw design with large rotors for increased compressed capacity and longer service life using imported SKF bearings.
Permanent Magnet Motor
Utilizes rare-earth permanent magnet materials, providing 10%-15% higher efficiency than standard induction motors. Features lower operating temperatures (<60K) for extended life.
Energy Saving Inverter Control
Soft starter technology avoids mechanical shock during startup, reducing maintenance needs and saving up to 30% energy.
Technical Specifications
| Model |
Pressure (mpa) |
Displacement (m³/min) |
Power (kw) |
Dimension (mm) |
Weight (kg) |
Outlet Size |
| 2PV-0.7/15 | 0.7 | 0.7-3.0 | 15 | 1450*780*1180 | 660 | G1-1/4" |
| 2PV-0.8/15 | 0.8 | 0.7-2.9 |
| 2PV-1.0/15 | 1.0 | 0.6-2.4 |
| 2PV-1.3/15 | 1.3 | 0.5-2.2 |
| 2PV-0.7/22 | 0.7 | 1.1-4.5 | 22 | 1500*956*1219 | 730 | G1-1/2" |
| 2PV-0.8/22 | 0.8 | 1.1-4.3 |
| 2PV-1.0/22 | 1.0 | 0.8-3.5 |
| 2PV-1.3/22 | 1.3 | 0.7-2.9 |
| 2PV-0.7/37 | 0.7 | 1.9-7.5 | 37 | 1800*1254*1560 | 1080 | G1-1/2" |
| 2PV-0.8/37 | 0.8 | 1.8-7.4 |
| 2PV-1.0/37 | 1.0 | 1.5-6.3 |
| 2PV-1.3/37 | 1.3 | 1.4-5.6 |
| 2PV-0.7/75 | 0.7 | 4.2-17.5 | 75 | 2250*1410*1640 | 2280 | DN65 |
| 2PV-0.8/75 | 0.8 | 3.8-16.5 |
| 2PV-1.0/75 | 1.0 | 3.4-13.6 |
| 2PV-1.3/75 | 1.3 | 2.9-11.2 |
| 2PV-0.7/110 | 0.7 | 6.1-24.5 | 110 | 2720*1800*1900 | 3360 | DN80 |
| 2PV-0.8/110 | 0.8 | 5.8-23.5 |
| 2PV-1.0/110 | 1.0 | 5.1-20.1 |
| 2PV-1.3/110 | 1.3 | 4.4-17.6 |
Our Product Range
- 1. Screw Air Compressors: Oil-free and Oil-injected models.
- 2. Reciprocating Piston Compressors: Standard, Oil-free, and High-pressure variants.
- 3. Portable & Mining Equipment: Diesel/Electric screw compressors, Rock drills, and Drilling rigs.
- 4. Accessories: Air dryers (Freeze/Adsorption), Filters, Tanks, and Lubrication oil.
Frequently Asked Questions
Do you test all your goods before delivery?
Yes, we perform 100% testing on all products before they are dispatched to ensure quality and performance.
How can we start an order with your factory?
First, send us an inquiry specifying the items you are interested in. Our team will contact you within 24 hours to discuss detailed requirements and provide a tailored solution.
What is your Minimum Order Quantity (MOQ)?
The MOQ varies by product, but for most industrial air compressor models, the MOQ is 1 set.
What are your terms of payment?
Our standard terms are T/T 30% as a deposit and the remaining 70% before delivery. We provide photos of the products and packaging before final payment.
How about your delivery time?
Generally, it takes approximately 90 days after receiving your advance payment. The specific timeframe depends on the order quantity and specific item requirements.
Are you a trade company or a real factory?
We are a 100% professional manufacturing factory located in China, specializing in high-tech air compressor solutions.
