Product Overview

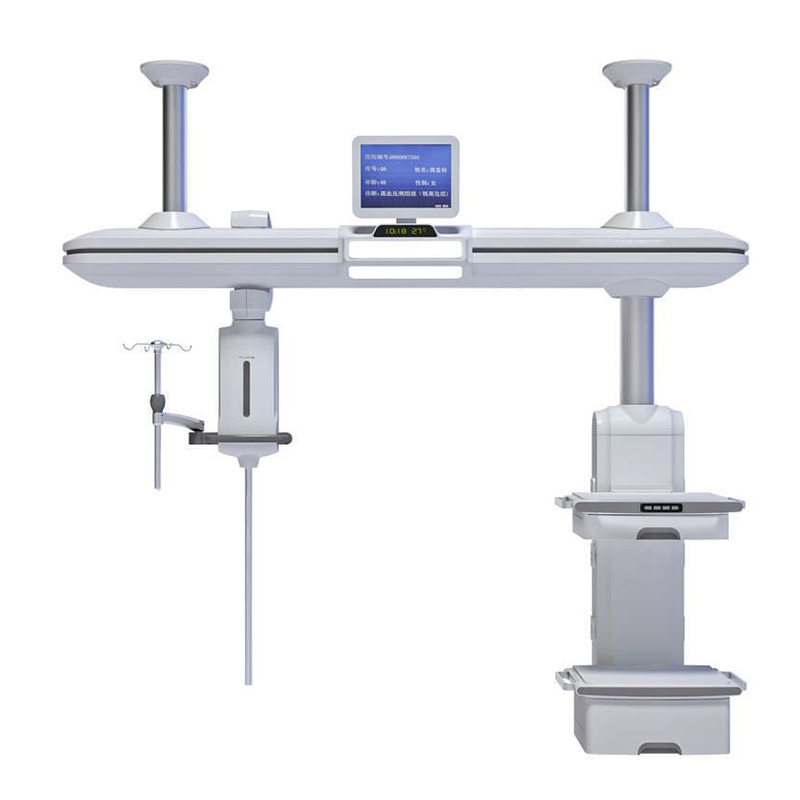

The ICU Care Unit-Bridge Type Pendant is a ceiling-mounted system specifically designed for intensive care environments. Featuring a bridge beam with a rotary and movable infusion pump section, it allows for easy positioning to ergonomically facilitate clinical procedures. It provides convenient access to medical gases, electrical power, and data outlets, serving as a robust platform for essential ICU monitoring and treatment equipment.
Infusion Pump Section
- Lateral Movement: ≤500mm
- Loading Capacity: ≤30kg
- Level Rotation Degree: 0~340°
- Universal Power Sockets: 6 units
- Data Outlet: RJ45 Cat 6*1
- Reserved Data Ports: 3
- Infusion pump pole rack and IV pole included
Monitor and Ventilator Section
- Integrated column set with dual-rail monitor platform
- Ventilator platform with 2 rails and 2 drawers
- Medical Gas Outlets: O2*2, VAC*2, Air*1
- Built-in electric box: 6 power sockets, 2 grounding terminals, 1 RJ45 socket
- Sputum suction catheter box included
- Loading Capacity: ≤80kg
- Level Rotation Degree: 0~340°
Bridge Beam and Lighting System
- Bridge beam length: 2600~3000mm (customizable to site)
- Integrated Direct Light system
- Integrated Indirect Light system
- Subsidiary lighting for specialized tasks
Frequently Asked Questions
Q: What is the primary advantage of the Bridge Type Pendant in an ICU?
A: It maximizes floor space and improves ergonomics by providing a ceiling-mounted, movable platform for medical gases, power, and equipment, allowing staff to position tools exactly where needed.
Q: What is the maximum loading capacity for the equipment sections?
A: The monitor and ventilator section can support up to 80kg, while the infusion pump section is designed for loads up to 30kg.
Q: How many medical gas outlets are included in the standard configuration?
A: The standard unit includes 5 gas outlets: 2 for Oxygen (O2), 2 for Vacuum (VAC), and 1 for Medical Air.
Q: Can the pendant arms rotate?
A: Yes, both the infusion pump section and the monitor section feature a level rotation range of 0 to 340 degrees for optimal flexibility.
Q: Does the system include integrated lighting?
A: Yes, the bridge beam is equipped with a comprehensive lighting system including direct, indirect, and subsidiary lights to support various clinical needs.
Q: What are the power requirements for the YDT-DQ8 model?
A: The system operates on a rated voltage of 220V at a frequency of 50Hz, with an input power of 6kVA.
