| Model NO. | MJ-005B | Certification | ISO13485 |
| Product Name | Medical Pendant | Product Nature | Medical Gas Equipment |
| Gas Terminal | Oxygen, VAC, Air | Material | Aluminium Magnesium Alloy |
| Electric Outlet | 6 PCS (220V / 10A) | Instrument Platform | 3 Trays (Height Adjustable) |
| Weight Capacity | 150kgs | Application | Operating Auxiliary Equipment |
| OEM | Yes | Warranty | 2 Years |
| HS Code | 9402900000 | Production Capacity | 150 Sets Per Month |

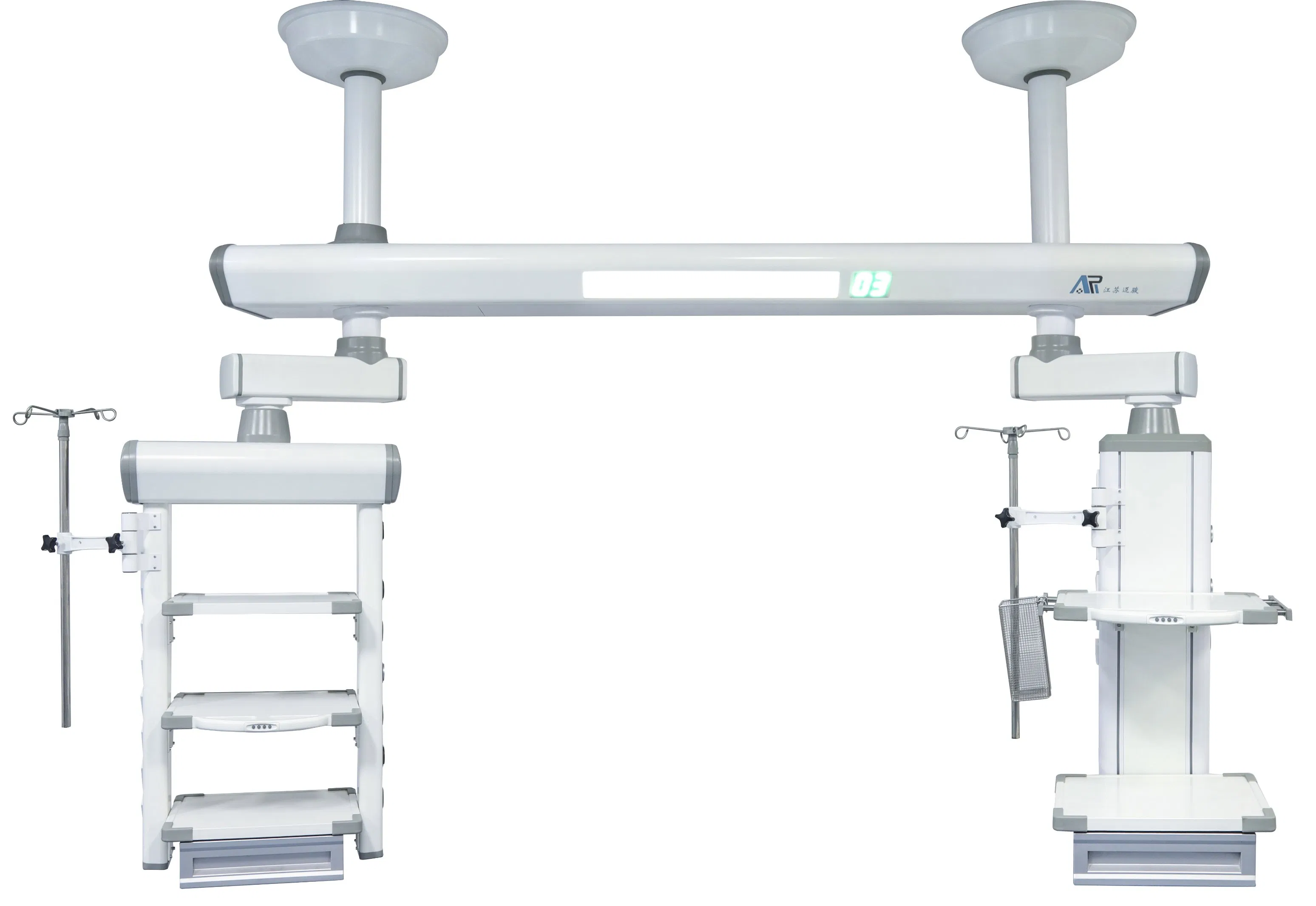

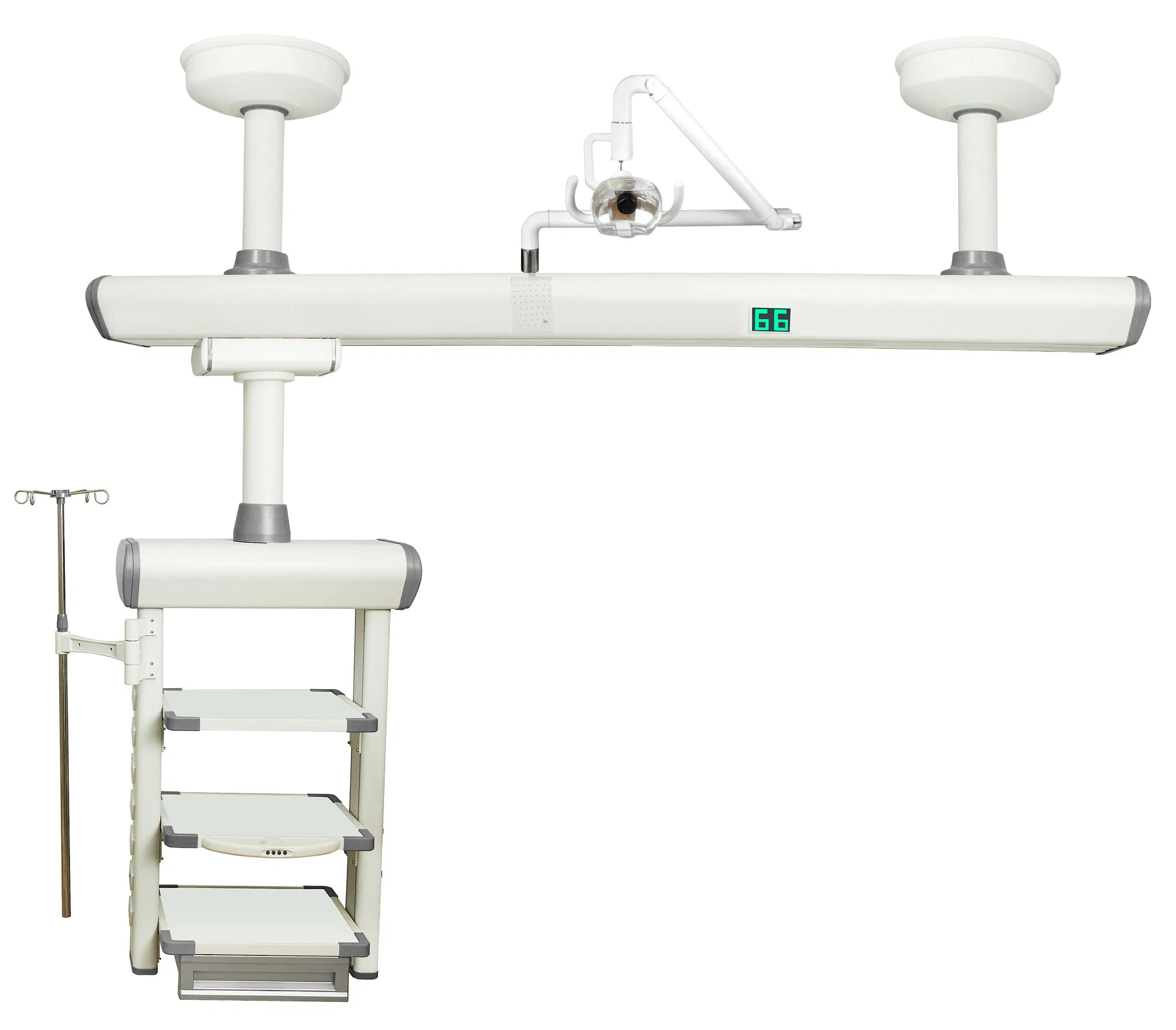

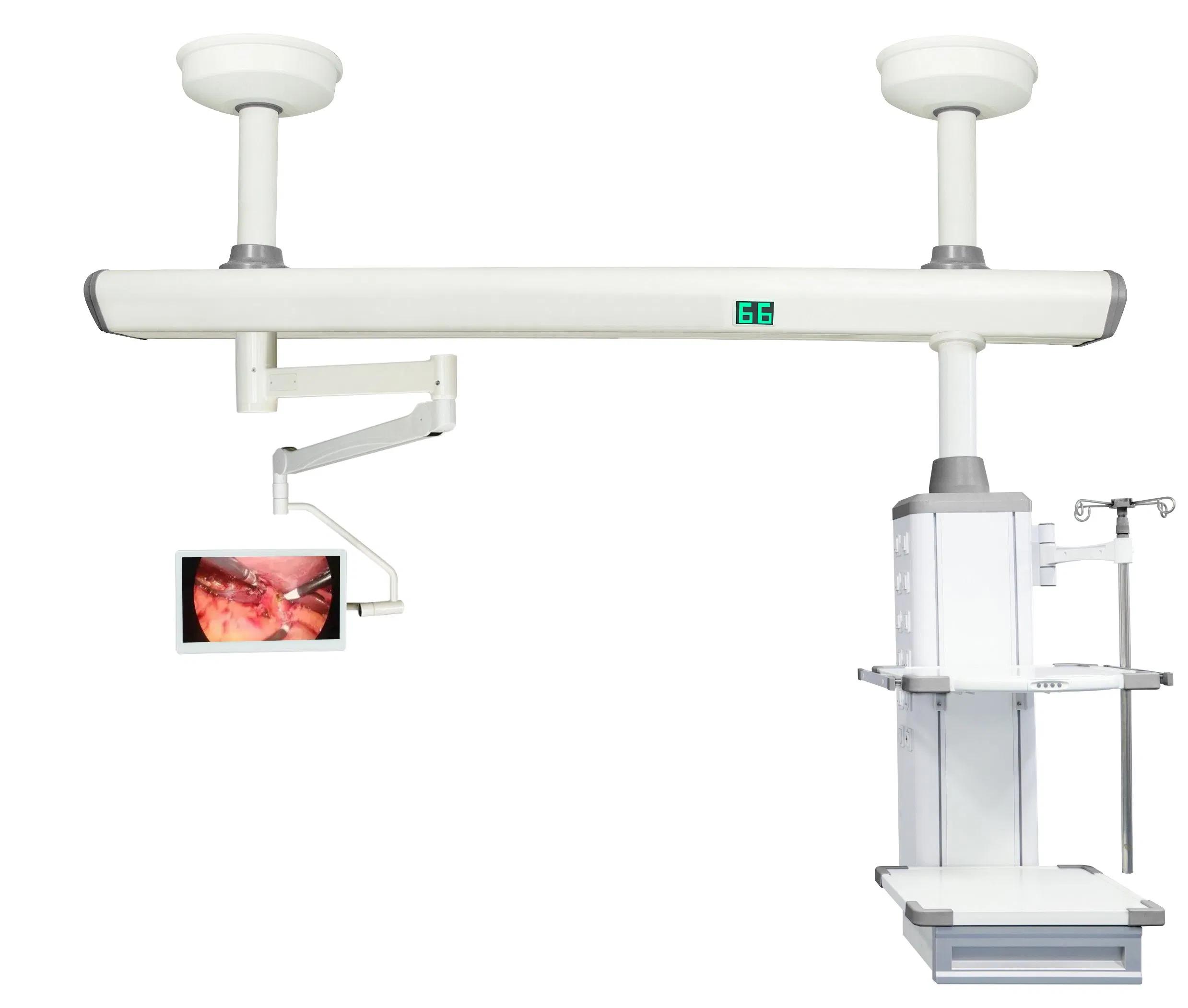

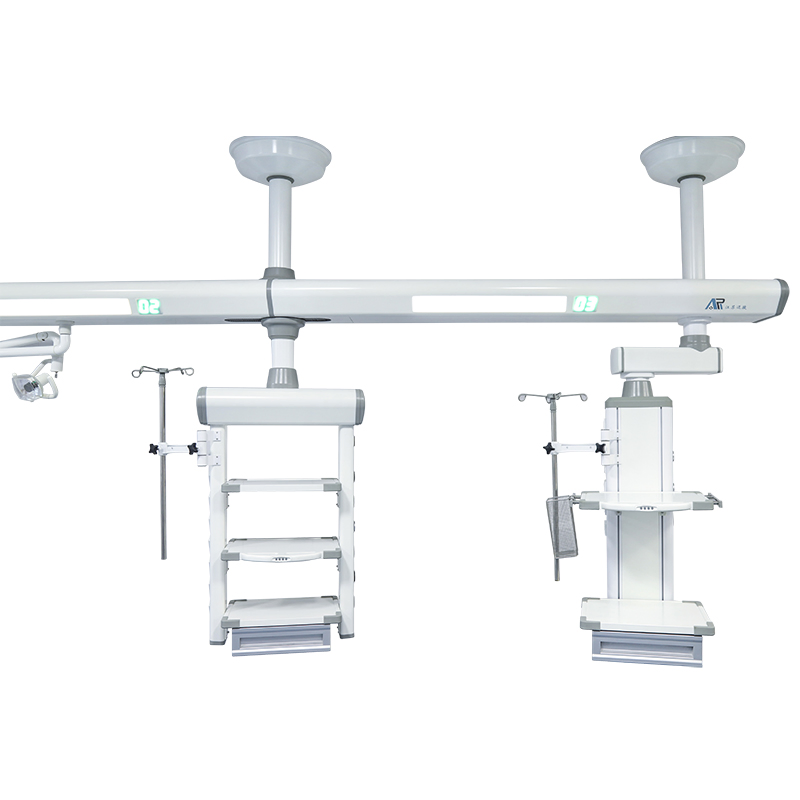

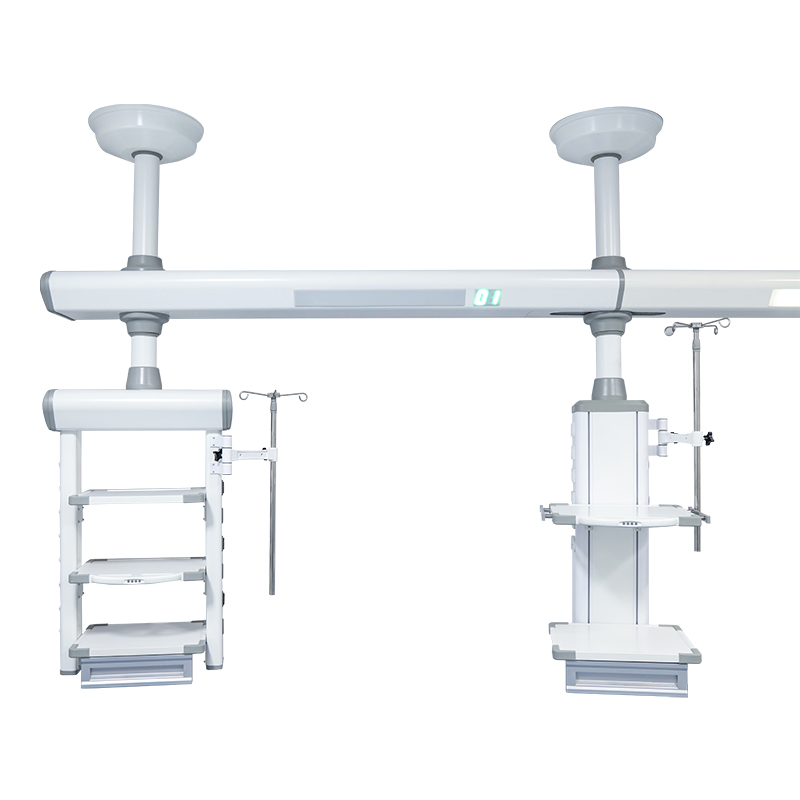

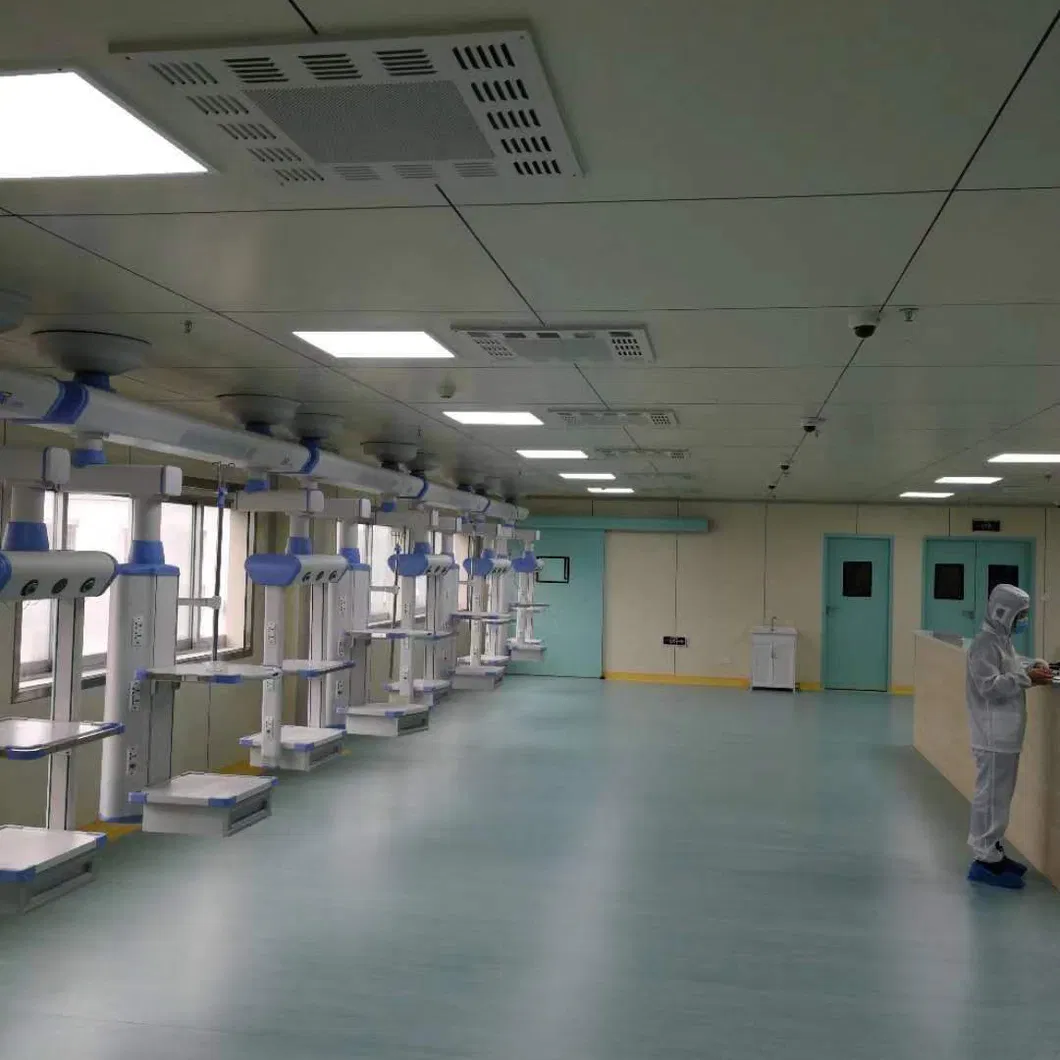

The medical surgical pendant has a simple and compact structure and is easy to use. It is an ideal medical gas power supply, network output terminal and instrument carrying workstation for the operating room; the installation adopts the ceiling suspension mode, and the swing arm can rotate within 340 degrees. It is equipped with mechanical brakes to prevent drift, and the height of the equipment makes it easy for medical personnel to lift their hands. It is an indispensable medical auxiliary equipment in the operating room of small and medium-sized hospitals.
| Arm length | 500-1000 mm |
| Bridge length | 2800-3200mm |
| Console height | 600-1200mm |
| Power socket | 6 pcs sockets, European and US standard optional |
| Electric move distance | 400mm |
| Gas terminal | Oxygen/2, Air/1, Vac/1 (Standard: B.S, Germany, France, Japan optional) |
| Platform | 3 pcs, size 550 mm*420 mm |
| Drawer | 1pc with automatic reset |
| Working power | 220V 50HZ 10A |
| Infusion support | Stainless steel infusion rack 1 set |

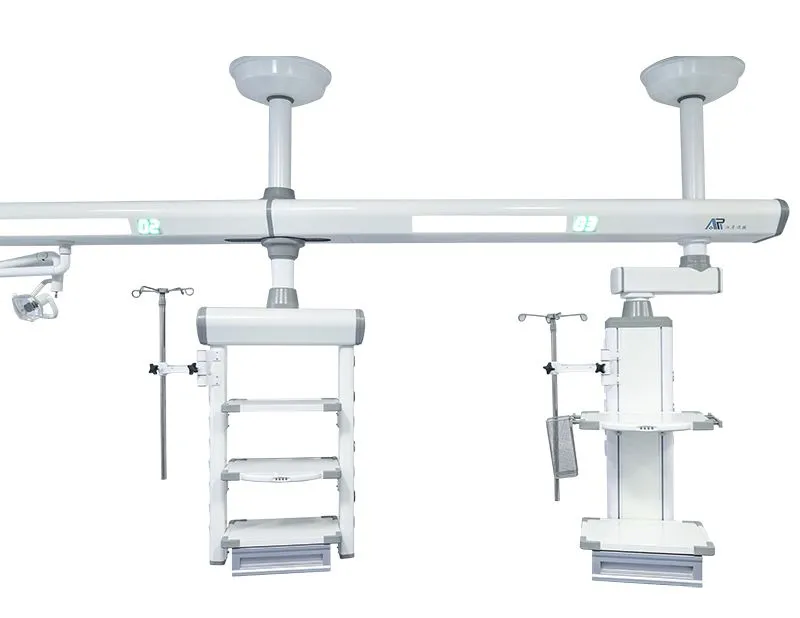

Pendant Console: Console height from 600mm-1200mm (customizable), 340-degree rotation, gas-electric separation design.
Tray and Drawer: Tray size 550*420mm, easy to clean/disinfect. Round Angle anti-collision design, height adjustable, with 2 standard side rails.
Gas Outlet: Oxygen, Air, Vac with different shapes to avoid improper insertion. Durability tested over 20,000 times. Supports German, American, British, and French standards.
