Hospital Gas Supply ICU Ceiling Surgeon Pendant Suspension Luxury Bridge Anesthesia Pendant

1 / 4

Hospital Gas Supply ICU Ceiling Surgeon Pendant Suspension Luxury Bridge Anesthesia Pendant

Customization:	Available
Type:	ICU Suspension Bridge
Certification:	CE, ISO13485

Send Inquiry

Product Description

Basic Information

Model NO.

THR-MP280

Group

Adult

LCD Display

Without LCD Display

Transport Package

Standard Export Packing

Trademark

THR

Origin

Jiangsu, China

Production Capacity

5,000,000 pieces/Year

Product Description

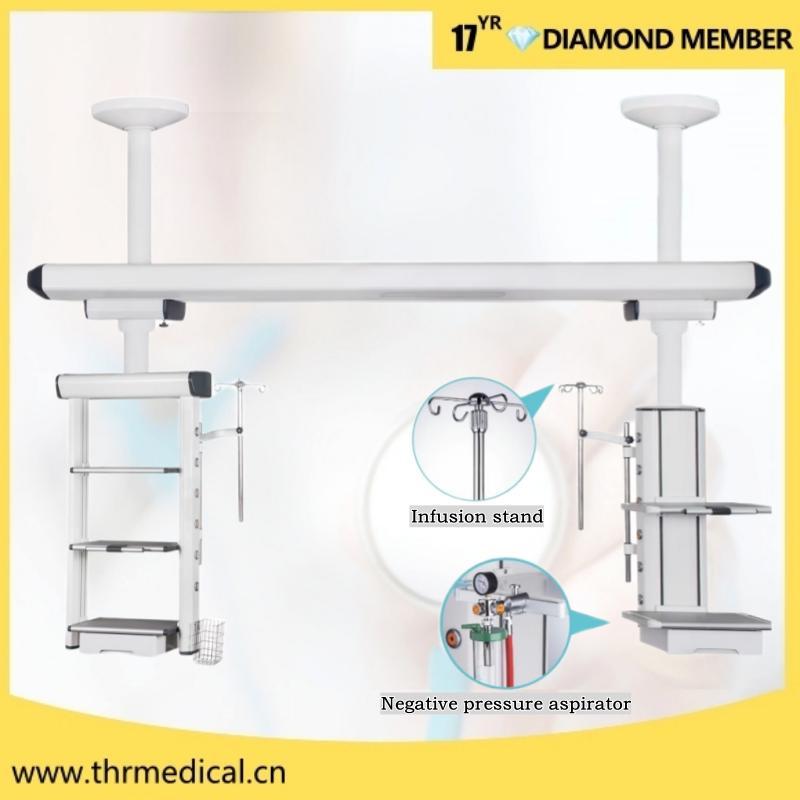

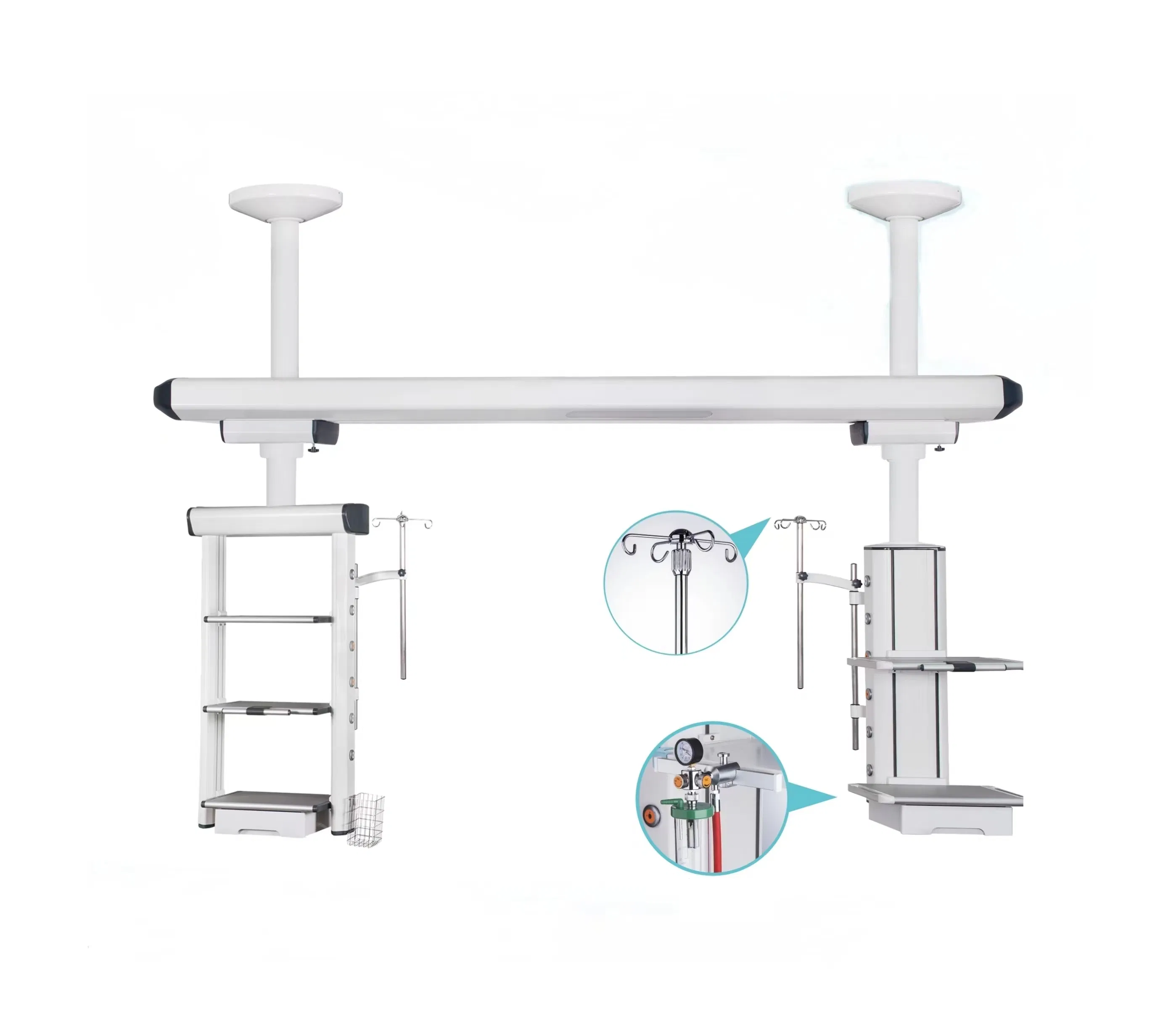

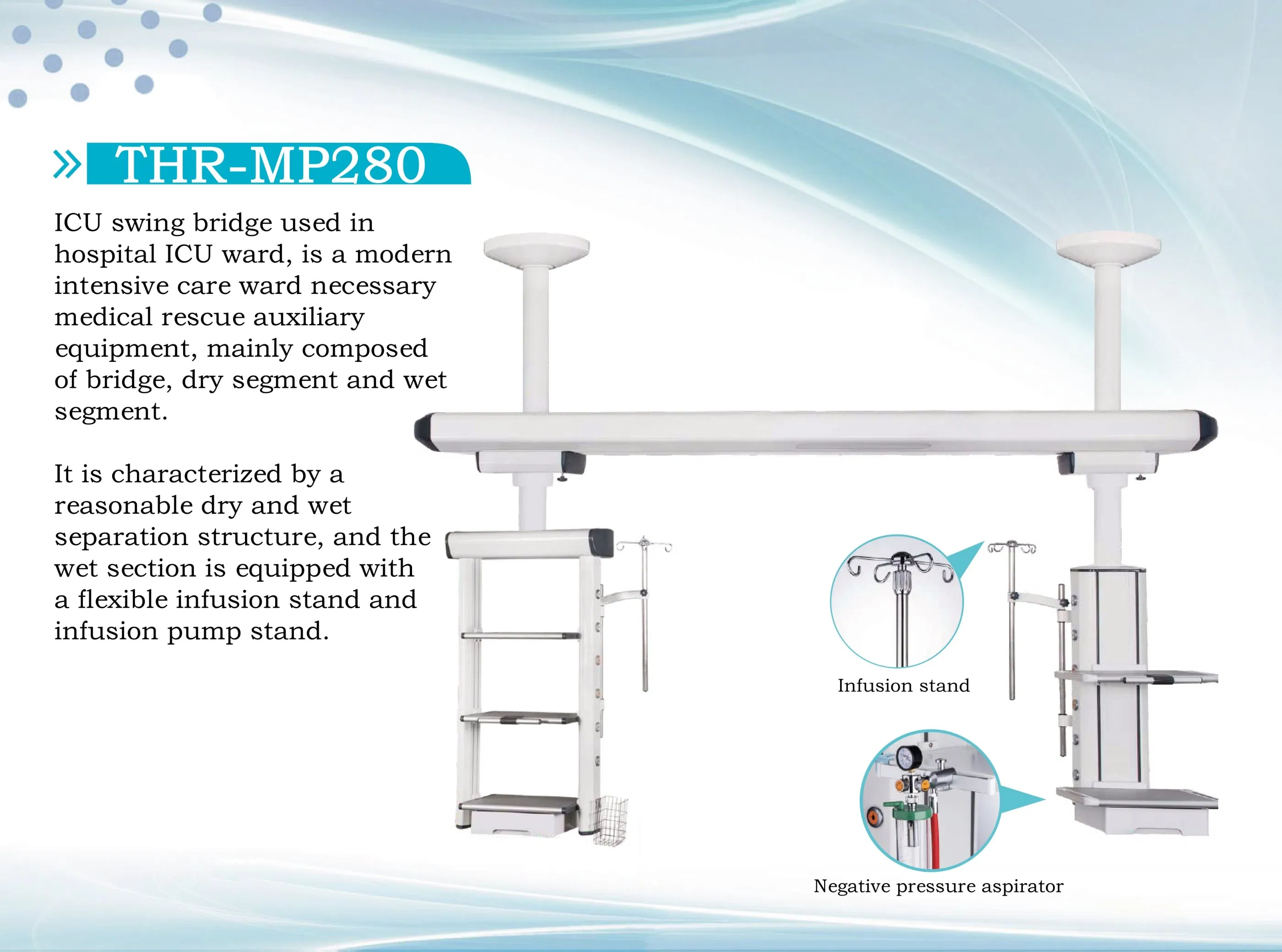

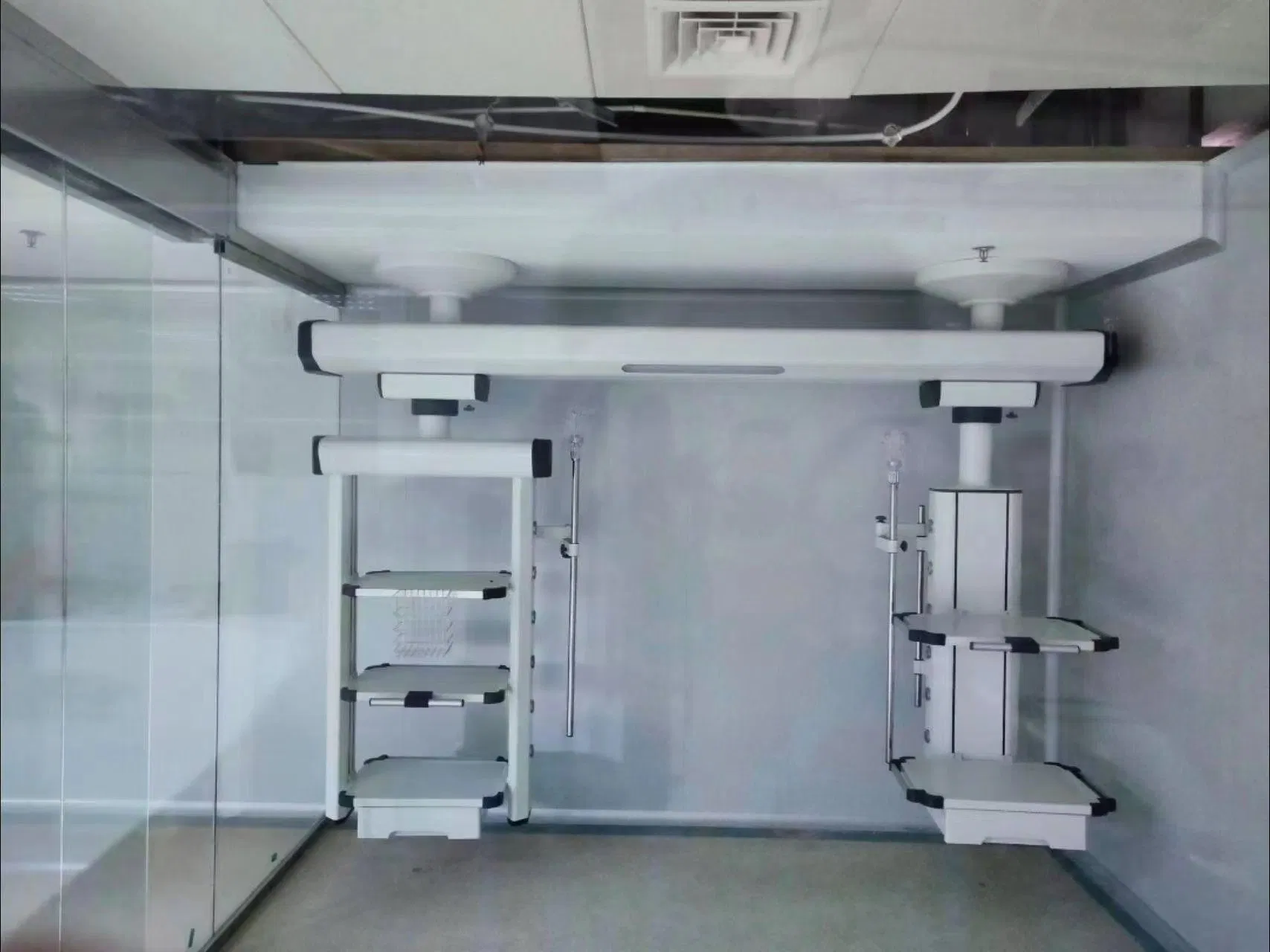

The spiral arm bridge in ICU is essential auxiliary equipment for medical rescue in modern intensive care units.
Composed of a bridge with distinct dry and wet sections, ensuring a reasonable structure for separation of functions.
Equipped with flexible lifting infusion frames and infusion pump frames for optimized medical workflow.
Configured with oxygen, air, suction, strong/weak current, and network terminals within easy reach of medical staff.
Wet section utilizes a cantilever structure to maximize treatment space and provides clinical lighting solutions.
Supports communication paging, monitoring, video phone, background music, and remote consultation systems.
Customizable weight loading capacity up to 250kgs (Mechanical up to 200kgs).

Technical Parameters

Specification Item		Details / Configuration
Beam Length		2.6m - 3m
Wet Section Configuration
Gas Outlets		O2 x2, Air x2, VAC x2
Storage & Utility		Shelves x2, Drawer x1, IV pole with 4 hooks x1
Electrical & Data		10A Sockets x7, RJ45 Network x1, Earthing pin x1
Dry Section Configuration
Gas Outlets		O2 x2, Air x2, VAC x2
Storage & Utility		Shelves x3, Drawer x1, IV pole with 4 hooks x1
Electrical & Data		10A Sockets x7, RJ45 Network x1, Earthing pin x1

Packaging & Shipping

Production Display

Frequently Asked Questions

What is the main advantage of the dry and wet separation design?

The separation ensures that gas and electrical supplies (dry) are kept apart from infusion and fluid management systems (wet), improving safety, hygiene, and accessibility during intensive care procedures.

Can the pendant bridge length be customized?

The standard beam length ranges from 2.6m to 3m, but the system is designed to be adaptable to different ICU ward dimensions.

What is the maximum load capacity for the medical pendant?

The pendants can be customized to support a weight loading capacity of up to 250kgs, while mechanical versions typically support up to 200kgs.

What types of gas outlets are included in the standard configuration?

Both the dry and wet sections are equipped with Oxygen (O2), Medical Air, and Vacuum (VAC) outlets to meet comprehensive clinical needs.

Does the system support network and communication integration?

Yes, it includes RJ45 network interfaces and can be integrated with communication paging, monitoring, and remote consultation systems.

Is the equipment suitable for anesthesia applications?

Yes, the luxury bridge design is specifically suitable for both ICU environments and anesthesia departments, providing organized access to all necessary medical utilities.
