Hospital ICU Room Dry and Wet Separation Suspension Bridge Medical Ceiling Pendants
1 / 1
Hospital ICU Room Dry and Wet Separation Suspension Bridge Medical Ceiling Pendants

Hospital ICU Room Dry and Wet Separation Suspension Bridge Medical Ceiling Pendants

Material: Console Type
Safety Standard: None
Instrument Classification: Class I
Send Inquiry

Product Description

Basic Information

Model NO.
YH-G01
Warranty
1 Year
Power Source
Manual
Quality Certification
CE
Shelf Life
2 Years
After-Sale Service
Free Spare Parts
Transport Package
Wooden Box
Specification
Medium
Production Capacity
25 Piece/Pieces Per Month

Product Description

Medical Ceiling Pendant

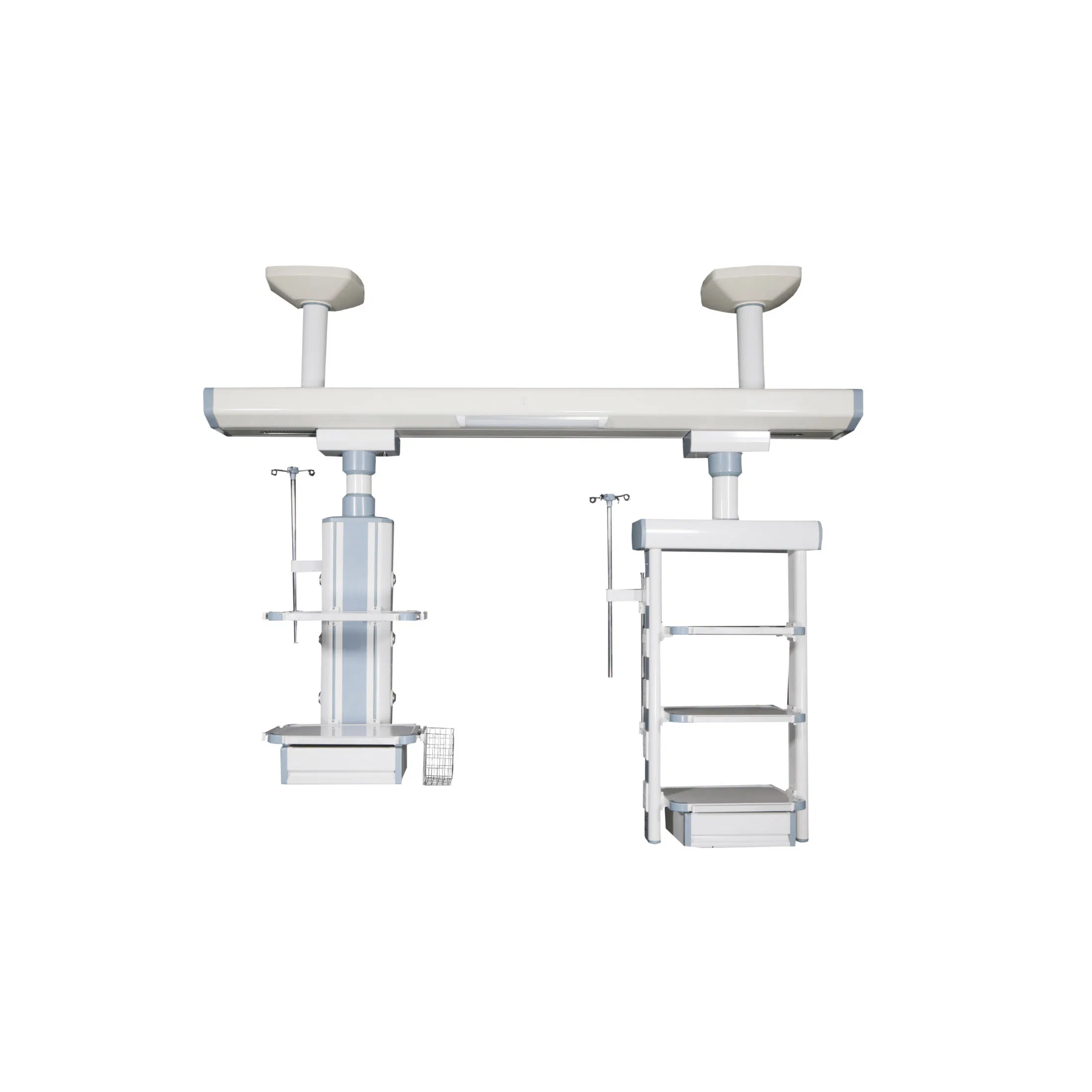

The YH-G01 Hospital ICU Room Dry and Wet Separation Suspension Bridge is a high-performance medical ceiling pendant designed for modern intensive care environments. It provides integrated gas, electricity, and equipment management to optimize workspace efficiency.

Technical Specifications

Operating Power: AC220V, 50HZ
Beam Length: 2800-3000mm (Customizable based on site measurement)
Braking Device: Optional braking to prevent drifting and ensure easy movement.
Dry Section Pendant: Includes 3-layer adjustable instrument decks (550×400mm), 8 power sockets, RJ45 network interface, and 1 drawer.
Wet Section Pendant: Features gas terminals, 8 power sockets, grounding terminals, and a storage basket.
Gas Terminals: Standard configuration for Oxygen, Suction, and Air with faulty connection prevention.
Rotation Angle: 0-340° for maximum flexibility.
Material: High-strength aluminum alloy profile with electrostatic spraying finish.
Model NumberYH-G01
Power SourceManual
Warranty1 Year
MaterialMetal, Plastic (High-strength Aluminum Alloy)
Instrument ClassificationClass I
Quality CertificationCE

Product Details Gallery

Detail 1
Detail 2
Detail 3

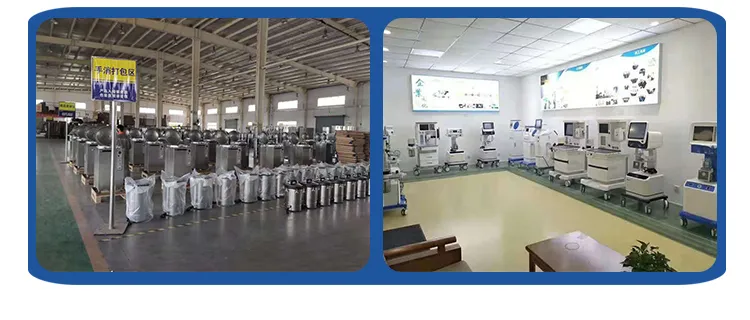

Detail 4
Detail 5
Detail 6
Detail 7
Detail 8

Frequently Asked Questions

What is the rotation range of the YH-G01 pendant?
The pendant offers a rotation angle of 0 to 340 degrees, allowing for flexible positioning within the ICU or operating room.
How does the dry and wet separation work?
The system includes separate dry and wet section pendants. The dry section is typically used for monitors and instruments, while the wet section handles infusion pumps and gas supplies, ensuring a clean and organized workspace.
What safety features are included for gas connections?
The gas terminals use different interface colors and shapes to prevent faulty connections. They also feature a secondary seal with three states (on, off, and remove) for safe maintenance.
Is the height of the instrument decks adjustable?
Yes, the dry section includes 3 layers of instrument decks that are height-adjustable to accommodate various medical equipment sizes.
What material is the pendant made of?
The main structure is constructed from high-strength aluminum alloy profiles, finished with an electrostatic spraying process for durability and easy cleaning.
What is the load capacity of the dry section pendant?
The dry section pendant has a net load capacity of ≥80kg, providing robust support for essential medical monitors and devices.
