Home > ICU Bridge Pendant > Mt Medical Double Arm Mechanical Oxygen Equipment Bridge Hospital Operating Ceiling Pendant for ICU

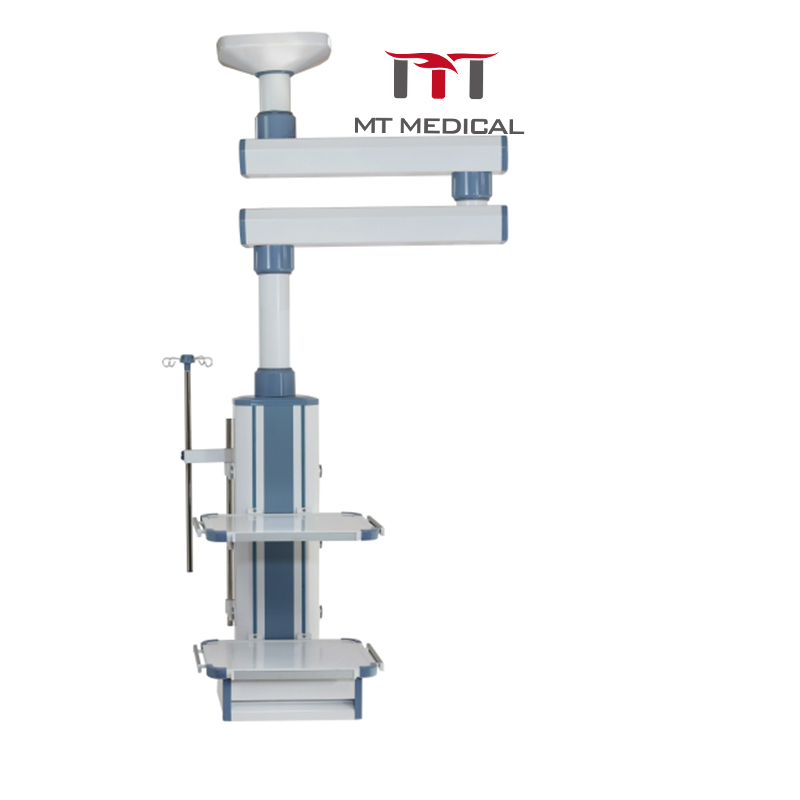

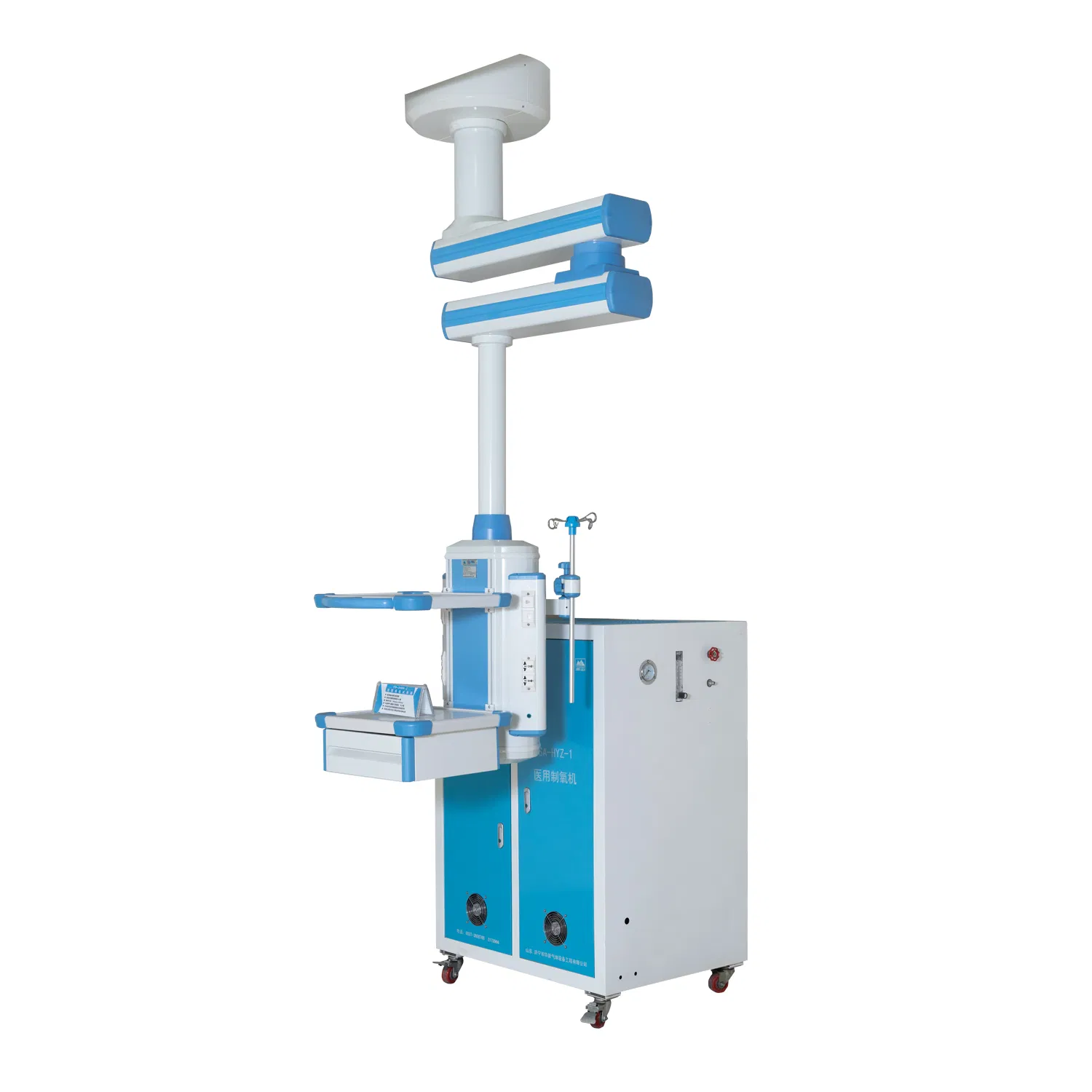

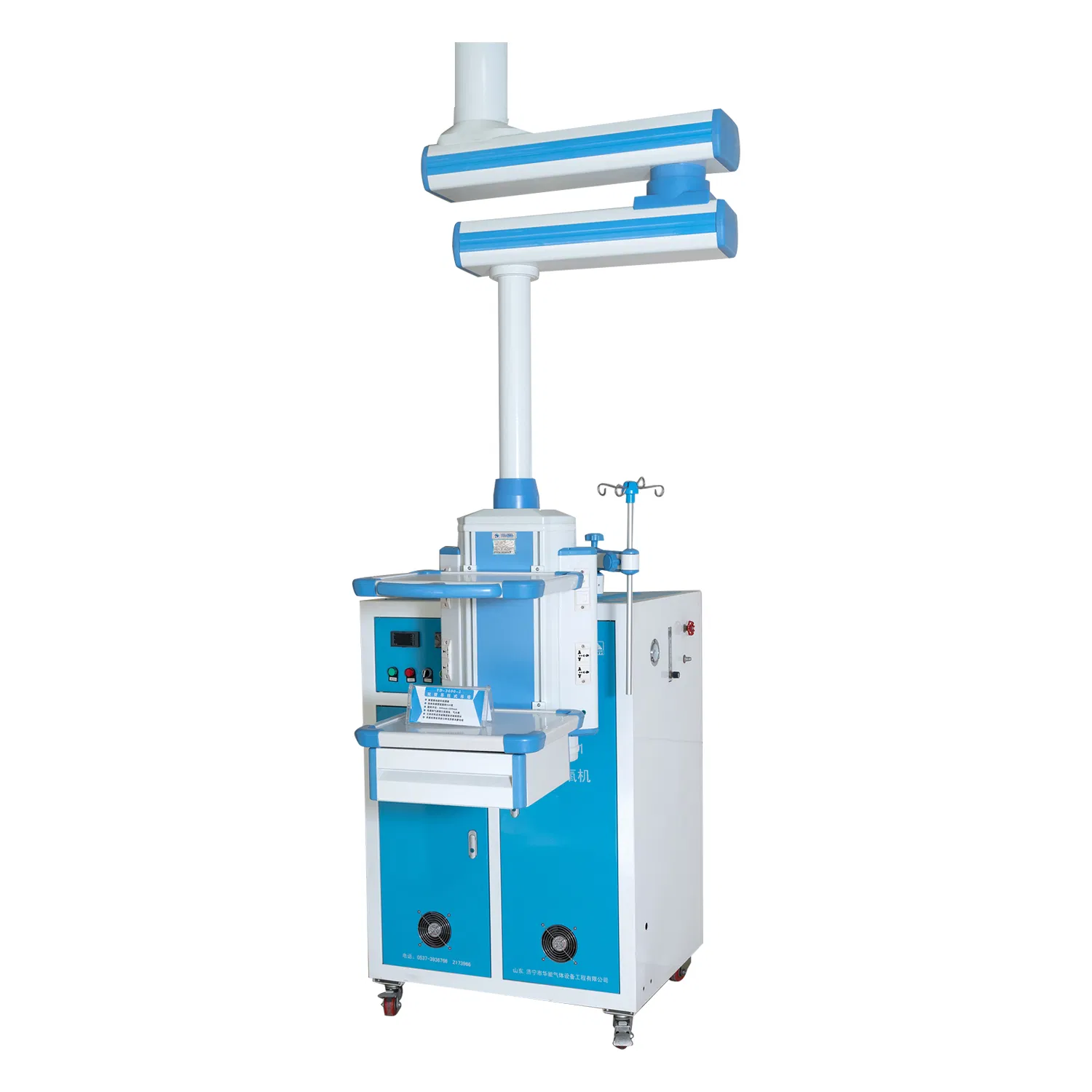

Mt Medical Double Arm Mechanical Oxygen Equipment Bridge Hospital Operating Ceiling Pendant for ICU
Mt Medical Double Arm Mechanical Oxygen Equipment Bridge Hospital Operating Ceiling Pendant for ICU
Mt Medical Double Arm Mechanical Oxygen Equipment Bridge Hospital Operating Ceiling Pendant for ICU
Mt Medical Double Arm Mechanical Oxygen Equipment Bridge Hospital Operating Ceiling Pendant for ICU
Mt Medical Double Arm Mechanical Oxygen Equipment Bridge Hospital Operating Ceiling Pendant for ICU
1 / 5
Mt Medical Double Arm Mechanical Oxygen Equipment Bridge Hospital Operating Ceiling Pendant for ICU
Mt Medical Double Arm Mechanical Oxygen Equipment Bridge Hospital Operating Ceiling Pendant for ICU
Mt Medical Double Arm Mechanical Oxygen Equipment Bridge Hospital Operating Ceiling Pendant for ICU
Mt Medical Double Arm Mechanical Oxygen Equipment Bridge Hospital Operating Ceiling Pendant for ICU
Mt Medical Double Arm Mechanical Oxygen Equipment Bridge Hospital Operating Ceiling Pendant for ICU

Mt Medical Double Arm Mechanical Oxygen Equipment Bridge Hospital Operating Ceiling Pendant for ICU

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Basic Specifications

Model NO.
YD-3200E-2
Transport Package
Wooden Case
Specification
192* 40*34CM
Origin
Shangdong, China
HS Code
9402900000
Production Capacity
5000 PCS/Month

Product Description

Mechanical Oxygen Equipment Bridge

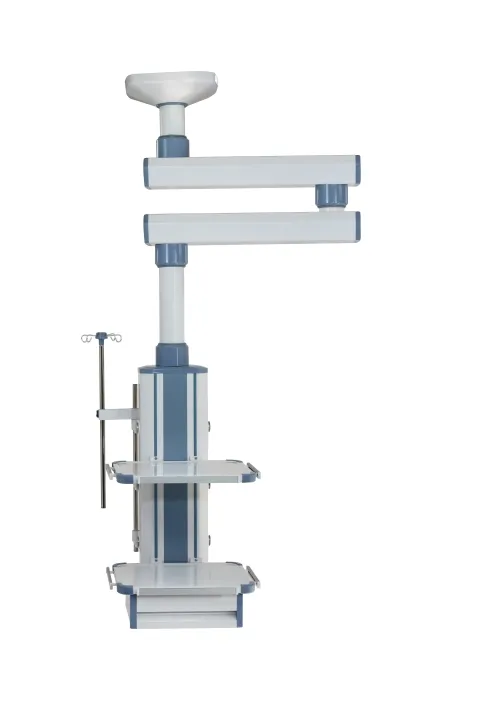

Operating Ceiling Pendant
●
Rotating Arm System: Arm length 730+730mm; motion radius 530+530mm; horizontal rotation angle 0-340°. Equipped with load-bearing reinforcement plates to prevent deformation and box drift. Net load capacity ≥150kg.
●
Equipment Trays: Includes 2 three-side guide rail trays (max load ≥50Kg each), height adjustable, with international standard side rails (10*25mm) and anti-collision rounded corners. Platform size: 550*400mm.

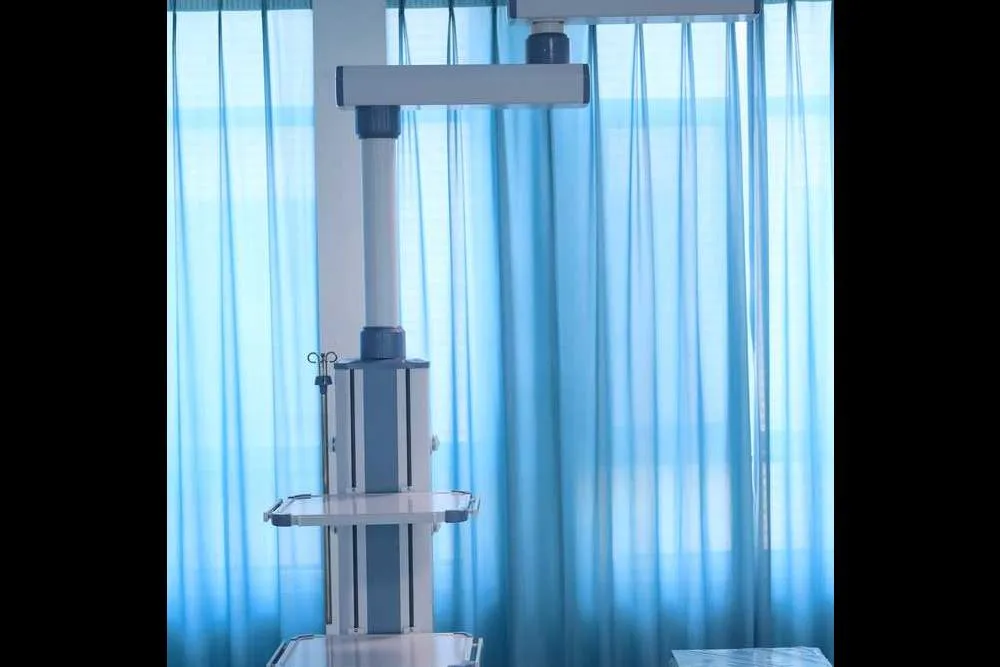

Detail View 1

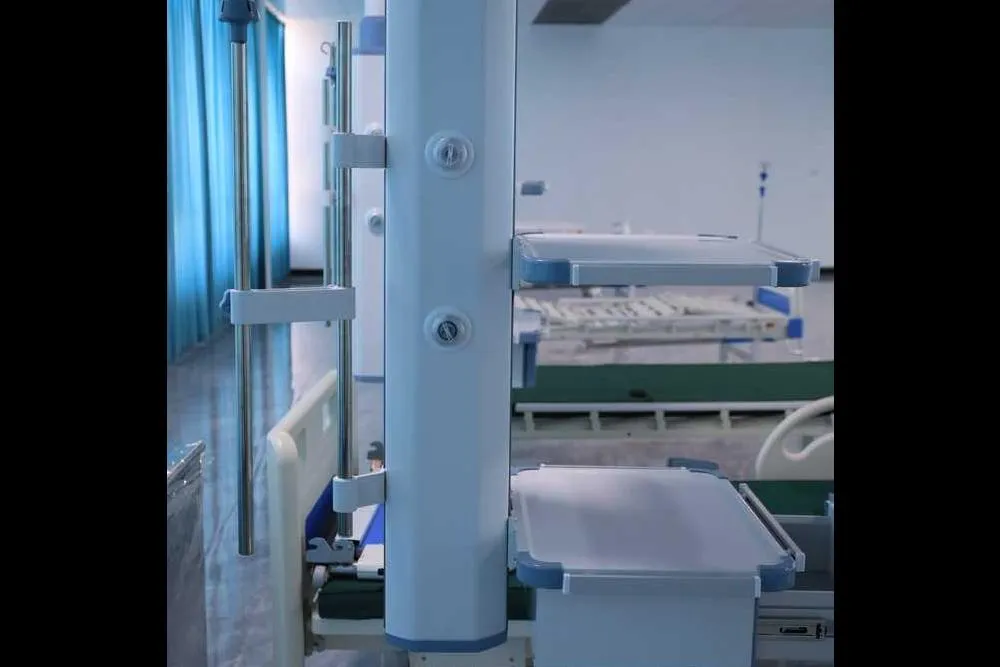

Detail View 2
●
Advanced Configuration: Features 1 drawer (395*295*105mm) and a rotatable infusion stand with four-claw structure and manual lifting control.
●
Safety Design: Column-type box (1000mm) with fully sealed design. Gas and electricity are strictly separated. Includes 4 electrical sockets, 2 equipotential grounding terminals, and 1 network interface.
●
Gas Terminals: Standard configuration includes 2 Oxygen, 1 Negative Pressure Suction, and 1 Compressed Air. Terminals are color-coded and shaped to prevent incorrect connections, tested for over 20,000 uses.
Detail View 3
●
Premium Material: Main body constructed from high-strength aluminum alloy. Surface features electrostatic spraying with eco-friendly powder, providing a semi-matte, anti-glare, anti-corrosion, and easy-to-clean finish.

Technical Parameters

Rotating arm length810mm
Activity range (radius)610mm
Horizontal rotation angle0-340°
Net load2150kg
Guide rail equipment tray2 Units
Equipment platform size550*400mm
Drawer diameter395*295*105mm
Power socket4 (Supports multiple plugs)
Main materialHigh-strength aluminum alloy profile

Package & Certification

Packaging
Certifications

Exhibition & Production

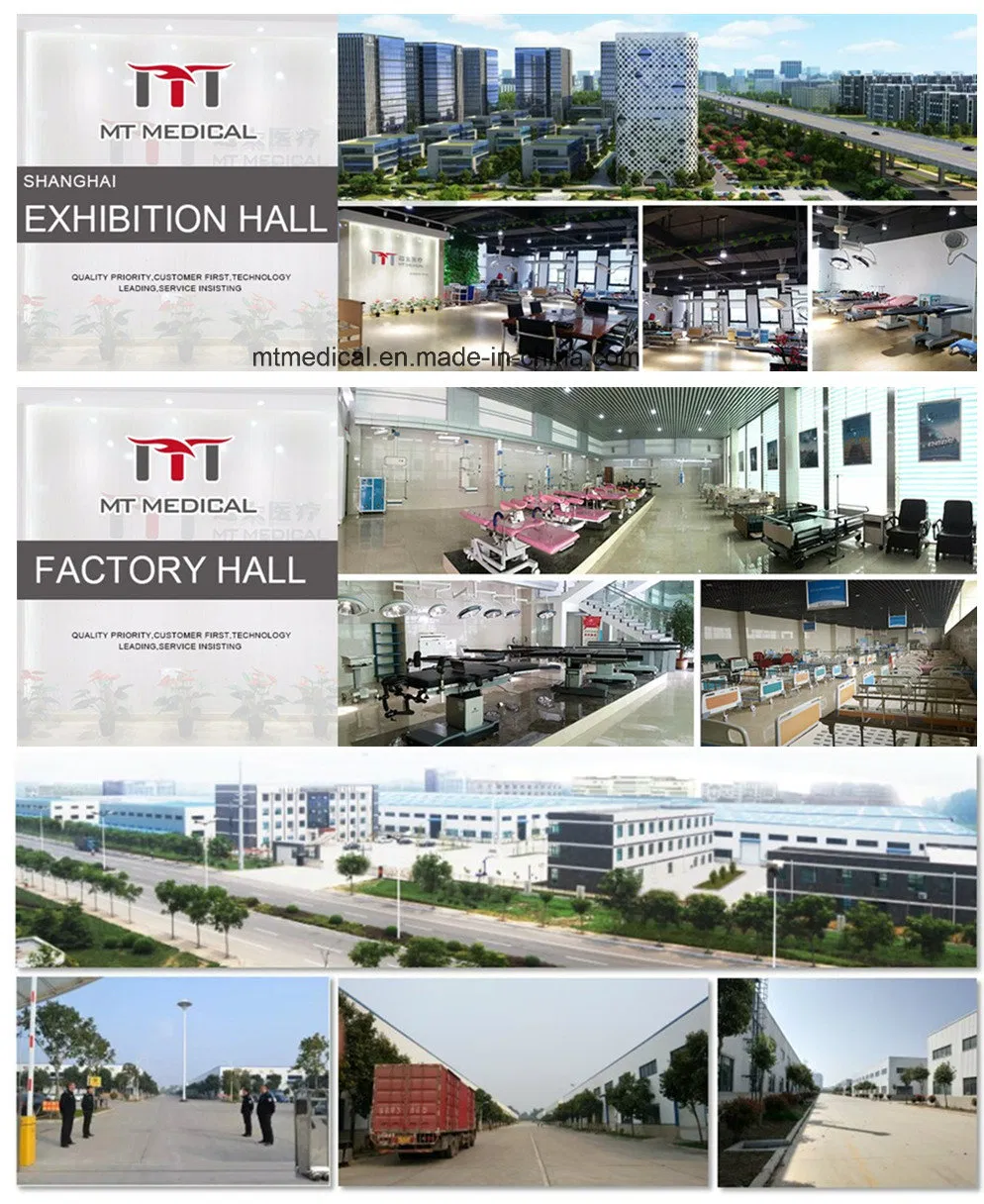

Production Facility
Exhibition Display

Frequently Asked Questions

Q: Do the products have international certifications?
Yes, all products are approved by CE and ISO13485 standards to ensure high quality and safety.
Q: What are the available payment terms?
We accept L/C at sight and T/T (30% deposit, 70% balance before shipment). Trade terms include EXW, FOB, and CIF.
Q: How is the medical equipment packaged for transport?
We use standard export packaging, including robust wooden cases or reinforced cartons, inspected by QC before delivery.
Q: What is the typical delivery timeframe?
In-stock items are delivered within 5-10 days. For custom production, the lead time is generally 20-30 days depending on the order quantity.
Q: Is there a minimum order quantity (MOQ)?
There is no minimum order quantity requirement; we cater to both small and large scale orders.
Q: What materials are used in the construction of the pendant?
The main body is made of high-strength aluminum alloy profiles with an electrostatic powder coating for durability and hygiene.
