Emfix Medical
1 / 5
| Model NO. | MJ-004DY/004G |
| Certification | ISO13485 |
| Group | Patient |
| LCD Display | Without LCD Display |

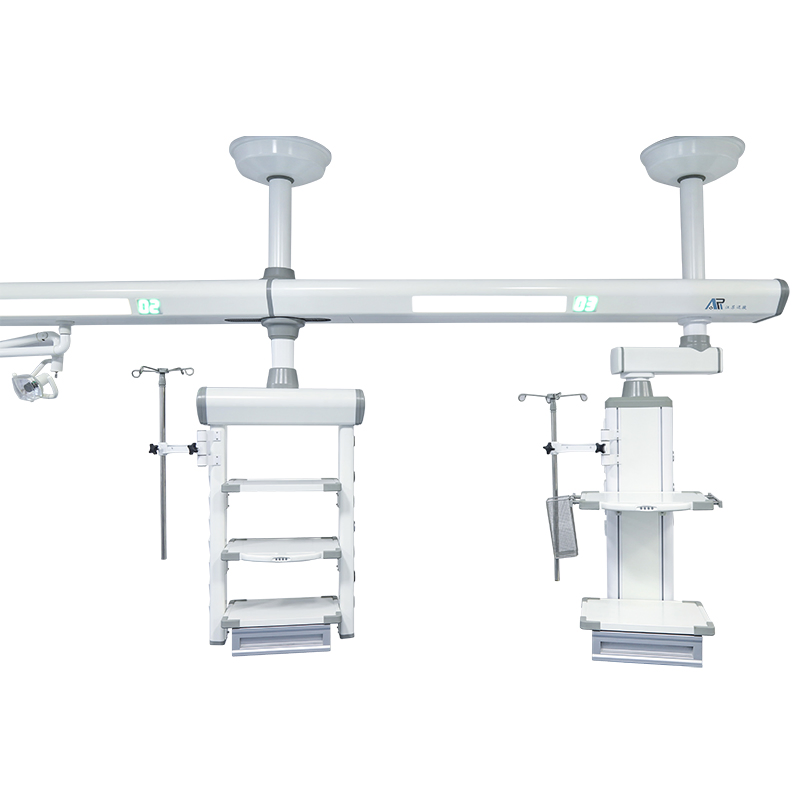

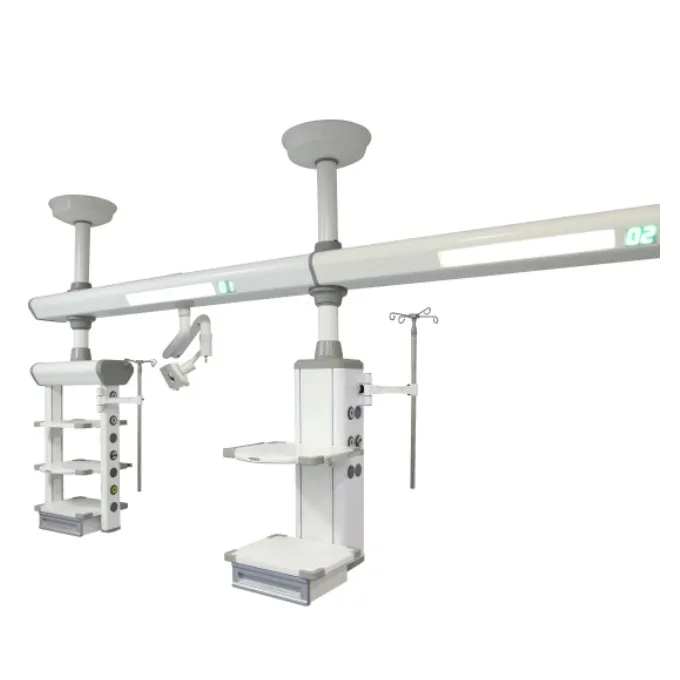

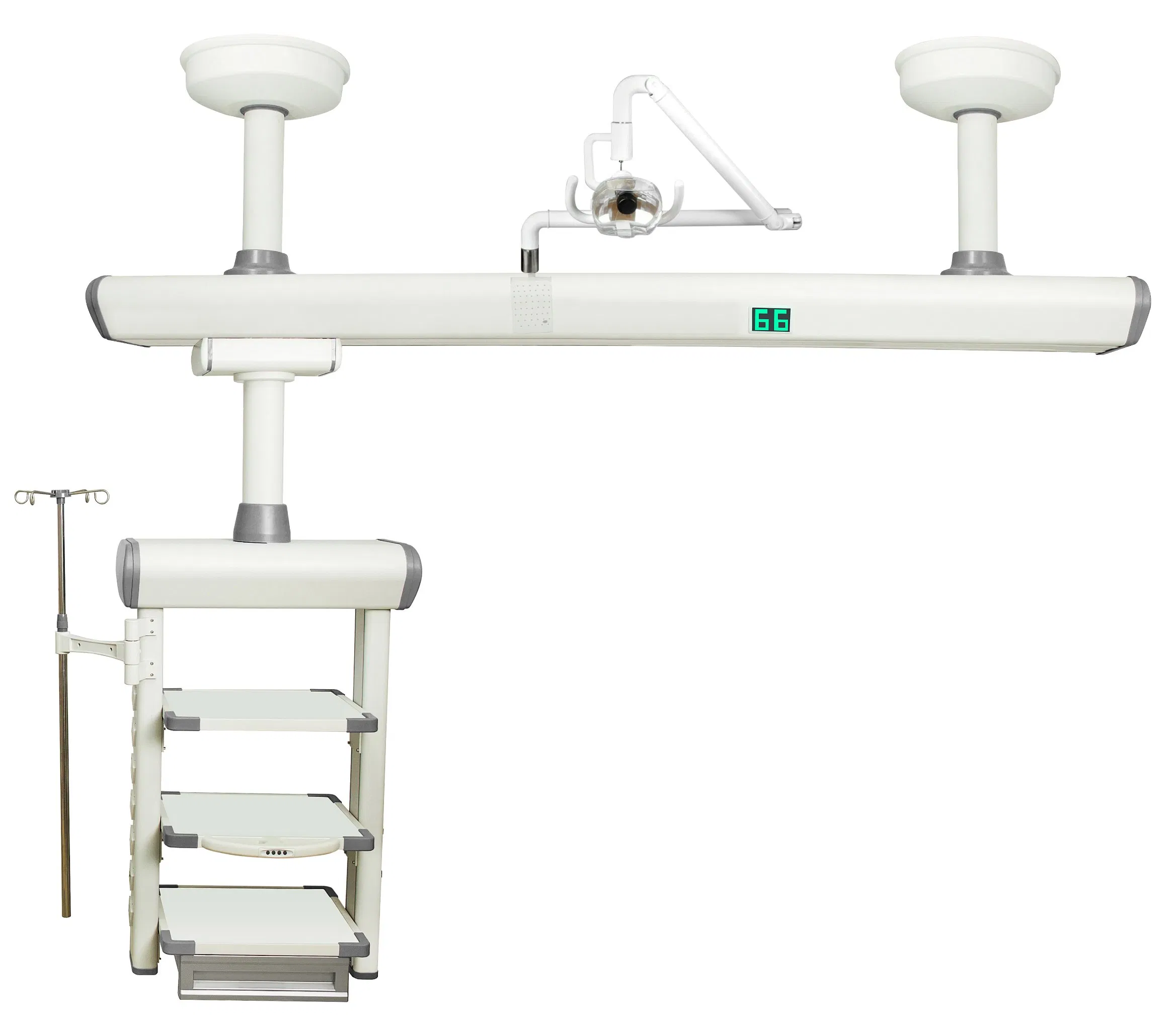

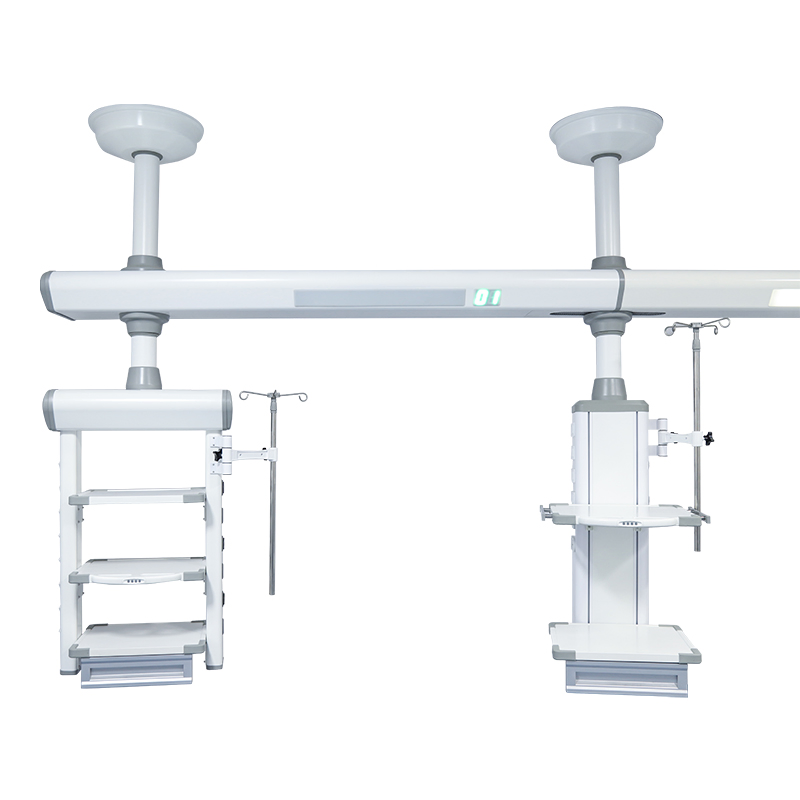

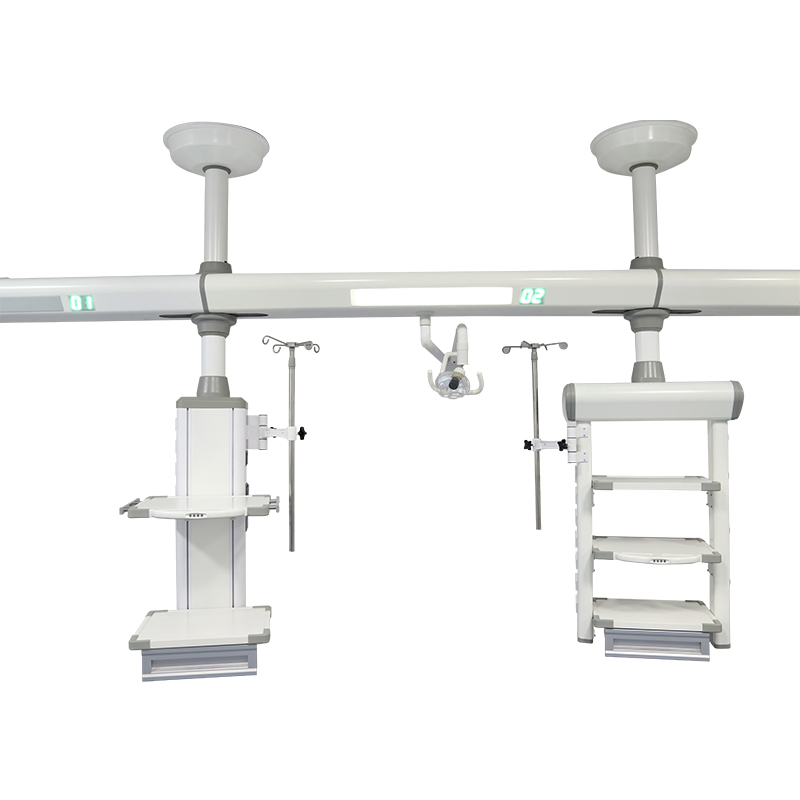

| Product Name | Medical Pendant |
| Product Nature | Medical Gas Equipment |
| Gas Terminal | Oxygen, VAC, Air |
| Material | Aluminium Magnesium Alloy |
| Electric Outlet | 12 PCS (220V / 10A) |
| Instrument Platform | 5 Trays (Height Adjustable) |
| Weight Capacity | 500kgs |
| Application | Operating Auxiliary Equipment |
| OEM | Yes |
| MOQ | 1 Set |
| Warranty | 2 Years |
| Package | Export Wooden Carton |
| HS Code | 9402900000 |
| Production Capacity | 150 Sets Per Month |
| Arm length | 500-1000 mm |
| Bridge length | 2300-3000mm |
| Console height | 600-1200mm |
| Power socket | 12pcs sockets, European, US for optional |
| Equipotential | 2pcs |
| Network socket | 1pc |
| Gas terminal | Oxygens/4nos, air/2nos, Vac/2nos, Germany, BS, US, France, Japan for optional |
| Gas tube | Import gas pipeline |
| Platform | 5pcs, size 550 mm*420 mm |
| Drawer | 2pcs |
| Working power | 220V 50HZ 10A |
| Infusion support | Stainless steel infusion rack 1 set |
Console height from 600mm-1200mm (can be customized according to requirements), rotation 340 degrees, gas-electric separation design.
Trays size: 550*420mm, easy to clean and disinfect. Round Angle anti-collision design, height adjustable, with 2 standard side rails 10*25. Drawer has automatic reset device.
Oxygen, air, VAC, different shapes to avoid improper insertion, the number of inserts is greater than or equal to 20,000 times. Support various standard gas terminals: German, American, British, French.
Universal power sockets, working power 220V 50HZ 10A. Includes Equipotential and Network sockets. Support various standard socket terminals: German, American, British, French.
