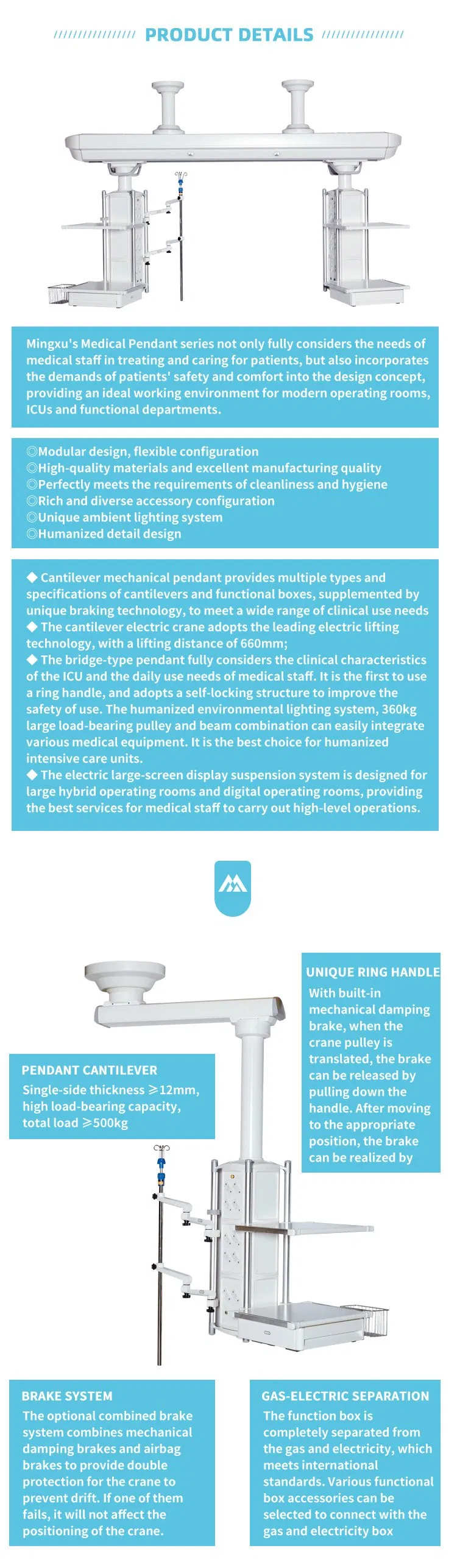

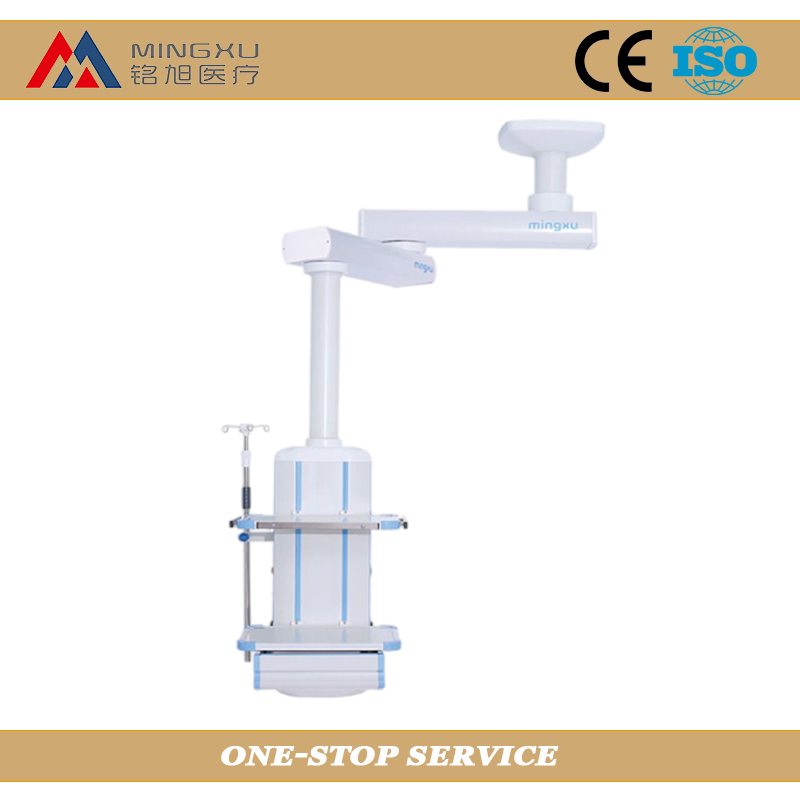

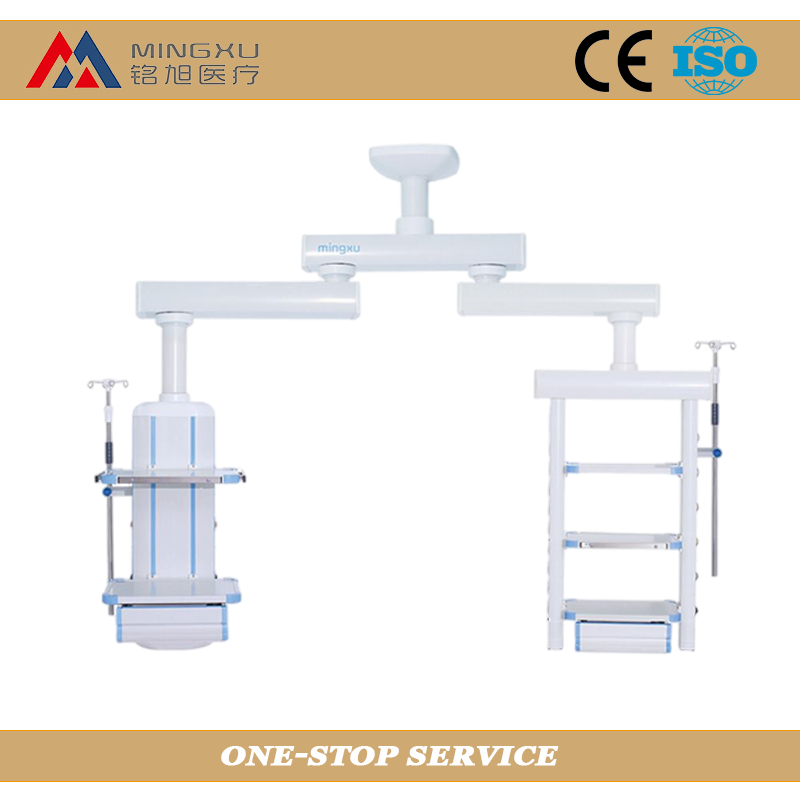

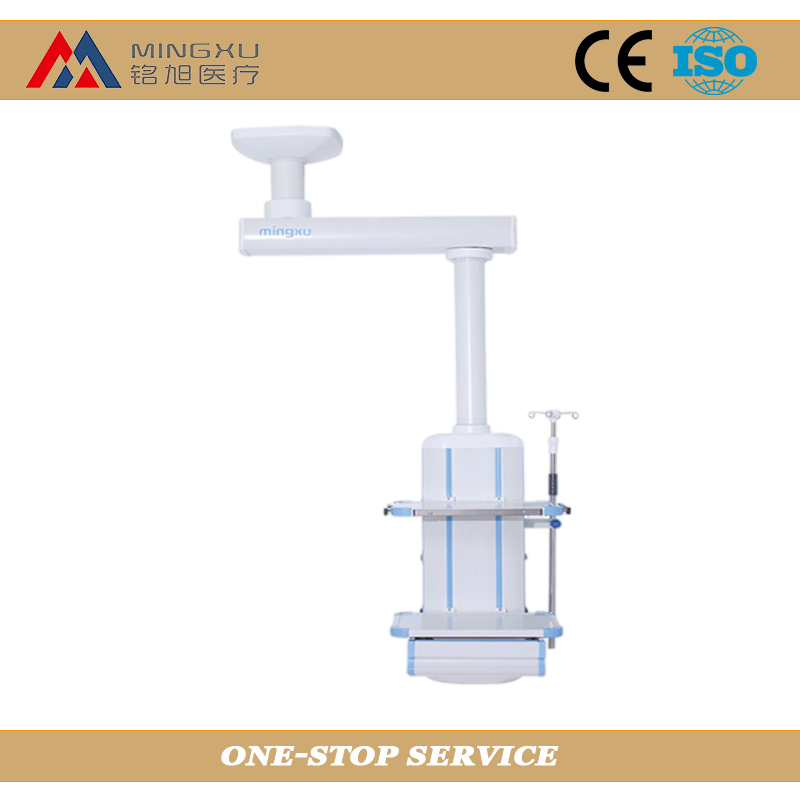

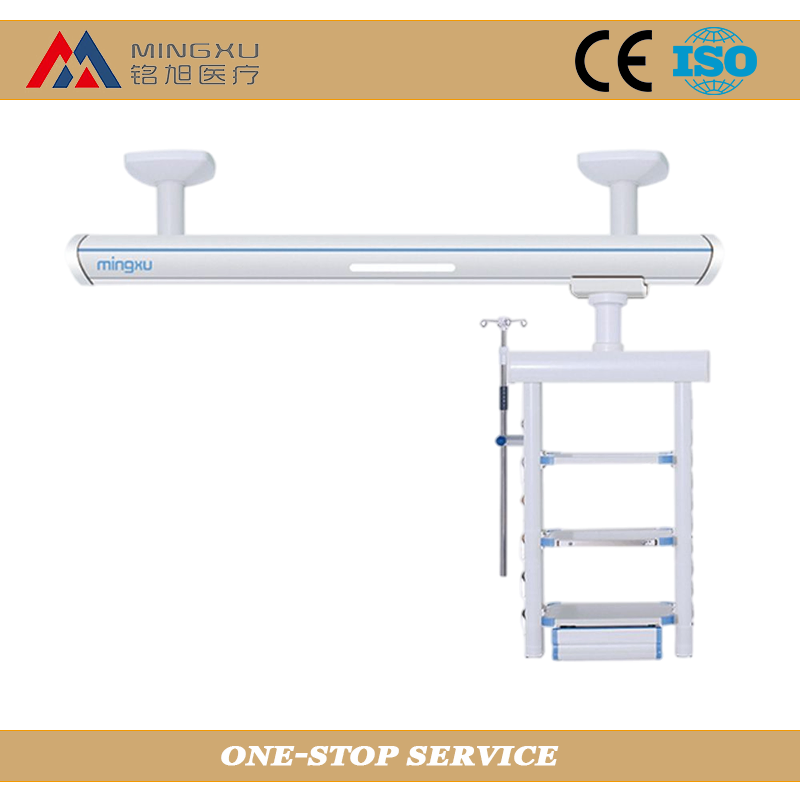

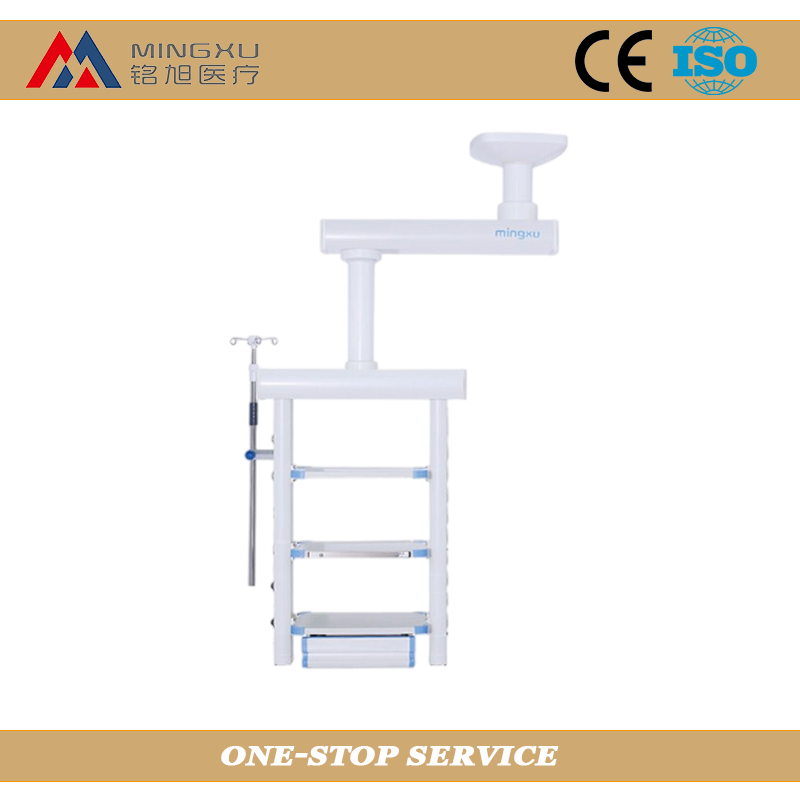

Product Description
🛡️
High-Strength Construction: Crafted from high-strength aluminum alloy with a sleek, fully enclosed design. The double-layer honeycomb structure within the hanging column enhances torsion and tensile resistance for superior load-bearing capacity.
🎛️
Sterilization Treatment: The surface is treated with electrostatic sterilization spray, ensuring anti-corrosive properties and making it easy to clean and disinfect.
⚡
Safe Separation: Functional box pipelines are organized to allow complete separation of gas and electricity in compliance with international standards.
Main Technical Parameters
- 🔹 Instrument Platform: 500mm*500mm adjustable layers with rounded anti-collision corners; each layer supports up to 60kg.

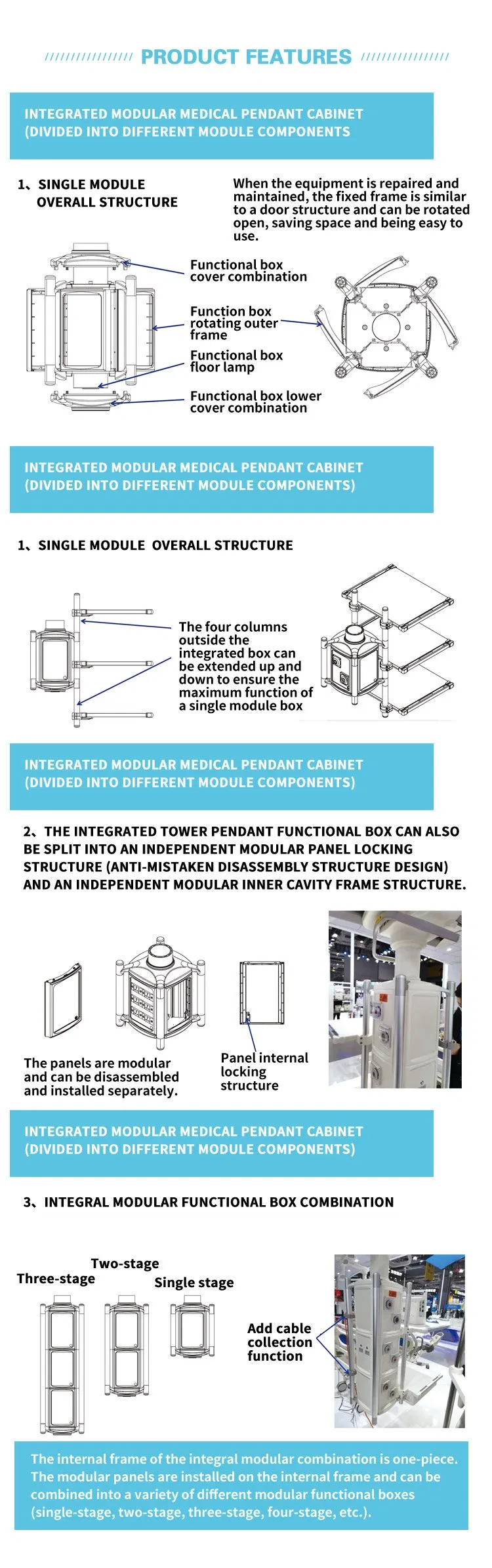

- 🔹 360° Functionality: Four-column series pendant towers deliver comprehensive access with modular design for equipment upgrades.
- 🔹 Precision Braking: Equipped with a damping brake (optional pneumatic or electromagnetic) and 120° precision bearings for flexible, drift-free rotation.
- 🔹 Rotation Range: Horizontal rotation angle ≥340°, with independent or simultaneous movement of the arm and function box.
- 🔹 Gas Terminals: ISO standard terminals with unique colors/shapes; durable for 20,000 cycles; includes Oxygen, Vacuum, and Compressed Air.
- 🔹 Power & Connectivity: 8 power sockets (220V, 10A), RJ45 network port, and two equipotential grounding terminals.
Frequently Asked Questions
What materials are used in the construction of this surgical pendant?
The system is crafted from high-strength aluminum alloy professional profiles with a double-layer honeycomb structure for maximum durability and torsion resistance.
What is the total load capacity of the system?
The tower boasts a net load capacity of 350kg, and the horizontal cross arm can support a total of ≥500kg. Each instrument platform layer can support up to 60kg.
Does the system provide independent rotation?
Yes, the horizontal arm and the function box can rotate independently or simultaneously, with a rotation angle of ≥340 degrees.
How is safety managed regarding electricity and gas?
The internal pipelines are meticulously organized to ensure complete separation of gas and electricity lines, adhering to international safety standards.
What gas terminals and power outlets are included?
Standard configuration includes Oxygen, Negative Pressure Suction, and Compressed Air terminals, along with eight 220V power sockets and an RJ45 network port.
Can the arm length and platform height be customized?
Yes, the horizontal arm is available in radii of 600/800/1000/1200mm, and the instrument platform layers are height-adjustable to meet specific hospital requirements.
