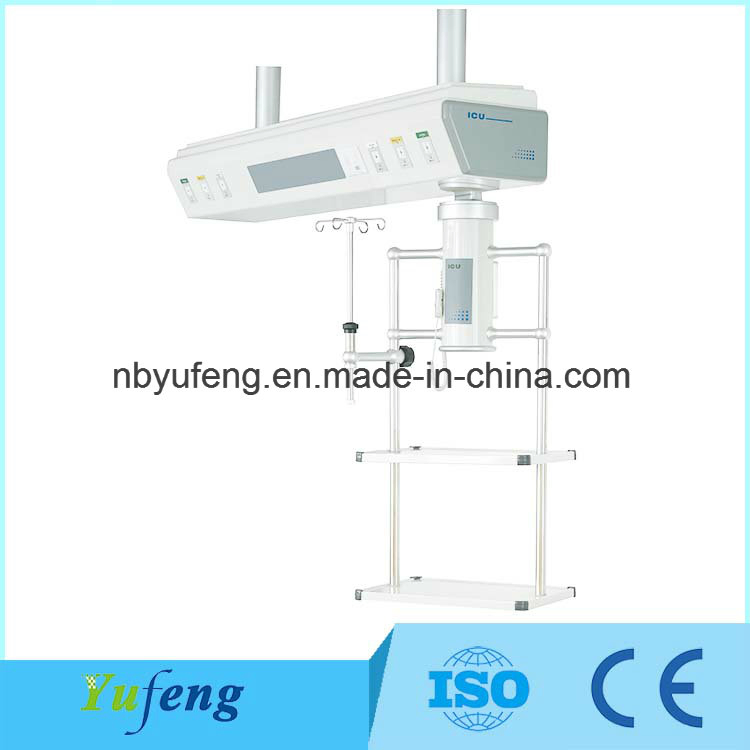

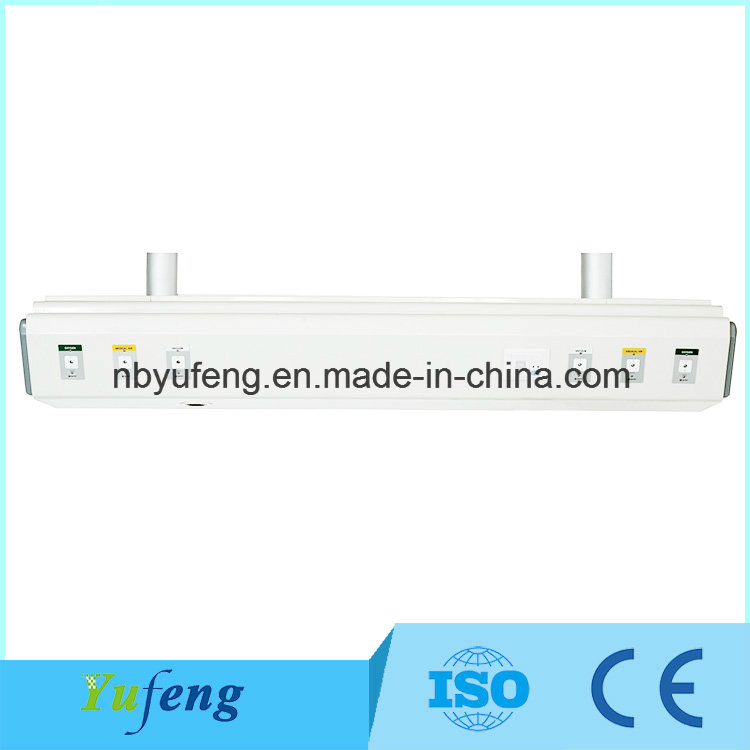

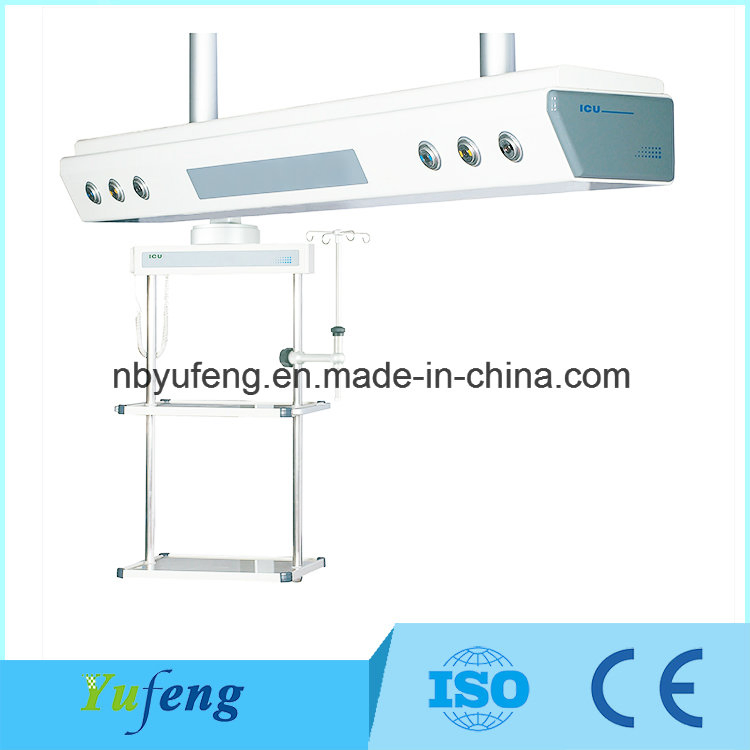

ICU Sick Observing Recovering Rooms Double Workstations Surgical Medical Bridge Pendant Best Goods Made in China
ICU Sick Observing Recovering Rooms Double Workstations Surgical Medical Bridge Pendant Best Goods Made in China
ICU Sick Observing Recovering Rooms Double Workstations Surgical Medical Bridge Pendant Best Goods Made in China
1 / 3
ICU Sick Observing Recovering Rooms Double Workstations Surgical Medical Bridge Pendant Best Goods Made in China
ICU Sick Observing Recovering Rooms Double Workstations Surgical Medical Bridge Pendant Best Goods Made in China
ICU Sick Observing Recovering Rooms Double Workstations Surgical Medical Bridge Pendant Best Goods Made in China

ICU Sick Observing Recovering Rooms Double Workstations Surgical Medical Bridge Pendant Best Goods Made in China

Customization: Available
Customized: Customized
Certification: ISO13485
Send Inquiry

Product Description

📋 Basic Information

Model NO.
YF-GSHYDQ
Type
Medical Gas Equipment
Material
Aluminum
Load Capacity
220kg
Revolve Degree
340°
Usage
Surgical and Monitoring Integrated Platform
Test
100% Airtightness Tested
OEM / ODM
Available

🔍 Product Overview

Applicative Area: Specifically designed for Surgical Rooms, Emergency Rooms, ICU, and Recovery Rooms.
Installation & Mobility: Ceiling-mounted installation with a 340° revolving range. The adjustable terminal box location provides maximum convenience for medical staff operations.
Premium Construction: The suspension arm is crafted from imported high-strength aluminum alloy extrusion. The surface features first-level oxidized rust prevention for long-term durability.
Advanced Braking: Equipped with a Friction brake and Pneumatic brake system. It utilizes German Standard Gas terminals, tested for over 20,000 insert and pull cycles.

⚙️ Technical Specifications

Parameter Details
Product Name ICU Sick Observing Recovering Rooms Double Workstations Surgical Medical Bridge Pendant
Medical Gas Outlets Oxygen*2, Vacuum*2, Air*2 (Customizable, made of brass)
Outlet Standards Ohmeda, French, British, etc. (Customizable)
Rotation Each joint can rotate 340° horizontally; flexible rotation
Equipment Platform 2 pcs (Customizable)
Electrical Sockets 8 pcs, 220V ±15, 50/60Hz (Customizable)
Arm Length 1800mm - 2500mm
Brake System Mechanical brake system to prevent pendant drifting
Surface Finish No splicing seams, no grooves, and no visible screws for hygiene

🖼️ Product Display

Surgical Medical Bridge Pendant View 1

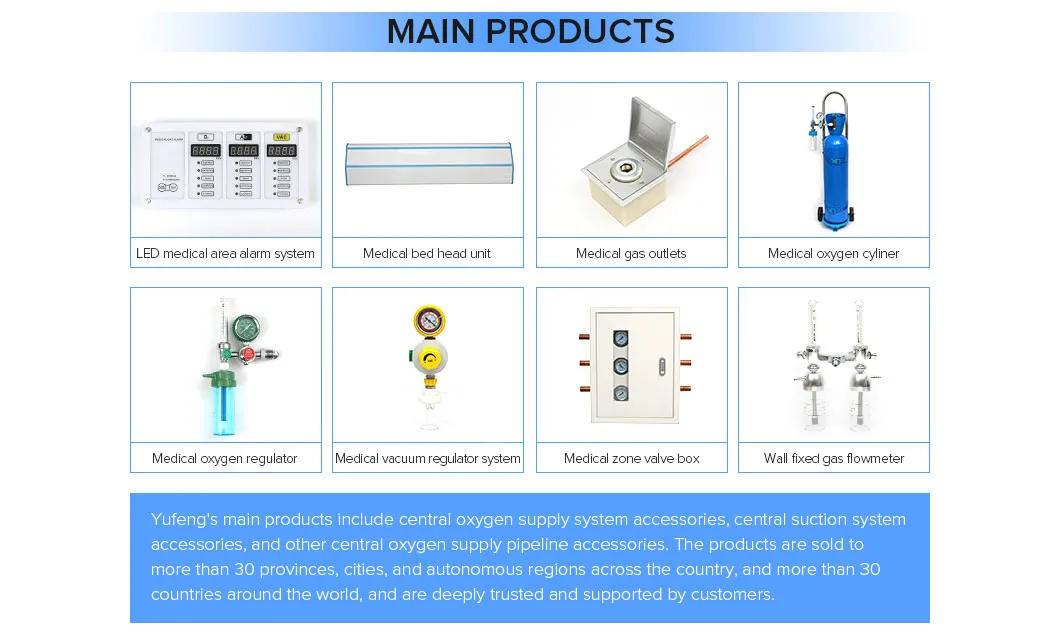

Surgical Medical Bridge Pendant View 2

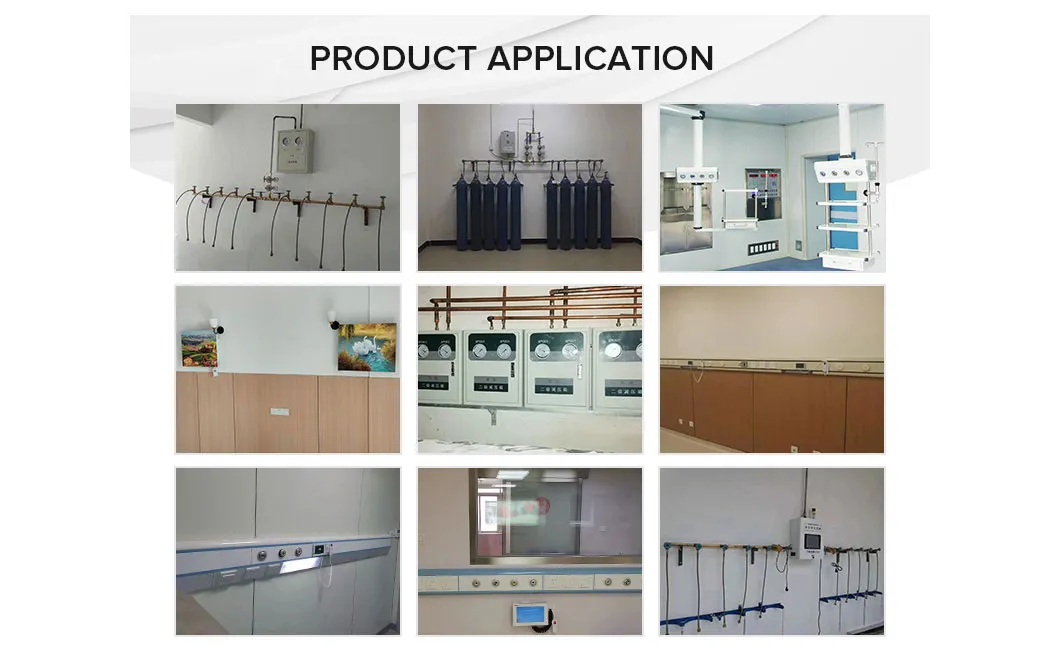

Surgical Medical Bridge Pendant View 3
Surgical Medical Bridge Pendant View 4
Surgical Medical Bridge Pendant View 5
Surgical Medical Bridge Pendant View 6
Surgical Medical Bridge Pendant View 7

❓ Frequently Asked Questions

1. What is the maximum load capacity of this medical pendant?
The medical bridge pendant is designed with a high load capacity of up to 220kg, making it suitable for heavy surgical and monitoring equipment.
2. Can the gas outlets be customized to different international standards?
Yes, we provide various gas outlet standards including Ohmeda, British, and French standards to meet specific hospital requirements.
3. What material is used for the suspension arm?
The suspension arm is made from high-strength aluminum alloy extrusion with a specialized oxidized rust-prevention surface treatment.
4. How does the brake system prevent the pendant from drifting?
The system utilizes a combination of friction and pneumatic brakes (machine brake system) to ensure the pendant remains securely in place during medical procedures.
5. What is the rotation range of the joints?
Each joint is designed to rotate up to 340° horizontally, providing flexible positioning and ease of use for medical staff.
6. Is the pendant suitable for ICU environments?
Absolutely. It is specifically designed for ICU, Surgical Rooms, Emergency Rooms, and Recovery Rooms as a total solution for hospital projects.
