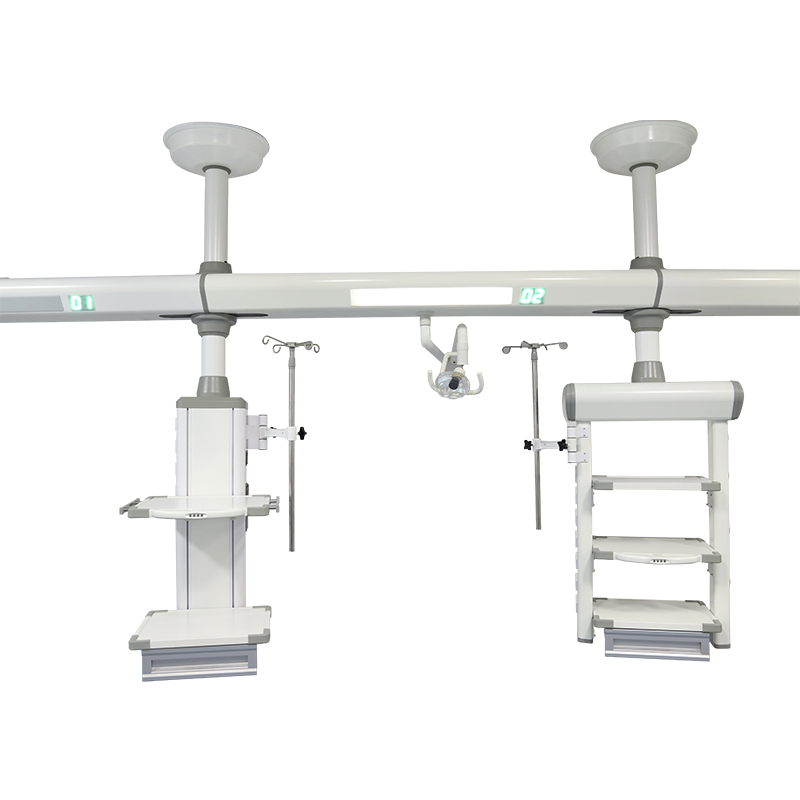

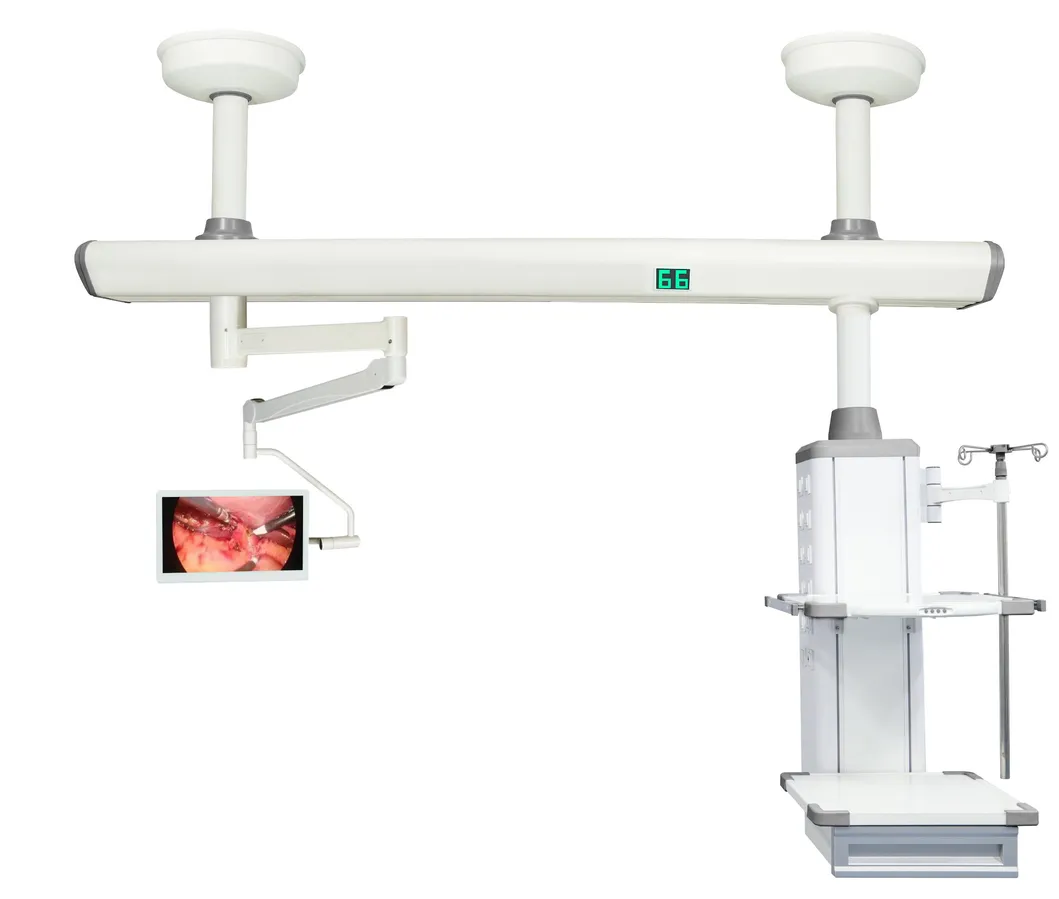

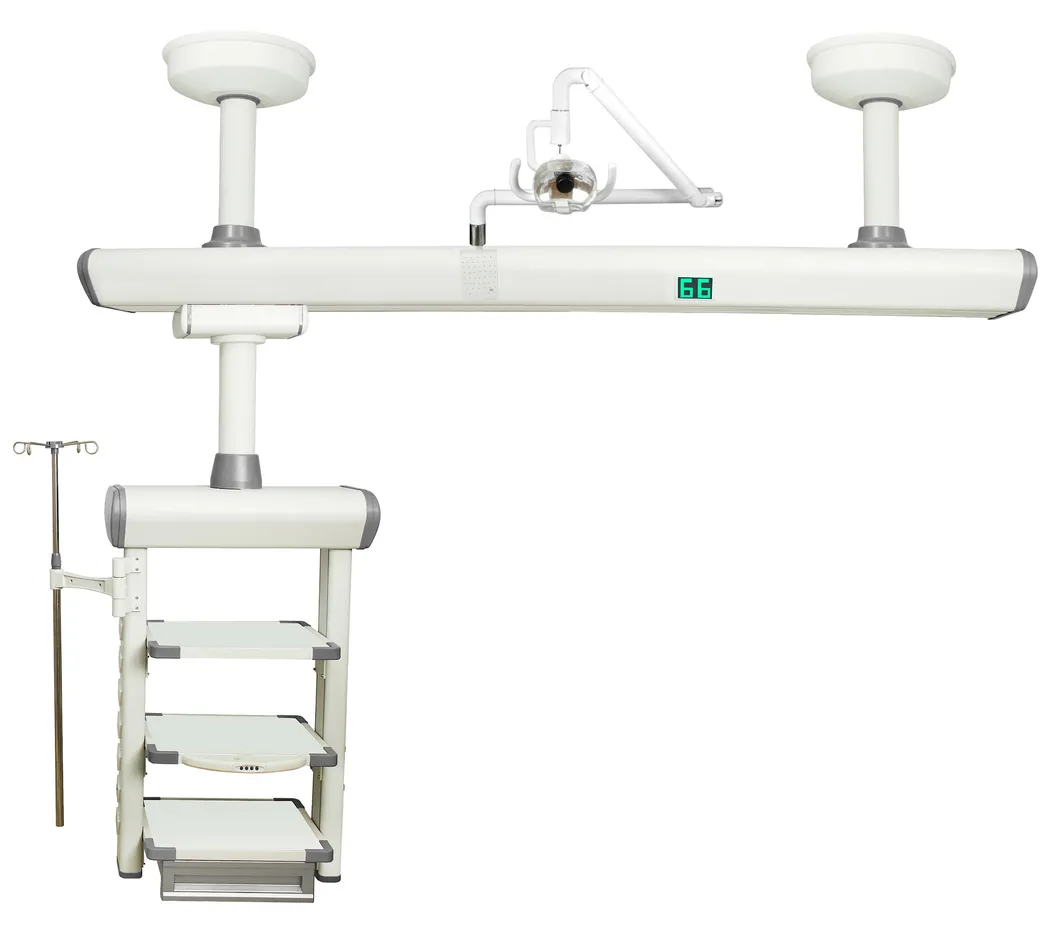

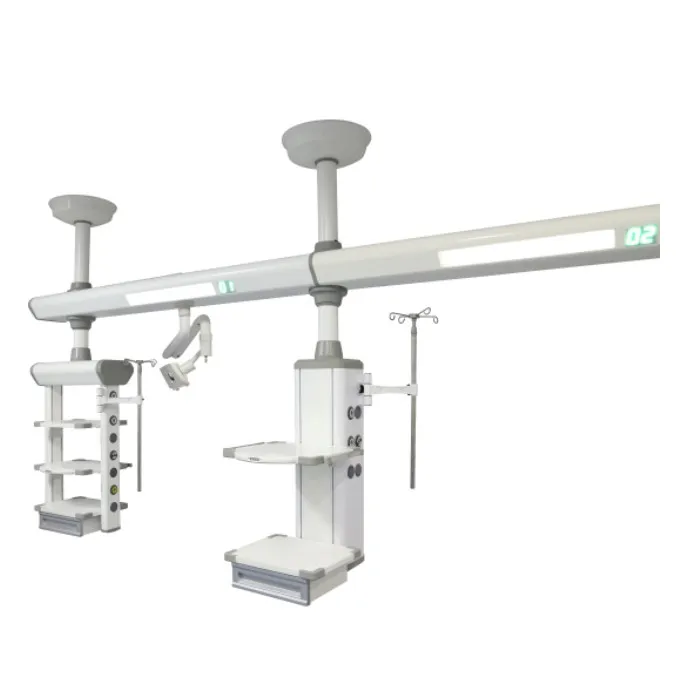

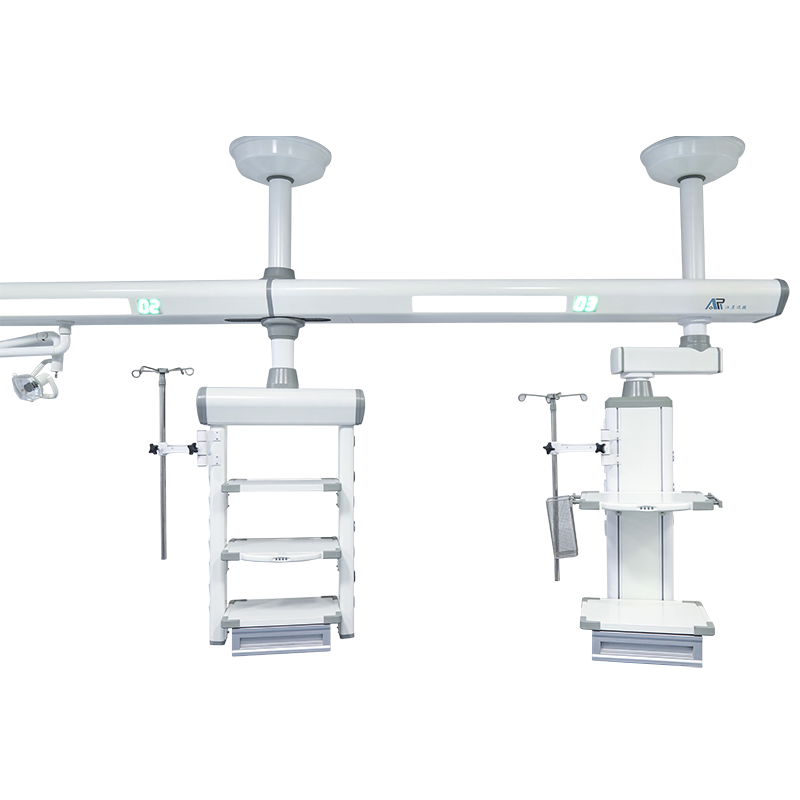

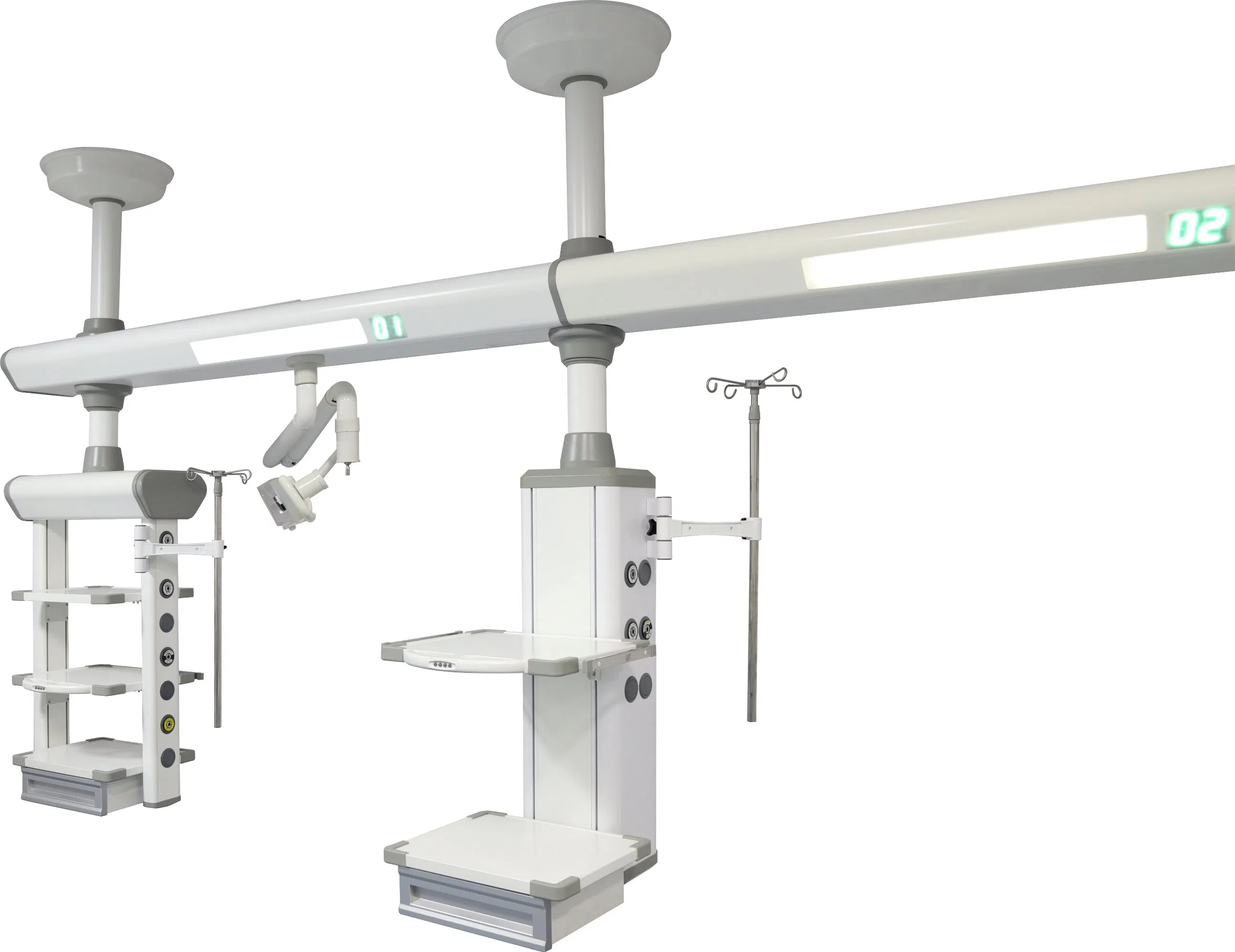

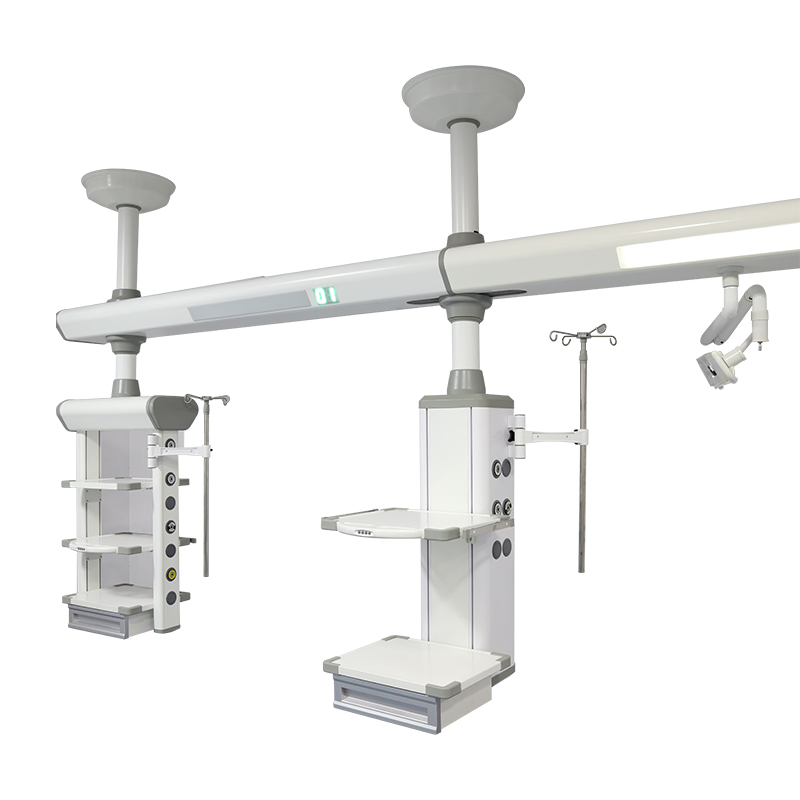

The ICU pendant Bridge has a simple and compact structure and is easy to use. It is an ideal medical gas power supply, network output terminal and instrument carrying workstation for the operating room; the installation adopts the ceiling suspension mode, and the swing arm can rotate within 340 degrees. It is equipped with mechanical brakes to prevent drift, and the height of the equipment makes it easy for medical personnel to lift their hands. It is an indispensable medical auxiliary equipment in the operating room of small and medium-sized hospitals.
| Parameter Item | Specifications |
|---|---|
| Arm length | 500-1000 mm |
| Bridge length | 2300-3000mm |
| Console height | 600-1200mm |
| Power socket | 12pcs sockets, European, US for optional |
| Equipotential | 2pcs |
| Network socket | 1pc |
| Gas terminal | Oxygen/4nos, Air/2nos, Vac/2nos (Germany, BS, US, France, Japan optional) |
| Gas tube | Import gas pipeline |
| Platform | 5pcs, size 550 mm * 420 mm |
| Drawer | 2pcs |
| Working power | 220V 50HZ 10A |
| Infusion support | Stainless steel infusion rack 1 set |
Console height from 600mm-1200mm (customizable), rotation 340 degrees, gas-electric separation design for enhanced safety.
Trays: 550*420mm, easy to clean and disinfect. Round Angle anti-collision design, height adjustable, with standard side rails.
Drawer: Features an automatic reset device.
Supports Oxygen, Air, and Vacuum. Different shapes to avoid improper insertion. Durability tested for over 20,000 insertions. Supports German, American, British, and French standards.
