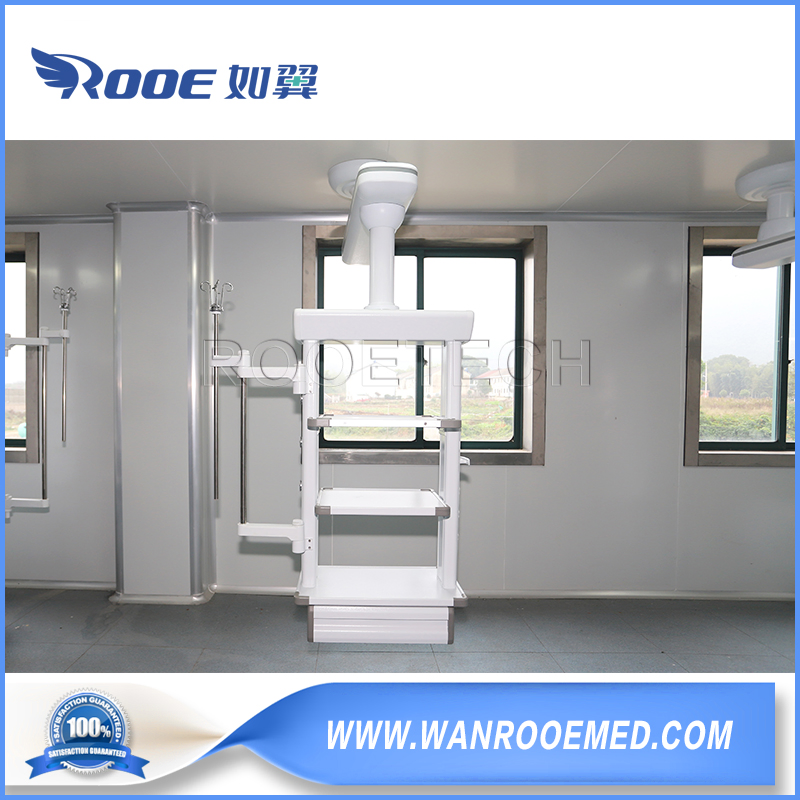

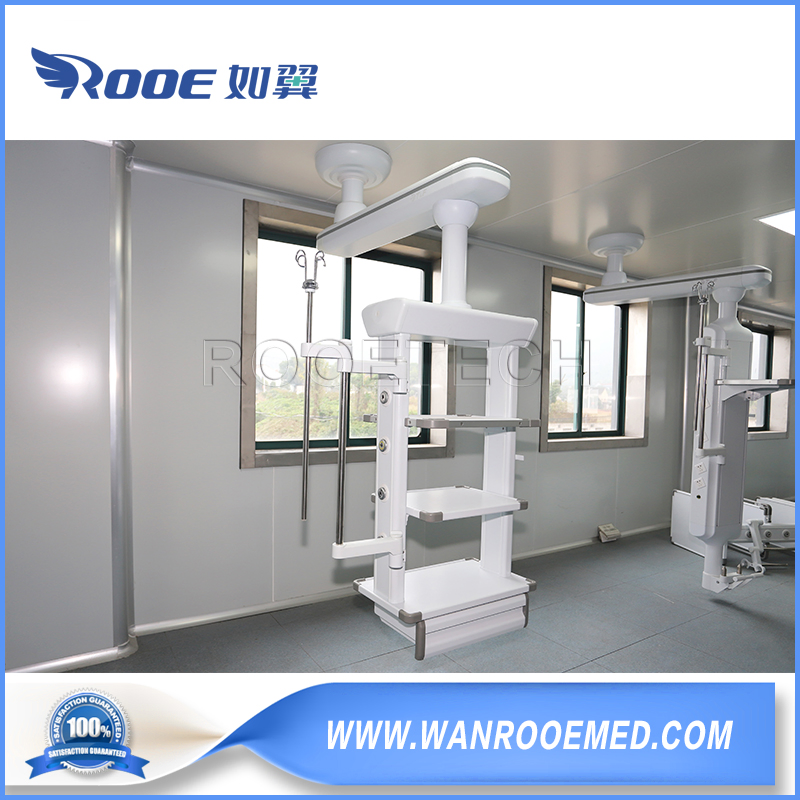

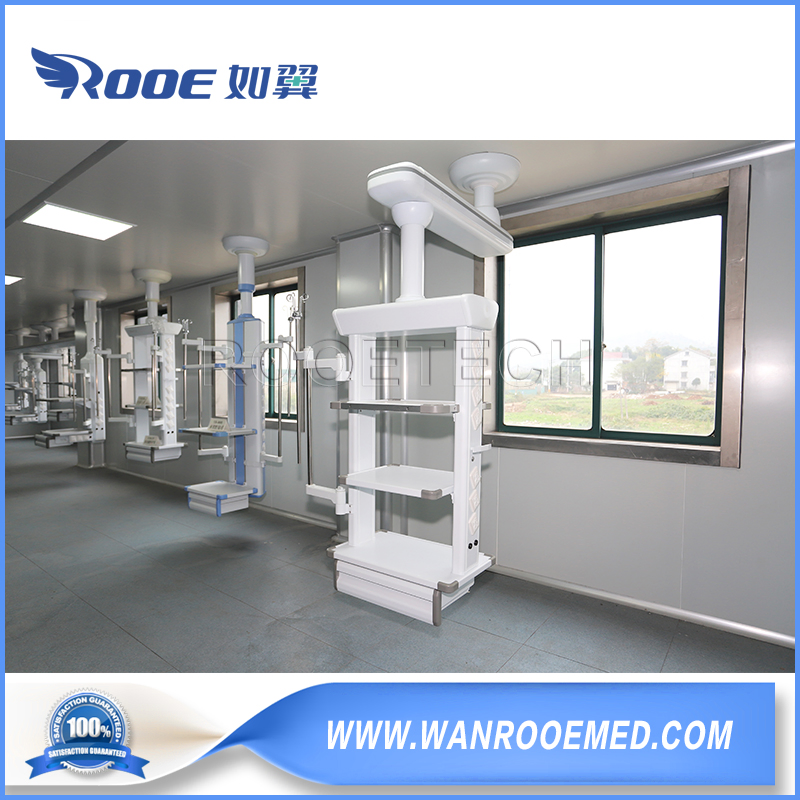

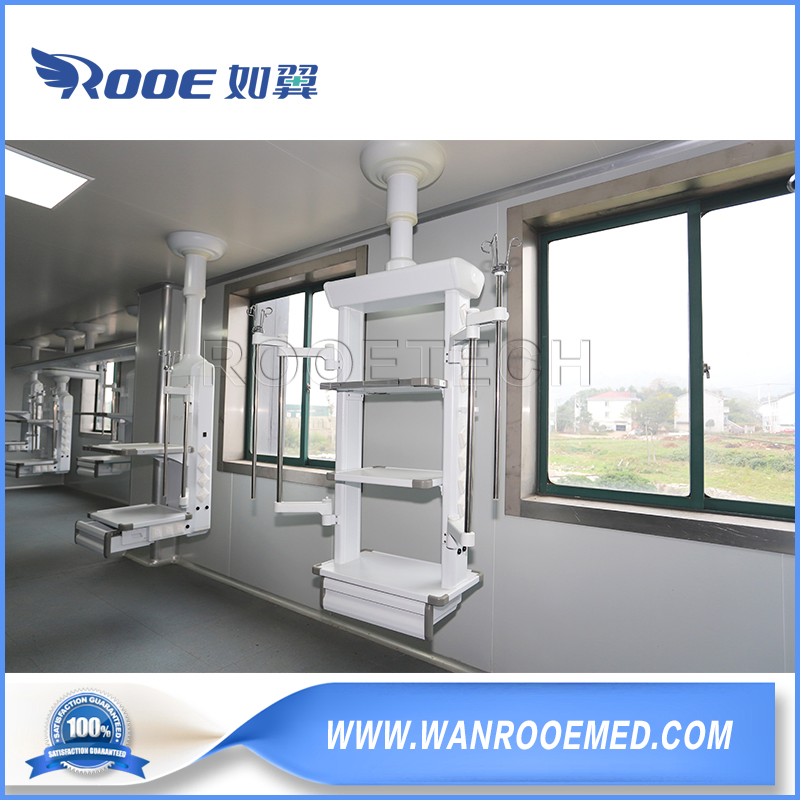

Aot-Dt-40 Electric Vertical Lifting Endoscopic Surgical ICU Bridge Operating Pendant
Aot-Dt-40 Electric Vertical Lifting Endoscopic Surgical ICU Bridge Operating Pendant
Aot-Dt-40 Electric Vertical Lifting Endoscopic Surgical ICU Bridge Operating Pendant
Aot-Dt-40 Electric Vertical Lifting Endoscopic Surgical ICU Bridge Operating Pendant
Aot-Dt-40 Electric Vertical Lifting Endoscopic Surgical ICU Bridge Operating Pendant
1 / 5
Aot-Dt-40 Electric Vertical Lifting Endoscopic Surgical ICU Bridge Operating Pendant
Aot-Dt-40 Electric Vertical Lifting Endoscopic Surgical ICU Bridge Operating Pendant
Aot-Dt-40 Electric Vertical Lifting Endoscopic Surgical ICU Bridge Operating Pendant
Aot-Dt-40 Electric Vertical Lifting Endoscopic Surgical ICU Bridge Operating Pendant
Aot-Dt-40 Electric Vertical Lifting Endoscopic Surgical ICU Bridge Operating Pendant

Aot-Dt-40 Electric Vertical Lifting Endoscopic Surgical ICU Bridge Operating Pendant

Customization: Available
Type: Surgical Operating Pendant
Kind: Surgical Operating Pendant
Send Inquiry

Product Description

Basic Information
Model NO.
AOT-DT-40
Certification
CE, ISO13485
Group
Adult
Horizontal Rotating
340°
Tray
3 PCS Layers
Working Power
AC220V 50Hz
Sockets
8 PCS (220V/10A)
Grounding Terminal
2 PCS
Moving Radius (Single)
1000mm
Moving Radius (Double)
800+800mm
HS Code
9402900000
Production Capacity
1000 Set/Month
Product Description

AOT-DT-40 Electric Vertical Lifting Endoscopic Surgical ICU Bridge Operating Pendant

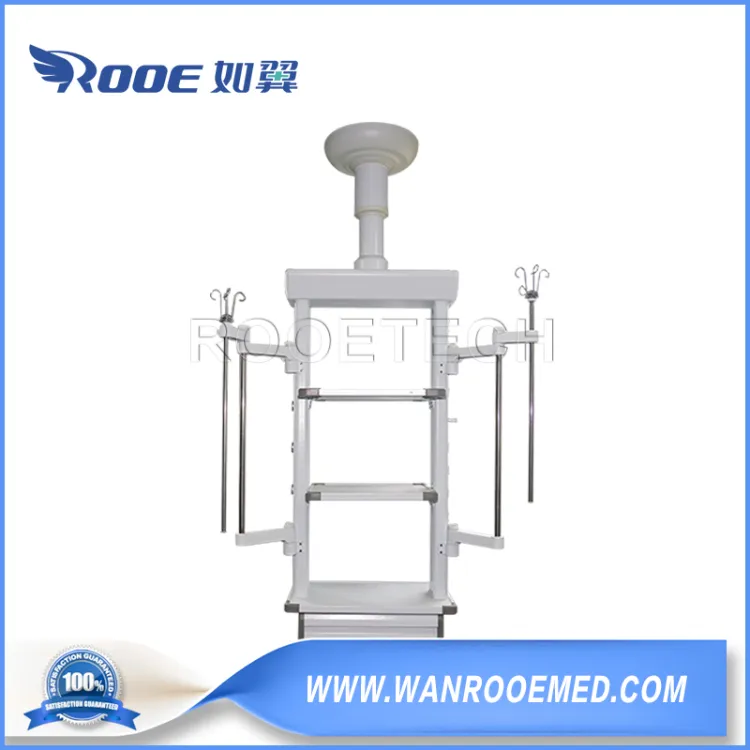

AOT-DT-40 Electric Pendant

Description:
The endoscopy pendant is an essential air supply medical equipment for modern operating rooms. It is primarily used for terminal conversion of medical gases such as oxygen supply, suction, compressed air, and nitrogen. The single arm pendant is driven by a motor that controls the lifting of the equipment platform, ensuring fast and efficient operation.

Key Features

Electric Surgical Pendant:

  • The lifting arm radius can reach 340° with flexible and accurate rotary braking.
  • Optional arms are available to provide increased space and flexibility.
  • Powered by electric motors for smooth vertical movement.
  • High-strength aluminum alloy material with a multiple load-bearing design.
  • Electrical separation: Gas source on the left, power supply on the right to ensure safety.
  • Gas brakes applied to each joint for precise positioning and locking.
  • Equipped with partitions and drawers for medical instruments.
  • Versatile use: Operating rooms (anesthesia/surgical), emergency rooms, or ICU.

Mechanical Pendant:

  • Manual control of the lifting tower angle to improve operational efficiency.
  • Ceiling suspension design specifically for ICU ward medical assistance.
Technical Specifications
AOT-DT-40 Specifications
Working PowerAC220V 50Hz
Moving Radius1000mm (Single Arm) / 800+800mm (Double Arm)
MaterialHigh-strength Aluminum Alloy
Surface TreatmentElectrophoresis and Powder Coating
Level Rotation Angle340°
Standard Gas OutletsO2*2, VAC*2, AIR*1
Trays & Sockets3 Trays / 8 Sockets (220V/10A)
Network InterfaceRJ45 1 pc
Net Load (Single Arm)200KG
Net Load (Double Arm)150KG
Single Tray Net Load50KG

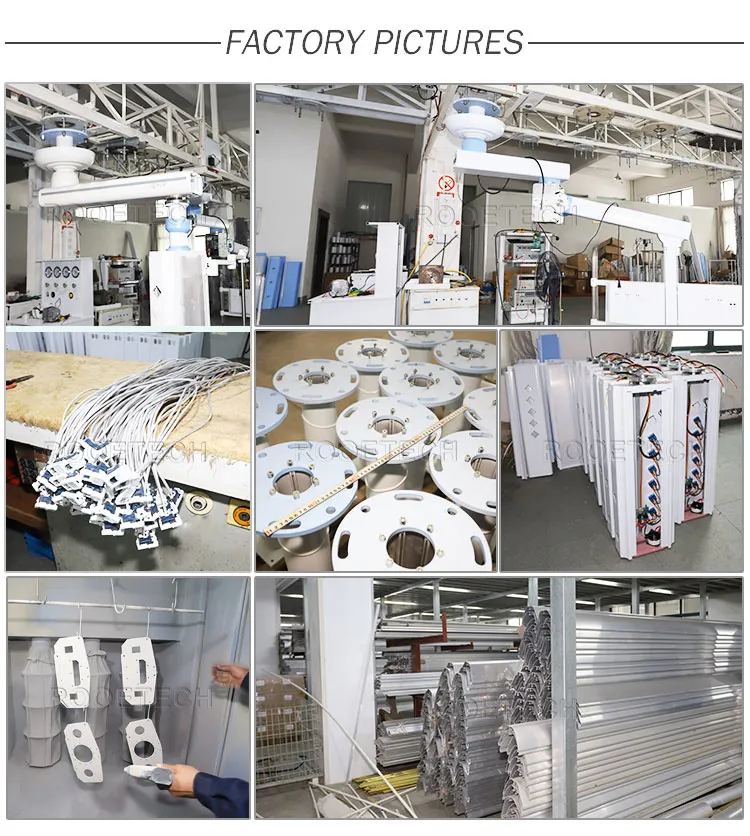

Product Detail 1
Product Detail 2
Frequently Asked Questions
What is the primary application of the AOT-DT-40 pendant?
It is designed for modern operating rooms, emergency rooms, resuscitation rooms, and ICU environments, serving as an anesthesia or surgical crane.
How does the electric lifting mechanism benefit medical staff?
The motor-driven vertical lifting allows for fast, efficient, and effortless adjustment of the equipment platform height during surgical procedures.
Is the equipment safe from electrical interference with gas supplies?
Yes, the pendant features a strict electrical separation design, with gas interfaces on the left and power sockets on the right to ensure maximum safety.
What is the rotation range and how is it locked?
The arm offers a 340° horizontal rotation. It utilizes a gas brake system at each joint to lock the tower body securely in place.
What is the maximum load capacity for the trays?
Each single tray has a net load capacity of 50kg, while the overall system can support up to 200kg for single-arm configurations.
What gas outlets are included as standard?
The standard configuration includes two Oxygen (O2) outlets, two Vacuum (VAC) outlets, and one Compressed Air (AIR) outlet.
