| Parameter | Details |
|---|---|
| Dimension | 330*280*100(mm) |
| Carton Size | 440*390*260(mm) |
| Gross Weight | 8 kg |

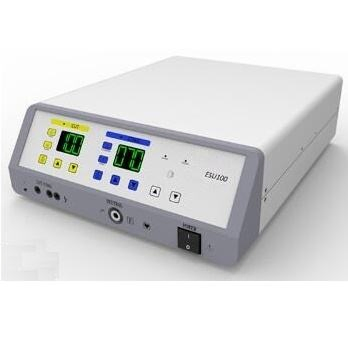

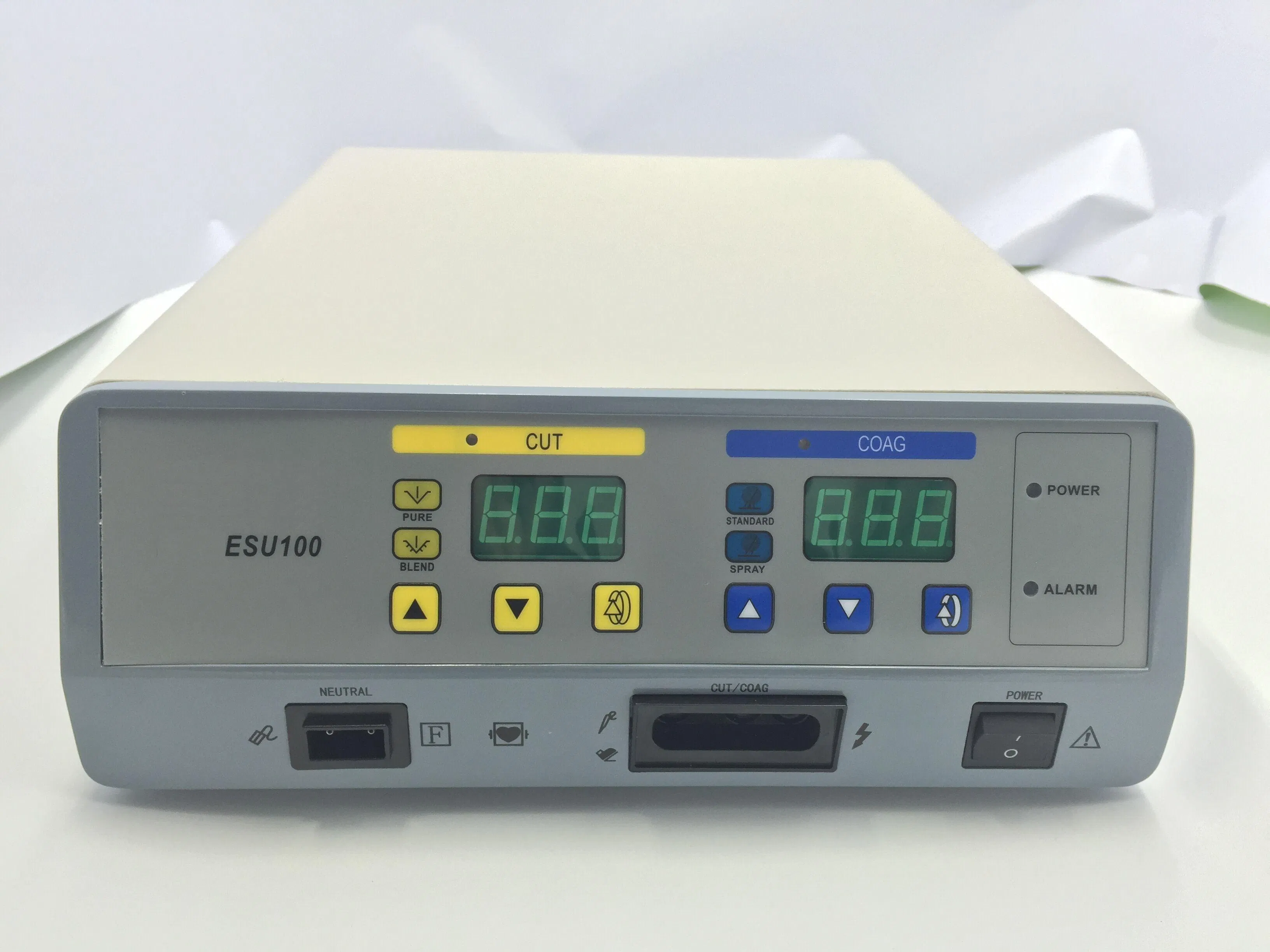

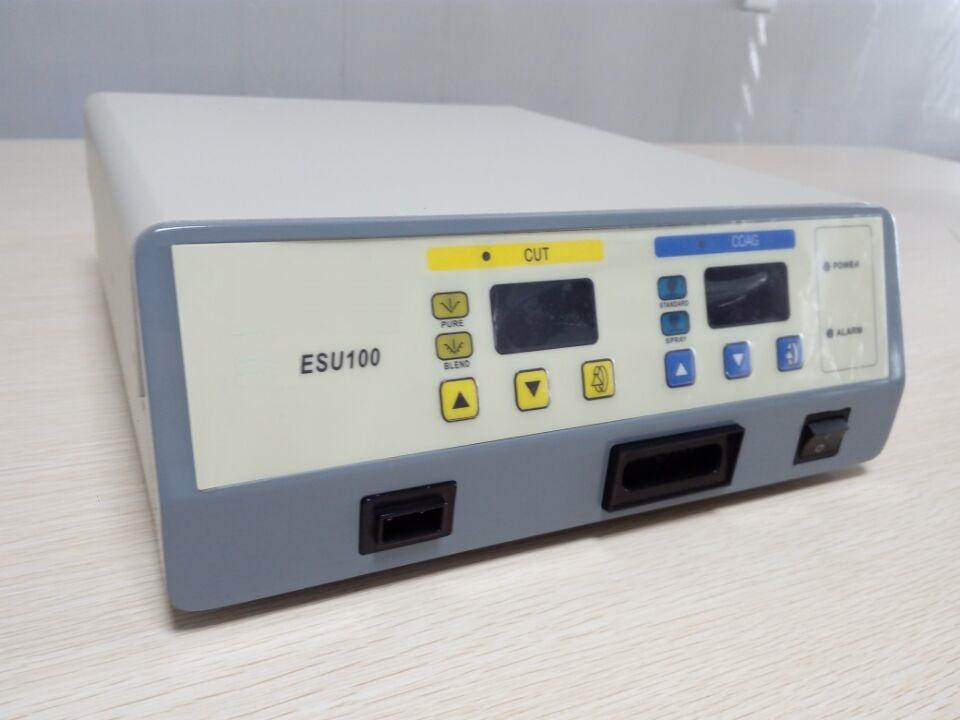

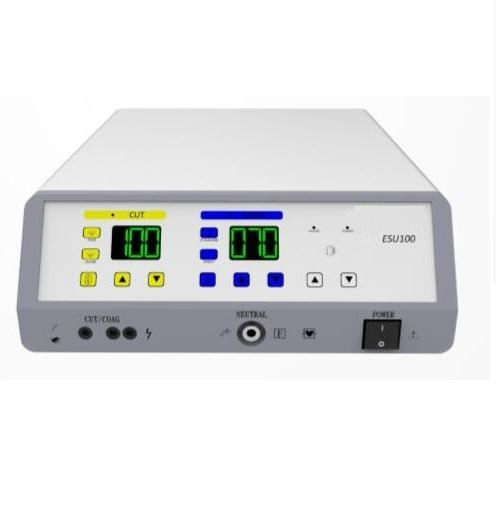

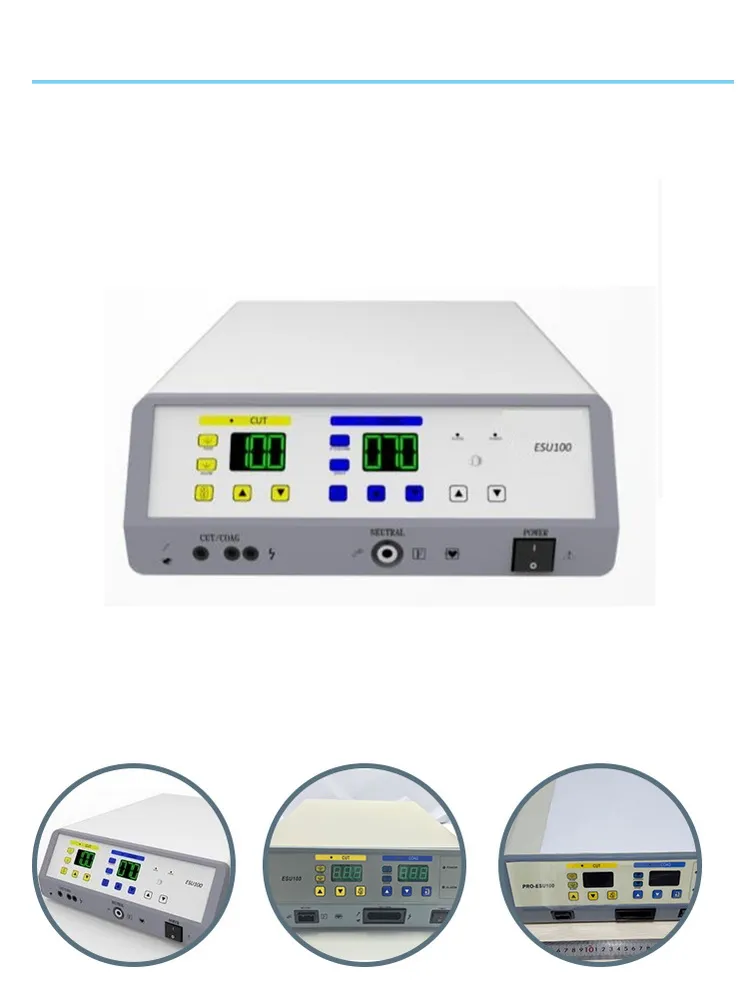

| Model | AM-ESU100 |
| Work Mode | Frequency | Rated Power | Increment | Form of HF Current |
|---|---|---|---|---|
| Monopolar Cut | 500KHz | 0-100W/300Ω | 2-5 Watt | Sine Wave |
| Monopolar Blend | 500KHz | 0-70W/300Ω | 2-5 Watt | Modulate Sine Wave |
| Monopolar Standard Coag | 500KHz | 0-70W/300Ω | 2-5 Watt | Modulate Sine Wave |
| Monopolar Spray Coag | 500KHz | 0-50W/300Ω | 2-5 Watt | Modulate Sine Wave |
A1: The device features 4 main working modes: Monopolar Cut (Pure/Blend) and Monopolar Coagulation (Standard/Spray), providing versatility for various surgical needs.
A2: It includes a return electrode monitoring system that actively prevents patient burns and damage. Additionally, it has an auto-terminate feature that cuts power after 5 seconds of continuous output to prevent misoperation.
A3: Yes, the unit is designed for minimal sticking and carbonization, which significantly reduces surgical damage and promotes better healing.
A4: The Monopolar Cut mode provides a rated power of 0-100W at 300Ω, with adjustable increments of 2-5 Watts for precise control.
A5: The AM-ESU100 is Class II instrument classification and holds both CE and ISO quality certifications.
A6: Yes, the system supports both hand switch and foot switch operations for the convenience of the surgeon.
