Surgical Medical Esu Portable High Frequency Smart Cautery Electrosurgical Unit
Surgical Medical Esu Portable High Frequency Smart Cautery Electrosurgical Unit
Surgical Medical Esu Portable High Frequency Smart Cautery Electrosurgical Unit
Surgical Medical Esu Portable High Frequency Smart Cautery Electrosurgical Unit
Surgical Medical Esu Portable High Frequency Smart Cautery Electrosurgical Unit
1 / 5
Surgical Medical Esu Portable High Frequency Smart Cautery Electrosurgical Unit
Surgical Medical Esu Portable High Frequency Smart Cautery Electrosurgical Unit
Surgical Medical Esu Portable High Frequency Smart Cautery Electrosurgical Unit
Surgical Medical Esu Portable High Frequency Smart Cautery Electrosurgical Unit
Surgical Medical Esu Portable High Frequency Smart Cautery Electrosurgical Unit

Surgical Medical Esu Portable High Frequency Smart Cautery Electrosurgical Unit

Type: Electrorugeical Unit
Kind: Surgery
Certification: CE, FDA, ISO13485
Send Inquiry

Product Description

Basic Specifications
Model NO.
MS-E300W
Group
Adult
LCD Display
With LCD Display
G.W
14.5 Kg
N.W
8.7 Kg
Transport Package
1 Piece in a Box
Specification
440*390*260mm
Origin
China
HS Code
9018193010
Production Capacity
10000PCS/Year
Product Visuals
Electrosurgical Unit Main View

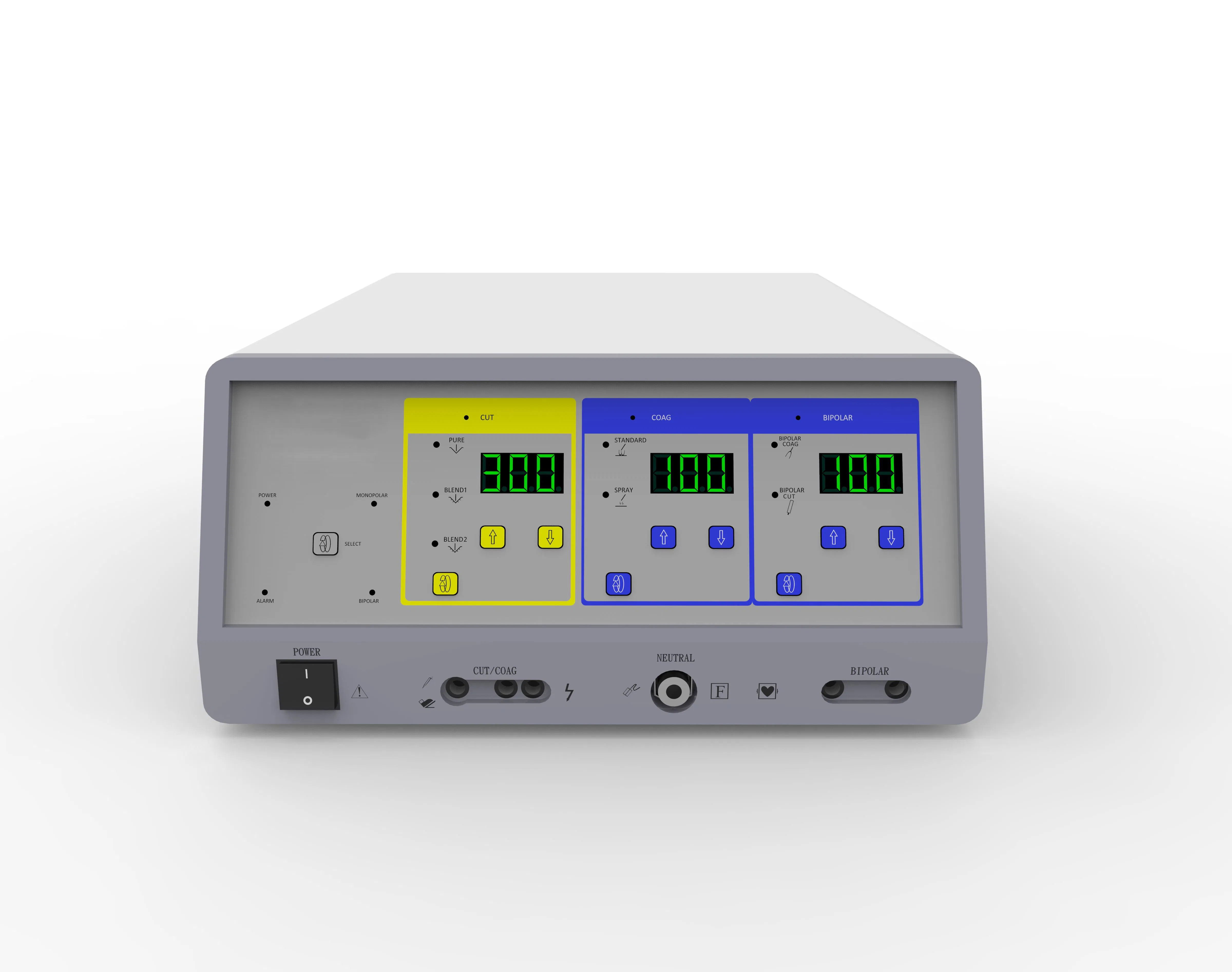

Electrosurgical Unit Front Panel

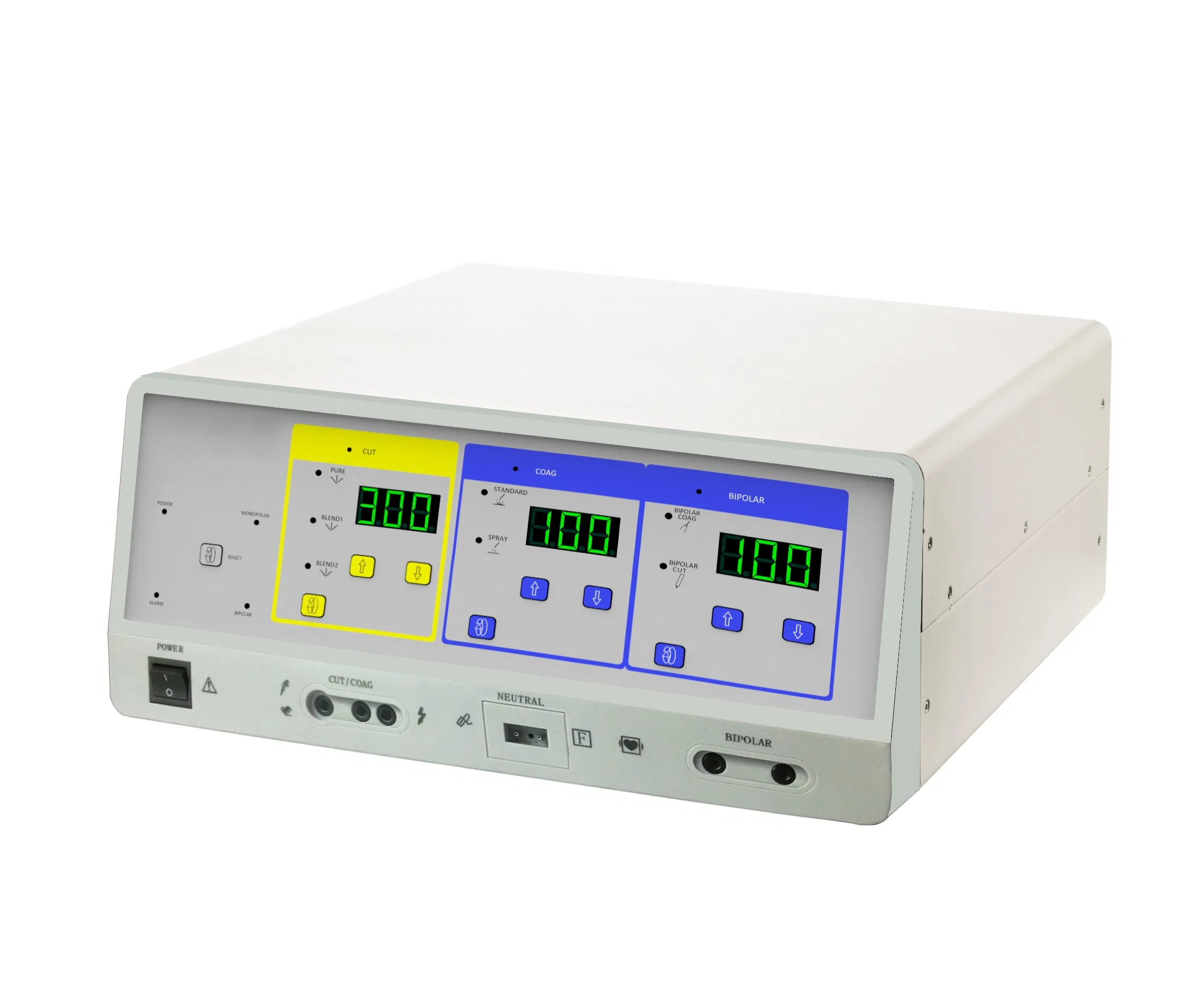

Electrosurgical Unit Details

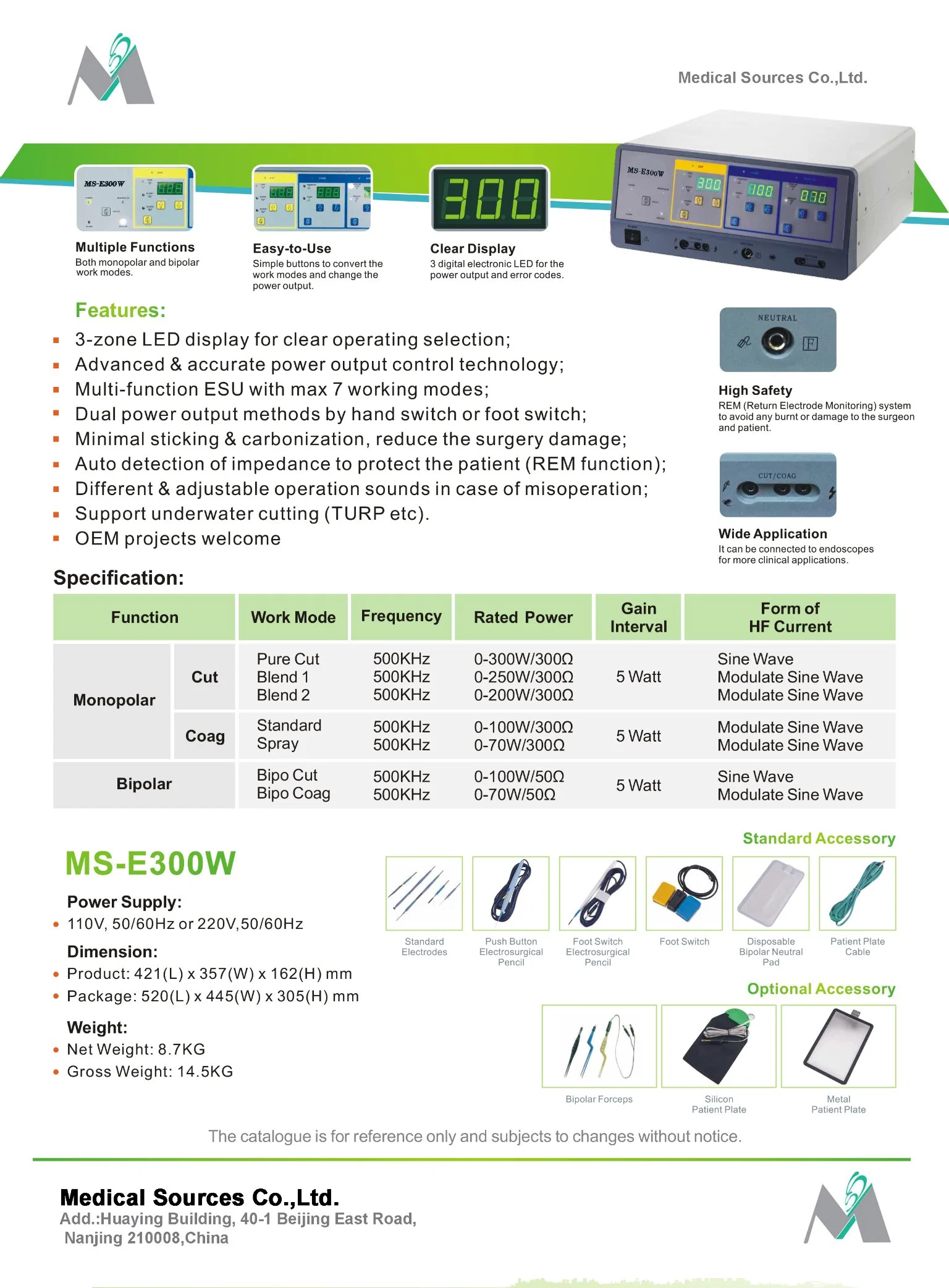

Key Features
3-zone LED display for clear operation selection.
Advanced & accurate power output control technology.
Multi-function ESU with max 7 working models.
Dual power output methods by hand switch or foot switch.
Minimal sticking & carbonization, reducing surgery damage.
Auto detection of impedance to protect the patient (REM function).
Support underwater cutting (TURP etc).
Technical Parameters
Function Work Mode Frequency Rated Power Increment HF Current Form
Monopolar Cut Pure cut 500KHz 0-300W / 300Ω 5 Watt Sine Wave
Blend 1 500KHz 0-250W / 300Ω 5 Watt Modulate Sine Wave
Blend 2 500KHz 0-200W / 300Ω 5 Watt Modulate Sine Wave
Monopolar Coag Standard 500KHz 0-100W / 300Ω 5 Watt Modulate Sine Wave
Spray 500KHz 0-70W / 300Ω 5 Watt Modulate Sine Wave
Bipolar Bipo Cut 500KHz 0-100W / 50Ω 5 Watt Sine Wave
Bipo Coag 500KHz 0-70W / 50Ω 5 Watt Modulate Sine Wave
Operating Environment & Size
Power Supply
110V/220V, 50/60Hz
Product Size
421(L) * 357(W) * 162(H) mm
Package Size
520(L) * 445(W) * 305(H) mm
Net Weight
8.7 KG
Gross Weight
14.5 KG
Frequently Asked Questions
What is the maximum power output of the MS-E300W?
The MS-E300W provides a maximum power output of 300 Watts in Pure Cut mode, suitable for a wide range of surgical procedures.
Does this unit support bipolar procedures?
Yes, it features dedicated Bipolar Cut (up to 100W) and Bipolar Coagulation (up to 70W) modes for precise surgical control.
Is the MS-E300W suitable for underwater surgery?
Absolutely. The device is designed to support underwater cutting, making it ideal for procedures such as TURP (Transurethral Resection of the Prostate).
How does the REM function enhance patient safety?
The REM (Return Electrode Monitoring) function automatically detects impedance levels. If an unsafe connection is detected, the system alerts the user to prevent patient burns.
How many working modes does this electrosurgical unit offer?
The unit offers 7 versatile working modes, including Pure Cut, Blend 1, Blend 2, Standard Coag, Spray Coag, Bipolar Cut, and Bipolar Coag.
Can the operation sounds be adjusted?
Yes, the MS-E300W features different and adjustable operation sounds to help prevent misoperation and ensure a safe surgical environment.
