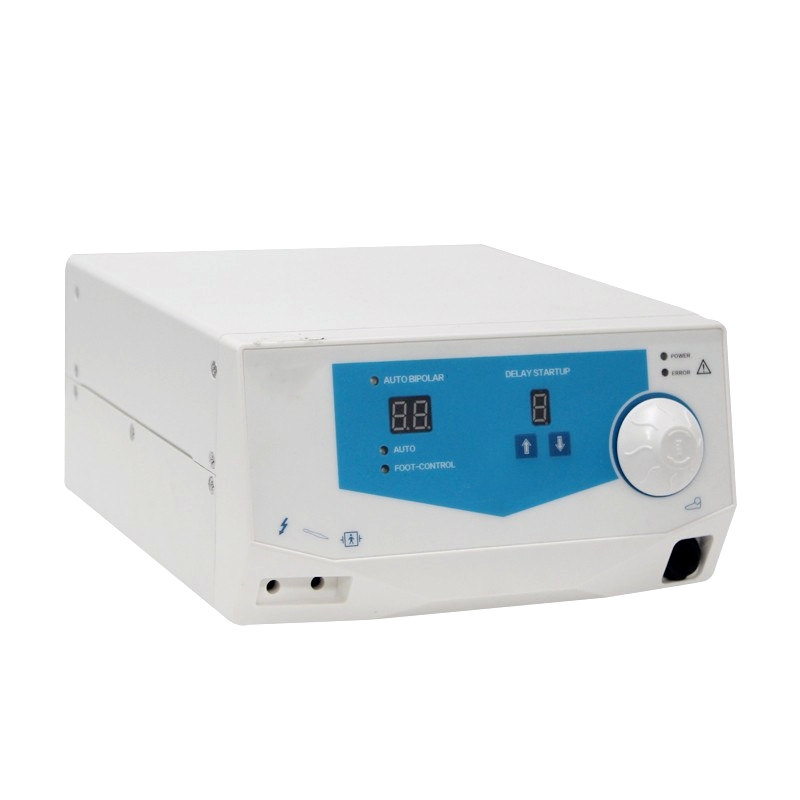

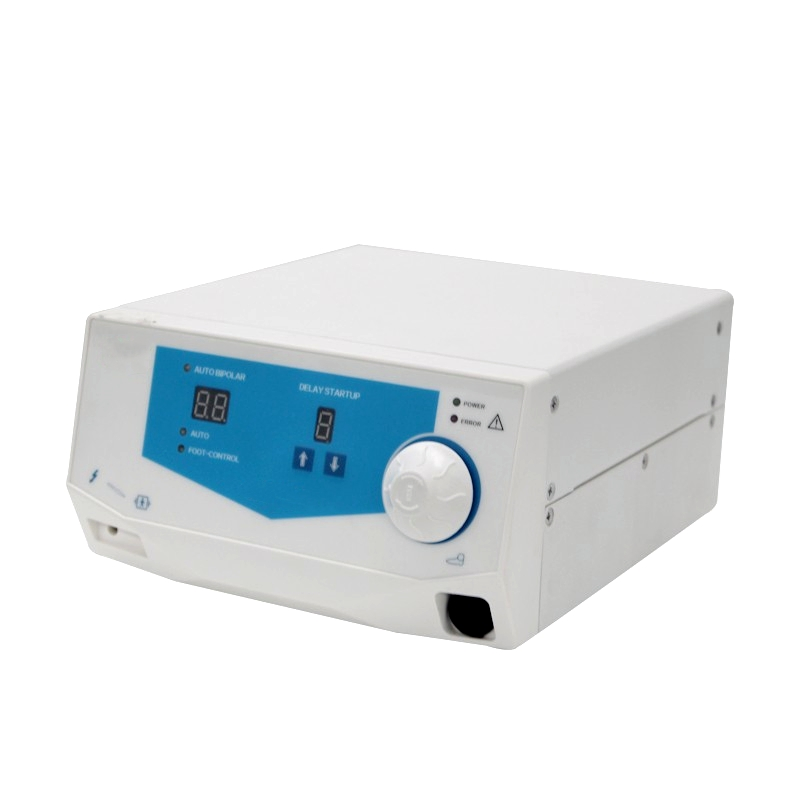

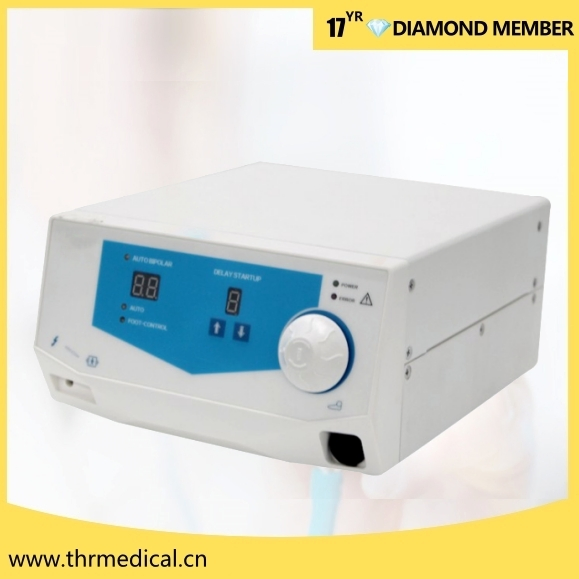

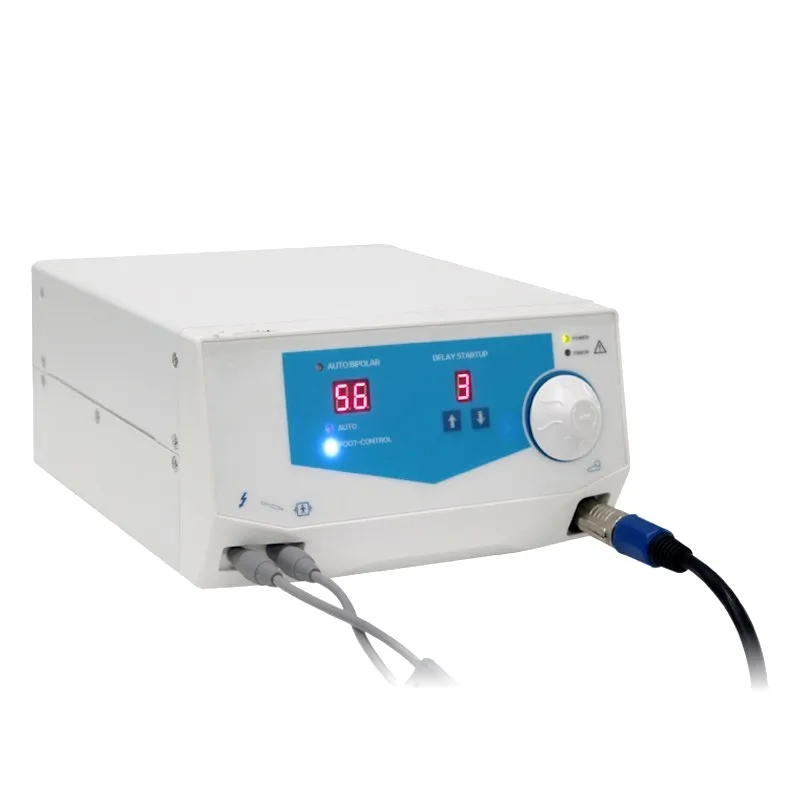

Esu Electrosurgical Generator Surgical Cold Bipolar Coagulator CE Certified Electrosurgical Unit

Customization: Available
Type: Electrosurgical Generator
Kind: Cold Bipolar Coagulator

Product Description

Basic Information
Model NO.THR-EP05
CertificationCE, ISO13485
LCD DisplayWith LCD Display
Bipolar Output5W ~ 80W
Auto Bipolar5W ~ 80W
Production Capacity50000PCS/Year
Key Features & Applications
  • ● Low voltage output
  • ● Sparkless in operation
  • ● Superb non-stick effect
  • ● Specialized for Neurosurgery
  • ● Ophthalmology & Gynecology
  • ● Plastic Surgery Compatible
Technology Data
Parameter Specification
Working Voltage220V±10V, 50Hz
Working Frequency1000KHz
Leakage Currents to GroundLess than 0.5mA
Leakage Currents to PatientLess than 0.01mA
Relative Moisture Range≤80%
Atmosphere Pressure Range86.0 Kpa ~ 106.0 Kpa
Working Modes
Bipolar 5w ~ 80w (Load:100Ω) - Activated by foot switch
Auto Bipolar 5w ~ 80w (Load:100Ω) - Auto mode, activated by hand
Standard Accessories: Reusable bipolar forceps and cables included.
Production & Quality Control
Production Process 1 Production Process 2 Production Process 3 Production Process 4
Frequently Asked Questions
Q1: Which surgical departments is the THR-EP05 best suited for?
A1: This electrosurgical generator is specifically designed for high-precision departments including neurosurgery, ophthalmology, gynecology, and plastic surgery.
Q2: What is the main advantage of the "Cold Bipolar" technology?
A2: The cold bipolar technology ensures a superb non-stick effect on tissue, operates sparkless, and uses low voltage to minimize thermal damage to surrounding areas.
Q3: Does the device support automatic activation?
A3: Yes, the unit features an "Auto Bipolar" mode that can be activated by hand, in addition to the standard bipolar mode activated by a foot switch.
Q4: How can the surgeon monitor the power settings?
A4: The device is equipped with a clear LCD display that provides real-time visualization of the power output and working status.
Q5: What are the power output specifications?
A5: Both Bipolar and Auto Bipolar modes offer an adjustable power output range from 5W to 80W, suitable for various delicate procedures.
Q6: What certifications ensure the safety of this equipment?
A6: The THR-EP05 is fully compliant with international medical standards, holding both CE and ISO13485 certifications.
