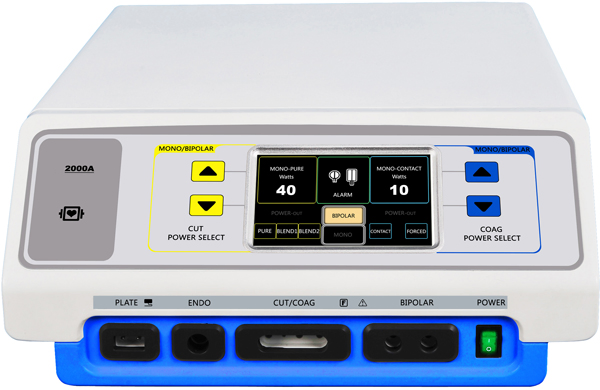

Med-Esu-Leep-5 Leep Five Working Modes, Electrosurgical Unit China
Med-Esu-Leep-5 Leep Five Working Modes, Electrosurgical Unit China
Med-Esu-Leep-5 Leep Five Working Modes, Electrosurgical Unit China
Med-Esu-Leep-5 Leep Five Working Modes, Electrosurgical Unit China
Med-Esu-Leep-5 Leep Five Working Modes, Electrosurgical Unit China
1 / 5
Med-Esu-Leep-5 Leep Five Working Modes, Electrosurgical Unit China
Med-Esu-Leep-5 Leep Five Working Modes, Electrosurgical Unit China
Med-Esu-Leep-5 Leep Five Working Modes, Electrosurgical Unit China
Med-Esu-Leep-5 Leep Five Working Modes, Electrosurgical Unit China
Med-Esu-Leep-5 Leep Five Working Modes, Electrosurgical Unit China

Med-Esu-Leep-5 Leep Five Working Modes, Electrosurgical Unit China

Customization: Available
Certification: CE, ISO13485
Power: 220V+/-22V, 50Hz+/-1Hz (110V+/-11V, 60Hz)
Send Inquiry

Product Description

Basic Info
Model NO.
MED-ESU-LEEP-5
Operating Frequency
360~460kHz
Power Rating
880va±10%
Power Consumption
<=880va(Cutting Function 200W)
AC Power
AC90~250V, 50Hz
Stop Delay Time
0-60s
Suction Adjust
10%-100%
Start Control
Manus/Foot/Synchronize
Noise
<60db(a)
Transport Package
Standard Packing for Export
Specification
CE, ISO
Production Capacity
10000set/Year
Product Description

Med-Esu-Leep-5 Leep Five Working Modes, electrosurgical unit

Features:

  • Microcomputer control
  • The generator adopts LEEP which specializing in gynecological intrauterine event, increasing the accuracy, controllability, security of the surgery.
  • Dealing with some kinds of pathological changes in obstetric and gynecology, for example, cutting, electrocoagulation, cervical erosion, and some kinds of surgery that fit in peritoneoscope.
  • Different electrodes have different effects in coagulation.
  • An optional smoke evacuation system is available.
  • Particular illuminating ESU pencil can increase the clarity of wound healing.

Technical Specifications:

Power: 220V±22V(110V±11V), 50Hz±1Hz
Operating frequency: 360~460kHz
Power rating: 880VA±10%

Five Working Modes:

Monopolar Cut

a) Cut1 (pure cut): 1W~200W( Load 500Ω)
b) Cut2 (Blend1): 1W~150W(Load 500Ω)
c) Cut3 (Blend2): 1W~100W (Load 500Ω)

Monopolar Coag

d) Coagulation1(Spray Coag): 1W~120W( Load 500Ω)
e) Coagulation2(Forced Coag): 1W~80W( Load 500Ω)
Power Consumption : <=880VA(Cutting function 200W)

Surgical Smoke Evacuation:

Blowing rate: 100 l/min @ 6mm tube
Noise: <60dB(A)
Start Control: Manus/Foot/Synchronize
Suction Adjust: 10%-100%
Stop delay time: 0-60s
Filter Characteristics: 99.999% @ 0.1-0.2μm
Active Carbon: 97% @ 1 year
Packing List
Mainframe1set
Electrosurgical pencil3pieces
Illuminating electrosurgical pencil2pieces
Electrosurgical pad10 pieces
Electrosurgical pad cable1piece
Foot switch1set
Electrodes1case(10pieces)
Tip clean sponge1piece
Fuse3pieces
Power cord1piece
Operating manual1book
Dimension & Weight
NameG.W (kg)Volume (cm)
LEEP unit1052*42*23
Smoke evaculator638*22*51
Cart2358*57*84
Product Visuals

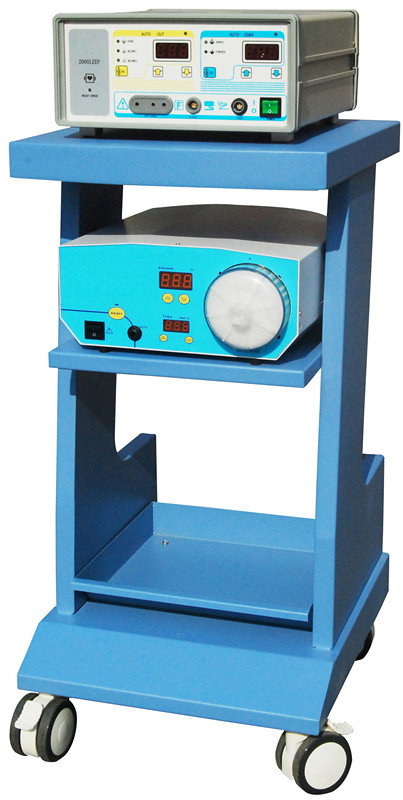

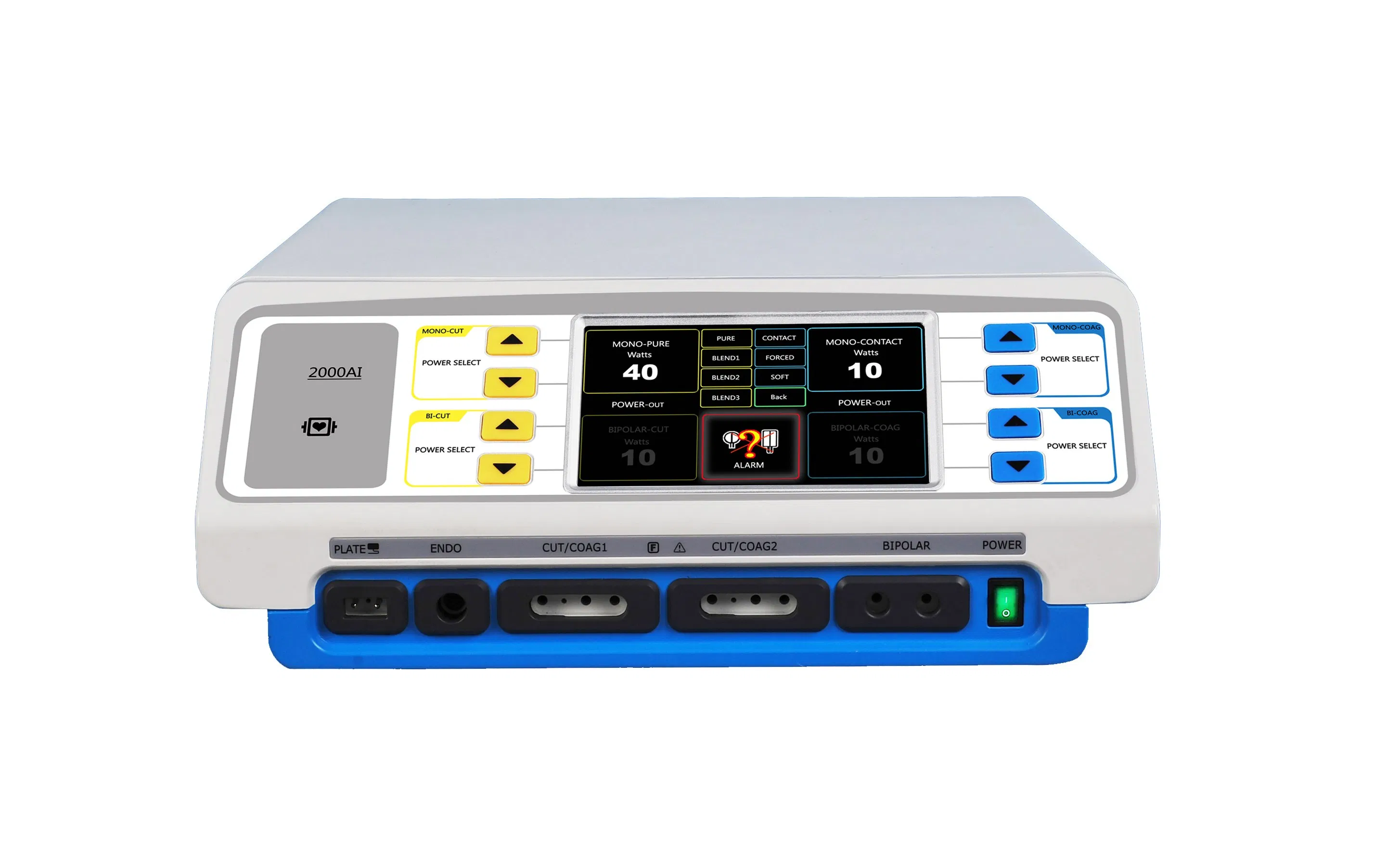

Med-Esu-Leep-5 Unit
Hospital Furniture and Surgical Equipment
Surgical Equipment
X-Ray Machine and Ultrasound Scanner
Medical Imaging
Obstetric Gynaecology Centre and Rehabilitation Therapeutic Apparatus
Gynecology Equipment
Dental Clinic Equipment and Ophthalmoscope
Dental and Eye Care
Laboratory Equipment
Lab Equipment
Sterilizer & Disinfection Products
Sterilization
Mortuary Equipment
Mortuary Equipment
Homecare Product
Homecare
Veterinary Equipment and Education Equipment
Veterinary and Education
Quality Comparison
Frequently Asked Questions
What are the main working modes of the MED-ESU-LEEP-5?
The unit features five working modes: three Monopolar Cut modes (Pure Cut, Blend1, and Blend2) and two Monopolar Coagulation modes (Spray Coag and Forced Coag).
Is a smoke evacuation system included?
Yes, an optional surgical smoke evacuation system is available with a blowing rate of 100 l/min and a high filter efficiency of 99.999% for particles sized 0.1-0.2μm.
What gynecological procedures is this unit suitable for?
It is specifically designed for gynecological intrauterine events, cervical erosion, and various obstetric and gynecology surgeries including those requiring a peritoneoscope.
How can the suction and start be controlled?
The suction is adjustable from 10% to 100%, and the system supports Manual, Foot, or Synchronized start controls for operational flexibility.
What is included in the standard packing list?
The package includes the mainframe, electrosurgical pencils (standard and illuminating), electrosurgical pads with cables, a foot switch, a case of electrodes, and other essential accessories like fuses and an operating manual.
