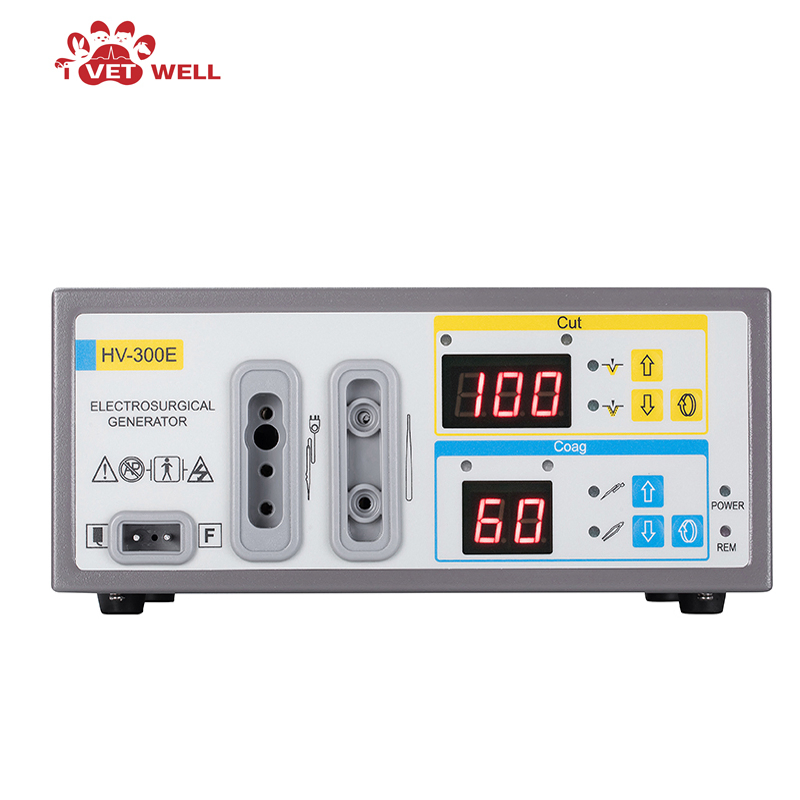

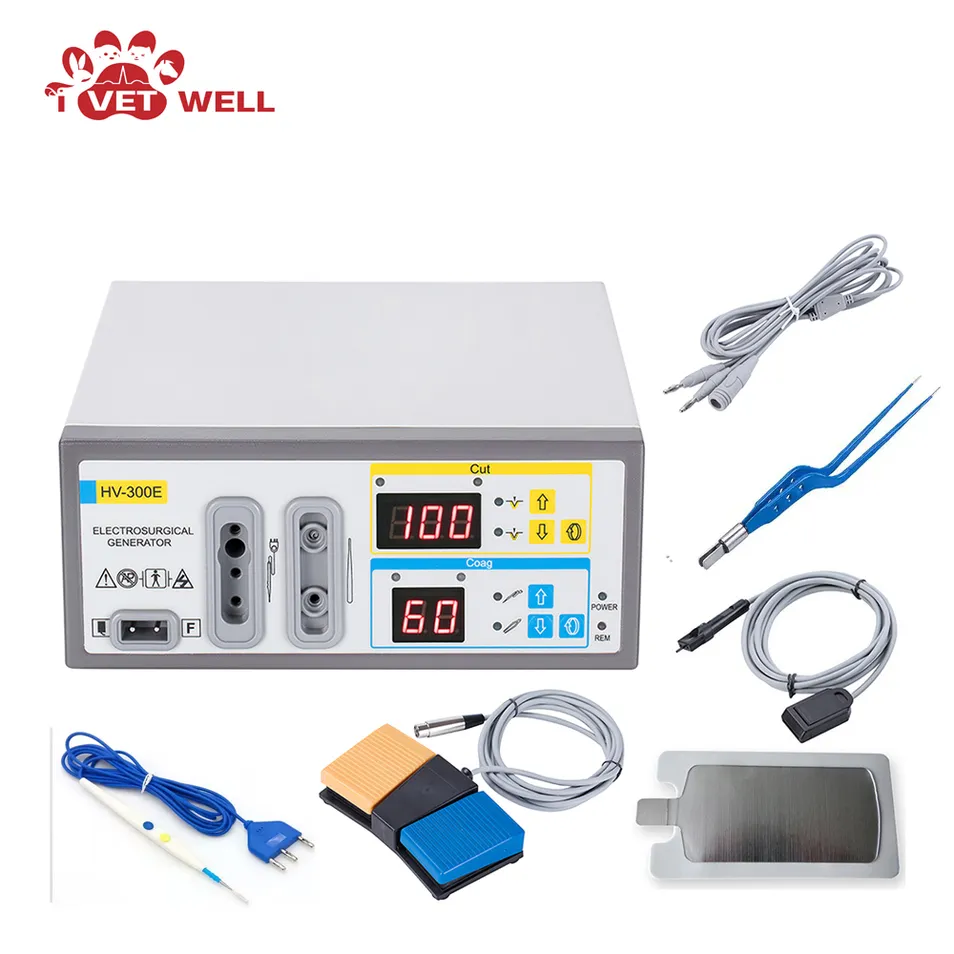

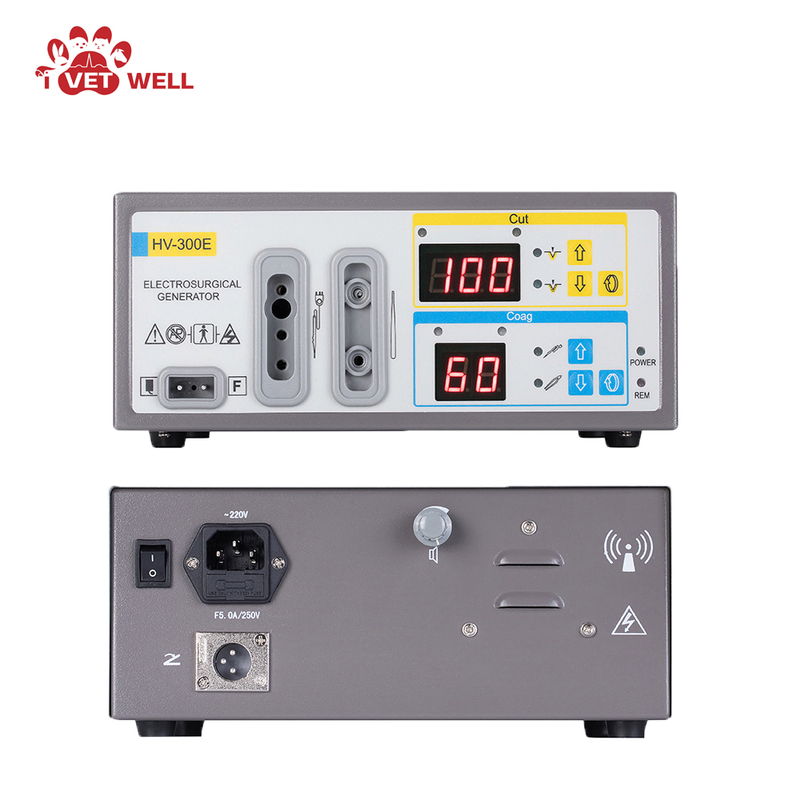

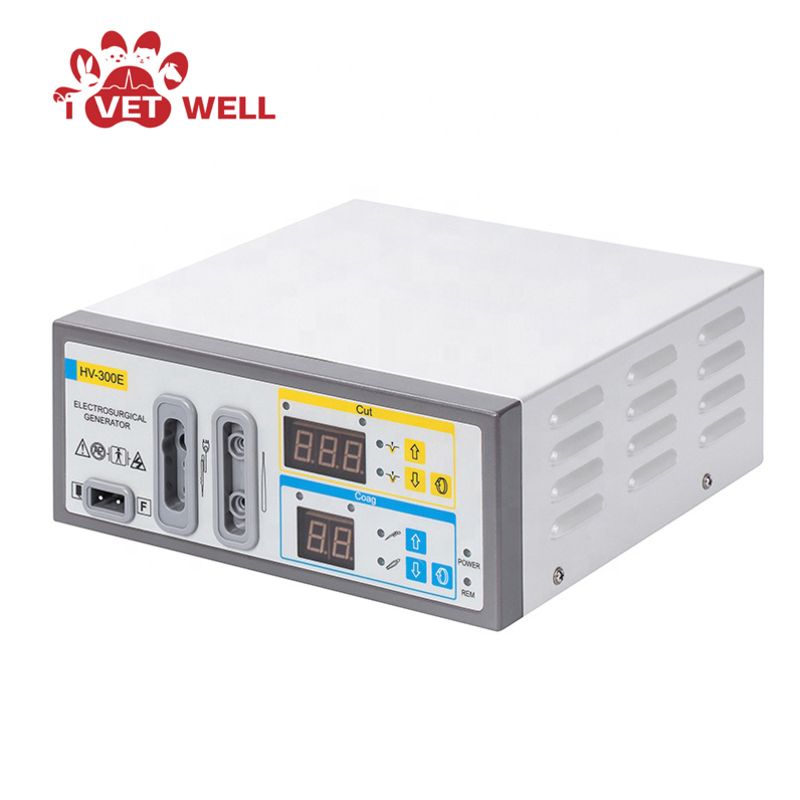

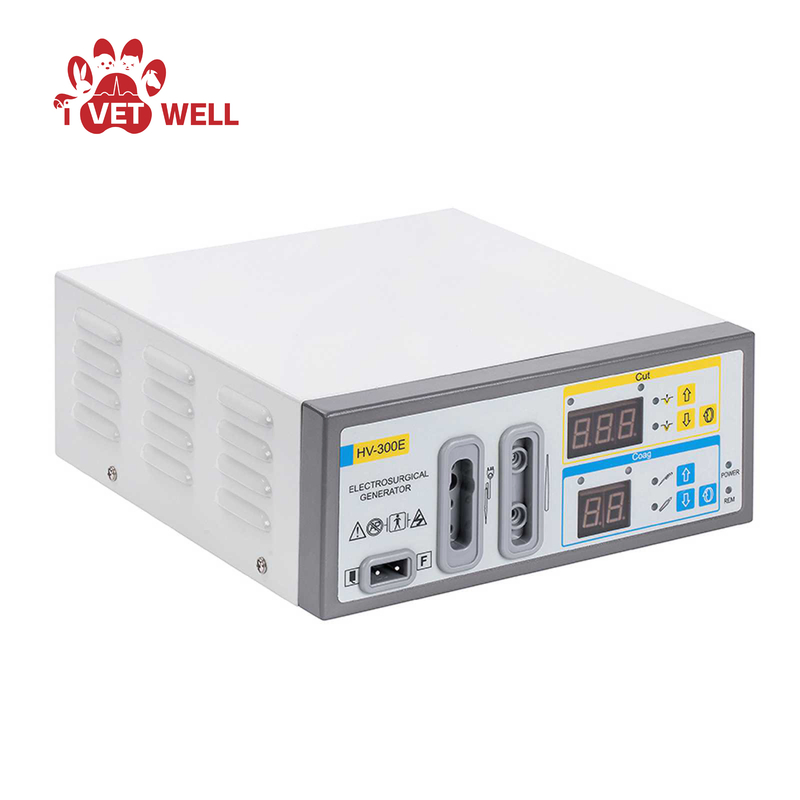

Intuitive design and user-friendly set-up for modern operating rooms. Features both Monopolar and bipolar functions to satisfy all surgery demands with safety and flexibility.
Continually monitors patient impedance levels and deactivates the generator if a fault is detected, minimizing the danger of burning incidents.
Compatible with Other Equipments: Optimum Smoke Evacuation System
Multilanguage Available: English, Spanish, Portuguese, Turkish, etc.
Application of Use: General Surgery, Dermatology, Vascular Surgery, Obstetrics, Gynecology, ORL/ENT, Minimally Invasive Surgery (MSI), Neurosurgery, Orthopedics & Plastic Surgery.
| Parameter | Value | HF Leakage | LF Leakage |
|---|---|---|---|
| Main Frequency Power Supply Dimension Weight |
512 KHz 110V/60Hz; 220V/50Hz 25*24*10cm 4.00KG |
Monopolar: < 150mA Bipolar: < 60mA |
Normal Polarity: <10μA Ground open: < 50μA Reverse Polarity: < 50μA |
| Working Mode | Sub-mode | Rated Load | Max Output | Max P-P Voltage |
|---|---|---|---|---|
| Monopolar Cut | Pure Cut | 500Ω | 120W | 990V |
| Blend Cut | 500Ω | 100W | 1450V | |
| Monopolar Coag | Contact Coag | 300Ω | 60W | 1550V |
| Bipolar Coag | Standard Coag | 100Ω | 80W | 580V |
