Medical Grade Custom HD Water Treatment System, Blood Dialysis Hemodialysis Water Treatment System, Dialysis Facility Water Equipment

Customization:	Available
Customized:	Customized
Certification:	CE, FDA, ISO13485

i

Basic Information

Model NO.

HHHD

Colour

Transparent

Device Type

Hemodialysis Water Purification

Water Quality Standard

Yy0572-2015 / Yy0793-2010

Operating Procedures

Blood Purification (2010)

Standards

AAMI/Asaio

Circulation System

U Type

Ion Removal Rate

Above 99.5%

RO Host

Two-Stage RO System

Endotoxin Removal

Above 99.9%

Bacterial Count

Below 10 Cfu/Ml

Pasteurization

90°C

Working Voltage

AC380V 20kw

Specification

100-5000LPH

★

Product Description

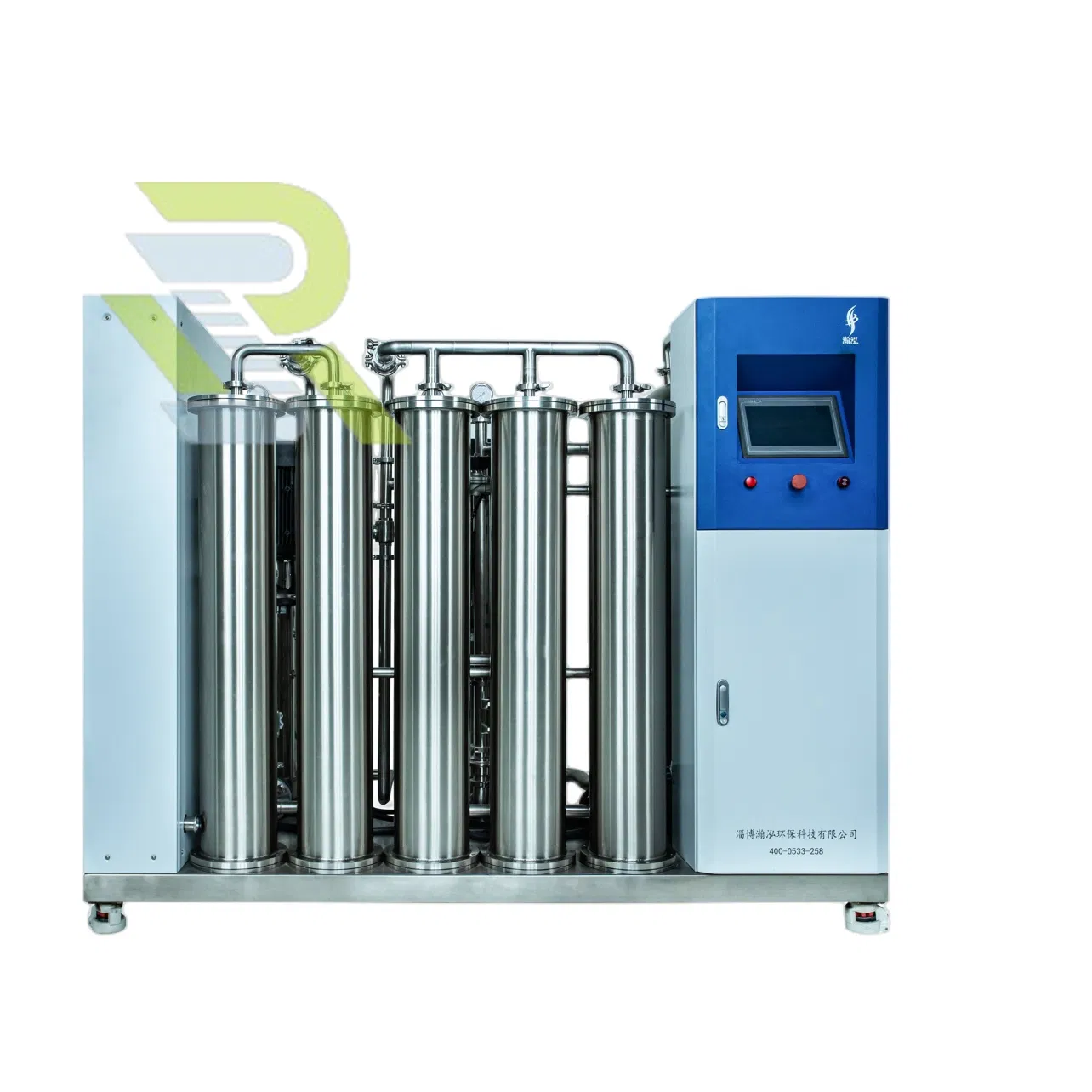

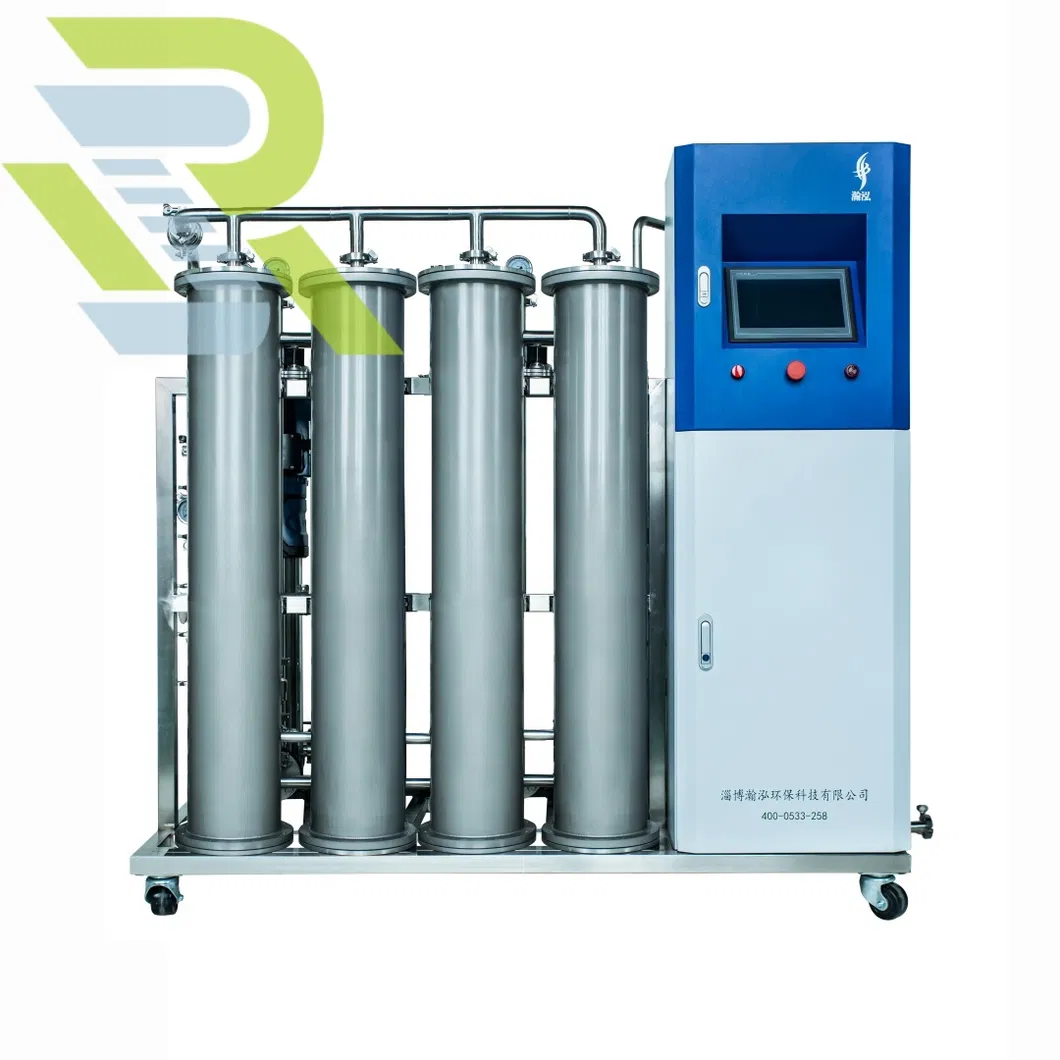

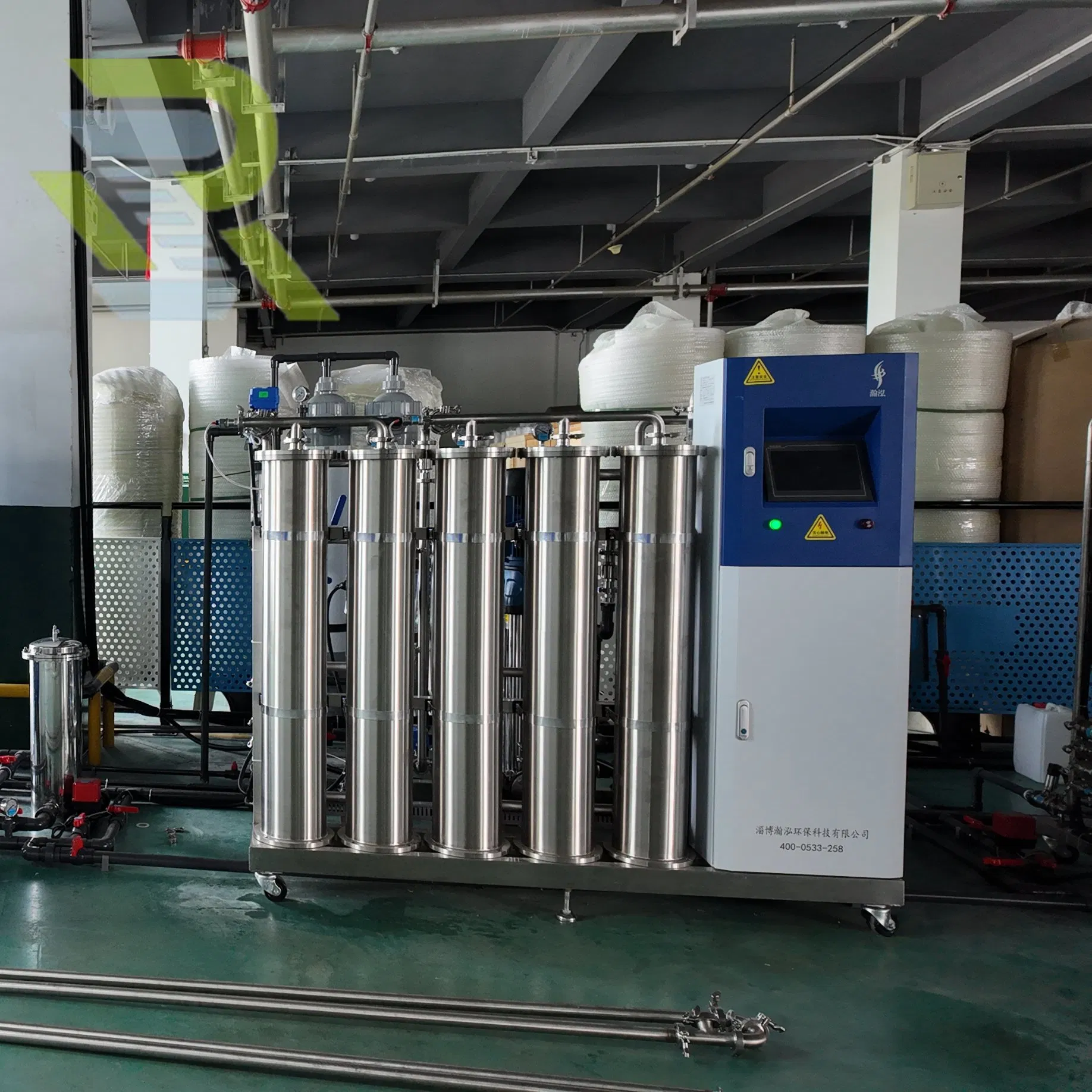

HHHD Hematodialysis Water Treatment System for Hemodialysis Centers

The HHHD-RO water treatment equipment is specifically designed for hemodialysis rooms and centers, meeting the stringent water quality requirements essential for safe and effective hemodialysis treatment. This advanced system is fully compatible with a wide range of domestic and international dialysis machines, ensuring seamless integration into any dialysis facility.

General Standards Compliance

Comply with YY0572-2015 and YY0793-2010 hemodialysis water quality standards
Meet the AAMI/ASAIO standard for hemodialysis water
Meet Standard Operating Procedures for Blood Purification (2010)
Ion removal rate: ≥ 99.5%
Bacterial endotoxin removal rate: ≥ 99.9%
Water quality: total bacterial count ≤ 10CFU/ml
Water quality: endotoxin < 0.03EU/ml

⚙

Operating Requirements

Feed Water Pressure

0.2 MPa

Feed Water Temp

5 - 25°C

Power Supply

AC 380V, 20 kW

Ambient Temp

2 - 40°C

Relative Humidity

≤ 80% RH

Thermal Disinfection System

Fully Automatic Online Disinfection: Program-controlled mode that automatically sanitizes RO membranes and the entire supply loop.

High-Temperature Assurance: Sanitary stainless steel heater module ensures return water remains above 85°C.

Precise Control: Equipped with Siemens control modules for accurate temperature management.

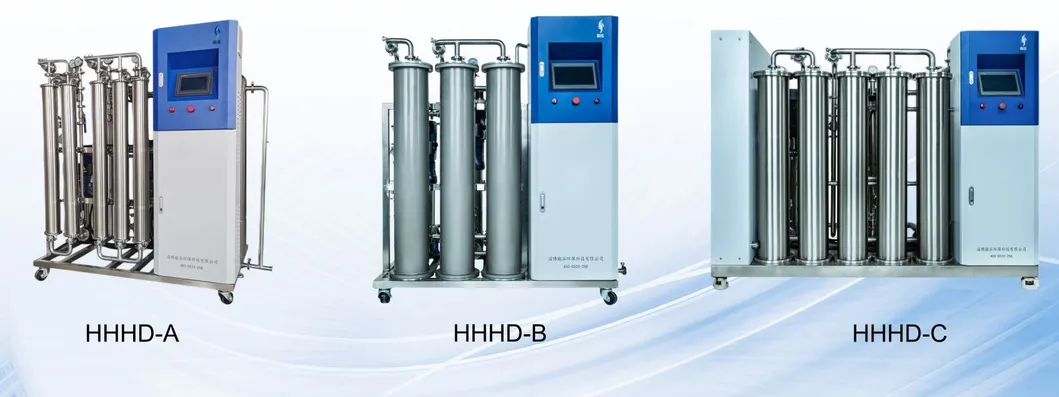

Model	Water Output (L/H)	Power (Kw)	Bed Capacity (Sets)	Dimension (mm)
HHHD-RO 300	300	4.0	3-7	900x750x1600
HHHD-RO 600	600	5.5	5-15	1500x750x1750
HHHD-RO 1000	1000	7.0	10-25	1500x750x1750
HHHD-RO 1500	1500	10.0	20-40	1200x750x1750
HHHD-RO 2000	2000	12.0	30-70	1500x750x1750
HHHD-RO 3600	3600	15.0	50-100	2100x1000x1750

✔

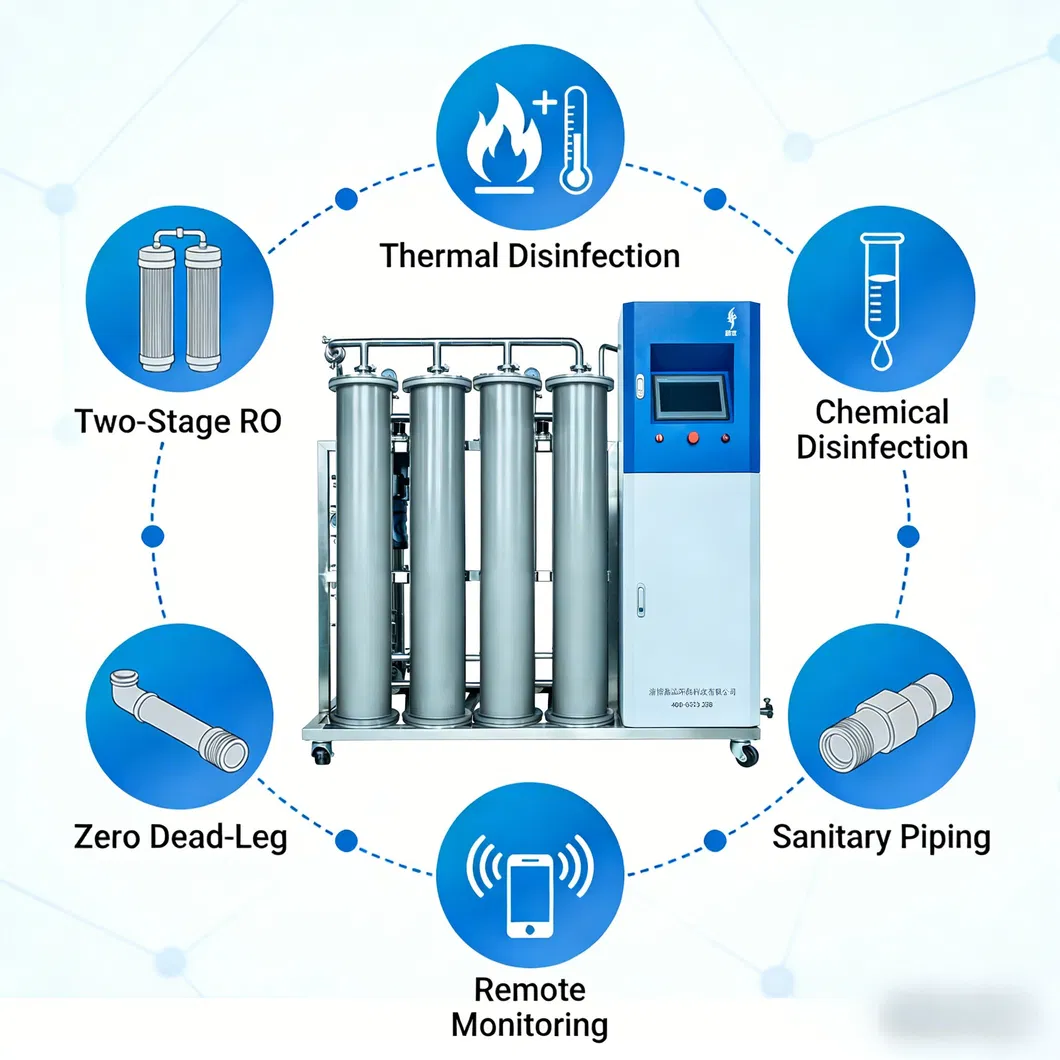

System Advantages

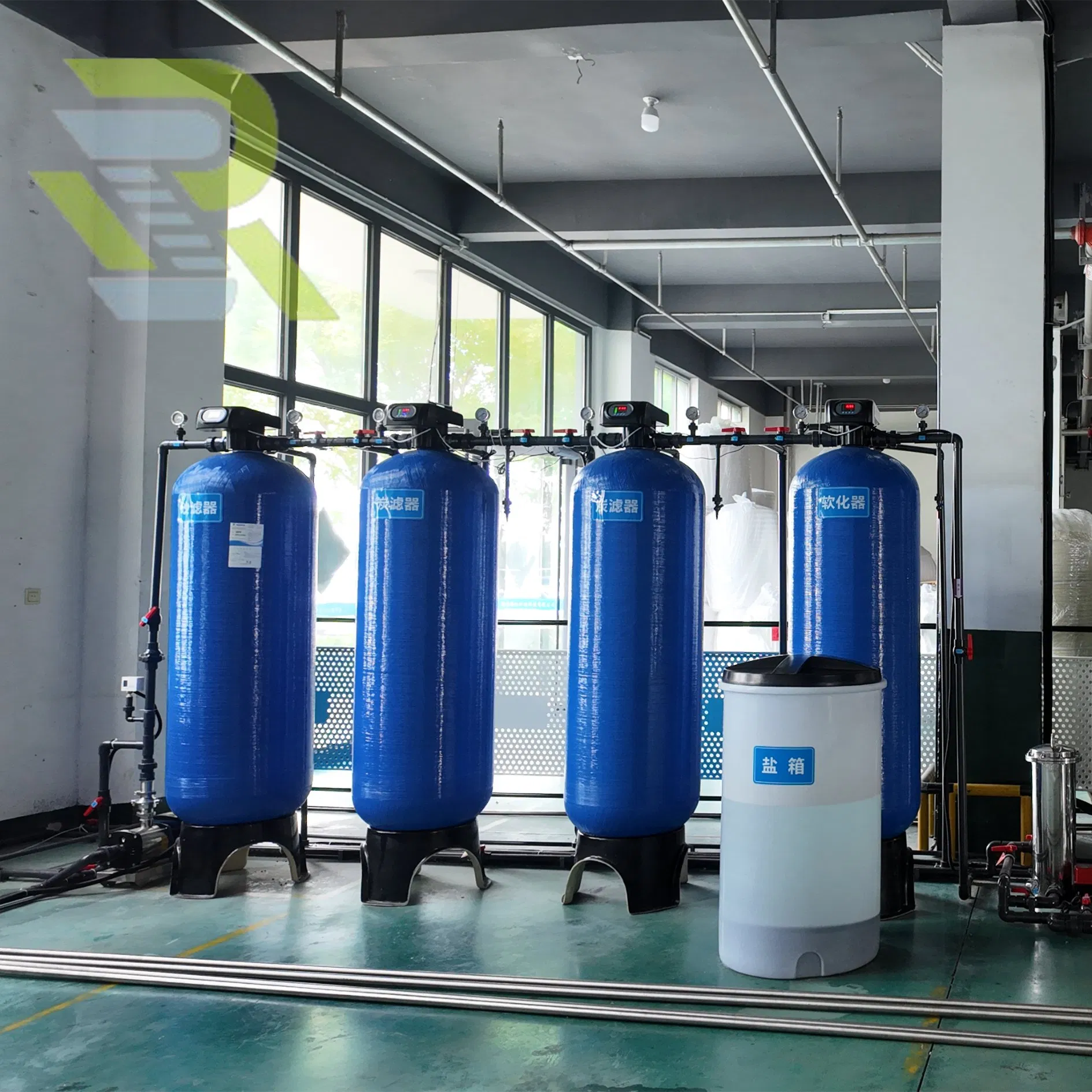

1. Automatic Pretreatment: Includes raw water booster pump, multimedia filter, activated carbon filter, and softener.

2. Reverse Osmosis Host: Two-stage RO design with concentrate water recycling for maximum efficiency.

3. U-Type Distribution: Prevents water stagnation and bacterial growth with constant flow velocity.

4. Remote Monitoring: Real-time supervision via mobile phone or computer for proactive maintenance.

Technical Design Features

Zero Dead-Leg Design: 3D principle technology eliminates water stagnation.
Turbulent Flow: Circulation velocity >1 m/s inhibits bacterial attachment.
Intelligent PLC: Real-time monitoring of conductivity, temperature, and pressure.
Dual Modes: Supports both thermal and chemical disinfection.

📦

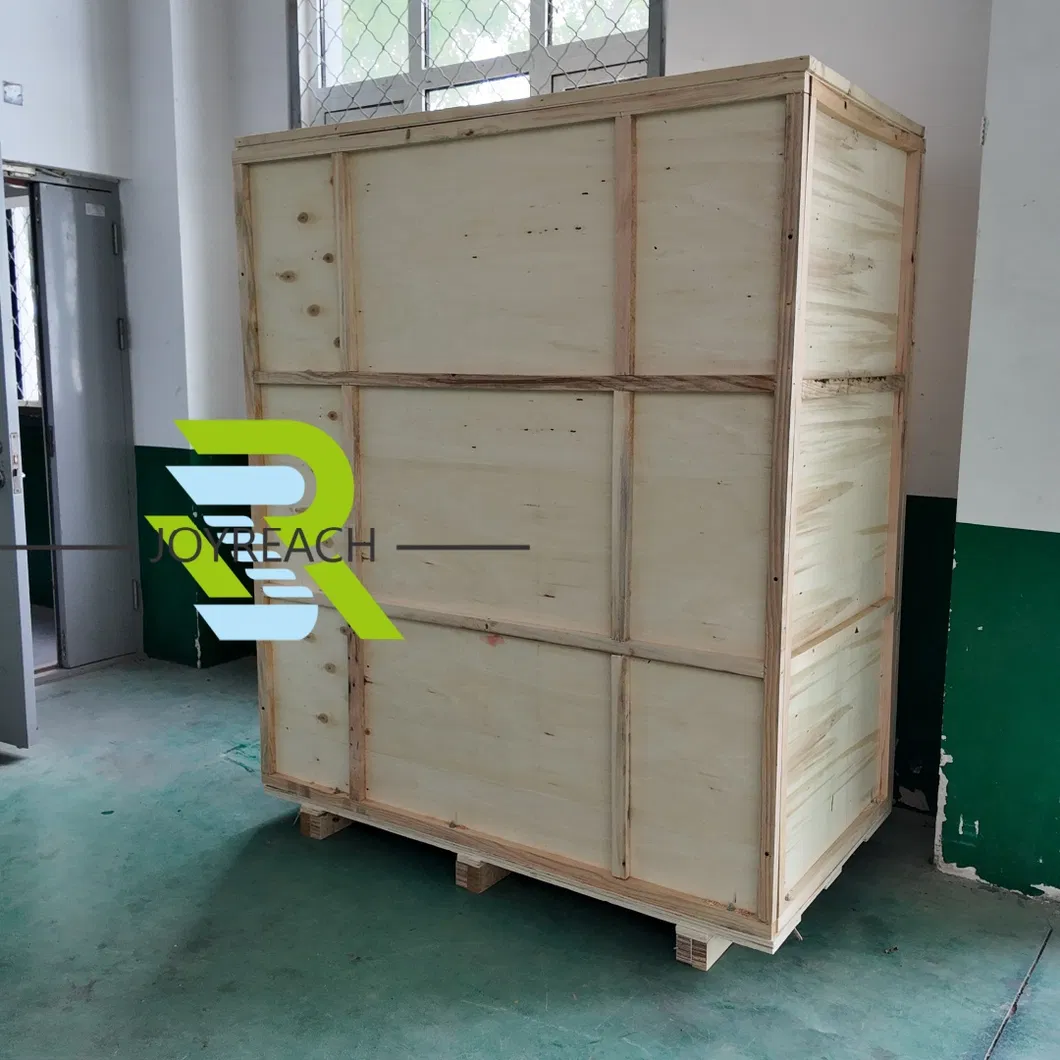

Packaging & Shipping

🏢

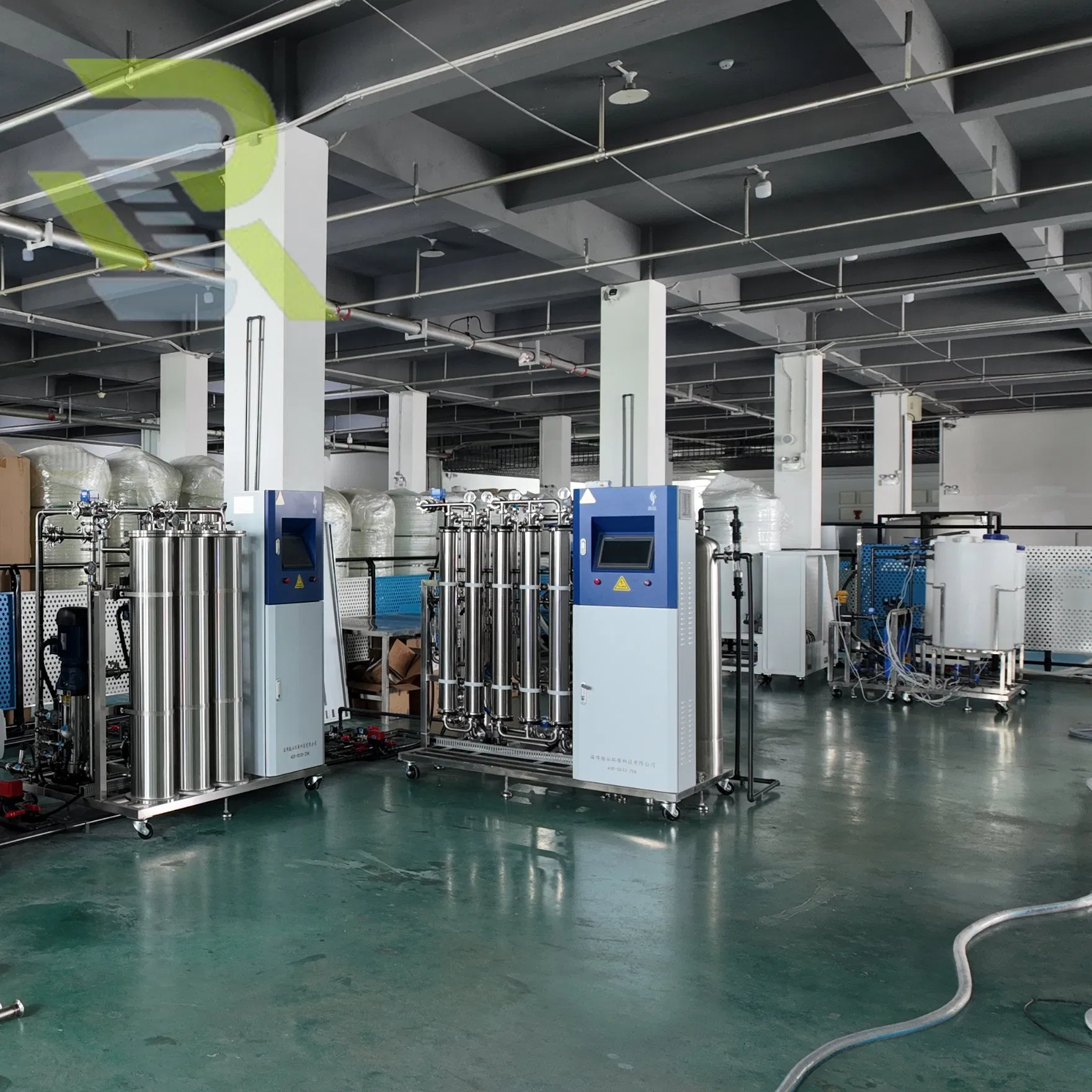

Professional Manufacturer

Since 2012, we have been a leading brand in medical water purification. Our expertise combines R&D, design, and production to deliver high-quality solutions for hemodialysis, endoscopy, and laboratory departments.

Certifications & Patents

Medical device production license and registration certificates
4 invention patents and 16 utility model patents
ISO9001, ISO13485, and CE certifications
High-tech enterprise status with five-star after-sales service

Global Trust

Our products are trusted by over 100 large tertiary hospitals and exported to Italy, Russia, Africa, Turkey, UAE, and Pakistan.

?

FAQ

Q: What water quality standards does the system meet? A: The system complies with YY0572-2015, YY0793-2010, and the American AAMI/ASAIO standards for hemodialysis water.

Q: What is the ion and endotoxin removal efficiency? A: The system achieves an ion removal rate of ≥ 99.5% and a bacterial endotoxin removal rate of ≥ 99.9%.

Q: How do I choose the right model for my clinic? A: Capacity is based on bed count. For example, 300LPH supports 3-7 beds, while 1000LPH supports 10-25 beds.

Q: What disinfection methods are available? A: We offer both high-temperature thermal disinfection (Pasteurization at 90°C) and chemical disinfection options.

Q: Does the system support remote monitoring? A: Yes, the system includes a remote monitoring module that allows real-time status checks via mobile phone or computer.

Q: What information is needed for a customized quote? A: We require a feed water test report, required production capacity (L/H or bed count), and a layout drawing of the installation room.
