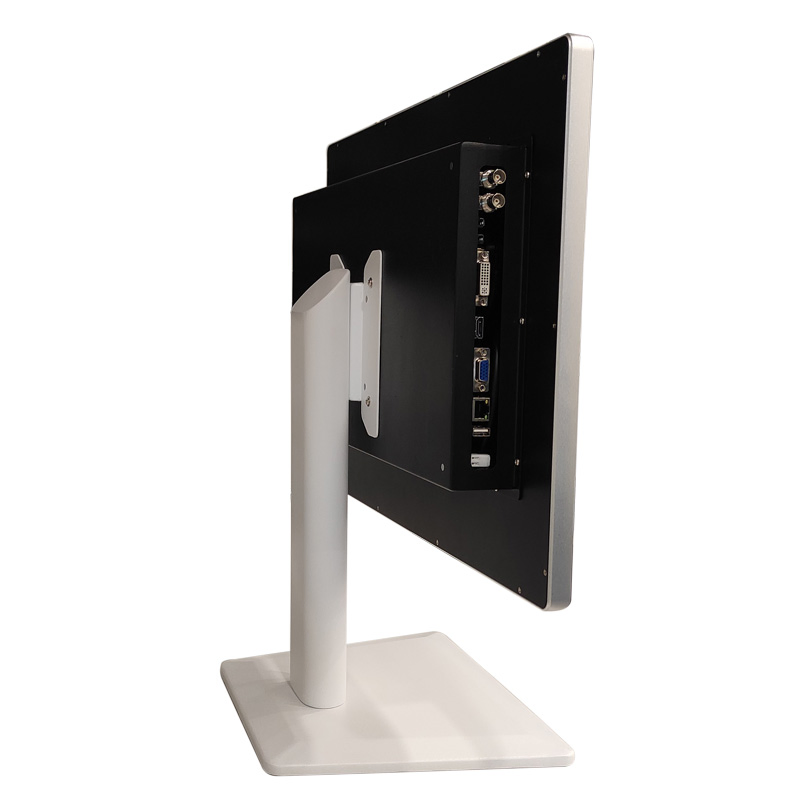

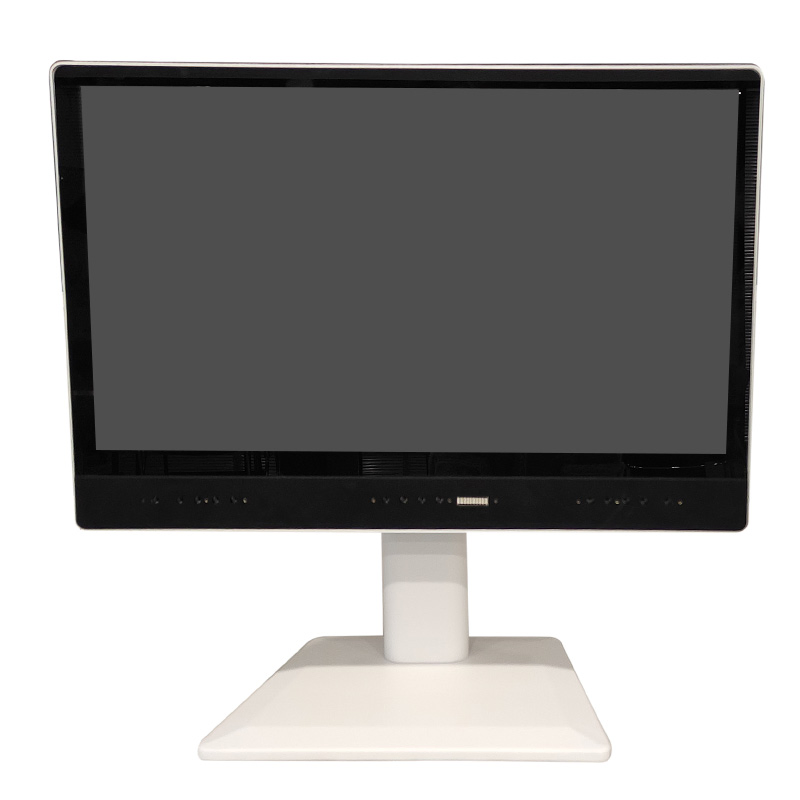

24inch Endoscope Camera System with Medical Grade Monitor

1 / 5

24inch Endoscope Camera System with Medical Grade Monitor

Customization:	Available
Application:	Orthopedic, Abdominal, Ent, Neurosurgery, Microsurgery, Anorectal, Urology, Burns
Certification:	ISO13485

Send Inquiry

Product Description

ℹ️

Basic Specifications

Model NO.	Celestia
Classification	Class I
Warranty	2 Years
Power Source	Electric
Certification	ISO / CE
After-Sale Service	Free Spare Parts
Origin	Jiangsu, China

📷

Product Overview

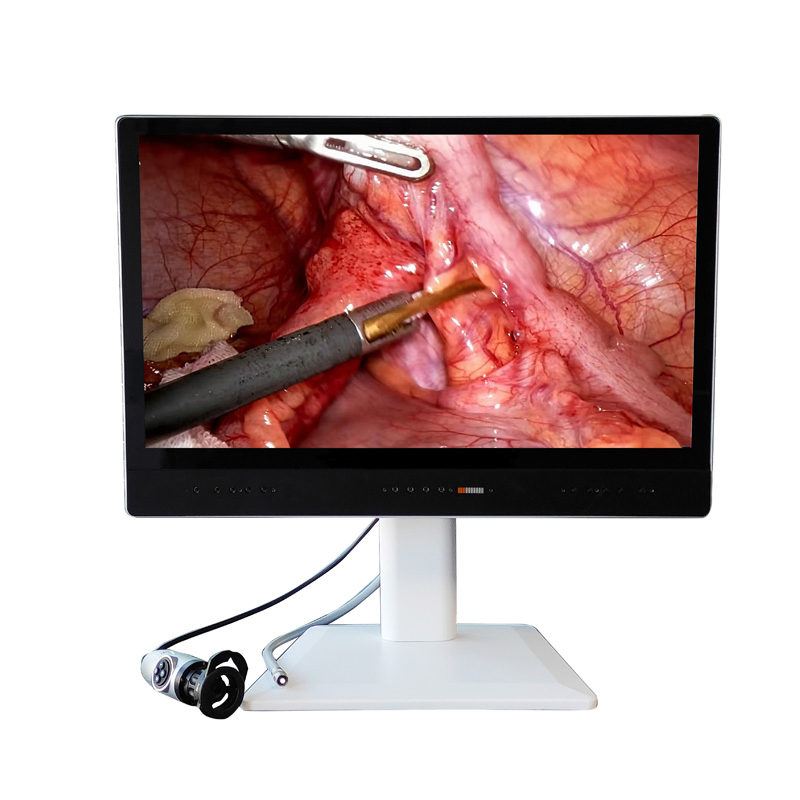

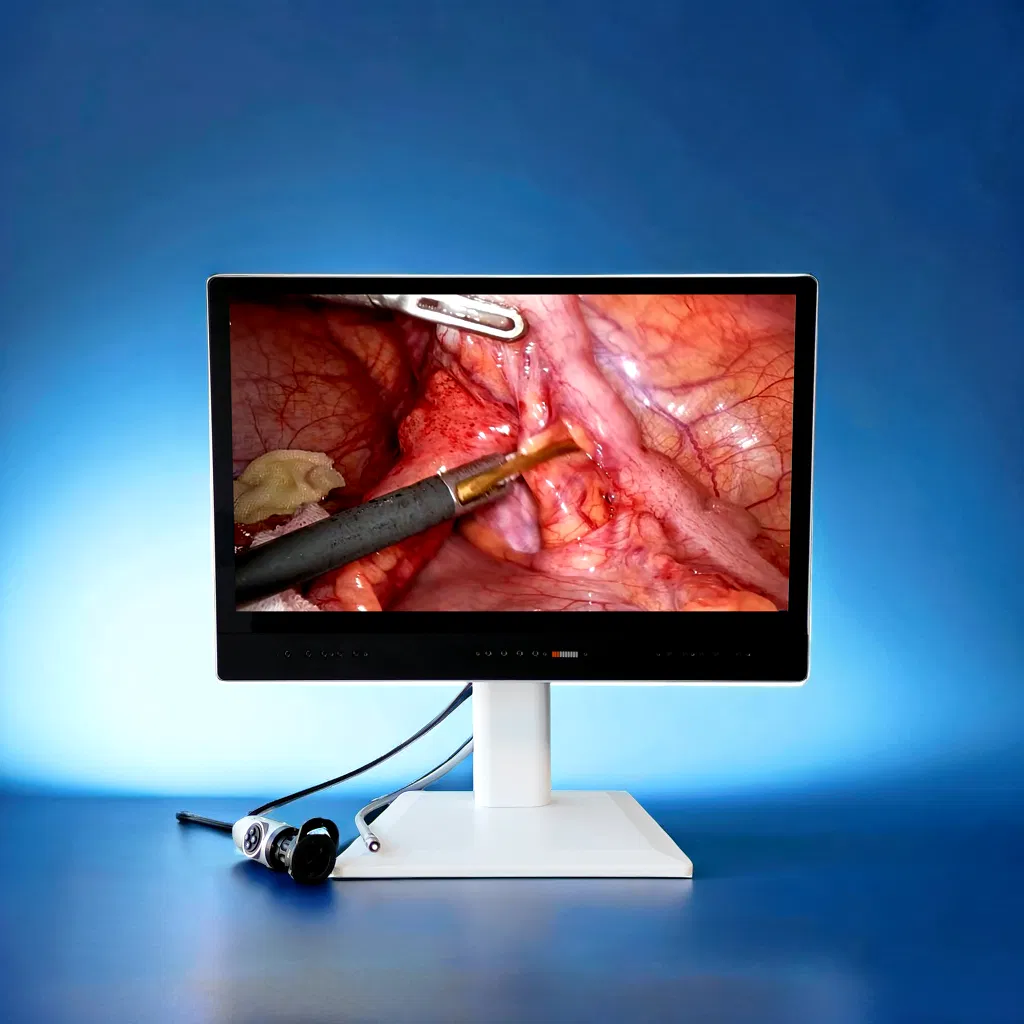

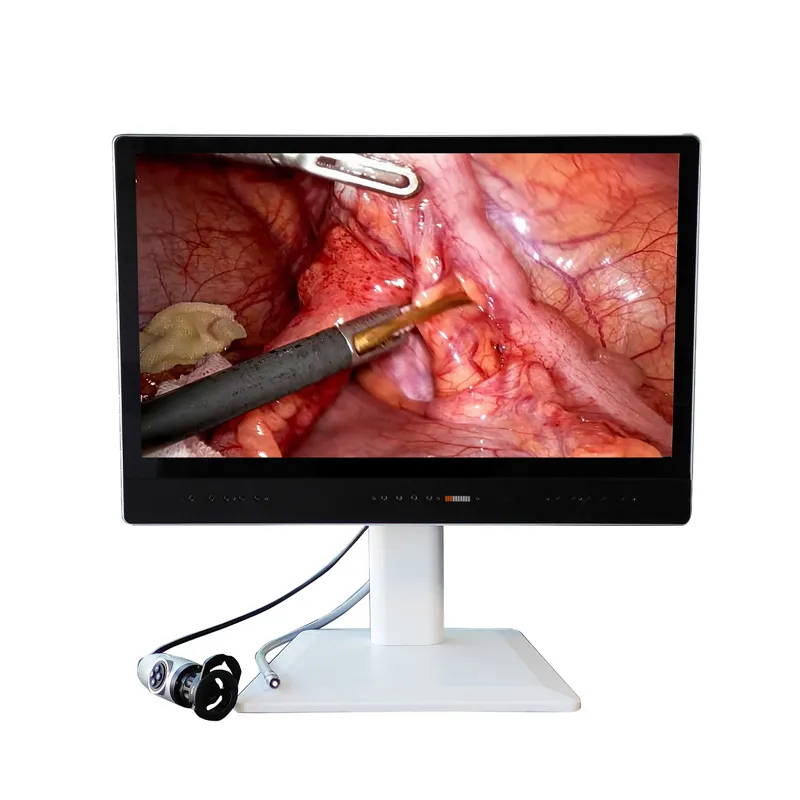

Celestia 1920*1080P Full HD Portable Endoscope Camera
Suitable for ENT, Urology, Hysteroscopy, Laparoscopic, and Arthroscope procedures.

Revolutionary 2-in-1 Endoscopic Camera System

This innovative system combines a complete imaging solution and a standalone medical-grade display in a single unit. It features a professional medical monitor that can seamlessly switch between the built-in camera system and any external video input with just one click.

⭐

Core Innovations

One-Click Smart Switch: Instantly toggle between internal and external imaging systems.
All-in-One Design: Integrated Camera, HD Recorder, LED Light Source, and 24-Inch Monitor.
Emergency Backup Mode: Switch to the internal system instantly if an external camera fails to avoid surgical interruption.
Plug-and-Play: Simplified setup designed for modern operating rooms.

⚙️

Technical Specifications

Image Sensor	1/1.8" Sony CMOS
Resolution	1920×1080 @ 60FPS (2.1 Megapixels)
Scanning Mode	Progressive Scanning
Vertical Resolution	>1100 TVL
Light Source	Integrated LED
Waterproof	IPX8 (Camera Head)
Functions	AWB, Freeze, Capture, Record, Digital Zoom

🖼️

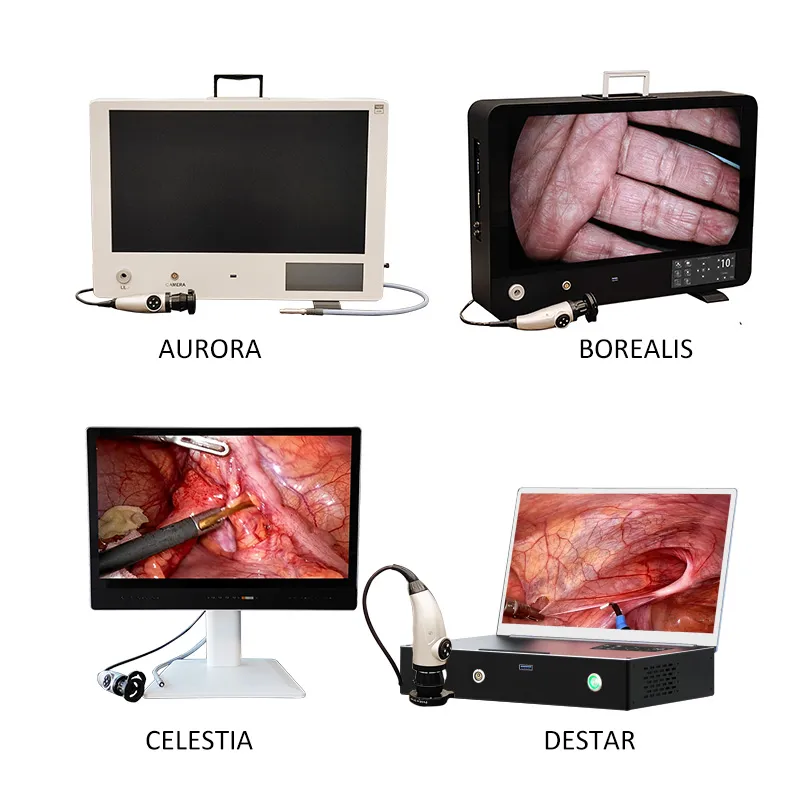

Product Gallery

📦

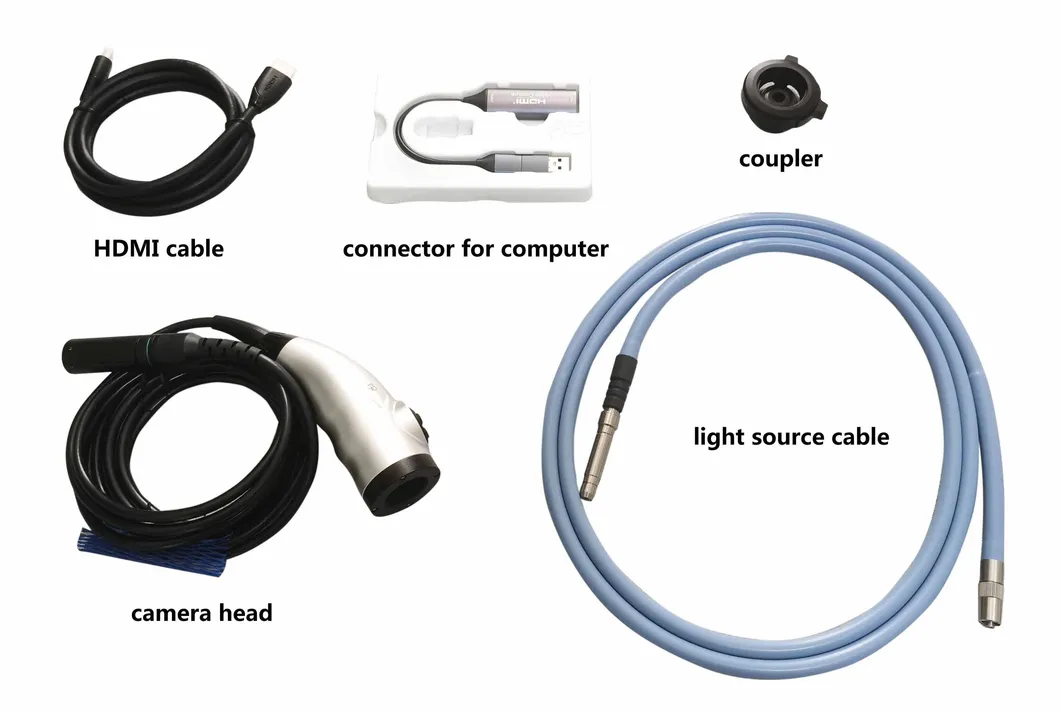

Standard Package

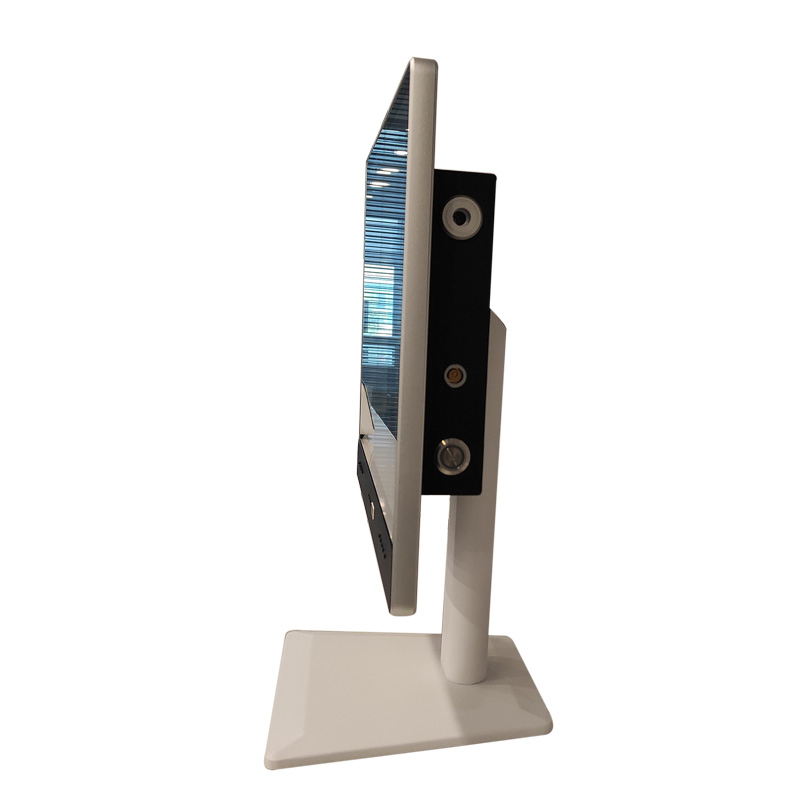

Camera Main Unit (Integrated Monitor)
Waterproof Camera Head
Coupler (F22 standard, zoom optional)
HDMI Cable & Light Source Cable
USB 32G for Recording
Capture Software for PC

🏢

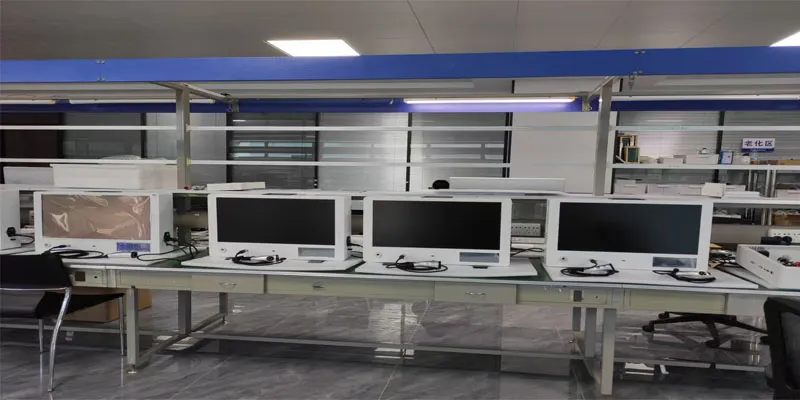

Professional Manufacturing

As a professional supplier established in 1996, we focus on the R&D and manufacture of high-tech medical devices. Our facilities are managed under ISO 9001 & ISO 13485 standards, ensuring that most products are CE marked for global distribution.

❓

Frequently Asked Questions

1. What is the resolution and frame rate of the Celestia camera?

The system provides Full HD 1920x1080P resolution at 60FPS, utilizing a high-sensitivity Sony CMOS sensor for clear, fluid medical imaging.

2. Can this system be used with other camera heads?

Yes, the 2-in-1 design allows the 24-inch monitor to act as a standalone medical display for external imaging systems via its smart switching function.

3. Is the camera head waterproof for sterilization?

The camera head is rated IPX8 waterproof, making it suitable for standard medical cleaning and disinfection protocols.

4. Does the system support video recording?

Yes, the system includes a built-in HD video recorder. You can save procedure videos and images directly to the included 32G USB drive.

5. What is the warranty and after-sales support?

We provide a 2-year warranty and offer free spare parts as part of our commitment to long-term product reliability and customer service.

6. What medical fields is this equipment suitable for?

It is optimized for a wide range of applications including ENT, Urology, Gynecology (Hysteroscopy), Orthopedics (Arthroscope), and Veterinary surgery.
