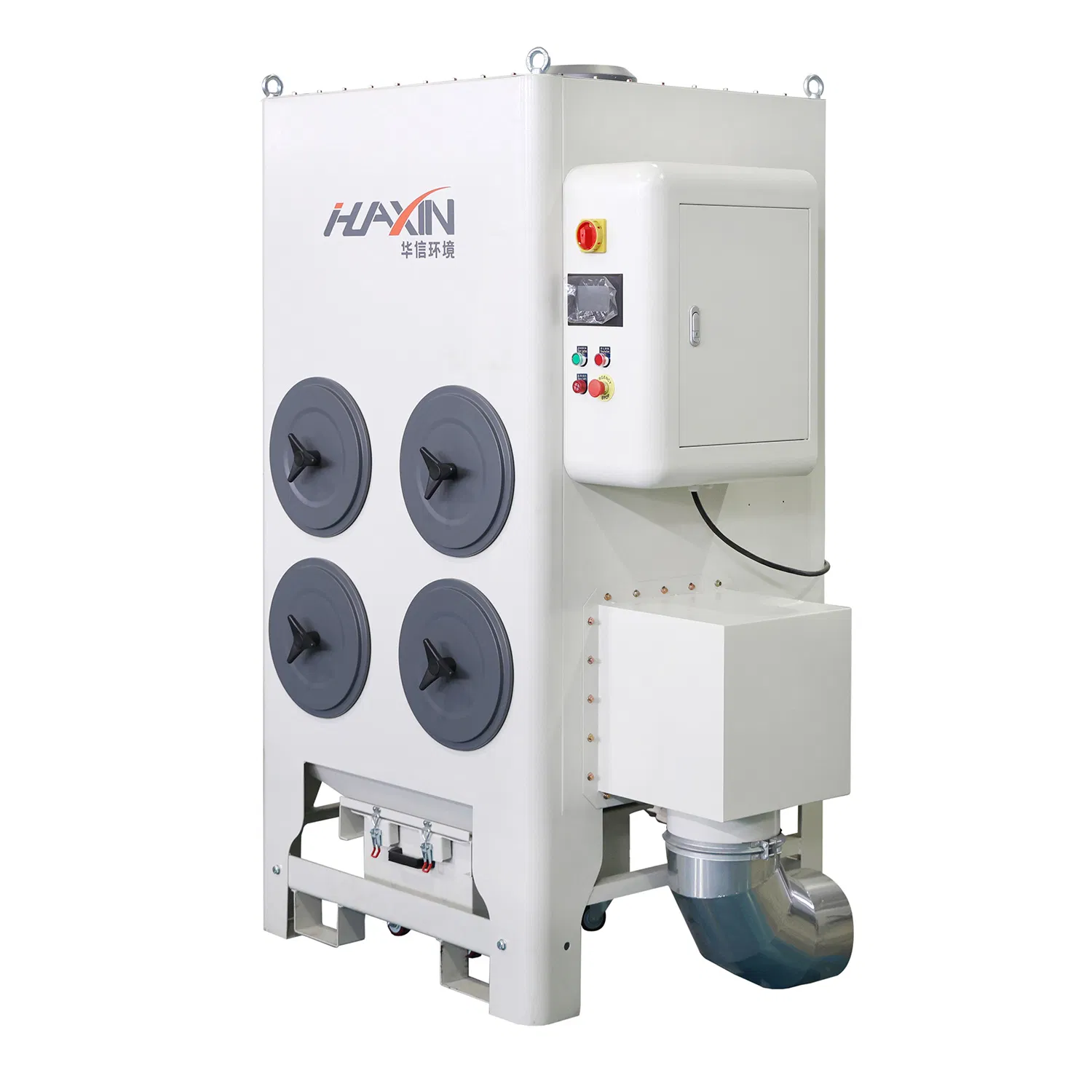

Advanced Fume Extraction System for Efficient Soldering Workstations

1 / 5

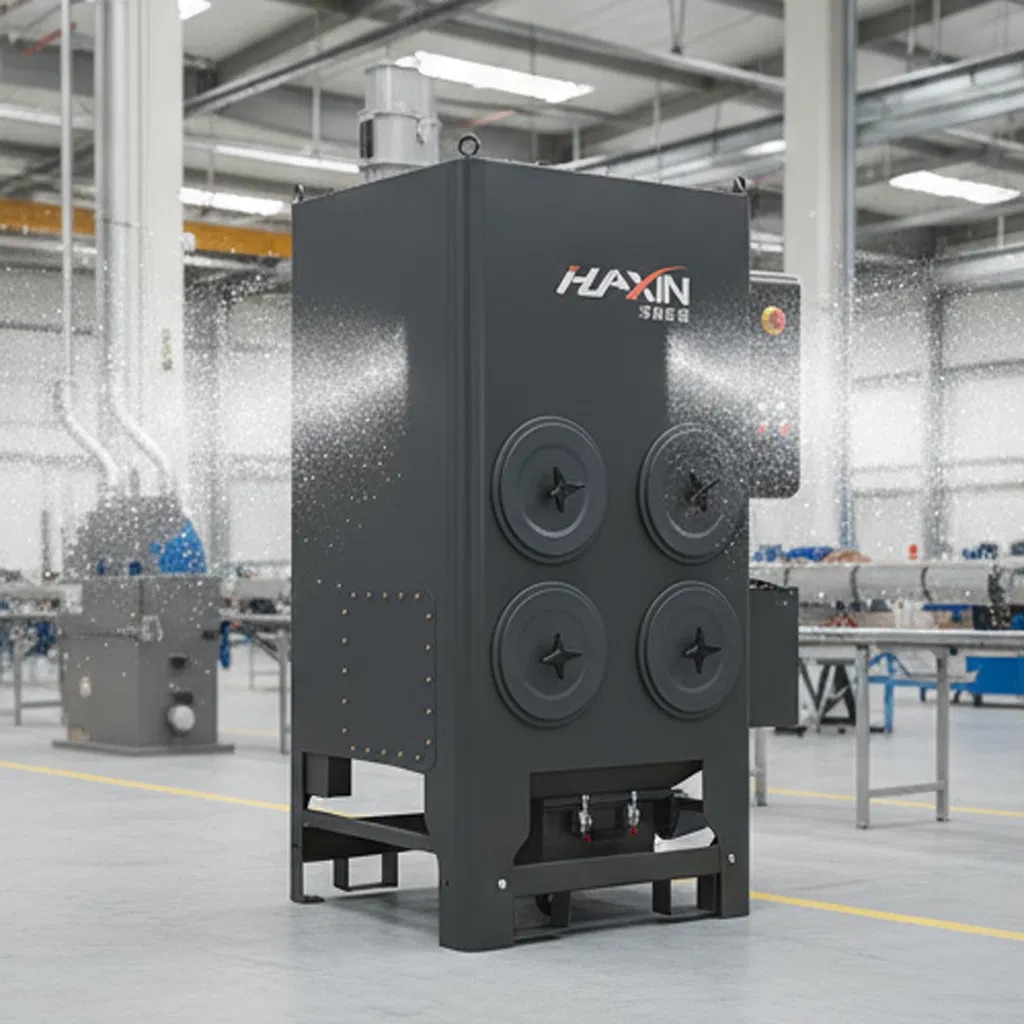

Advanced Fume Extraction System for Efficient Soldering Workstations

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Basic Information

Model NO.HXHJ-JG04

Operation TypeAutomatic

Medium MaterialChemical Synthetic Fiber

Dust CollectingDry

TypeFilter Cartridge Dust Collector

Power5.5kw

Voltage380V/400V/415V/220V

ApplicationWelding/Soldering/Lasering Position

Cleaning WayFull-Automatically Cleaning

Filtration Area52m2

Filtration Accuracy99.99%

Filter Size0.3um

Weight420kgs

Specification1300*940*2200MM

Product Description

Ideal for Capturing:

Welding Fumes
Grinding Dusts
Soldering Dusts
Laser/Plasma Cutting

1. Large air flow series suitable for integrated design with dust collectors.

2. Adopted split type design for optimal performance.

3. Fan isolation sound box and sound eliminator minimize noise levels.

4. Multi-stage resistance fire device ensures operating security.

5. Versatile application: large scale welding, grinding workshops, robot welding lines, and plasma/laser cutting.

Product Parameters

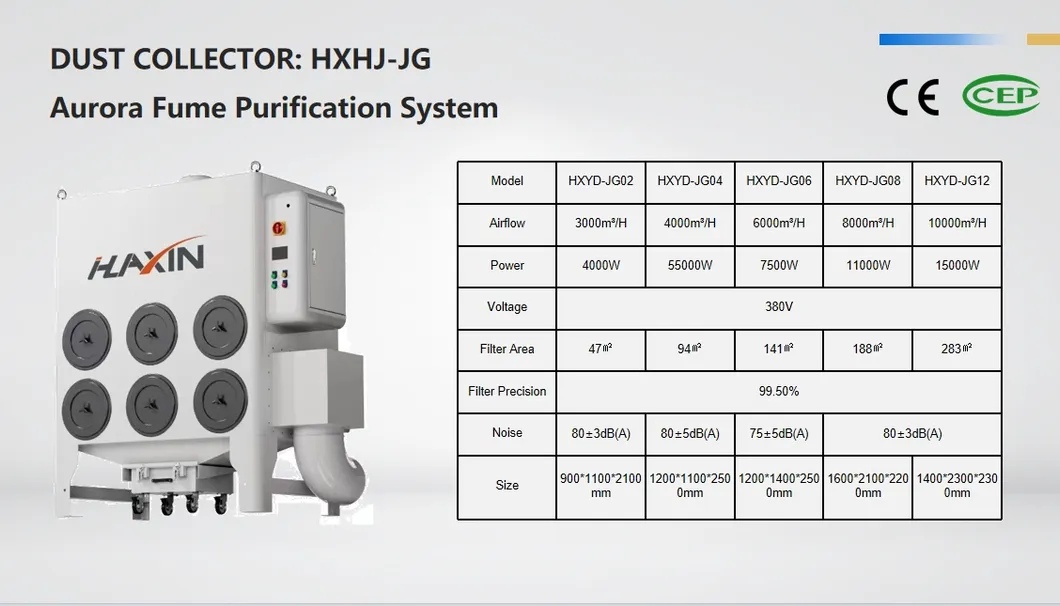

Product Name	Airflow (m³/h)	Power (kW)	Voltage (V)	Filter Area (m²)	Precision	Noise dB(A)	Size (mm)
Dust Collector for Laser Cutting Machine JG04-JG12	4000	5.5KW	380V/50Hz/3P 415V/50Hz/3P 220V/60Hz/3P	94	99.50%	82	13009402200
	6000	7.5kW		140	99.50%	83	180010502200
	9000	11kW		188	99.50%	84	180011002820
	10000	15kW		284	99.50%	85	180012003300

Our Advantages

Certifications

Detailed Photos

Packaging & Shipping

Frequently Asked Questions

Is there any noise during operation?

The fans are equipped with sound insulation cotton and will not produce excessive noise, ensuring a comfortable working environment.

How do I configure the air volume for the dust collector?

Measure the diameter of the exhaust pipe at the bottom of your cutting platform and provide it to us. We will calculate the exact air volume required for your specific setup.

How do you prevent fire accidents from sparks during cutting?

We install spark catchers (baffle or swirl type) which use a labyrinth structure to extinguish sparks by forcing them against cold plates multiple times.

How is the dust and fume pollution eliminated?

We use high-precision imported flame-retardant filter cartridges as standard units to filter dust and smoke, similar to high-end automobile engine filters.

Does the system require an external chimney for venting?

No, external venting is not required. The high-precision filter material captures 99% of 0.3um dust, allowing for direct indoor discharge.

What is the after-sales warranty policy?

The warranty period is one year with free maintenance. Outside the warranty period, we only charge for the cost of replacement parts.
