Type: Electrorugeical Unit
Kind: Surgery
Certification: CE, FDA, ISO13485
Send Inquiry

Product Description

Basic Information
Model NO.
MS-E100W
Group
Adult
LCD Display
With LCD Display
Net Weight
4.7 Kg
Gross Weight
8.9 Kg
Package
1 Piece in a Box
Specification
440*390*260mm
Origin
China
HS Code
9018193010
Production Capacity
1000PCS/Year
Product Description

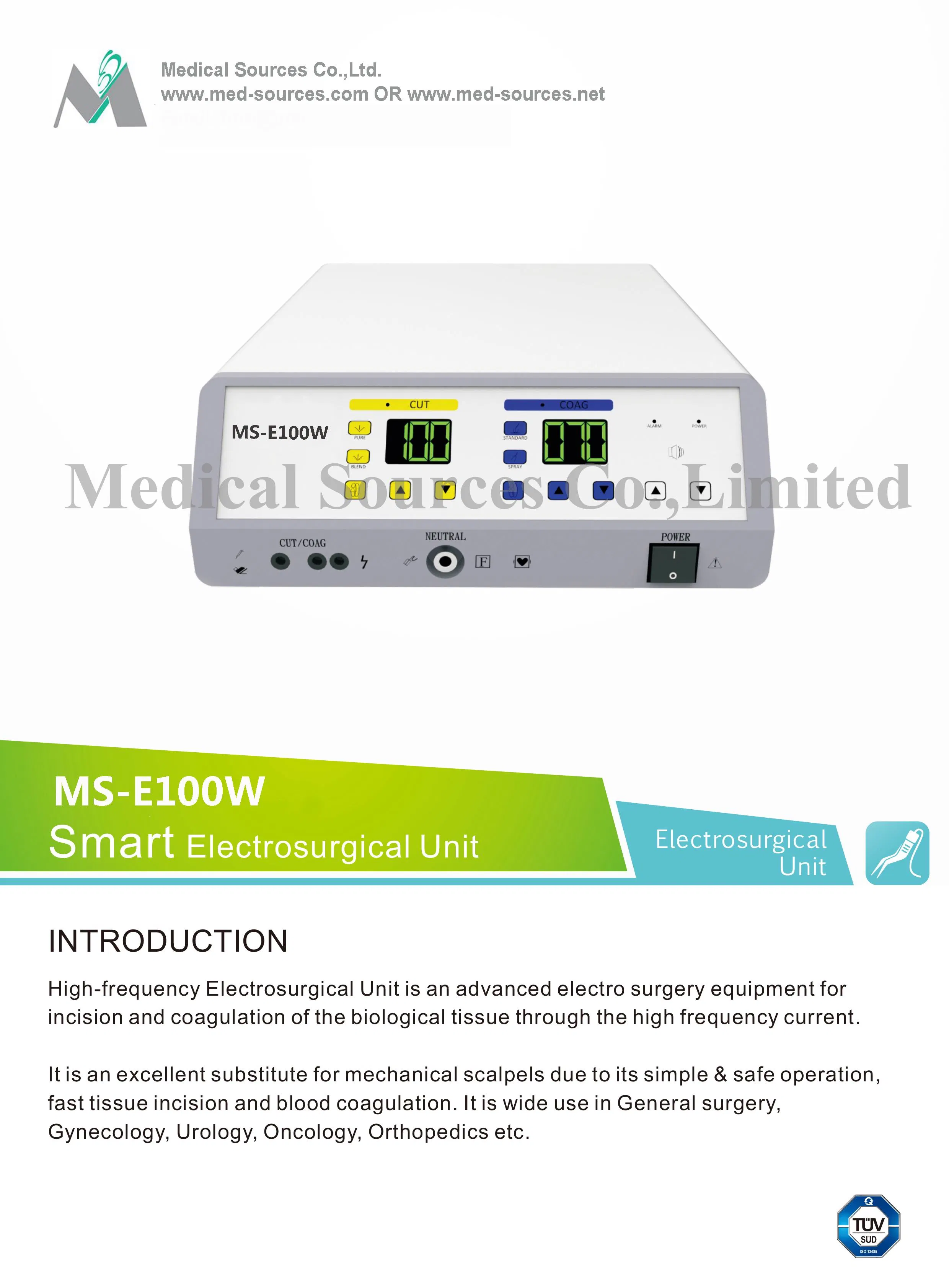

Electrosurgical Generator MS-E100W

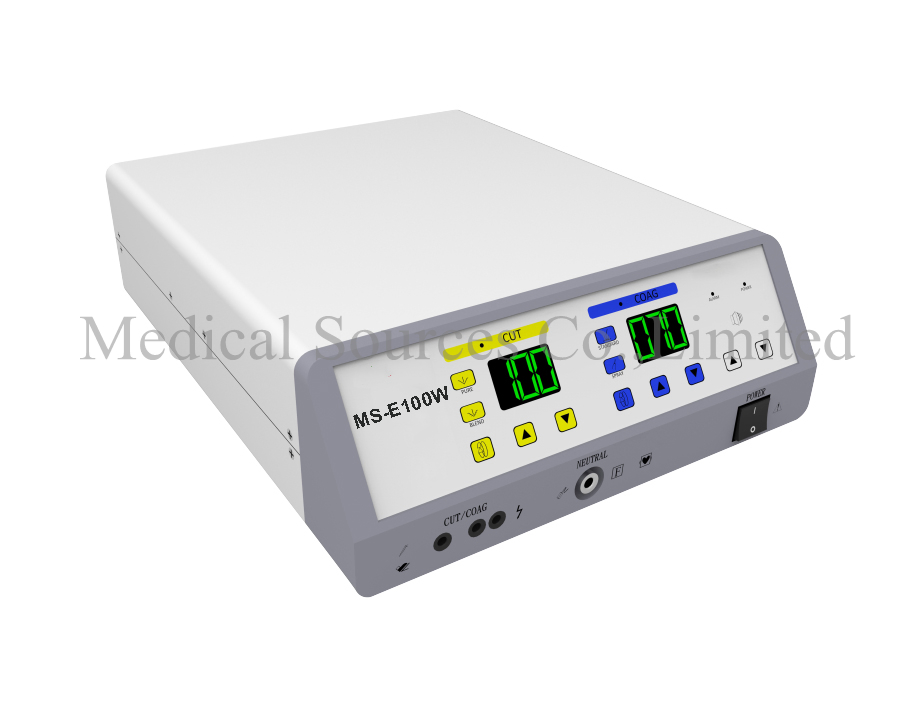

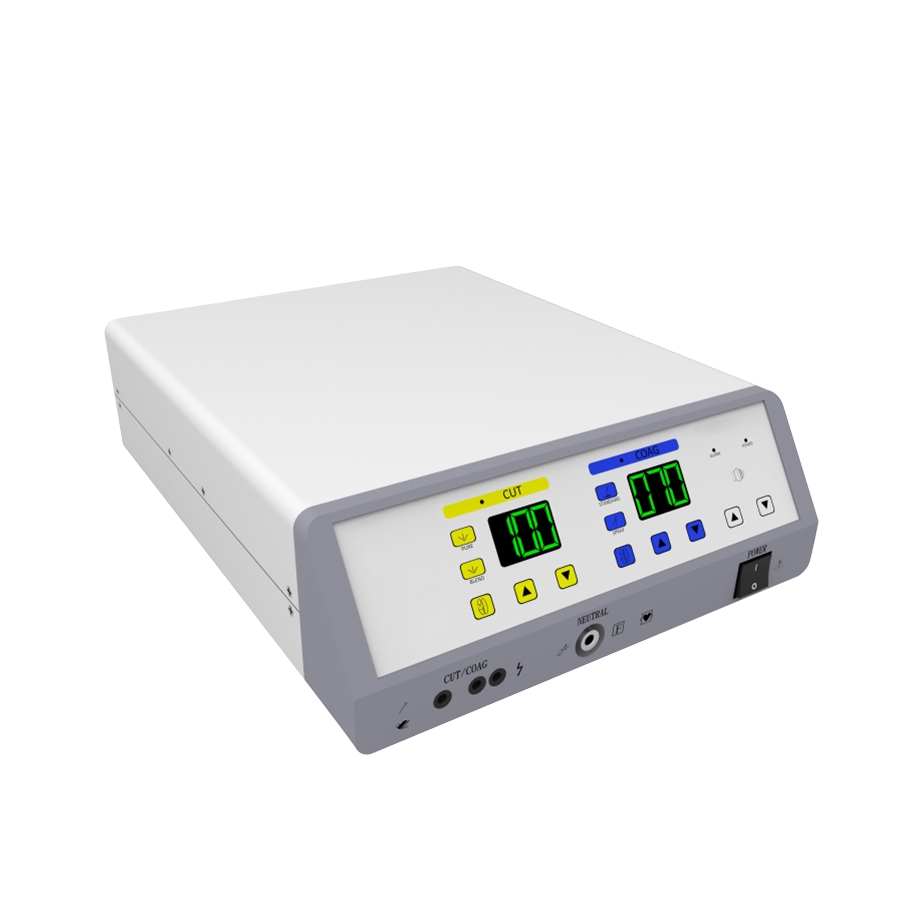

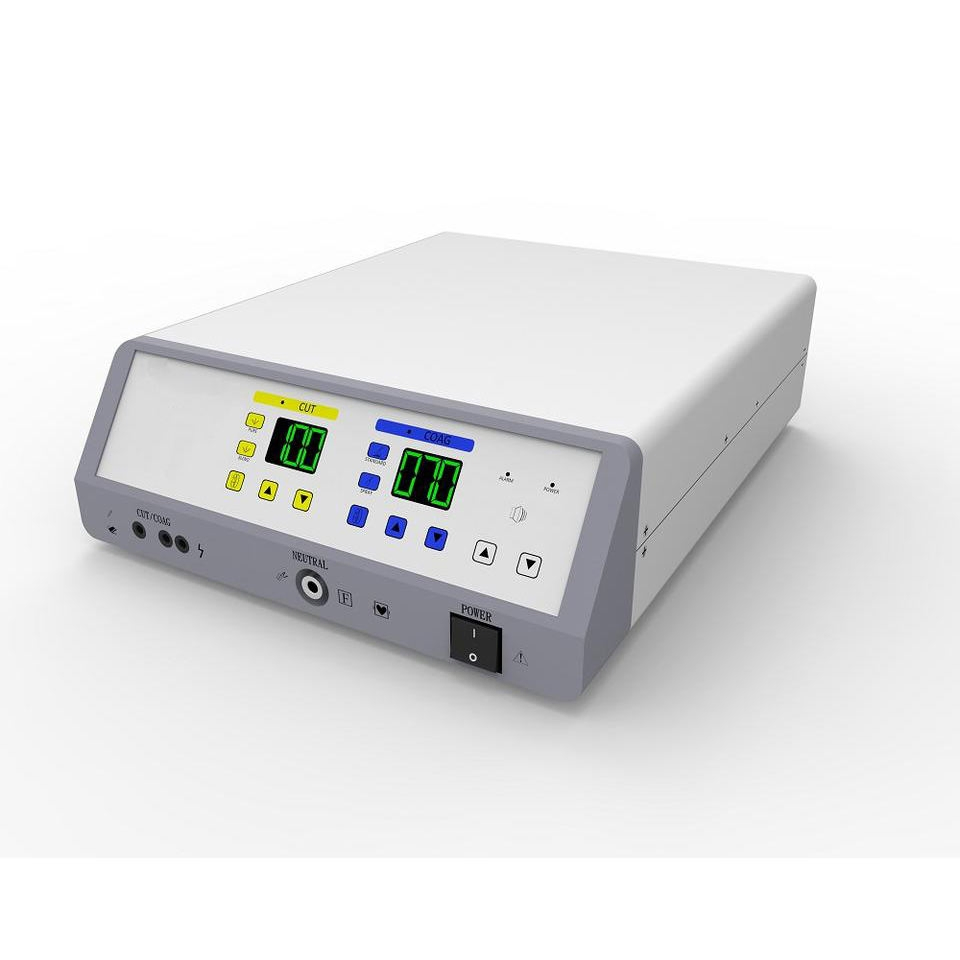

MS-E100W Detail 1 MS-E100W Detail 2

Main Features:

✓Excellent Monopolar Cautery machine with smart & light design.
✓Max 4 working modes: Pure Cut / Blend Cut / Standard Coag / Spray Coag.
✓Return electrode monitoring system to avoid any burns or damage to patients.
✓Clear working mode indications and easy power control interface.
✓5 seconds Auto Inspection after startup to ensure system integrity.
✓Minimal sticking & carbonization, significantly reducing surgery damage.
✓Different & Adjustable operation sounds to prevent misoperation.
✓OEM projects are welcome.

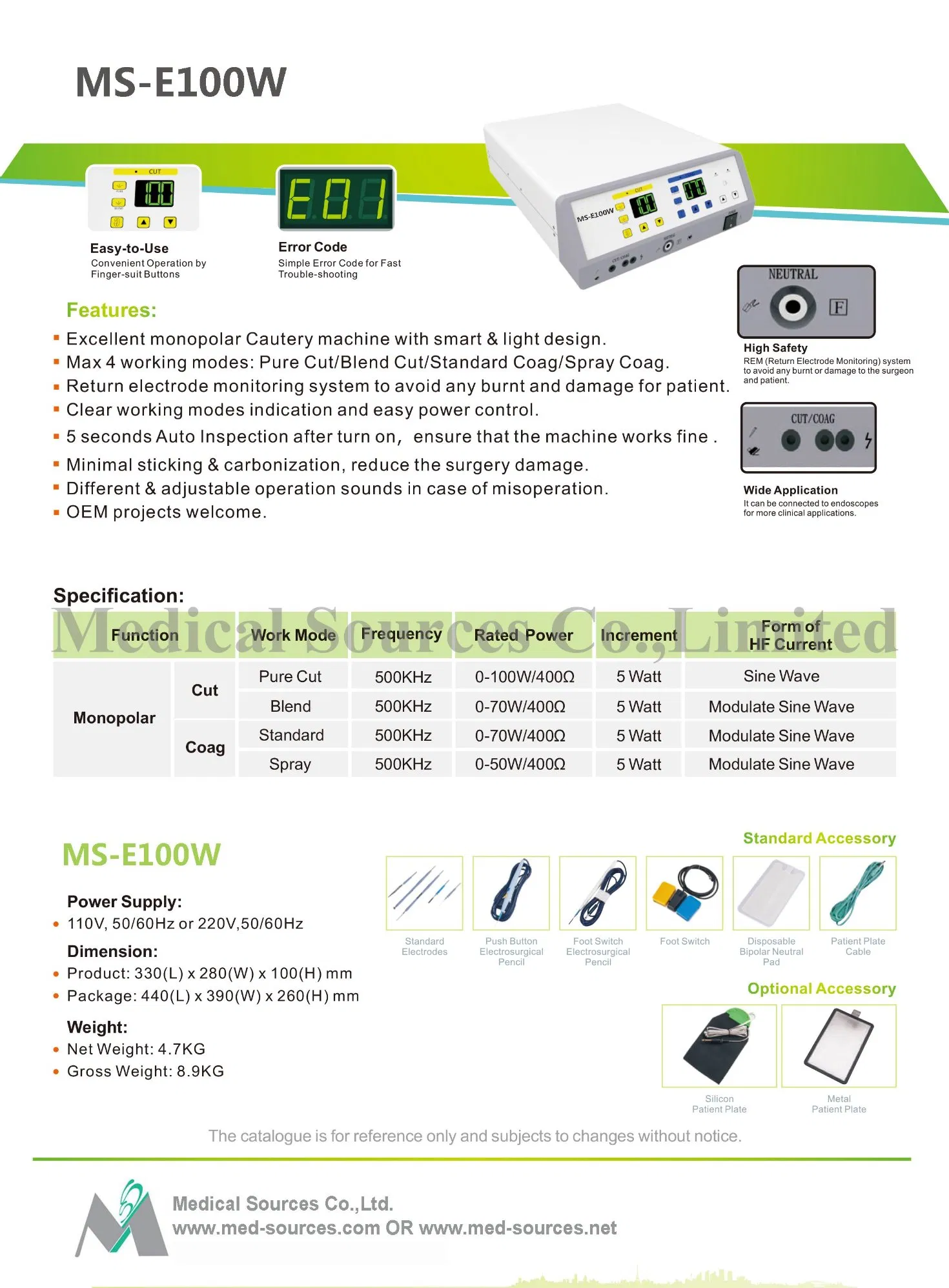

Technical Specification
Function Work Mode Frequency Rated Power Increment Form of HF Current
Monopolar Cut Pure Cut 500KHz 0-100W/400Ω 5 Watt Sine Wave
Monopolar Cut Blend 500KHz 0-70W/400Ω 5 Watt Modulate Sine Wave
Monopolar Coag Standard 500KHz 0-70W/400Ω 5 Watt Modulate Sine Wave
Monopolar Coag Spray 500KHz 0-50W/400Ω 5 Watt Modulate Sine Wave
Power Supply
110V, 50/60Hz or 220V, 50/60Hz
Product Size
330(L) * 280(W) * 100(H) mm
Package Size
440(L) * 390(W) * 260(H) mm
Frequently Asked Questions
What are the primary working modes of the MS-E100W?
The MS-E100W supports four main working modes: Pure Cut and Blend Cut for dissection, and Standard Coag and Spray Coag for hemostasis.
How does the device ensure patient safety during surgery?
It features a built-in return electrode monitoring system that continuously tracks contact quality to prevent accidental burns. Additionally, it performs a 5-second automatic inspection upon startup.
Is the power output adjustable for different procedures?
Yes, the power can be adjusted in 5-watt increments, allowing for precise control depending on the specific surgical requirements and tissue types.
Does the MS-E100W reduce tissue damage?
Yes, the device is designed for minimal sticking and carbonization, which helps in reducing surgical trauma and promoting faster healing.
What power supply is required for this electrosurgical unit?
The unit is compatible with both 110V and 220V power supplies at 50/60Hz, making it suitable for international use.
What is the weight and portability of the unit?
The device has a net weight of approximately 4.7 kg and a compact design (330x280x100mm), making it highly portable and suitable for various clinical environments.
