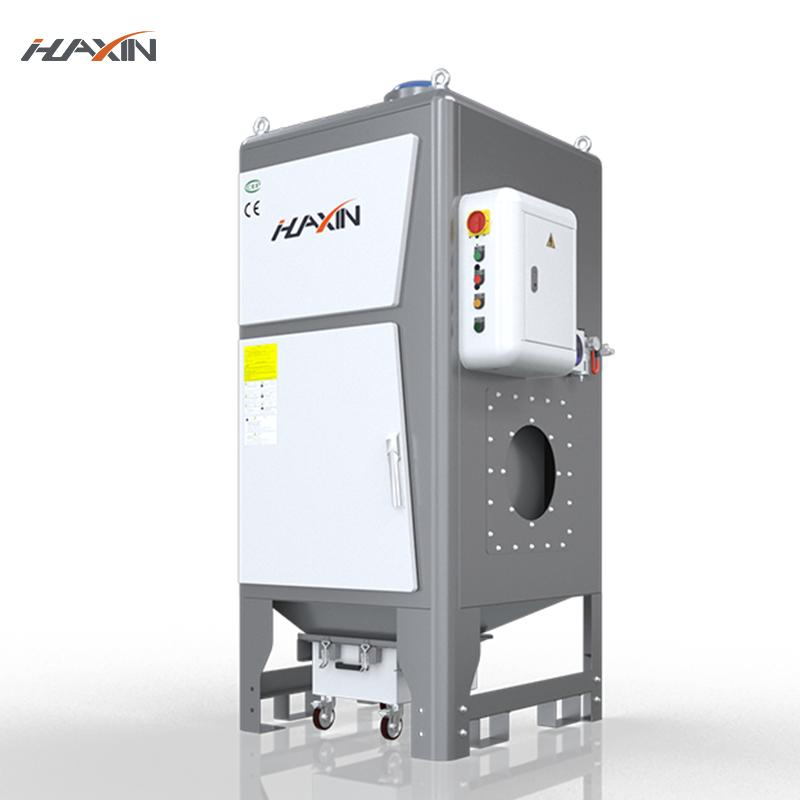

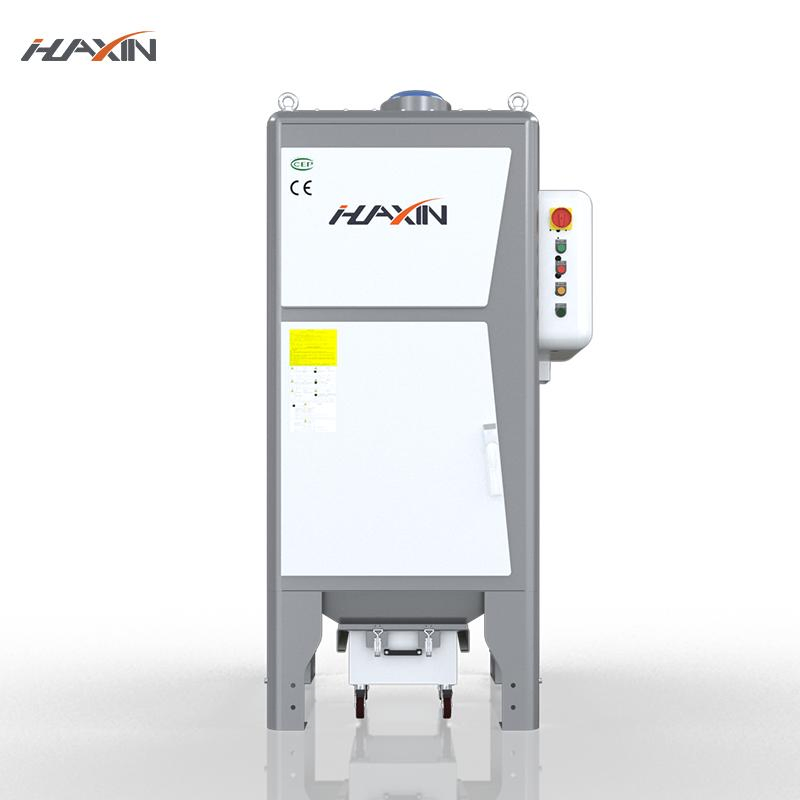

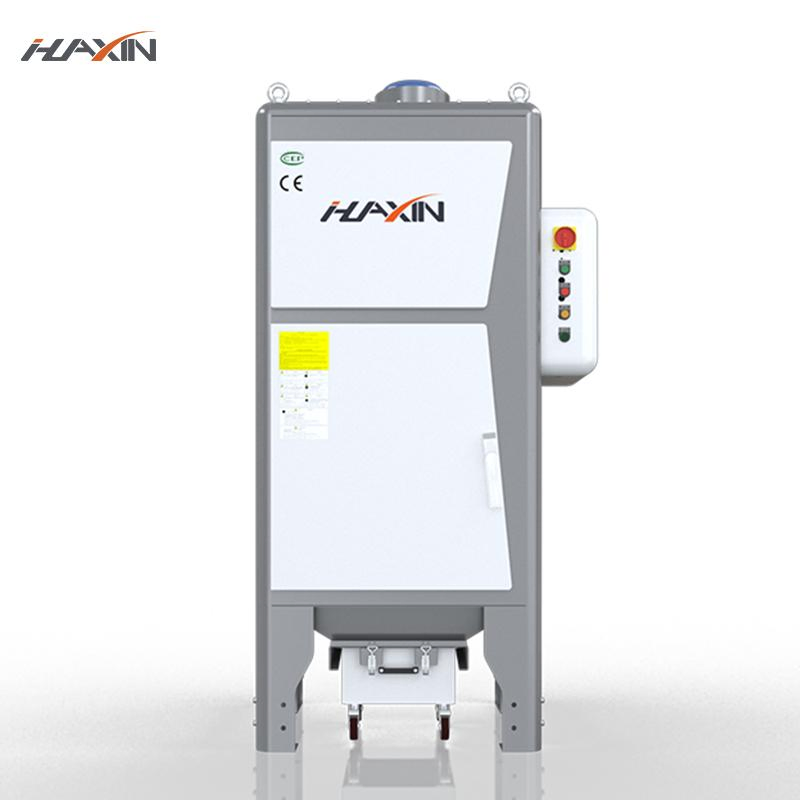

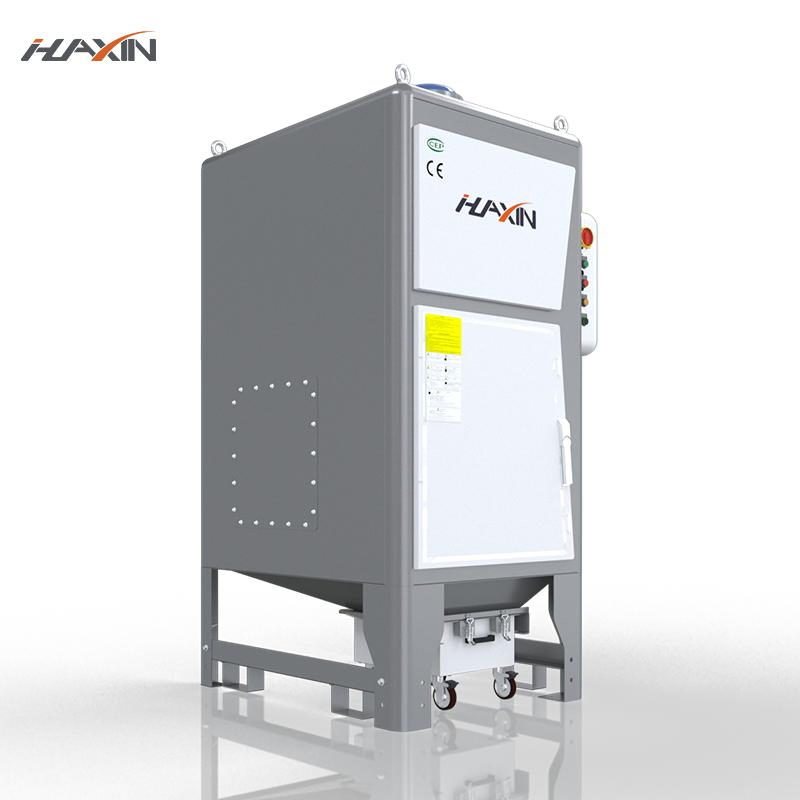

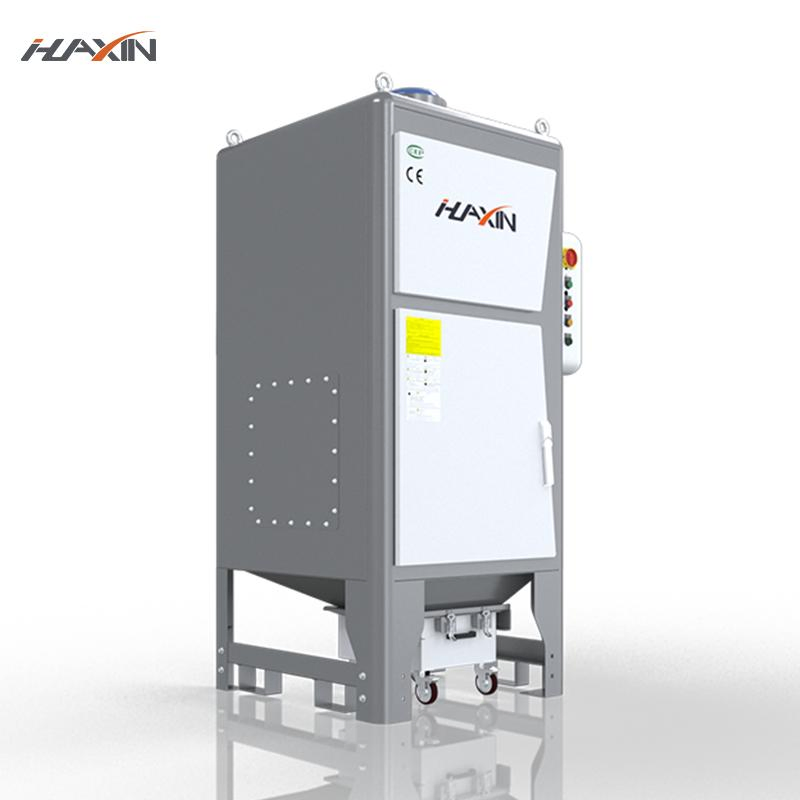

Huaxin Xf Filter Cartridge Dust Collector System

1 / 5

Huaxin Xf Filter Cartridge Dust Collector System

Customization:	Available
Material:	PTFE
Medium Material:	Synthetic Fiber

Send Inquiry

Product Description

Basic Information

Model NO.

Cartridge Filter

Non-Woven Polyester Fiber

Filter Type

Filter Bag Filter

Type

Welding Fume Extractor

Usage

Dust Filter, Air Filter

Filtration Grade

HEPA Filter

Filtration Accuracy

99.99%

Mini Particle Size

0.3um

Power

5.5-30kw

Voltage

380V

Cleaning Way

Full-Automatically Cleaning

Filtration Area

144m2

★

Product Description & Features

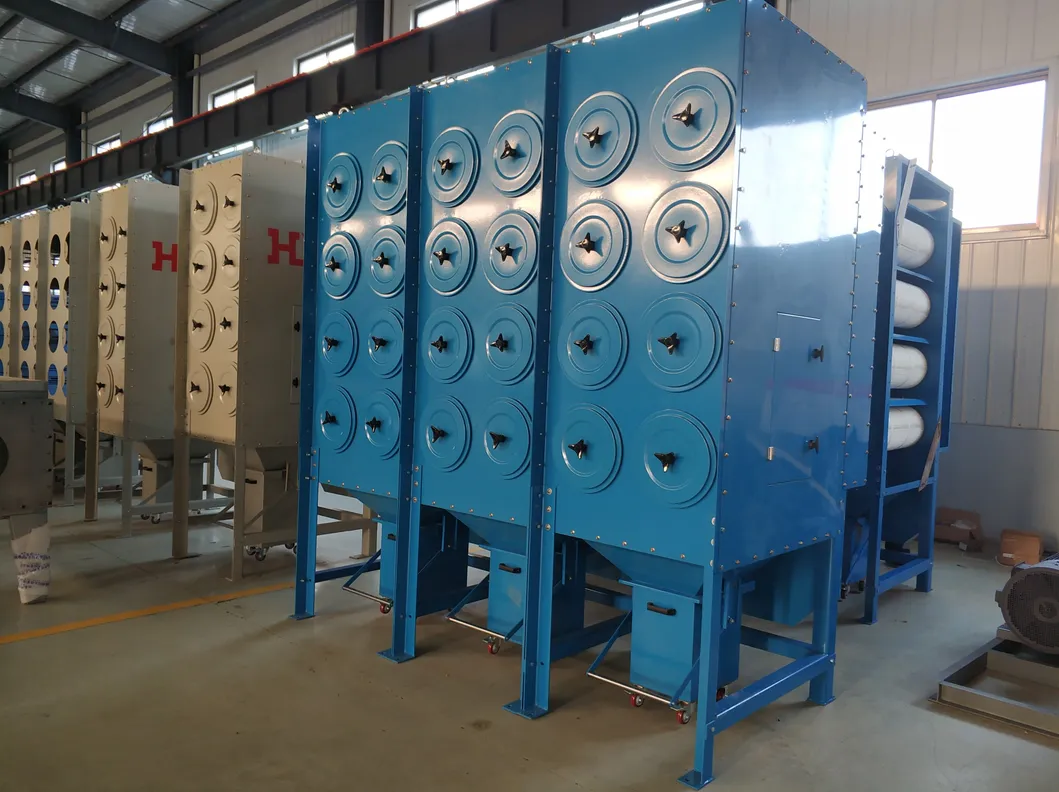

Our welding fume extractor and dust collector series are designed for large air flow requirements. These systems are ideal for integration into production lines where high-volume motor measurements are necessary. The split-type design ensures efficiency and ease of maintenance.

ApplicationsWelding Fumes, Grinding Dusts, Dry Dusts, Soldering Dusts, Powders.

Performance1000~50000m³/h Airflow, Spark Trap, Auto-Pulse Clean.

SafetyMulti-stage resistance fire device installed inside for maximum security.

Noise ControlFan isolation sound box and sound eliminator for minimized noise levels.

Model	Airflow (m³/h)	Power (kW)	Voltage	Filter Area (m²)	Precision	Noise dB(A)	Size (mm)
HXYD-ZD18	1800	1.1	380V/50Hz	15	99.99%	68	6506701260
HXYD-ZD30	3000	2.2	380V/50Hz	20	99.99%	72	6506701260
HXYD-ZD50	5000	5.5	380V/50Hz	40	99.99%	85	8509361700
Downdraft Table	2000	2.2	380V/50Hz	20	99.00%	74	100011001560
JG04-JG12	6000	7.5	380V/50Hz	140	99.50%	83	110614302267

Frequently Asked Questions

What types of dust can this system capture?

The system is designed to effectively capture welding fumes, grinding dust, dry dust, soldering dust, and various industrial powders.

How efficient is the filtration system?

It utilizes HEPA grade filtration with an accuracy of 99.99% for particles as small as 0.3um, ensuring a clean and safe working environment.

Does the machine require manual cleaning?

Most models feature a full-automatically pulse jet cleaning system, which maintains filter efficiency without manual intervention.

What are the available suction arm options?

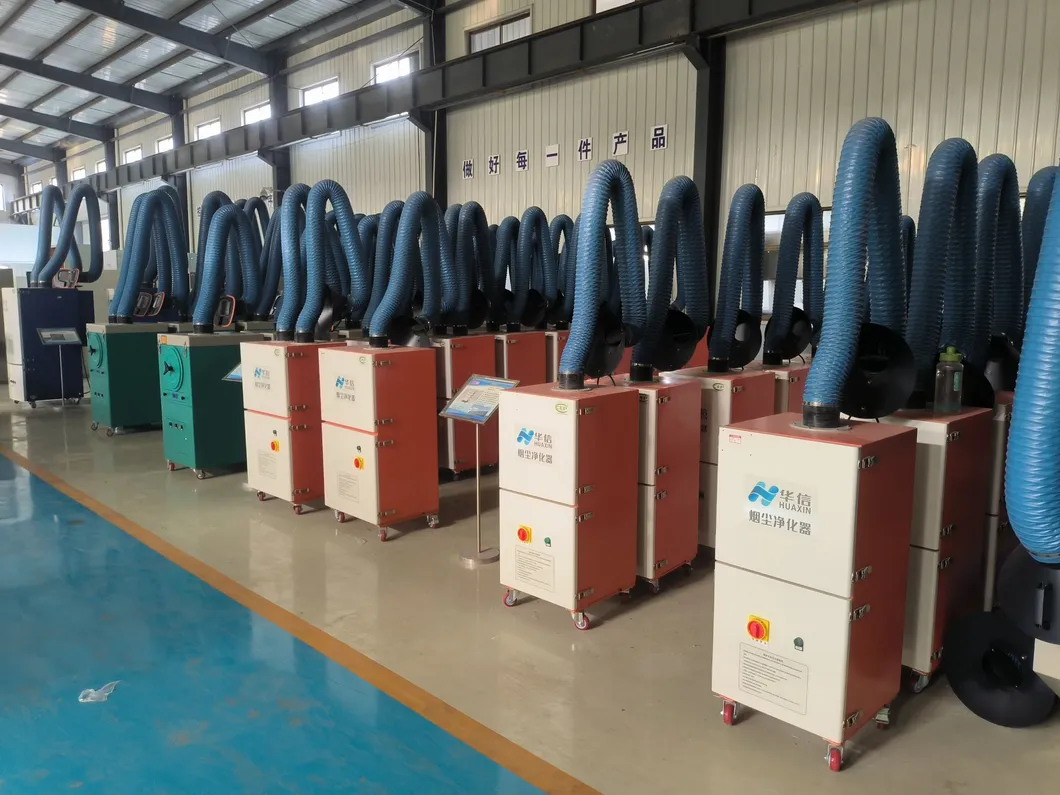

We offer suction arms with a standard diameter of 160mm and lengths ranging from 2m to 3m, available in single (ZD/JD) or double (ZS/JS) configurations.

Is the equipment noisy during operation?

No, the system is equipped with a fan isolation sound box and sound eliminators to minimize noise, typically ranging between 68 and 85 dB(A) depending on the model.

Can it be used for laser cutting machines?

Yes, we have specific models (JG series) designed specifically for the high-volume dust and fume extraction required by laser cutting machines.
