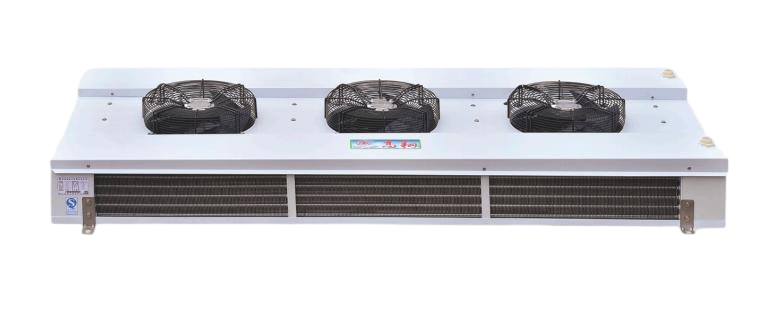

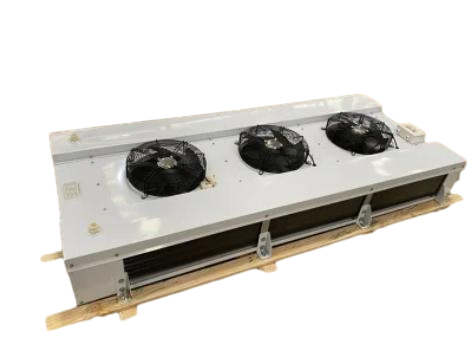

High-Efficiency Air Cooling Refrigeration System for Optimal Performance

Customization: Available
After-sales Service: Available
Warranty: Available

Product Description

Basic Info.

Model NO.
Dual Discharge Air-Cooler GD311E4
Type
Chiller
Air Tube Material
Galvanized Sheet
Corrosion Durability
Ultrahigh
Operating Voltage
380/400 VAC
Noise Level
Ordinary
Application Fields
Mechanical Engineering
Mounting
Ceiling Mount
Lifetime
10~15 years
Certification
ISO, CE, CCC
Condition
New
Fin Surface
Aluminum, Copper, Stainless Steel
Origin
China
Production Capacity
50000 PC / Year

Product Description

Dual discharge air-cooler is a specialized storage cooling equipment designed for food operating and processing workshops. The design allows air to exit in two directions, providing a soft and consistent air supply. It is ideally suited for cold storage environments maintained at approximately 8ºC. For room temperatures below 8ºC, the installation of a defrosting heater is required to ensure optimal performance.

Product Feature

  • Durable Shell: Constructed from high-quality steel plate with a sprayed plastic surface that is anti-corrosive and aesthetically pleasing.
  • Efficient Heat Exchange: Coiled pipes utilize mechanical expanding tubes in a staggered arrangement, ensuring tight integration between copper tubes and aluminum sheets.
  • Low Noise Operation: Equipped with an external rotor motor that facilitates bilateral air blowing and soft air supply while maintaining low noise levels.
  • Customization: Tailored solutions are available for special-purpose requirements through our technical service departments.

Technical Parameters

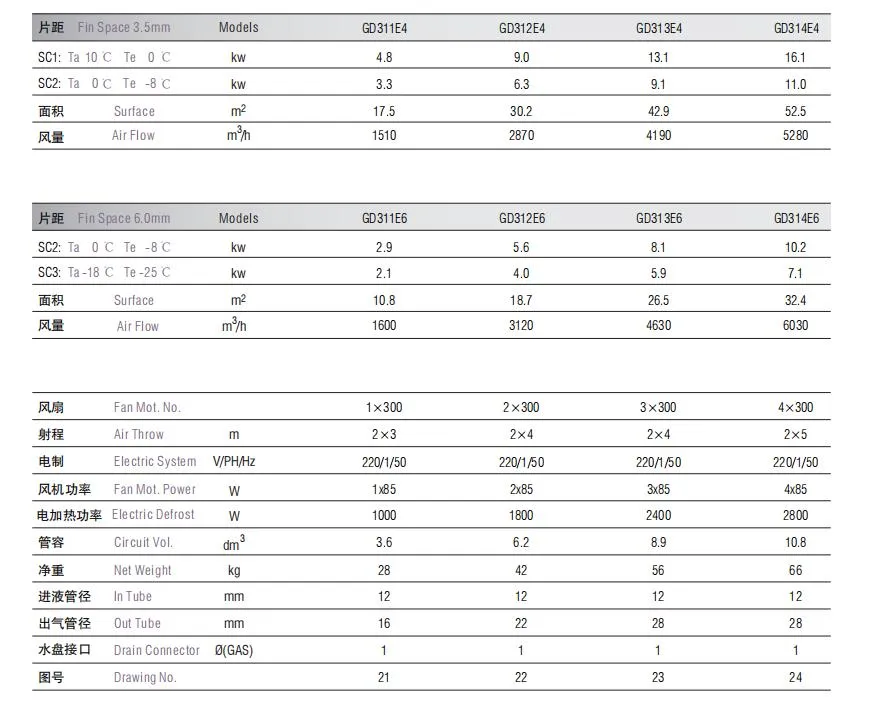

Technical Parameters Data Sheet

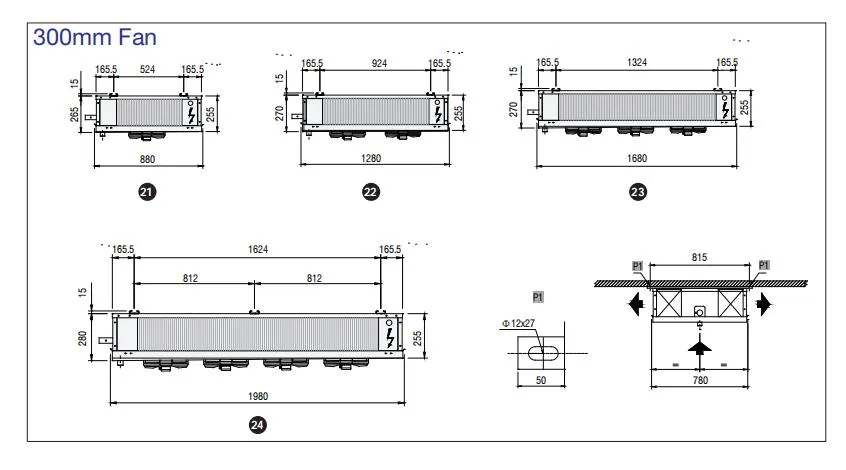

Technical Specifications Diagram

Company Profile

Our enterprise is strategically situated in a pivotal hub of cold chain logistics. We are a premier refrigeration enterprise, seamlessly integrating R&D, production, and sales. With cutting-edge processing equipment and highly skilled technical personnel, we guarantee superior products and services.
The main product line encompasses highly efficient evaporative condensers, robust air coolers, advanced quick-freezing plates, and spacious quick-freezing warehouses. These innovations are extensively applied in sectors such as aquatic products, medicinal materials, meat and poultry, and health products. Our products are exported to Southeast Asia, the Middle East, Europe, Africa, and America, valued by a global clientele.

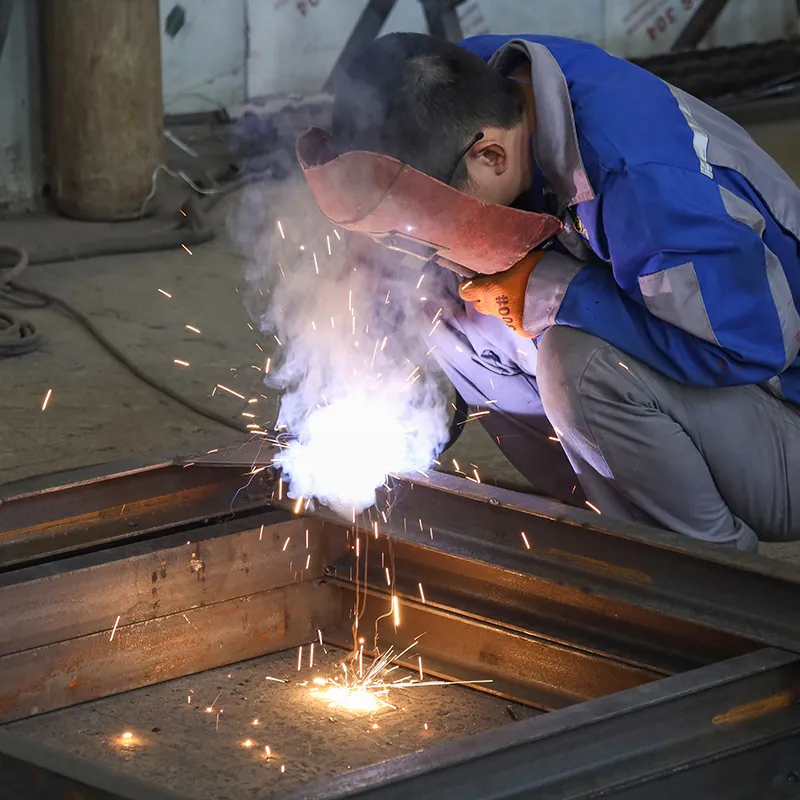

Factory Workshop 1

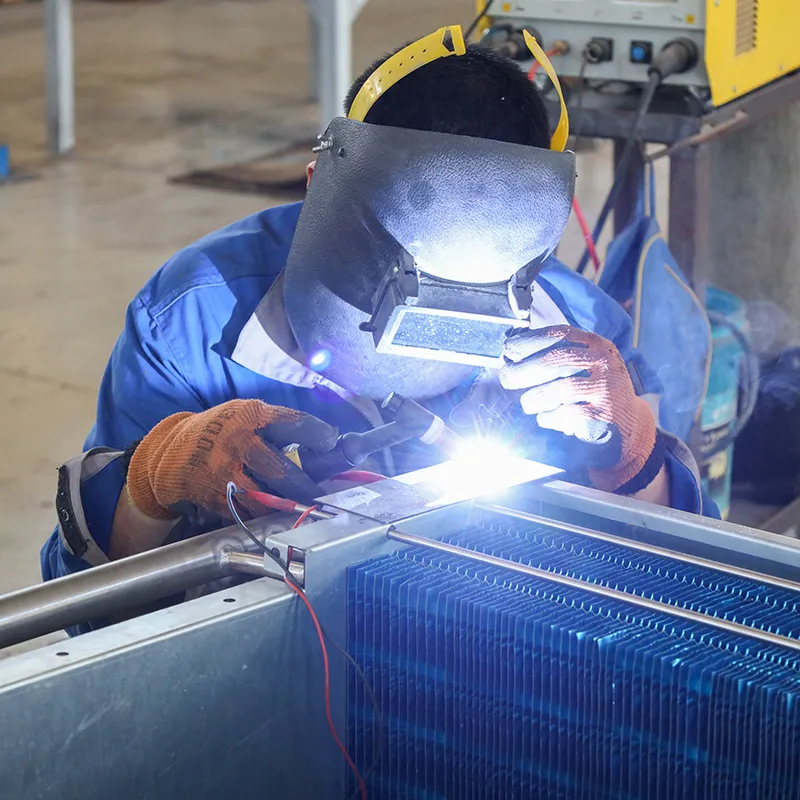

Factory Workshop 2

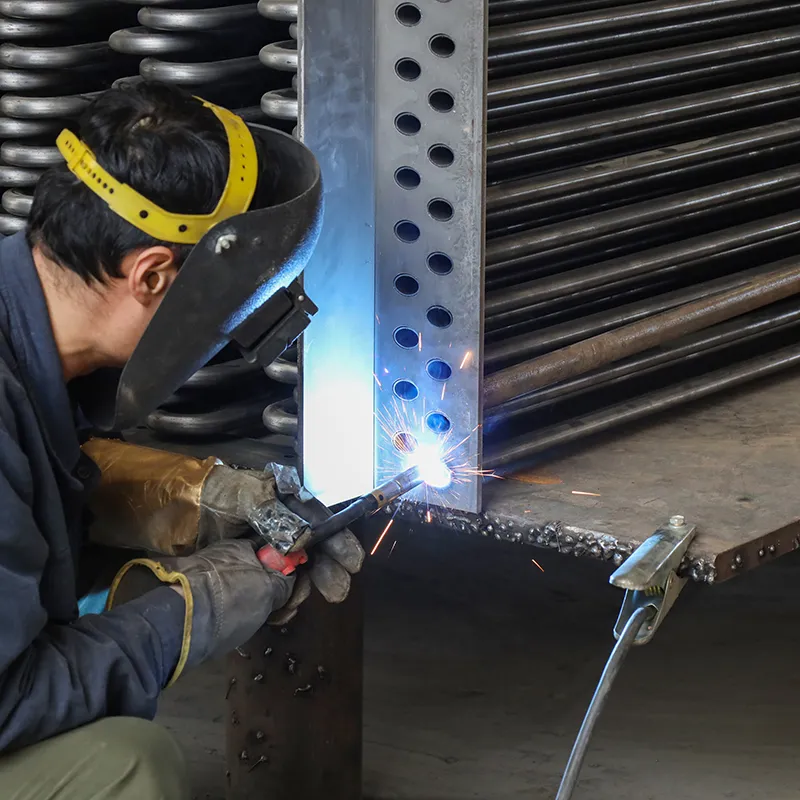

Factory Workshop 3

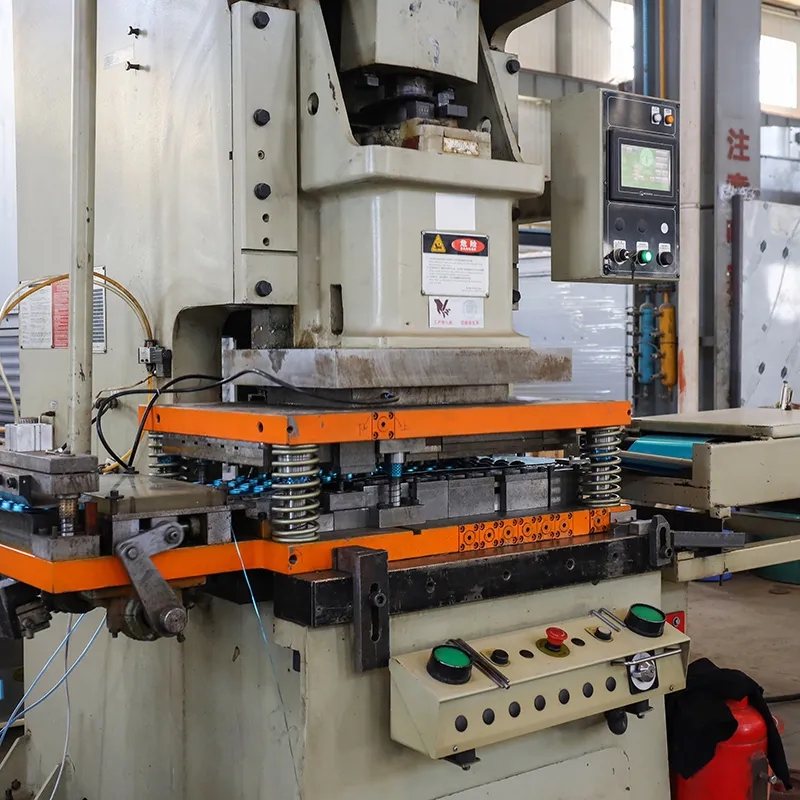

Equipment Display 1

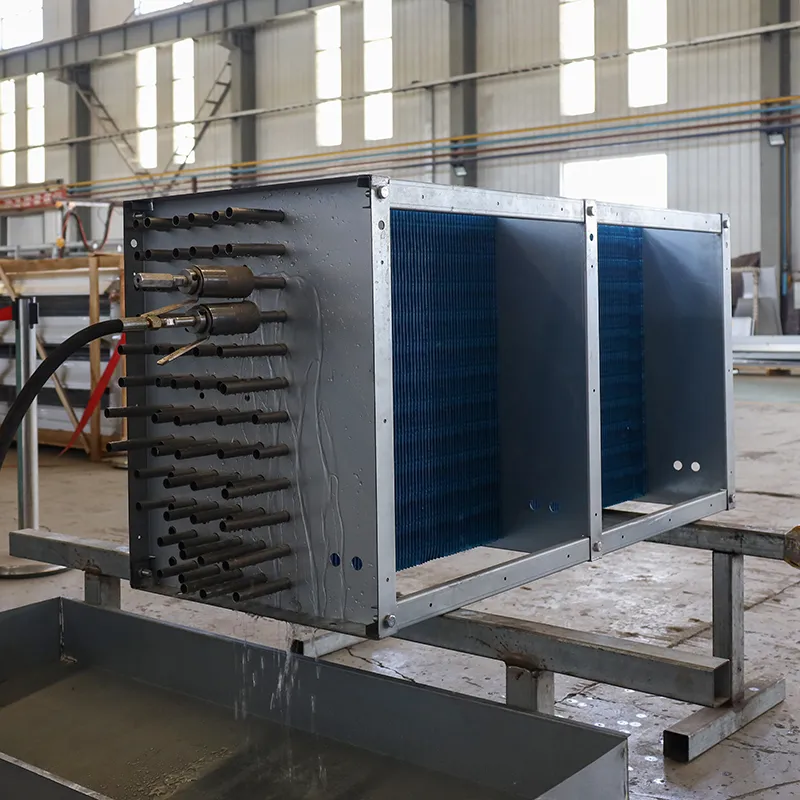

Equipment Display 2

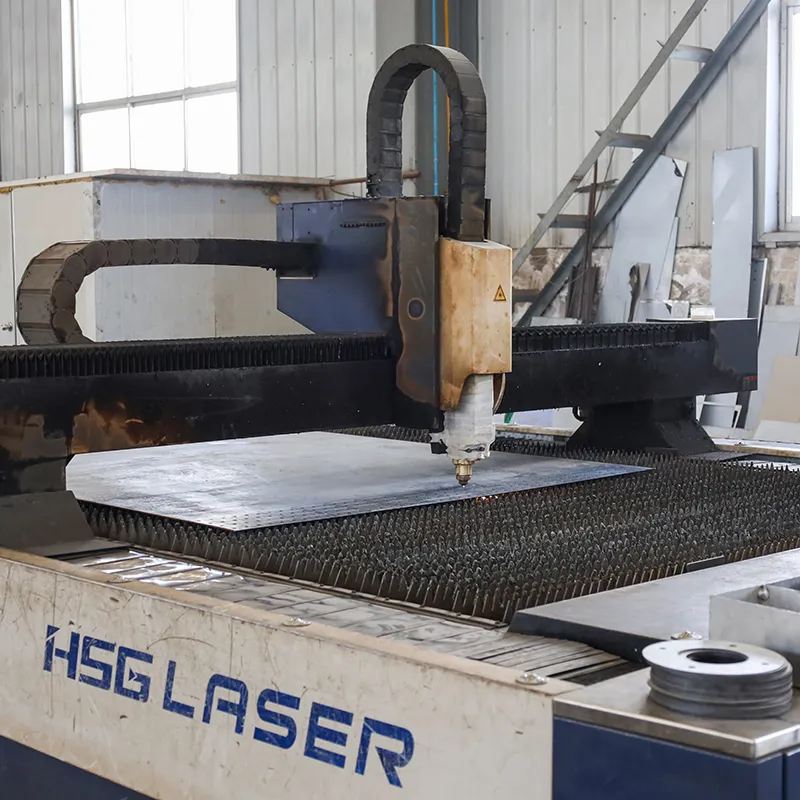

Equipment Display 3

Frequently Asked Questions

Are you a factory or a trading company?
We operate our own state-of-the-art factory, ensuring the highest standards of quality, control, and innovation throughout the manufacturing process.
Is a sample available for testing?
Yes, samples are available upon request. Please note that the associated costs for the sample and shipping will be borne by the customer.
How can I place an order and what details are needed?
Kindly provide the medium temperature (-40~+40ºC), materials for the air duct and bracket, protective grade requirements, and specific voltage/frequency. Also, confirm the impeller blowing direction (front or back blowing).
What transportation methods do you support?
We utilize all major shipping methods including express, air, and sea freight. You may use your preferred shipping company or our reliable forwarders with full cargo tracking.
What kind of after-sales service do you provide?
We provide exceptional after-sales support. Our dedicated technical team is available to address any concerns and ensure the seamless operation of our refrigeration products.
What is the typical lifespan of the air cooler?
With proper maintenance and standard operating conditions, our air coolers are designed for a durable service life of 10 to 15 years.
