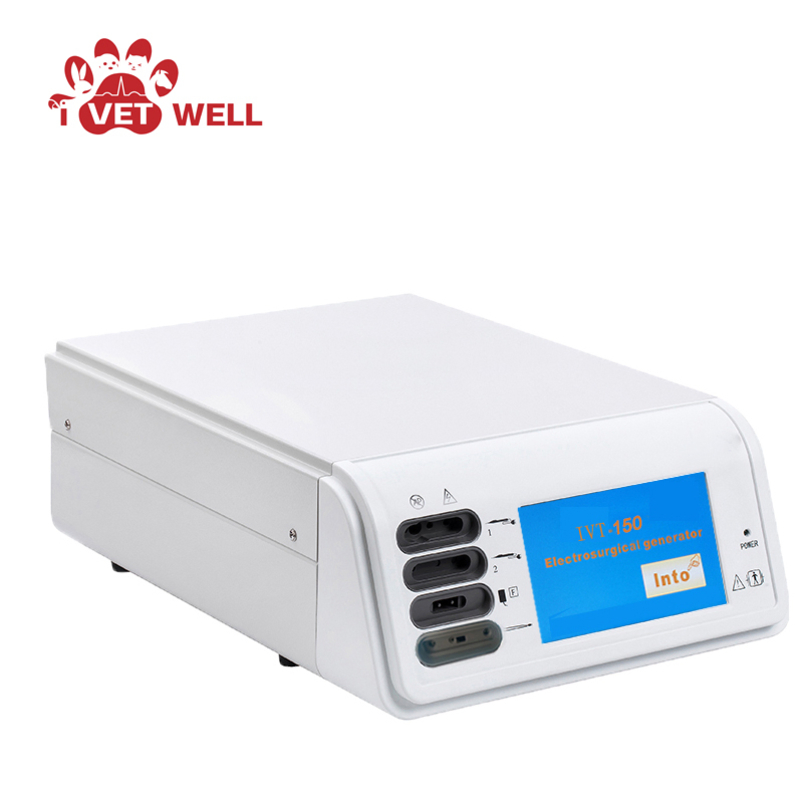

Professional Electrosurgical Generator High Frequency Electrosurgery Esu Veterinary Electrosurgical Unit

Still deciding? Get samples of $ !
Order Sample

Product Description

Electrosurgical Generator Banner
Basic Specifications
Model NO.IVT-HV150
ColorWhite
Weight6kg / 8kg
Working Frequency512kHz
Power Supply100-240V; 50-60Hz
ParametersMonopolar, Bipolar, Ligasure
Dimensions34cm x 47cm x 17cm
OriginChina
Product Description

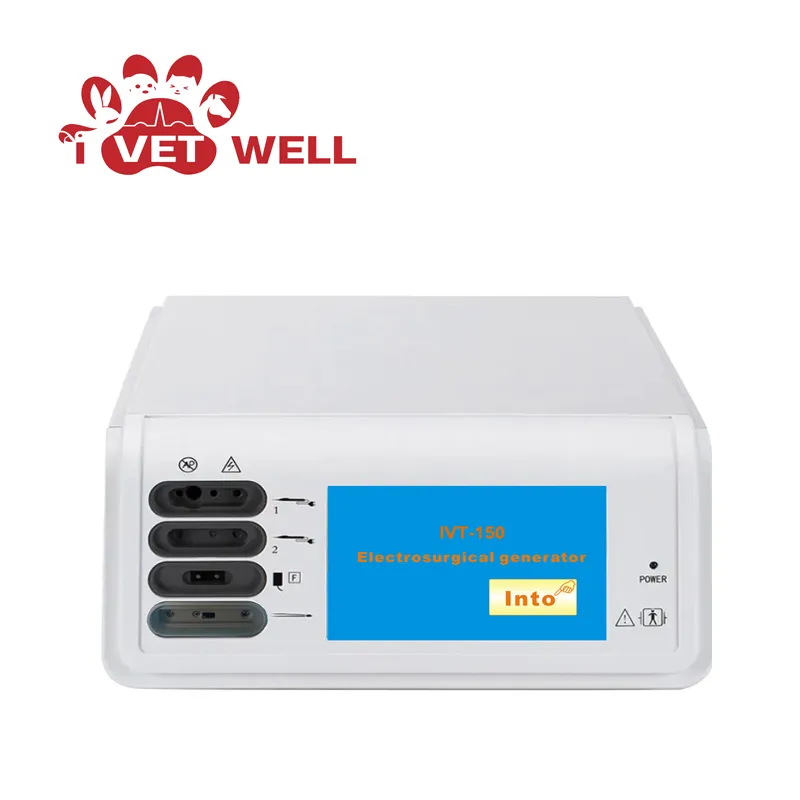

Product Overview
1
Intelligent Device Design
Intuitive design and user-friendly set-up for modern operating rooms. Features a 7-inch TFT LCD touch screen with sharp image quality for easy access to all functions.
2
REM (Return Electrode Monitoring)
Continually monitors patient impedance levels and deactivates the generator if a fault is detected, minimizing the danger of burning incidents.
3
Real-time Monitoring System
Samples current and voltage 450,000 times per second to respond to tissue impedance changes in less than 10 milliseconds, ensuring optimum energy output.

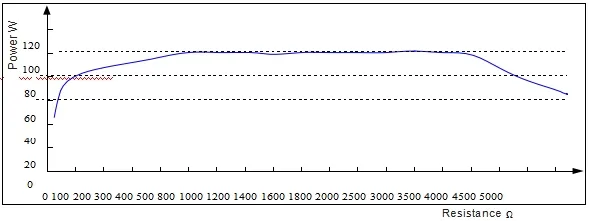

Ligasure Technology
4
Ligasure Vessel Sealing
Enables permanent sealing of blood vessels with a diameter up to 7mm under bipolar coagulation technology.
Technical Parameters
Working Mode Sub-Mode Max Output Power Rated Load
Monopolar Cut Pure Cut 150 W 500 Ω
Blend Cut I 120 W 500 Ω
Blend Cut II 100 W 500 Ω
Monopolar Coagulation Fulgurate Coagulation 120 W 500 Ω
Spray Coagulation 100 W 500 Ω
Bipolar Coagulation Standard Coagulation 80 W 100 Ω
Ligasure Vessel Sealing 150 W 25 Ω
Standard Accessories
ESU Pencils
Disposable ESU Pencils
ESU Plate
Disposable ESU Plate
Plate Cable
Reusable Plate Cable
Footswitch
Two Button Footswitch
Bipolar Forceps
Bipolar Forceps
Forceps Cable
Bipolar Forceps Cable
Compatible Instruments

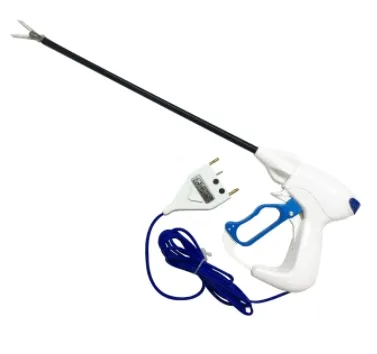

Maryland Instrument

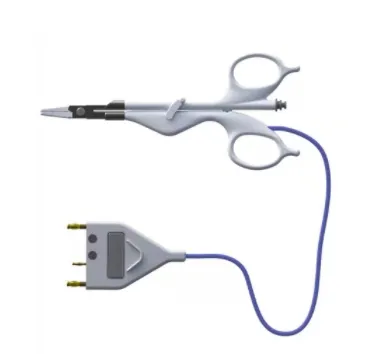

Atlas Instrument
Maryland: 23cm/5mm, 37cm/5mm, 44cm/5mm Altas: 37cm/10mm, 20cm/5mm, 37cm/5mm
Small Jaw: 19cm/16.5mm
Service & Advantage
Service Overview
Sourcing & Customization: Support for OEM/ODM including logo printing and function adjustments.
Quality Control: 3 rounds of inspection (Raw material, Production sampling, Pre-shipment).
Logistics: Partnered with top forwarders for door-to-door service and customs handling.
After-Sales: 24/7 online service and spare parts storage for fast delivery.
Corporate Advantage
Certifications & Packaging
Certifications
Packaging
Frequently Asked Questions
1. What surgical modes does the IVT-HV150 support? The unit supports Monopolar Cut (Pure, Blend I, Blend II), Monopolar Coagulation (Fulgurate, Spray), Bipolar Coagulation, and Ligasure Vessel Sealing.
2. How does the REM system ensure patient safety? The Return Electrode Monitoring (REM) system continually tracks patient impedance and automatically deactivates the generator if a contact fault is detected to prevent burns.
3. Can this generator seal large blood vessels? Yes, the integrated Ligasure technology allows for permanent sealing of blood vessels up to 7mm in diameter using specialized bipolar coagulation.
4. What is the response time to tissue density changes? The device samples current and voltage 450,000 times per second, allowing it to respond to tissue impedance changes in less than 10 milliseconds.
5. What certifications are provided with the equipment? We provide CE certification, ISO 9001 quality system certification, and factory inspection reports for all units.
6. Is the device compatible with international power standards? Yes, the power supply is designed to work with 100-240V at 50-60Hz, making it suitable for global use.
